NSN 5935-00-104-8497 DPX2C2CP57P34B19, DPX2C2CP57P34B1903, 3705405010
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-104-8497 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: DPX2C2CP57P34B19, DPX2C2CP57P34B1903, 3705405010, 370-5405-010, 5935-00-104-8497, 00-104-8497, 5935001048497, 001048497
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 JUN 1968 | 00-104-8497 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-104-8497
Demand History | NSN 5935-00-104-8497
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-104-8497 | 2011-06-155 | 2 | DIBBS |
Cross Reference | NSN 5935-00-104-8497
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 370-5405-010 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 370-5405-010 | 81205 | THE BOEING COMPANY DBA BOEING |
| 370-5405-010 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| DPX2C2CP57P34B19 | 71468 | ITT CORPORATION DBA I T T CANNON |
| DPX2C2CP57P34B1903 | 71468 | ITT CORPORATION DBA I T T CANNON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-104-8497
Technical Data | NSN 5935-00-104-8497
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 19G STRAIGHT SHAPE, FLUSH MOUNT |
| OVERALL LENGTH | 1.046 INCHES MINIMUM AND 1.076 INCHES MAXIMUM |
| OVERALL HEIGHT | 3.060 INCHES MINIMUM AND 3.090 INCHES MAXIMUM |
| OVERALL WIDTH | 1.985 INCHES MINIMUM AND 2.015 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 2.783 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 1.437 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.060 INCHES NOMINAL |
| CONNECTOR CABLE STRAIN RELIEF METHOD | COMPRESSION NUT |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE |
| POLARIZATION METHOD | 1 POLARIZATION POST |
| MATING END QUANTITY | 2 |

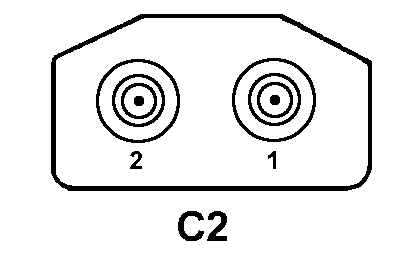

| CONTACT POSITION ARRANGEMENT STYLE | ACCA C2 1ST MATING END CLAC 57 2ND MATING END |
| INSERT MATERIAL | PLASTIC MELAMINE SINGLE MATING END |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14,TYPE MME MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END |
| CONTACT REMOVABILITY | NONREMOVABLE ALL MATING ENDS ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 5.0 2ND MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 500.0 ALL MATING ENDS ALL CONTACT GROUPINGS |
| RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS | 50.0 1ST MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM FREQUENCY RATING | 4500.0 MEGAHERTZ 1ST MATING END ALL CONTACT GROUPINGS |
| CONTACT MATERIAL | COPPER ALLOY 1ST MATING END ALL CONTACT GROUPINGS COPPER ALLOY 2ND MATING END ALL CONTACT GROUPINGS |
| CONTACT MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-626,COMP 22 FED SPEC SINGLE MATERIAL RESPONSE 1ST MATING END ALL CONTACT GROUPINGS |
| CONTACT SURFACE TREATMENT | GOLD AND SILVER ALL MATING ENDS ALL CONTACT GROUPINGS |
| TERMINAL TYPE | SOLDER WELL ALL MATING ENDS ALL CONTACT GROUPINGS |
| TERMINAL LOCATION | BACK ALL MATING ENDS ALL CONTACT GROUPINGS |
| ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT AND SALT WATER RESISTANT AND VIBRATION RESISTANT |
| SPECIAL FEATURES | POLARIZING KEY 4-4-2 |
| III PRECIOUS MATERIAL | GOLD AND SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.067 GOLD GRAINS, TROY AND 0.067 SILVER GRAINS, TROY |
Restrictions/Controls & Freight Information | NSN 5935-00-104-8497
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-104-8497
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
