Product Details | ELECTRICAL RECEPTACLE CONNECTOR

5935-00-050-1866 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: CA3100A10SL20014PC22, CA3100A10SL2001-4PC22, 5935-00-050-1866, 00-050-1866, 5935000501866, 000501866

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG) NSN Assign. NIIN
59 01 JAN 1961 00-050-1866

Drawings & Photos | NSN 5935-00-050-1866


Demand History | NSN 5935-00-050-1866

Part Number Request Date QTY Origin
5935-00-050-1866 2019-10-277 1 US
5935-00-050-1866 2019-09-266 20 US

Cross Reference | NSN 5935-00-050-1866

Part Number Cage Code Manufacturer
CA3100A10SL2001-4PC22 71468 ITT CORPORATION DBA I T T CANNON

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5935-00-050-1866

Technical Data | NSN 5935-00-050-1866

Characteristic Specifications
BODY STYLE 3G STRAIGHT SHAPE, EXTERNAL COUPLING
OVERALL LENGTH 1.405 INCHES MAXIMUM
OVERALL HEIGHT 1.031 INCHES MAXIMUM
OVERALL WIDTH 1.031 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT 0.714 INCHES MINIMUM AND 0.724 INCHES MAXIMUM
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH 0.714 INCHES MINIMUM AND 0.724 INCHES MAXIMUM
DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE 0.562 INCHES MINIMUM AND 0.593 INCHES MAXIMUM
UNTHREADED MOUNTING HOLE DIAMETER 0.115 INCHES MINIMUM AND 0.130 INCHES MAXIMUM
CONNECTOR LOCKING METHOD EXTERNALLY THREADED SHELL
THREADED DEVICE TYPE BACK SHELL AND COUPLING FACILITY
THREAD SERIES DESIGNATOR UNEF AND UNEF
NOMINAL THREAD SIZE 0.625 INCHES AND 0.625 INCHES
THREAD CLASS 2A AND 2A
THREAD DIRECTION RIGHT-HAND AND RIGHT-HAND
NOMINAL THREAD LENGTH 0.375 INCHES AND 0.375 INCHES
SHELL TYPE SOLID
SHELL MATERIAL ALUMINUM ALLOY
SHELL SURFACE TREATMENT CADMIUM AND CHROMIUM
POLARIZATION METHOD KEYWAY OR MULTIPLE KEYWAY
INSERT POSITION IN DEG 0.0
MATING END QUANTITY 1

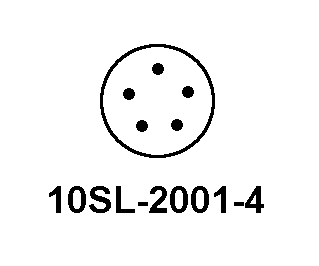

CONTACT POSITION ARRANGEMENT STYLE AFAJ 10SL-2001-4 SINGLE MATING END
INSERT MATERIAL RUBBER SINGLE MATING END
INCLUDED CONTACT QUANTITY 5 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS 10.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS 500.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS 700.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT SILVER SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION BACK SINGLE MATING END SINGLE CONTACT GROUPING
III PRECIOUS MATERIAL SILVER
III PRECIOUS MATERIAL AND WEIGHT 0.005 SILVER GRAINS, TROY
III PRECIOUS MATERIAL AND CONTACT SURFACES SILVER
