NSN 5935-00-050-1415 04900402, 0490-0402, 1003420036
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-050-1415 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: 04900402, 0490-0402, 1003420036, 16023, 16-023, 20517490704, 2051749-0704, 6700011, 670-0011, 800577, 9002190, 94204C02, 9-4204C02, 9C04204C02, 9KH2, 211009-001, 2201582010, 220-1582-010, 27E007, 59134, 59-134, 5935-00-050-1415, 00-050-1415, 5935000501415, 000501415, 211009001
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 MAY 1967 | 00-050-1415 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-050-1415
Demand History | NSN 5935-00-050-1415
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-050-1415 | 2013-11-322 | 55 | DIBBS |
| 5935-00-050-1415 | 2013-11-307 | 55 | DIBBS |
Cross Reference | NSN 5935-00-050-1415
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0490-0402 | 28480 | HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP |
| 1003420036 | 12338 | RIIMIC, LLC DBA SUNAIR ELECTRONICS |
| 16-023 | 00816 | PALOMAR PRODUCTS, INC. |
| 2051749-0704 | 06845 | RAYTHEON COMPANY DBA RAYTHEON |
| 211009-001 | 25512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA DENRO SYSTEMS |
| 220-1582-010 | 52151 | CONTINENTAL ELECTRONICS CORPORATION |
| 27E007 | 12300 | POTTER AND BRUMFIELD DIV AMF CANADA LTD |
| 27E007 | 77342 | TYCO ELECTRONICS CORPORATION |
| 27E007 | 96152 | BORG-WARNER CORP MARVEL-SCHEBLER/TILLOTSON DIV |
| 59-134 | 02660 | AMPHENOL CORP SPECTRA-STRIP/ITD |
| 59-134 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| 670-0011 | 04221 | MIDLAND-ROSS CORP MIDTEX DIV |
| 800577 | 33642 | SYQWEST, INC. |
| 9-4204C02 | 94990 | MOTOROLA INC. DBA INTEGRATED INFORMATION SYSTEMS |
| 9002190 | 13799 | H & E VENTURE, LLC |
| 9C04204C02 | 94990 | MOTOROLA INC. DBA INTEGRATED INFORMATION SYSTEMS |
| 9KH2 | 77342 | TYCO ELECTRONICS CORPORATION |
| 9KH2 | K0577 | BRITISH SAROZAL LTD |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-050-1415
Related Products | NSN 5935-00-050-1415
Technical Data | NSN 5935-00-050-1415
| Characteristic | Specifications |
|---|---|

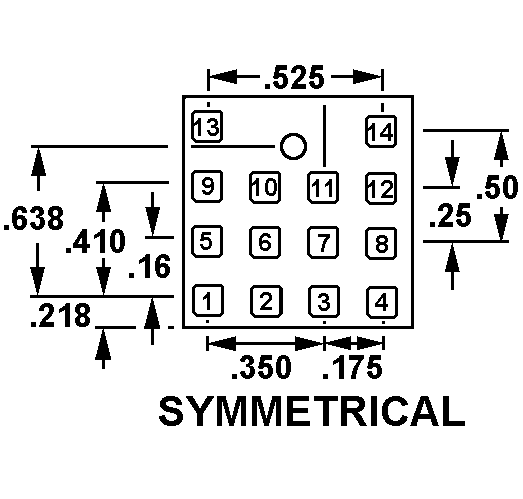

| CONTACT POSITION ARRANGEMENT STYLE | 1418A SYMMETRICAL |
