NSN 5930-01-467-7774 51510902, 5-15-10902, 01-467-7774
Product Details | SENSITIVE SWITCH
5930-01-467-7774 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: 51510902, 5-15-10902, 5930-01-467-7774, 01-467-7774, 5930014677774, 014677774
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 SEP 1999 | 01-467-7774 | 00399 ( SWITCH, SENSITIVE ) |
Drawings & Photos | NSN 5930-01-467-7774
Cross Reference | NSN 5930-01-467-7774
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5-15-10902 | 81361 | EDGEWOOD CHEMICAL BIOLOGICAL CENTER ECBC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-467-7774
Related Products | NSN 5930-01-467-7774
Technical Data | NSN 5930-01-467-7774
| Characteristic | Specifications |
|---|---|
| MAXIMUM VOLTAGE RATING IN VOLTS | 30.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 200.0 MILLIAMPERES RESISTIVE DC |

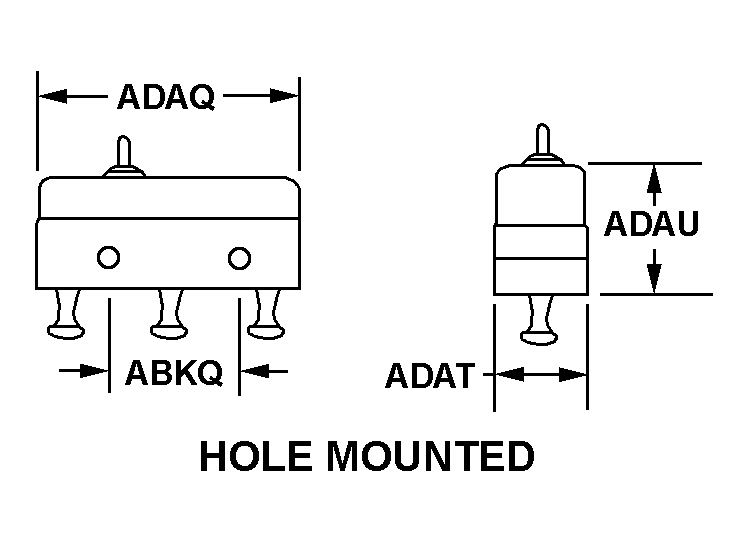

| BODY STYLE | 23M HOLE MOUNTED |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.375 INCHES NOMINAL |
| BODY LENGTH | 0.781 INCHES NOMINAL |
| BODY WIDTH | 0.160 INCHES NOMINAL |
| BODY HEIGHT | 0.356 INCHES NOMINAL |

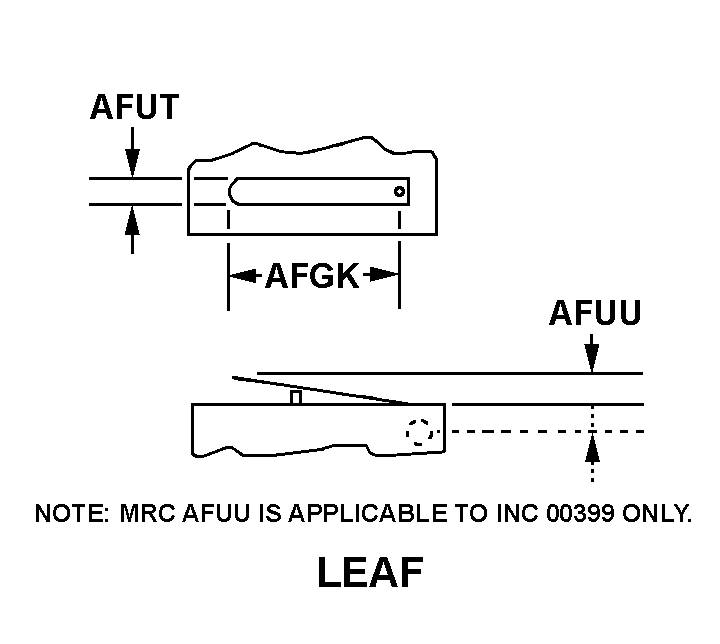

| ACTUATOR STYLE | 43 LEAF |
| ACTUATOR FREE POSITION HEIGHT | 0.218 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| SWITCH ACTUATING FORCE | 198.4 GRAMS MAXIMUM |
| SWITCH RELEASE FORCE | 57.0 GRAMS MINIMUM |
| ACTUATOR MOVEMENT | 0.218 PRETRAVEL INCHES MAXIMUM |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.088 INCHES NOMINAL |
| SPECIAL FEATURES | SPDT |
| III END ITEM IDENTIFICATION | 6665-01-324-6637; ALARM, CHEMICAL AGENT, AUTOMATIC |
