NSN 5930-01-344-5619 MS277891A, MS27789-1A, MILS3950

Product Details | TOGGLE SWITCH

5930-01-344-5619 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.

Part Alternates: MS277891A, MS27789-1A, MILS3950, MIL-S-3950, 5930-01-344-5619, 01-344-5619, 5930013445619, 013445619

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	31 AUG 1991	01-344-5619	00184 ( SWITCH, TOGGLE )

Drawings & Photos | NSN 5930-01-344-5619

Part Number	Request Date	QTY	Origin
5930-01-344-5619	2023-05-136	1	US
5930-01-344-5619	2017-08-215	9	DIBBS
5930-01-344-5619	2017-06-169	4	DIBBS
5930-01-344-5619	2017-06-155	4	DIBBS
5930-01-344-5619	2017-04-102	1	DIBBS
5930-01-344-5619	2017-02-32	1	DIBBS
5930-01-344-5619	2017-01-12	1	DIBBS
5930-01-344-5619	2016-09-264	2	DIBBS
5930-01-344-5619	2016-07-188	1	DIBBS
MS27789-1A	2015-03-76	1	TH
5930-01-344-5619	2015-02-58	5	DIBBS
MILS3950	2014-02-56	4	Canada
MS277891A	2013-03-85	1	MY
MILS3950	2013-01-11	48	US
5930-01-344-5619	2012-12-356	2	DIBBS
5930-01-344-5619	2012-11-328	2	DIBBS
5930-01-344-5619	2012-11-324	1	DIBBS
5930-01-344-5619	2012-01-28	1	DIBBS
5930-01-344-5619	2011-12-358	1	DIBBS
5930-01-344-5619	2011-04-115	1	DIBBS
5930-01-344-5619	2010-03-60	3	DIBBS
MS277891A	2008-12-364	1	us
5930-01-344-5619	2008-12-361	1	DIBBS
5930-01-344-5619	2008-10-301	1	DIBBS
5930-01-344-5619	2007-06-175	1	DIBBS

Cross Reference | NSN 5930-01-344-5619

Part Number	Cage Code	Manufacturer
MIL-S-3950	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS27789-1A	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-01-344-5619

Compare

Related Products | NSN 5930-01-344-5619

5930-01-344-5620, 5930-01-344-5621, 5930-01-344-6039, 5930-01-344-6472, 5930-01-344-6575

Technical Data | NSN 5930-01-344-5619

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	1 POLE, DOUBLE THROW, THREE POSITIONS MAINTAINED SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS	28.0 DC AND 115.0 AC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	7.500 AMPERES RESISTIVE DC AND 7.500 AMPERES INDUCTIVE DC AND 5.000 AMPERES LAMP DC AND 7.500 AMPERES RESISTIVE AC AND 7.500 AMPERES INDUCTIVE AC AND 4.000 AMPERES LAMP AC
BODY STYLE	4P BUSHING MOUNT
BUSHING LENGTH	0.470 INCHES NOMINAL
BODY LENGTH	1.660 INCHES MAXIMUM
BODY WIDTH	1.340 INCHES MAXIMUM
MOUNTING SURFACE TO TERMINAL END DISTANCE	1.706 INCHES MAXIMUM
OVERALL LENGTH	1.660 INCHES MAXIMUM
OVERALL WIDTH	1.340 INCHES MAXIMUM
OVERALL HEIGHT	3.316 INCHES NOMINAL

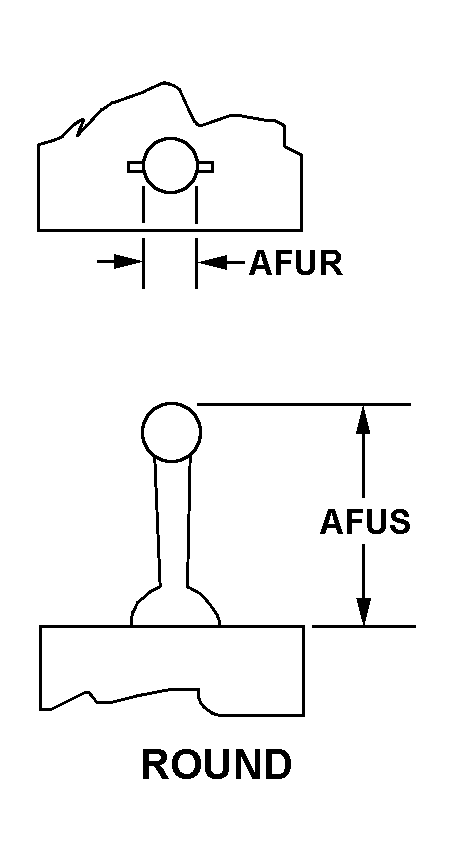

ACTUATOR STYLE	34 ROUND
ACTUATOR DIAMETER	0.420 INCHES NOMINAL
ACTUATOR HEIGHT	1.140 INCHES NOMINAL
ACTUATOR POSITION-ACTION RELATIONSHIP	UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED AND CENTER POSITION MAINTAINED
ACTUATOR POSITION-LOCKING RELATIONSHIP	UP POSITION LOCKED IN AND DOWN POSITION LOCKED IN AND CENTER POSITION LOCKED IN
TERMINAL TYPE AND QUANTITY	1 SOCKET, INTEGRATED WIRE TERMINATION
INCLOSURE TYPE	FULLY INCLOSED
MOUNTING METHOD	THREADED BUSHING
THREAD SERIES DESIGNATOR	UNS
NOMINAL THREAD SIZE	0.469 INCHES
THREAD CLASS	2A
THREAD QUANTITY PER INCH	32
FEATURES PROVIDED	MOUNTING HARDWARE
TEST DATA DOCUMENT	81349-MIL-S-3950 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS27789 GOVERNMENT STANDARD
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-S-3950
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS27789-1A

Restrictions/Controls & Freight Information | NSN 5930-01-344-5619

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5930-01-344-5619

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
