NSN 5930-01-266-5428 M8805/56-001, M880556001, MIL-S-8805/56
Product Details | SENSITIVE SWITCH
5930-01-266-5428 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: M8805/56-001, M880556001, MIL-S-8805/56, MILS880556, 5930-01-266-5428, 01-266-5428, 5930012665428, 012665428
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 OCT 1987 | 01-266-5428 | 00399 ( SWITCH, SENSITIVE ) |

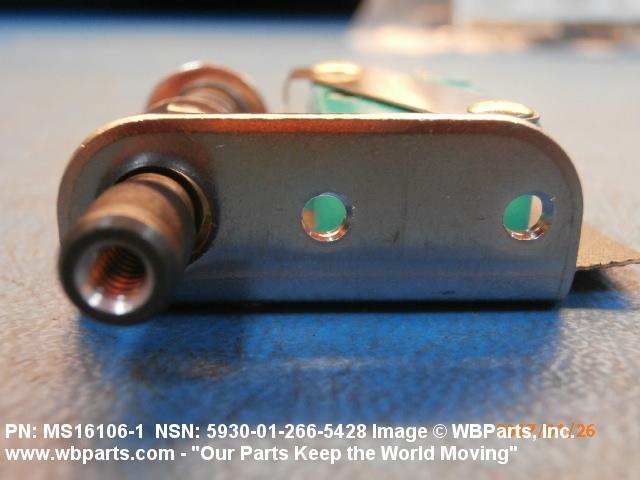

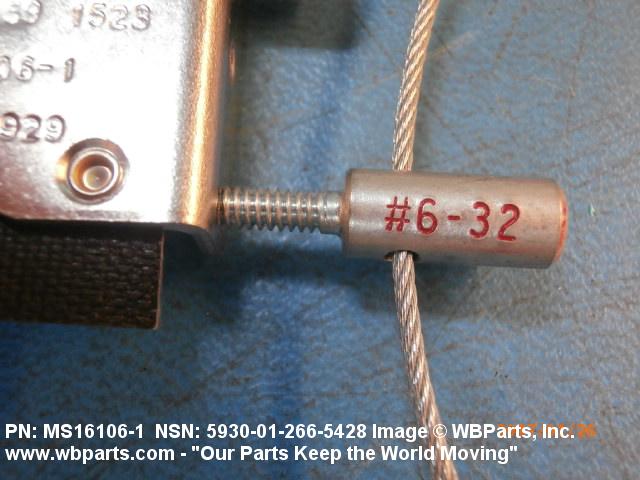

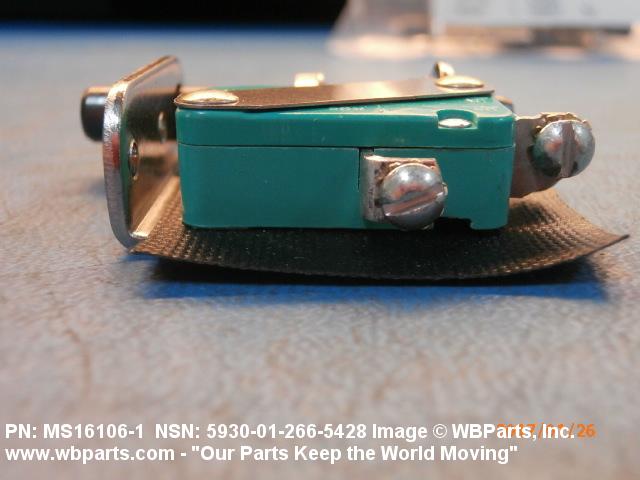

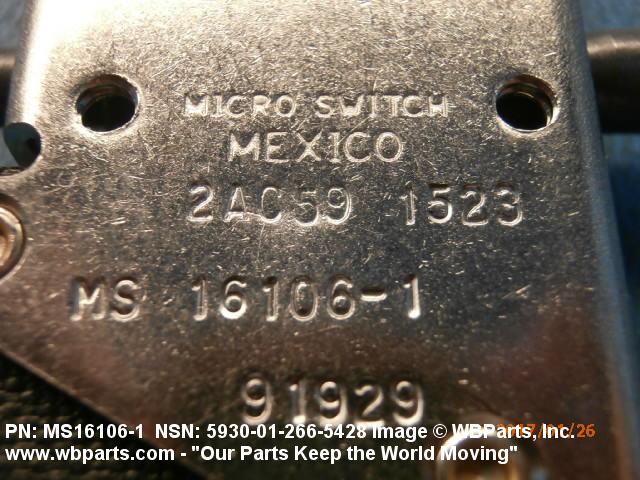

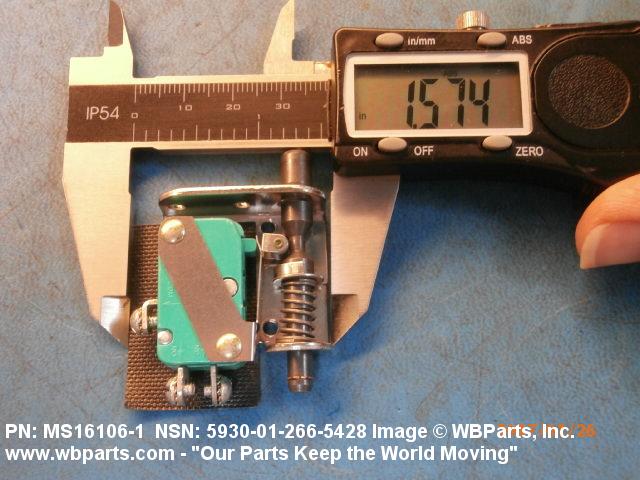

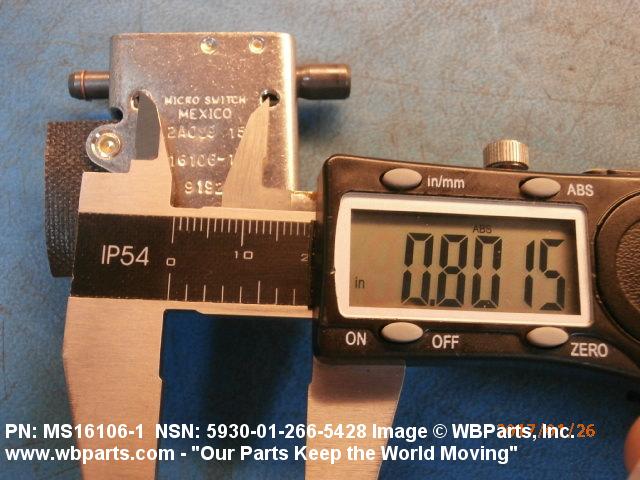

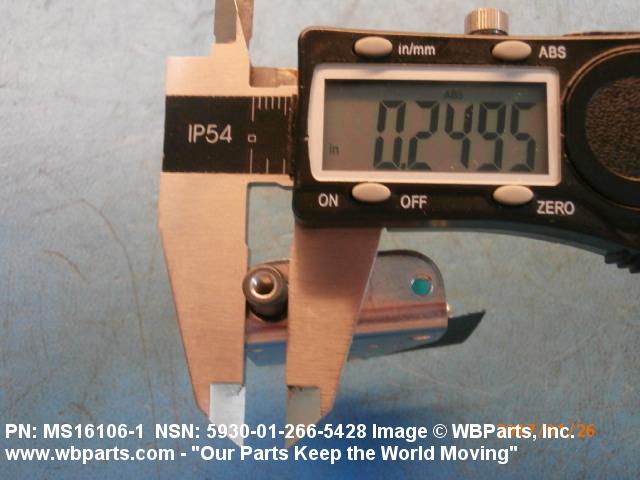

Drawings & Photos | NSN 5930-01-266-5428
Demand History | NSN 5930-01-266-5428
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M880556001 | 2020-05-143 | 1 | United States |
| 5930-01-266-5428 | 2019-07-184 | 10 | United States |
| M880556001 | 2019-04-108 | 10 | United States |
| 5930-01-266-5428 | 2019-02-46 | 10 | United States |
| M880556001 | 2019-02-42 | 6 | United States |
| 5930-01-266-5428 | 2018-09-254 | 1 | United States |
| 5930-01-266-5428 | 2018-09-253 | 3 | United States |
| 5930-01-266-5428 | 2017-12-363 | 10 | United States |
| M880556001 | 2016-11-320 | 3 | United States |
| 5930-01-266-5428 | 2016-03-75 | 1 | TW |
| M880556001 | 2011-11-307 | 4 | United States |
| M880556001 | 2010-01-08 | 1 | US |
| 5930-01-266-5428 | 2009-12-345 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-266-5428
Technical Data | NSN 5930-01-266-5428
| Characteristic | Specifications |
|---|---|
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC AND 250.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 0.250 AMPERES RESISTIVE DC AND 0.100 AMPERES INDUCTIVE DC AND 5.000 AMPERES RESISTIVE AC AND 5.000 AMPERES INDUCTIVE AC |
| BODY STYLE | 25M HOLE MOUNTED |

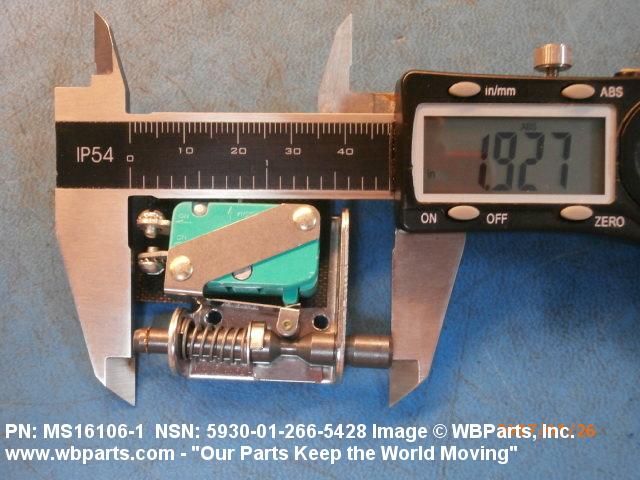

| BODY LENGTH | 1.860 INCHES MAXIMUM |
| BODY WIDTH | 0.520 INCHES NOMINAL |

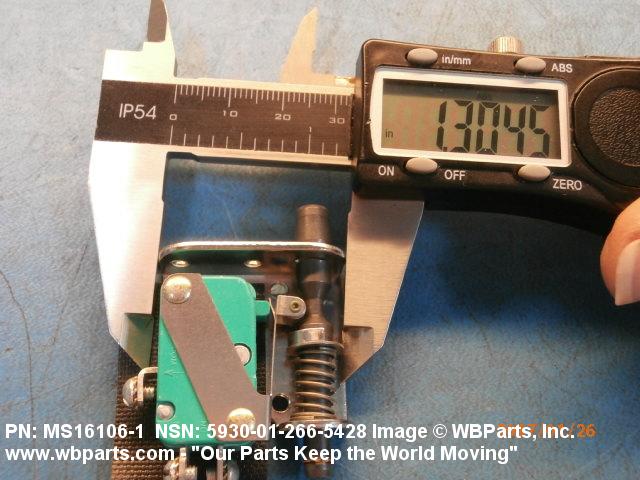

| BODY HEIGHT | 1.300 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.500 INCHES NOMINAL |
| ACTUATOR DIAMETER | 0.250 INCHES NOMINAL |

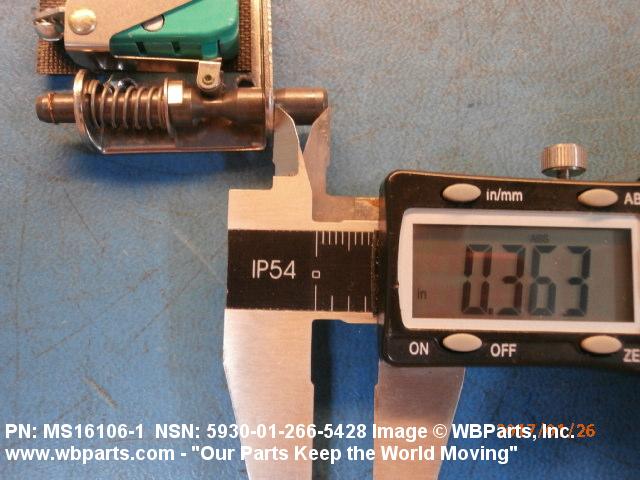

| ACTUATOR HEIGHT | 0.375 INCHES MAXIMUM |
| INCLOSURE TYPE | UNINCLOSED |
| TEST DATA DOCUMENT | 81349-MIL-S-8805 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-S-8805/56 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-8805/56 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M8805/56-001 |
Restrictions/Controls & Freight Information | NSN 5930-01-266-5428
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
