NSN 5930-01-238-6724 542-2015-52, 01-238-6724, 542201552
Product Details | PUSH SWITCH
5930-01-238-6724 A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lamp(s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes LIGHT-SWITCH; LIGHT-SWITCH ASSEMBLY; SWITCH, BEAM SELECTING, HEADLIGHT; SWITCH, FOOT; SWITCH, INTERLOCK; SWITCH, PRESSURE; SWITCH, PUSH-PULL; SWITCH, SENSITIVE and SWITCH ASSEMBLY. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see STARTER, MOTOR and CONTROLLER, MOTOR.
Part Alternates: 542-2015-52, 5930-01-238-6724, 01-238-6724, 5930012386724, 542201552, 012386724
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 AUG 1986 | 01-238-6724 | 00406 ( SWITCH, PUSH ) |
Drawings & Photos | NSN 5930-01-238-6724
Cross Reference | NSN 5930-01-238-6724
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 542-2015-52 | 76854 | ELECTRO SWITCH CORP. DBA OAK GRISGSBY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-238-6724
Technical Data | NSN 5930-01-238-6724
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 TWO CIRCUIT, DOUBLE BREAK/DOUBLE MAKE, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 30.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 3.000 AMPERES RESISTIVE DC AND 3.000 AMPERES RESISTIVE AC |
| BODY STYLE | 5K BUSHING MOUNTED |
| BODY DIAMETER | 0.625 INCHES NOMINAL |
| BUSHING LENGTH | 0.750 INCHES NOMINAL |
| BODY LENGTH | 1.094 INCHES NOMINAL |

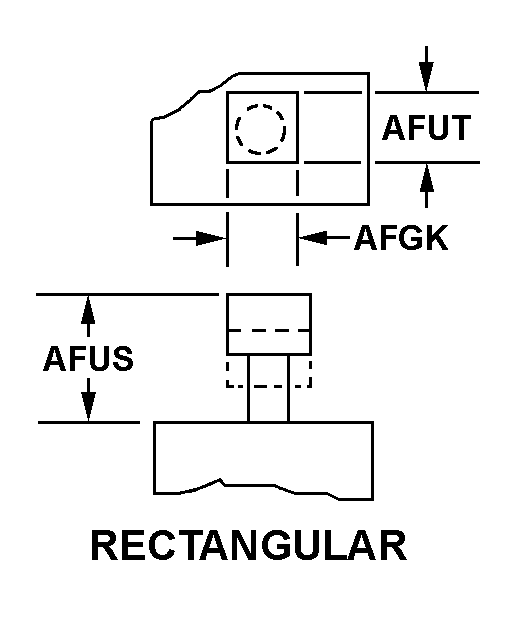

| ACTUATOR STYLE | 14 RECTANGULAR |
| ACTUATOR LENGTH | 0.500 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.698 INCHES NOMINAL |
| ACTUATOR WIDTH | 0.500 INCHES NOMINAL |
| ACTUATOR COLOR | WHITE SINGLE ACTUATOR |
| ILLUMINATED ACTUATOR COLOR | WHITE SINGLE ACTUATOR |
| TERMINAL TYPE AND QUANTITY | 6 TAB, SOLDER LUG |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
| III CASE MATERIAL | METAL |
| III OVERALL LENGTH | 2.532 INCHES NOMINAL |
| III OVERALL WIDTH | 0.625 INCHES NOMINAL |
| III OVERALL HEIGHT | 0.625 INCHES NOMINAL |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | TERMINAL SURFACES AND CONTACTS SILVER |
