NSN 5930-01-238-6986 T921A1XKM, 01-238-6986, 012386986
Product Details | THERMOSTATIC SWITCH
5930-01-238-6986 A switch that is actuated by changes in ambient temperature. Excludes CIRCUIT BREAKER; CONTROL, TEMPERATURE (as modified); FUSE (as modified); PROTECTOR, THERMAL-OVERLOAD, ELECTRICAL MOTOR; RELAY, THERMAL; and THERMOSTAT, FLOW CONTROL. See also CONTROL, TEMPERATURE (as modified) and REGULATOR, TEMPERATURE (as modified).
Part Alternates: T921A1XKM, 5930-01-238-6986, 01-238-6986, 5930012386986, 012386986
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-238-6986 | 00451 ( SWITCH, THERMOSTATIC ) |
Drawings & Photos | NSN 5930-01-238-6986
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-238-6986
Technical Data | NSN 5930-01-238-6986
| Characteristic | Specifications |
|---|---|

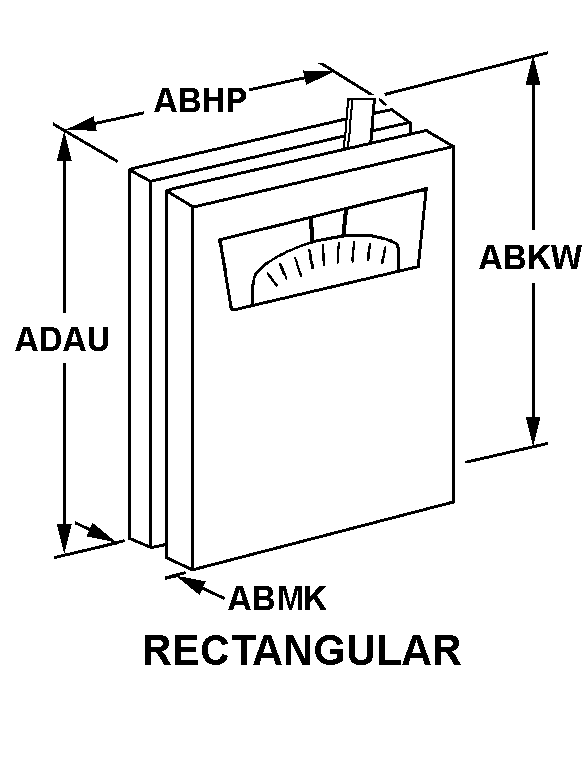

| STYLE DESIGNATOR | 71 RECTANGULAR |
| OVERALL LENGTH | 5.594 INCHES NOMINAL |
| OVERALL HEIGHT | 3.438 INCHES NOMINAL |
| OVERALL WIDTH | 2.188 INCHES NOMINAL |
| BODY HEIGHT | 5.000 INCHES NOMINAL |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | ACTUATION POINT ADJUSTABLE |
| CONTACT ADJUSTMENT RANGE | 56.00 TO 84.00 ACTUATION POINT DEGREES FAHRENHEIT |
| CONTACT ADJUSTMENT TYPE | EXTERNAL ACTUATION POINT KNOB |
| CONTACT VOLTAGE RATING IN VOLTS | 30.0 AC AT SEA LEVEL SINGLE VOLTAGE |
| CONTACT LOAD CURRENT RATING | 10.0 AMPERES RESISTIVE LOAD SINGLE VOLTAGE |
| OPERATING TEMP RATING | 60.0 DEG FAHRENHEIT MINIMUM AND 90.0 DEG FAHRENHEIT MAXIMUM |
| MEDIA FOR WHICH DESIGNED | GAS |
| TEMP SENSING ELEMENT TYPE | BELLOWS |
| TERMINAL TYPE | TAB W/SCREW |
| MOUNTING METHOD | BRACKET |
| FEATURES PROVIDED | MOUNTING HARDWARE AND VISUAL INDICATING THERMOMETER |
| MANUFACTURERS CODE | 27319 |
| DESIGN CONTROL REFERENCE | T921A1XKM |
Restrictions/Controls & Freight Information | NSN 5930-01-238-6986
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
