Product Details | TOGGLE SWITCH
5930-01-238-6722 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: 7208J1V3QE, 7208-J1-V3-Q-E, 5930-01-238-6722, 01-238-6722, 5930012386722, 012386722
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 AUG 1986 | 01-238-6722 | 00184 ( SWITCH, TOGGLE ) |
Drawings & Photos | NSN 5930-01-238-6722
Cross Reference | NSN 5930-01-238-6722
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7208-J1-V3-Q-E | 09353 | C AND K COMPONENTS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-238-6722
Technical Data | NSN 5930-01-238-6722
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 5.000 AMPERES RESISTIVE DC AND 2.000 AMPERES RESISTIVE AC |

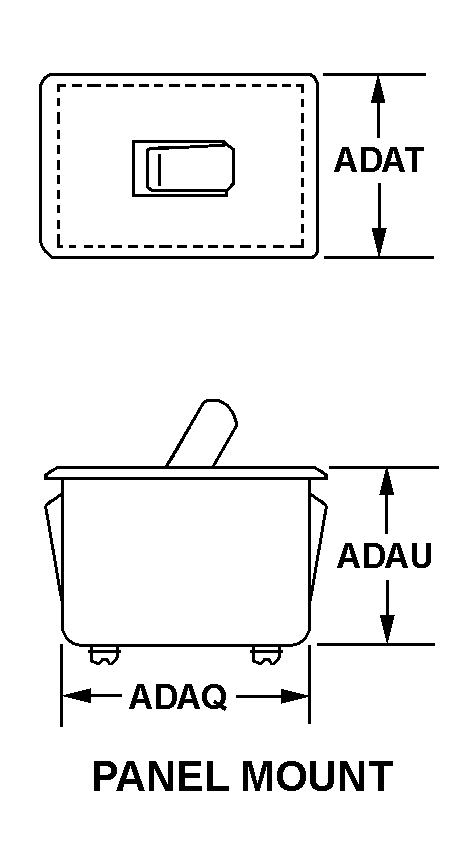

| BODY STYLE | 22P PANEL MOUNT |
| BODY LENGTH | 0.500 INCHES NOMINAL |
| BODY WIDTH | 0.450 INCHES NOMINAL |
| BODY HEIGHT | 0.455 INCHES NOMINAL |
| ACTUATOR STYLE | 17 RECTANGULAR |
| ACTUATOR LENGTH | 0.531 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.310 INCHES NOMINAL |
| ACTUATOR WIDTH | 0.365 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND DOWN POSITION MOMENTARY |
| TERMINAL TYPE AND QUANTITY | 6 PRINTED CIRCUIT |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | PANEL |
| SPECIAL FEATURES | TERMINAL SEAL |
| III CASE MATERIAL | PLASTIC |
| III OVERALL LENGTH | 0.620 INCHES NOMINAL |
| III OVERALL WIDTH | 0.450 INCHES NOMINAL |
| III OVERALL HEIGHT | 1.098 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | 5840-01-192-7572 TRANSMITTER,RADAR |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACTS SILVER |
