NSN 5930-01-197-4320 C731D0083, TBD, 2222956
Product Details | PRESSURE SWITCH
5930-01-197-4320 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: C731D0083, TBD, 2222956, 22232NB62222956, 222-32NB6-2222956, 5930-01-197-4320, 01-197-4320, 5930011974320, 0731D0083, 011974320
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 21 DEC 1984 | 01-197-4320 | 00206 ( SWITCH, PRESSURE ) |

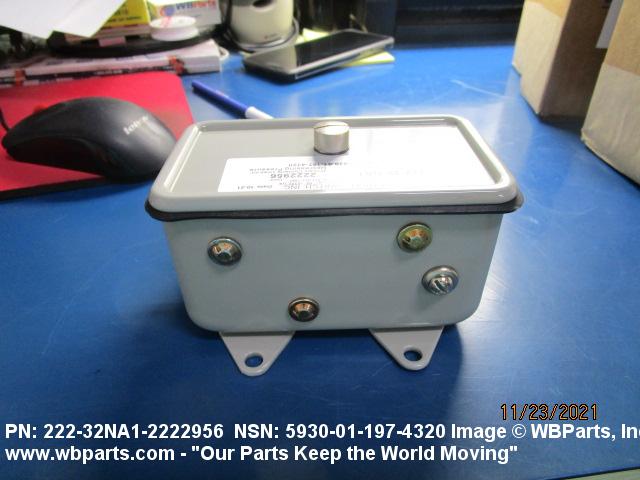

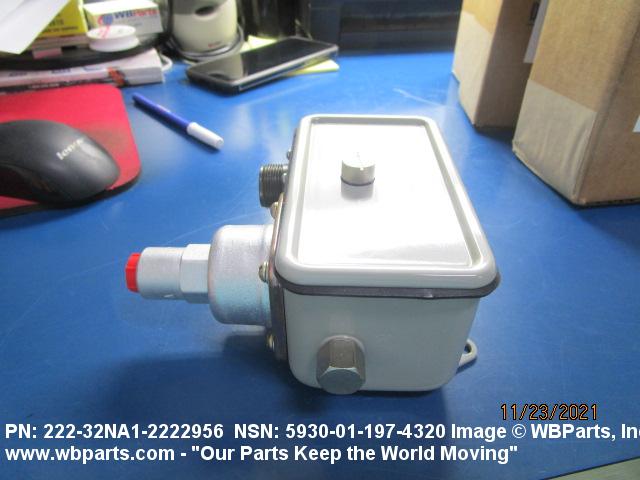

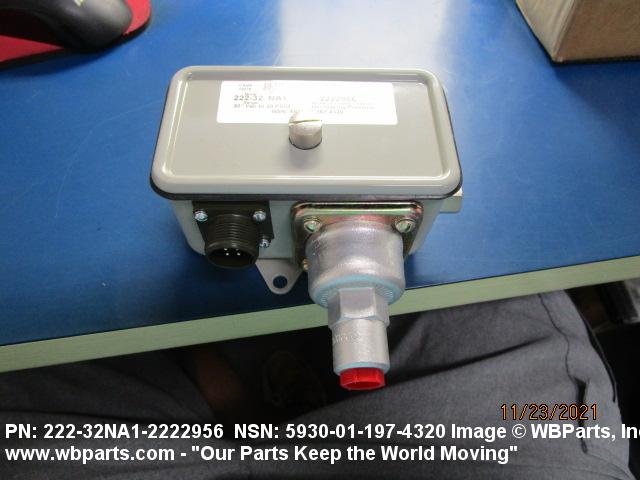

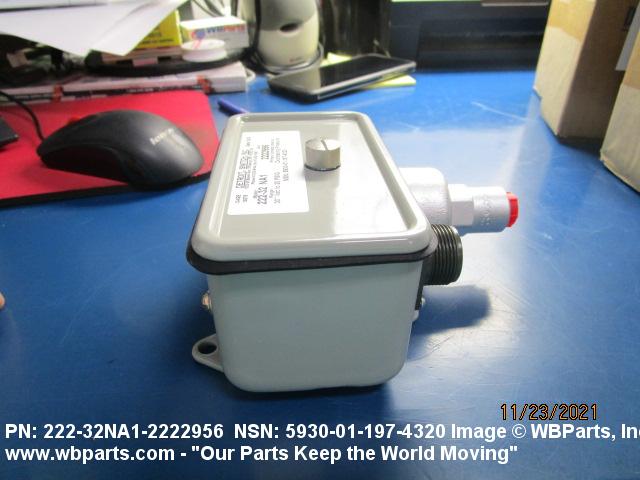

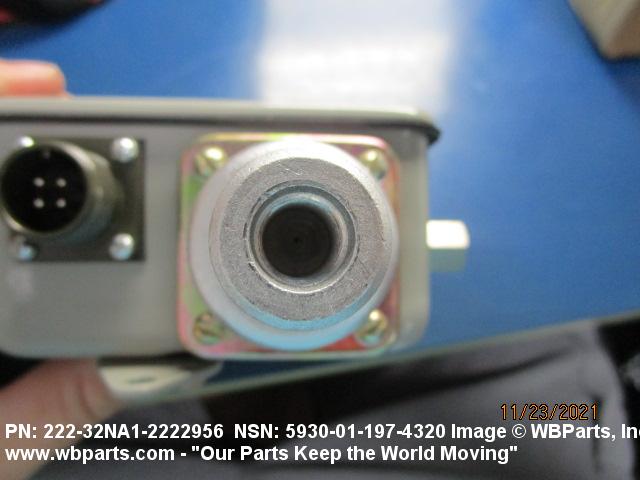

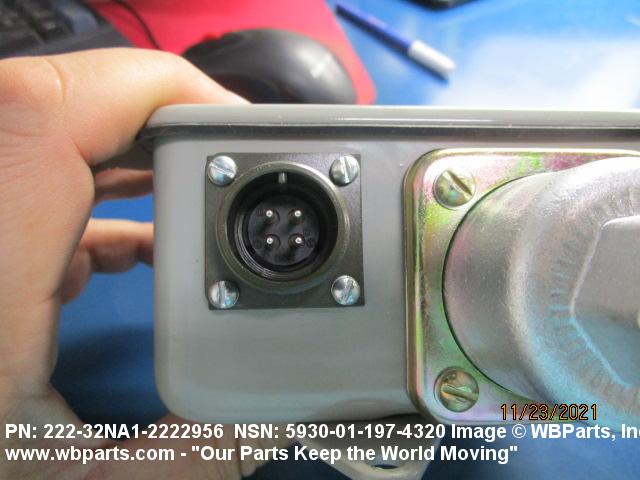

Drawings & Photos | NSN 5930-01-197-4320
Demand History | NSN 5930-01-197-4320
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 0731D0083 | 2023-08-213 | 2 | DIBBS |
| 222-32NA1-222956 | 2023-08-213 | 2 | DIBBS |
| C731D0083 | 2023-08-213 | 2 | DIBBS |
| 5930-01-197-4320 | 2022-05-147 | 2 | US |
| 0731D0083 | 2022-02-32 | 16 | DIBBS |
| 222-32NA1-222956 | 2022-02-32 | 16 | DIBBS |
| C731D0083 | 2022-02-32 | 16 | DIBBS |
| 0731D0083 | 2021-11-319 | 11 | DIBBS |
| 222-32NA1-222956 | 2021-11-319 | 11 | DIBBS |
| C731D0083 | 2021-11-319 | 11 | DIBBS |
| 5930-01-197-4320 | 2021-08-235 | 3 | United States |
| 5930-01-197-4320 | 2021-03-81 | 3 | United States |
| 0731D0083 | 2020-10-294 | 20 | DIBBS |
| 222-32NA1-222956 | 2020-10-294 | 20 | DIBBS |
| C731D0083 | 2020-10-294 | 20 | DIBBS |
| TBD | 2020-07-184 | 10 | US |
| 0731D0083 | 2019-04-112 | 21 | DIBBS |
| 222-32NA1-222956 | 2019-04-112 | 21 | DIBBS |
| C731D0083 | 2019-04-112 | 21 | DIBBS |
| 0731D0083 | 2019-01-10 | 22 | DIBBS |
| 222-32NA1-2229566 | 2019-01-10 | 22 | DIBBS |
| C731D0083 | 2019-01-10 | 22 | DIBBS |
| TBD | 2018-07-190 | 2 | United States |
| 5930-01-197-4320 | 2016-05-124 | 15 | DIBBS |
| 5930-01-197-4320 | 2013-06-156 | 14 | DIBBS |
| 5930-01-197-4320 | 2012-10-297 | 2 | DIBBS |
| 5930-01-197-4320 | 2011-11-311 | 2 | DIBBS |
| 5930-01-197-4320 | 2011-09-256 | 3 | DIBBS |
| 5930-01-197-4320 | 2011-05-132 | 5 | DIBBS |
| 5930-01-197-4320 | 2010-07-209 | 3 | DIBBS |
| TBD | 2006-04-117 | 1 | us |
Cross Reference | NSN 5930-01-197-4320
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0731D0083 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| 0731D0083 | 0DHG4 | GULF COAST HOLDINGS INC DBA UNIDYNAMICS |
| 0731D0083 | 54497 | MARTIN MARIETTA TECHNOLOGIES INC SUB OF MARTIN MARIETTA CORP |
| 0731D0083 | 98523 | JERED LLC DBA PAR |
| 222-32NB6-2222956 | 19278 | DETROIT SWITCH, INC. |
| 2222956 | 19278 | DETROIT SWITCH, INC. |
| C731D0083 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| C731D0083 | 54497 | MARTIN MARIETTA TECHNOLOGIES INC SUB OF MARTIN MARIETTA CORP |
| TBD | 19278 | DETROIT SWITCH, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-197-4320
Related Products | NSN 5930-01-197-4320
Technical Data | NSN 5930-01-197-4320
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 35 RECTANGULAR |
| OVERALL LENGTH | 5.188 INCHES NOMINAL |
| OVERALL HEIGHT | 5.968 INCHES NOMINAL |
| OVERALL WIDTH | 2.812 INCHES NOMINAL |
| BODY HEIGHT | 2.750 INCHES NOMINAL |
| PRESSURE SWITCH TYPE | GAGE |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | ACTUATION POINT ADJUSTABLE |
| CONTACT ADJUSTMENT RANGE | 1.08 TO 34.70 ACTUATION POINT POUNDS PER SQUARE INCH ABSOLUTE |
| CONTACT ADJUSTMENT TYPE | INTERNAL ACTUATION POINT SCREW |
| CONTACT VOLTAGE RATING IN VOLTS | 115.0 AC AT SEA LEVEL FIRST VOLTAGE 230.0 AC AT SEA LEVEL SECOND VOLTAGE 440.0 AC AT SEA LEVEL THIRD VOLTAGE 550.0 AC AT SEA LEVEL FOURTH VOLTAGE 115.0 DC AT SEA LEVEL FIFTH VOLTAGE 230.0 DC AT SEA LEVEL SIXTH VOLTAGE 440.0 DC AT SEA LEVEL SEVENTH VOLTAGE 550.0 DC AT SEA LEVEL EIGHTH VOLTAGE |
| CONTACT LOAD CURRENT RATING | 16.0 AMPERES INDUCTIVE LOAD FIRST VOLTAGE 8.0 AMPERES INDUCTIVE LOAD SECOND VOLTAGE 4.0 AMPERES INDUCTIVE LOAD THIRD VOLTAGE 3.2 AMPERES INDUCTIVE LOAD FOURTH VOLTAGE 9.6 AMPERES INDUCTIVE LOAD FIFTH VOLTAGE 4.8 AMPERES INDUCTIVE LOAD SIXTH VOLTAGE 2.5 AMPERES INDUCTIVE LOAD SEVENTH VOLTAGE 2.0 AMPERES INDUCTIVE LOAD EIGHTH VOLTAGE |
| MEDIA FOR WHICH DESIGNED | GAS OR LIQUID |
| PROOF PRESSURE | 80.00 POUNDS PER SQUARE INCH GAGE |
| PRESSURE CONNECTOR TYPE | PLAIN, THREADED INTERNAL FIRST CONNECTION SWIVEL NUT, FLARED, THREADED EXTERNAL SECOND CONNECTION |
| INSIDE DIAMETER | 0.438 INCHES NOMINAL FIRST CONNECTION |
| OUTSIDE DIAMETER | 0.438 INCHES NOMINAL SECOND CONNECTION |
| TERMINAL TYPE | SCREW |
| MOUNTING METHOD | BRACKET AND UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.281 INCHES NOMINAL |
| MOUNTING FACILITY PATTERN | ISOSCELES TRIANGLE |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 2.406 INCHES NOMINAL |
| SHORTEST HORIZONTAL DISTANCE | 0.656 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5930-01-197-4320
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-197-4320
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
