NSN 5930-01-197-4376 C213312, C2133-12, 200-1990-12

Product Details | ROTARY SWITCH

5930-01-197-4376 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).

Part Alternates: C213312, C2133-12, 200-1990-12, 29192812, 29-1928-12, 5930-01-197-4376, 01-197-4376, 5930011974376, 200199012, 011974376

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	21 DEC 1984	01-197-4376	02134 ( SWITCH, ROTARY )

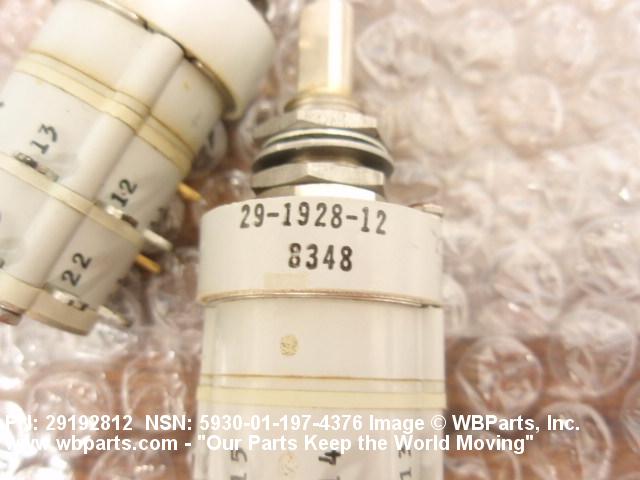

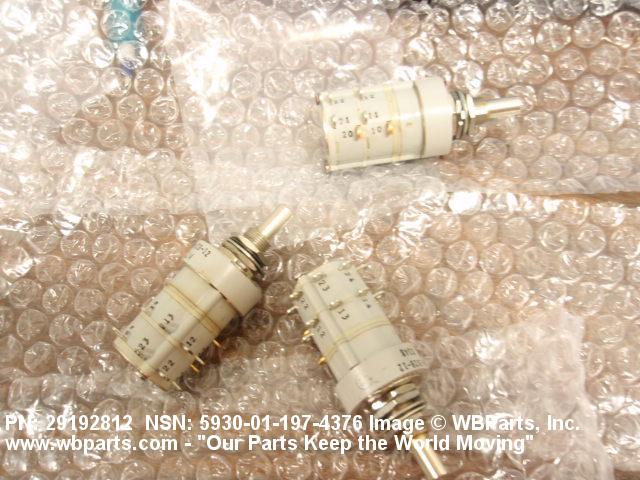

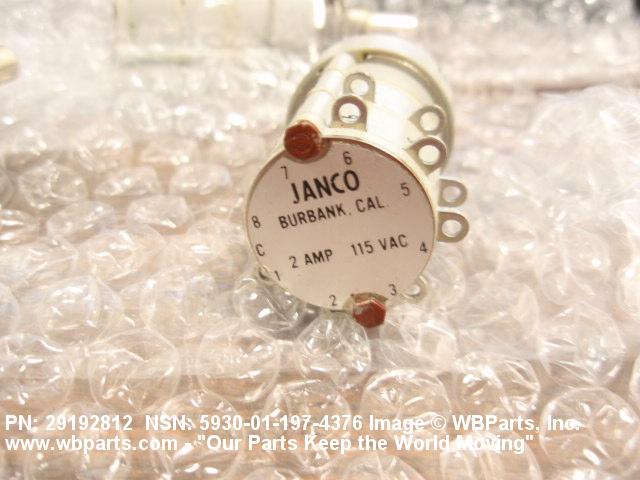

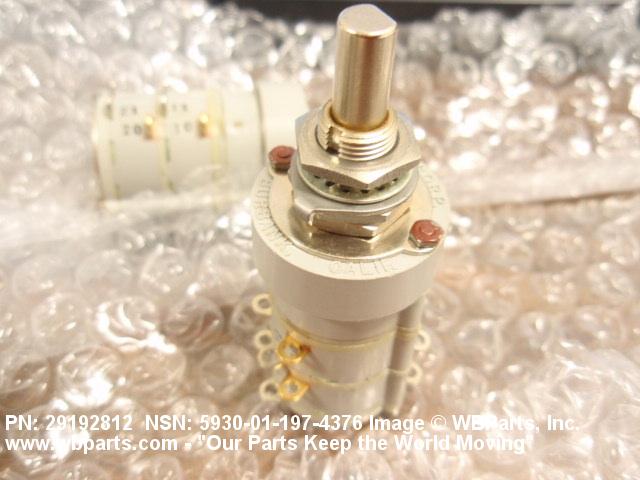

Drawings & Photos | NSN 5930-01-197-4376

Part Number	Request Date	QTY	Origin
C213312	2024-04-114	16	US
5930-01-197-4376	2024-04-114	16	US
C213312	2024-04-110	16	US
5930-01-197-4376	2024-03-86	50	US
5930-01-197-4376	2024-03-86	50	US
200-1990-12	2022-12-335	45	DIBBS
29-1928-12	2022-12-335	45	DIBBS
C2133-12	2022-12-335	45	DIBBS
5930-01-197-4376	2022-11-308	2	UM
5930-01-197-4376	2022-09-271	23	UM
5930-01-197-4376	2022-07-186	2	TH
200-1990-12	2022-06-181	39	DIBBS
29-1928-12	2022-06-181	39	DIBBS
C2133-12	2022-06-181	39	DIBBS
200-1990-12	2020-10-282	50	DIBBS
29-1928-12	2020-10-282	50	DIBBS
C2133-12	2020-10-282	50	DIBBS
5930-01-197-4376	2020-08-230	12	United States
200-1990-12	2020-07-203	57	DIBBS
29-1928-12	2020-07-203	57	DIBBS
C2133-12	2020-07-203	57	DIBBS
200-1990-12	2020-01-30	133	DIBBS
29-1928-12	2020-01-30	133	DIBBS
C2133-12	2020-01-30	133	DIBBS
200-1990-12	2020-01-27	39	DIBBS
29-1928-12	2020-01-27	39	DIBBS
C2133-12	2020-01-27	39	DIBBS
5930-01-197-4376	2020-01-17	1	United States
200-1990-12	2020-01-14	39	DIBBS
29-1928-12	2020-01-14	39	DIBBS
C2133-12	2020-01-14	39	DIBBS
200-1990-12	2019-08-234	40	DIBBS
29-1928-12	2019-08-234	40	DIBBS
C2133-12	2019-08-234	40	DIBBS
5930-01-197-4376	2018-12-361	42	DIBBS
5930-01-197-4376	2018-12-347	36	DIBBS
C213312	2018-09-256	1	United States
5930-01-197-4376	2018-06-179	40	DIBBS
5930-01-197-4376	2018-01-25	2	us
5930-01-197-4376	2018-01-16	40	DIBBS
5930-01-197-4376	2017-03-89	44	DIBBS
5930-01-197-4376	2017-01-02	39	DIBBS
5930-01-197-4376	2016-09-251	36	DIBBS
C213312	2016-02-47	1	United States
5930-01-197-4376	2015-12-350	59	DIBBS
5930-01-197-4376	2015-07-211	55	DIBBS
5930-01-197-4376	2015-02-50	5	US
5930-01-197-4376	2014-12-348	42	DIBBS
5930-01-197-4376	2014-03-89	37	DIBBS
5930-01-197-4376	2013-11-311	25	DIBBS
5930-01-197-4376	2013-05-121	33	DIBBS
5930-01-197-4376	2013-01-04	8	DIBBS
5930-01-197-4376	2013-01-03	10	DIBBS
5930-01-197-4376	2012-11-326	3	DIBBS
5930-01-197-4376	2012-11-325	4	DIBBS
5930-01-197-4376	2012-09-245	3	DIBBS
5930-01-197-4376	2012-06-181	4	DIBBS
5930-01-197-4376	2012-03-75	7	DIBBS
C213312	2012-01-13	3	United States
5930-01-197-4376	2011-10-290	3	DIBBS
5930-01-197-4376	2011-09-256	7	DIBBS
5930-01-197-4376	2011-07-210	5	DIBBS
5930-01-197-4376	2011-07-189	2	DIBBS
5930-01-197-4376	2011-05-143	6	DIBBS
5930-01-197-4376	2011-03-64	2	DIBBS
5930-01-197-4376	2011-02-56	5	DIBBS
5930-01-197-4376	2011-01-28	1	DIBBS
5930-01-197-4376	2010-08-225	1	DIBBS
200199012	2010-08-215	4	United States
C213312	2010-08-215	3	United States
5930-01-197-4376	2008-06-161	3	DIBBS
5930-01-197-4376	2007-10-295	3	DIBBS
5930-01-197-4376	2007-08-233	6	DIBBS

Cross Reference | NSN 5930-01-197-4376

Part Number	Cage Code	Manufacturer
200-1990-12	31946	COLE INSTRUMENT CORP.
29-1928-12	91812	JANCO CORPORATION DBA ESTERLINE MASON
C2133-12	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-01-197-4376

Compare

Related Products | NSN 5930-01-197-4376

5930-01-197-4377, 5930-01-197-4752, 5930-01-197-4753, 5930-01-197-4754, 5930-01-197-4755

Technical Data | NSN 5930-01-197-4376

Characteristic	Specifications
STYLE DESIGNATOR	9 TAP, CIRCULAR, BUSHING MOUNT
OVERALL LENGTH	2.730 INCHES NOMINAL
OVERALL DIAMETER	1.036 INCHES MAXIMUM
INDIVIDUAL SECTION QUANTITY	2
SWITCH CONTACT BASIC DESIGN	NONPILE-UP SYMMETRICAL
POLE QUANTITY	1 EACH SECTION REAR
THROW QUANTITY	6 EACH SECTION REAR
CONTACT SWITCHING ACTION	BREAKS BEFORE MAKES 1ST SECTION REAR MAKES BEFORE BREAKS 2ND SECTION REAR
CONTACT VOLTAGE RATING IN VOLTS	115.0 AC AT SEA LEVEL 28.0 DC AT SEA LEVEL
CONTACT LOAD CURRENT RATING	2.0 AMPERES RESISTIVE LOAD AND 1.0 AMPERES INDUCTIVE LOAD AND 200.0 MILLIAMPERES LAMP LOAD AC AT SEA LEVEL 2.0 AMPERES RESISTIVE LOAD AND 1.0 AMPERES INDUCTIVE LOAD AND 200.0 MILLIAMPERES LAMP LOAD DC AT SEA LEVEL
SWITCH ACTUATOR INDEXING POSITION QUANTITY	6 SINGLE ACTUATOR
SWITCH ACTUATOR POSITIONING INCREMENT	45.0 DEGREES SINGLE ACTUATOR
SWITCH ACTUATOR STOP DEVICE TYPE	FIXED STOP SINGLE ACTUATOR
SHAFT TYPE	ROUND, FLATTED SINGLE ACTUATOR
FIRST FLAT LENGTH	0.437 INCHES NOMINAL SINGLE ACTUATOR
FLAT HEIGHT	0.216 INCHES NOMINAL SINGLE ACTUATOR
SHAFT DIAMETER	0.250 INCHES NOMINAL SINGLE ACTUATOR
SHAFT LENGTH	0.500 INCHES NOMINAL SINGLE ACTUATOR
TERMINAL TYPE	TAB, SOLDER LUG
MOUNTING METHOD	THREADED BUSHING SINGLE MOUNTING FACILITY
THREAD SERIES DESIGNATOR	UNEF SINGLE MOUNTING FACILITY
NOMINAL THREAD SIZE	0.375 INCHES SINGLE MOUNTING FACILITY
THREAD CLASS	2A SINGLE MOUNTING FACILITY
THREAD LENGTH	0.430 INCHES NOMINAL SINGLE MOUNTING FACILITY
FEATURES PROVIDED	PULL TO TURN

Restrictions/Controls & Freight Information | NSN 5930-01-197-4376

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5930-01-197-4376

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
