NSN 5930-01-127-1990 C9CTQMSA, 01-127-1990, 011271990
Product Details | SENSITIVE SWITCH
5930-01-127-1990 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: C9CTQMSA, 5930-01-127-1990, 01-127-1990, 5930011271990, 011271990
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 FEB 1982 | 01-127-1990 | 00399 ( SWITCH, SENSITIVE ) |
Drawings & Photos | NSN 5930-01-127-1990
Cross Reference | NSN 5930-01-127-1990
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C9CTQMSA | 36497 | BURGESS SWITCH CO LTD |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-127-1990
Related Products | NSN 5930-01-127-1990
Technical Data | NSN 5930-01-127-1990
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 480.0 AC AND 250.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 250.000 MILLIAMPERES RESISTIVE DC AND 30.000 MILLIAMPERES INDUCTIVE DC AND 15.000 AMPERES RESISTIVE AC AND 4.000 AMPERES INDUCTIVE AC |

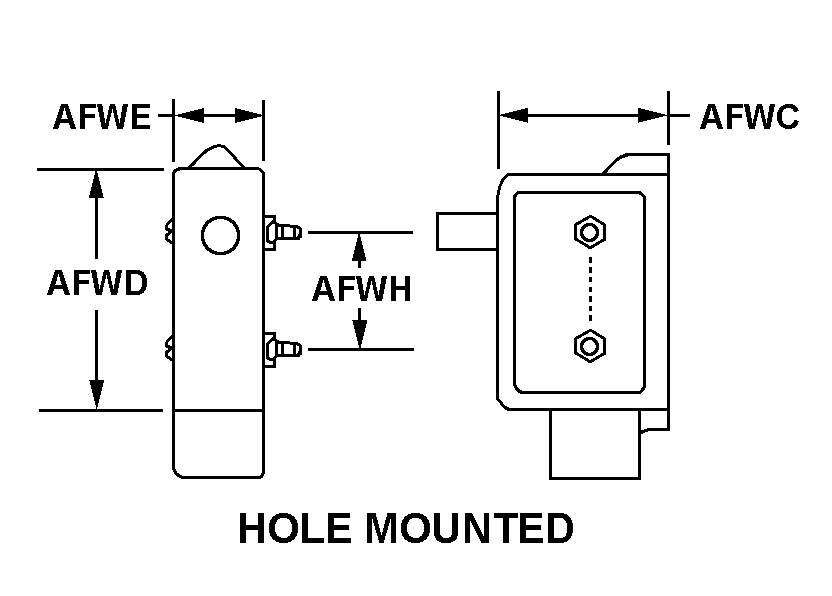

| BODY STYLE | 48M HOLE MOUNTED |
| HOUSING HEIGHT | 2.800 INCHES MAXIMUM |
| HOUSING LENGTH | 3.010 INCHES MAXIMUM |
| HOUSING WIDTH | 1.020 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN HOUSING MOUNTING FACILITIES PARALLEL TO LENGTH | 2.690 INCHES NOMINAL |
| ACTUATOR STYLE | 44 ROLLER ARM |
| ACTUATOR LENGTH | 1.560 INCHES NOMINAL |
| ACTUATOR FREE POSITION HEIGHT | 1.900 INCHES NOMINAL |
| ACTUATOR ROLLER DIAMETER | 0.750 INCHES NOMINAL |
| ACTUATOR ROLLER WIDTH | 0.250 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 3 SCREW |
| SWITCH ACTUATING FORCE | 20.0 OUNCES MAXIMUM |
| SWITCH RELEASE FORCE | 6.0 OUNCES MINIMUM |
| ACTUATOR MOVEMENT | 10.0 PRETRAVEL DEGREES MAXIMUM AND 6.5 OVERTRAVEL DEGREES NOMINAL AND 0.5 DIFFERENTIAL DEGREES MAXIMUM |
| INCLOSURE TYPE | FULLY INCLOSED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WATER RESISTANT |
| MOUNTING METHOD | UNTHREADED HOLE |
| III OVERALL LENGTH | 3.010 INCHES MAXIMUM |
| III OVERALL WIDTH | 1.020 INCHES MAXIMUM |
| III OVERALL HEIGHT | 3.140 INCHES NOMINAL |
