NSN 5930-01-053-4074 BZ2RW84381A2, BZ-2RW84381-A2, 78000080001
Product Details | SENSITIVE SWITCH
5930-01-053-4074 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: BZ2RW84381A2, BZ-2RW84381-A2, 78000080001, 7800-0080-001, 5930-01-053-4074, 01-053-4074, 5930010534074, 010534074
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 JAN 1978 | 01-053-4074 | 00399 ( SWITCH, SENSITIVE ) |
Drawings & Photos | NSN 5930-01-053-4074
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-053-4074
Related Products | NSN 5930-01-053-4074
Technical Data | NSN 5930-01-053-4074
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC AND 250.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 250.000 MILLIAMPERES RESISTIVE DC AND 15.000 AMPERES RESISTIVE AC |

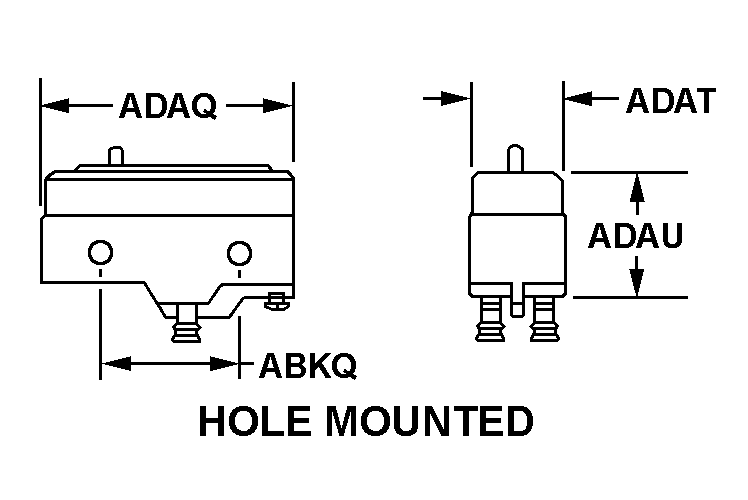

| BODY STYLE | 22M HOLE MOUNTED |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.000 INCHES NOMINAL |
| BODY LENGTH | 1.940 INCHES NOMINAL |
| BODY WIDTH | 0.687 INCHES NOMINAL |
| BODY HEIGHT | 1.150 INCHES NOMINAL |
| OVERALL LENGTH | 1.940 INCHES NOMINAL |
| OVERALL WIDTH | 0.687 INCHES NOMINAL |

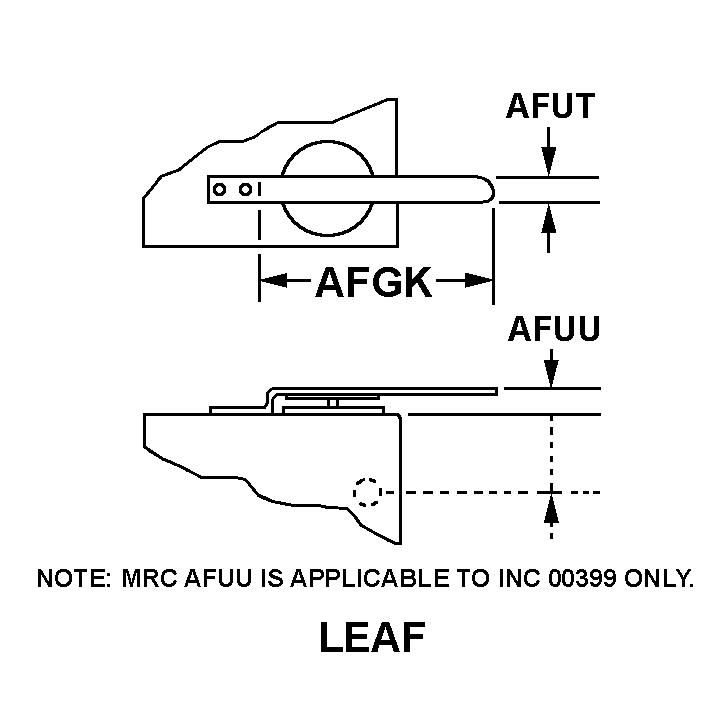

| ACTUATOR STYLE | 41 LEAF |
| ACTUATOR LENGTH | 1.026 INCHES NOMINAL |
| ACTUATOR WIDTH | 0.190 INCHES NOMINAL |
| ACTUATOR FREE POSITION HEIGHT | 0.750 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 3 SCREW |
| SWITCH ACTUATING FORCE | 2.5 OUNCES MAXIMUM |
| SWITCH RELEASE FORCE | 0.3 OUNCES MINIMUM |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.140 INCHES NOMINAL |
| SPECIAL FEATURES | ONE MTG SLOT 0.140 IN. W BY 0.152 IN. LG |
