Product Details | SENSITIVE SWITCH
5930-01-043-8932 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: AT532W, AT532-W, 23247, 232473, 23247-3, 5930-01-043-8932, 01-043-8932, 5930010438932, 010438932
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 02 JUL 1977 | 01-043-8932 | 00399 ( SWITCH, SENSITIVE ) |
Drawings & Photos | NSN 5930-01-043-8932
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-043-8932
Related Products | NSN 5930-01-043-8932
Technical Data | NSN 5930-01-043-8932
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 15.000 AMPERES RESISTIVE AC |

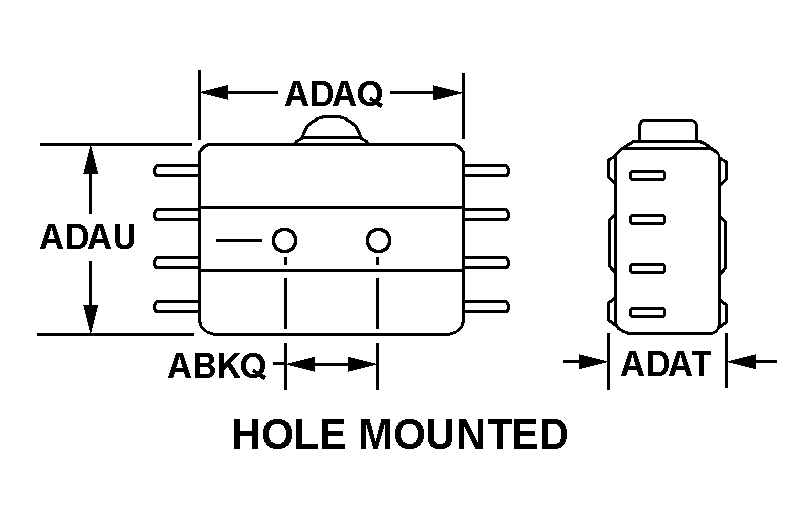

| BODY STYLE | 8M HOLE MOUNTED |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.000 INCHES NOMINAL |
| BODY LENGTH | 1.810 INCHES NOMINAL |
| BODY WIDTH | 0.640 INCHES NOMINAL |
| BODY HEIGHT | 0.640 INCHES NOMINAL |
| OVERALL LENGTH | 2.475 INCHES NOMINAL |
| OVERALL WIDTH | 0.940 INCHES NOMINAL |
| ACTUATOR STYLE | 41 LEAF |
| ACTUATOR LENGTH | 1.875 INCHES NOMINAL |
| ACTUATOR WIDTH | 0.250 INCHES NOMINAL |
| ACTUATOR FREE POSITION HEIGHT | 0.390 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 QUICK DISCONNECT, MALE |
| SWITCH ACTUATING FORCE | 4.0 OUNCES MAXIMUM |
| SWITCH RELEASE FORCE | 0.5 OUNCES MINIMUM |
| ACTUATOR MOVEMENT | 0.250 PRETRAVEL INCHES MAXIMUM AND 0.187 OVERTRAVEL INCHES NOMINAL AND 0.062 DIFFERENTIAL INCHES MAXIMUM |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.145 INCHES NOMINAL |
