NSN 5930-01-025-9195 L404C1121, L404C1162WITH14026, 01-025-9195
Product Details | PRESSURE SWITCH
5930-01-025-9195 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: L404C1121, L404C1162WITH14026, 5930-01-025-9195, 01-025-9195, 5930010259195, 010259195
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 AUG 1976 | 01-025-9195 | 00206 ( SWITCH, PRESSURE ) |
Drawings & Photos | NSN 5930-01-025-9195
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-025-9195
Related Products | NSN 5930-01-025-9195
Technical Data | NSN 5930-01-025-9195
| Characteristic | Specifications |
|---|---|

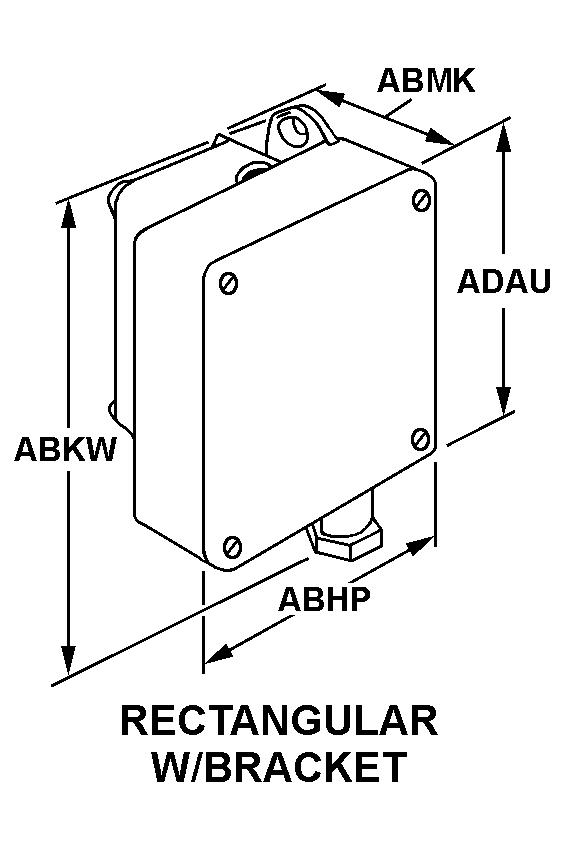

| STYLE DESIGNATOR | 34 RECTANGULAR W/BRACKET |
| OVERALL LENGTH | 4.500 INCHES NOMINAL |
| OVERALL HEIGHT | 4.969 INCHES NOMINAL |
| OVERALL WIDTH | 2.375 INCHES NOMINAL |
| BODY HEIGHT | 3.719 INCHES NOMINAL |
| PRESSURE SWITCH TYPE | DIFFERENTIAL |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | DEACTUATION POINT NOT ADJUSTABLE, MANUAL RESET AND ACTUATION POINT ADJUSTABLE, PRESET |
| CONTACT ADJUSTMENT RANGE | 10.00 TO 150.00 ACTUATION POINT POUNDS PER SQUARE INCH |
| CONTACT ADJUSTMENT TYPE | EXTERNAL ACTUATION POINT SCREW |
| CONTACT VOLTAGE RATING IN VOLTS | 240.0 AC AT SEA LEVEL FIRST VOLTAGE 120.0 AC AT SEA LEVEL SECOND VOLTAGE 240.0 DC AT SEA LEVEL THIRD VOLTAGE 120.0 DC AT SEA LEVEL FOURTH VOLTAGE |
| CONTACT LOAD CURRENT RATING | 5.0 AMPERES RESISTIVE LOAD FIRST VOLTAGE 10.0 AMPERES RESISTIVE LOAD SECOND VOLTAGE 4.0 AMPERES RESISTIVE LOAD THIRD VOLTAGE 8.0 AMPERES RESISTIVE LOAD FOURTH VOLTAGE |
| OPERATING TEMP RATING | 150.0 DEG FAHRENHEIT MAXIMUM |
| MEDIA FOR WHICH DESIGNED | GAS |
| PRESSURE CONNECTOR TYPE | SWIVEL NUT WITH COMPRESSION SLEEVE, THREADED INTERNAL SINGLE CONNECTION |
| TERMINAL TYPE | SCREW |
| MOUNTING METHOD | FLUSH |
| MOUNTING FACILITY PATTERN | TWO POSITION IN-LINE |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.938 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | NPT SINGLE PRESSURE CONNECTION |
| NOMINAL THREAD SIZE | 0.250 INCHES SINGLE PRESSURE CONNECTION |
| THREAD QUANTITY PER INCH | 18 SINGLE PRESSURE CONNECTION |
