Product Details | SENSITIVE SWITCH
5930-00-995-6390 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: 060-002275, 7AC1, 7AC7, 5930-00-995-6390, 00-995-6390, 5930009956390, 060002275, 009956390
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-995-6390 | 00399 ( SWITCH, SENSITIVE ) |
Drawings & Photos | NSN 5930-00-995-6390
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-995-6390
Related Products | NSN 5930-00-995-6390
Technical Data | NSN 5930-00-995-6390
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 5.000 AMPERES RESISTIVE DC AND 3.000 AMPERES INDUCTIVE DC AND 5.000 AMPERES RESISTIVE AC |

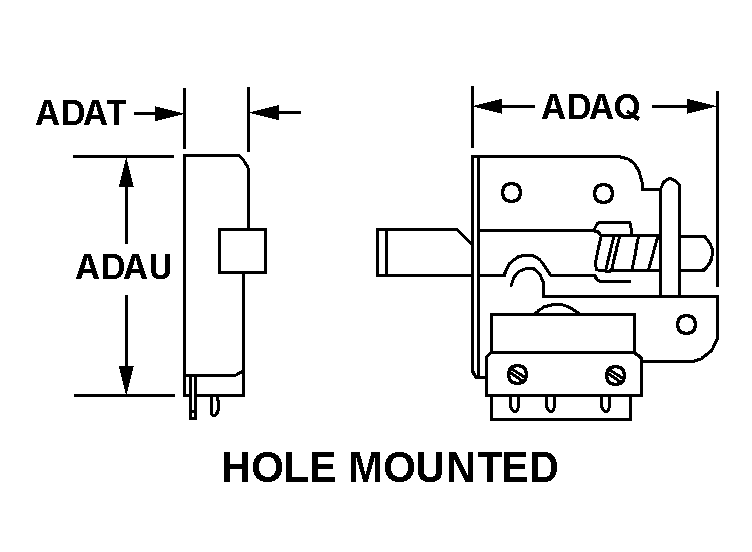

| BODY STYLE | 26M HOLE MOUNTED |
| BODY LENGTH | 0.840 INCHES NOMINAL |
| BODY WIDTH | 0.360 INCHES NOMINAL |
| BODY HEIGHT | 1.125 INCHES NOMINAL |
| OVERALL WIDTH | 0.360 INCHES NOMINAL |
| OVERALL HEIGHT | 1.125 INCHES NOMINAL |
| ACTUATOR STYLE | 1 ROUND |
| ACTUATOR DIAMETER | 0.188 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.500 INCHES MAXIMUM |
| ACTUATOR FREE POSITION HEIGHT | 0.592 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| SWITCH ACTUATING FORCE | 80.0 OUNCES MAXIMUM |
| SWITCH RELEASE FORCE | 10.0 OUNCES NOMINAL |
| ACTUATOR MOVEMENT | 0.125 PRETRAVEL INCHES NOMINAL AND 0.090 OVERTRAVEL INCHES MINIMUM AND 0.125 DIFFERENTIAL INCHES MAXIMUM |
| INCLOSURE TYPE | UNINCLOSED |
| MOUNTING METHOD | THREADED HOLE |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
