NSN 5930-00-972-3314 MS272401, MS27240-1, K884131005
Product Details | SENSITIVE SWITCH
5930-00-972-3314 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: MS272401, MS27240-1, K884131005, K884131-005, MIL-PRF-8805/43, MILPRF880543, MIL-S-8805/43, MILS880543, 7902578-00, 80012031, 8001-203-1, 870SS0091, 602EN16, 602EN1-6, 63210099, 63-210099, 70600-22023-041, 5930-00-972-3314, 00-972-3314, 5930009723314, 7060022023041, 009723314, 790257800
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 OCT 1966 | 00-972-3314 | 00399 ( SWITCH, SENSITIVE ) |

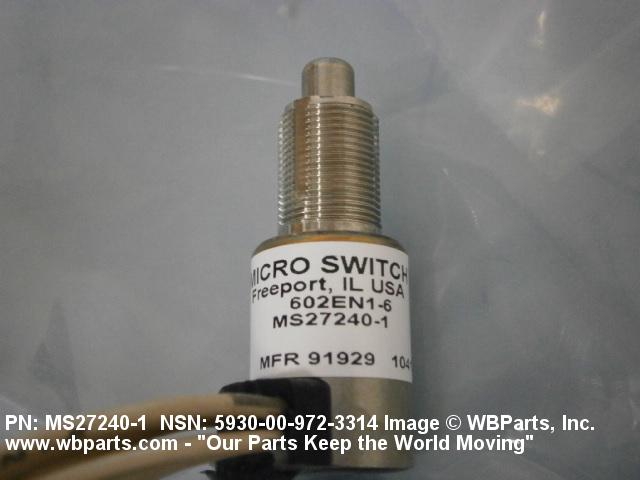

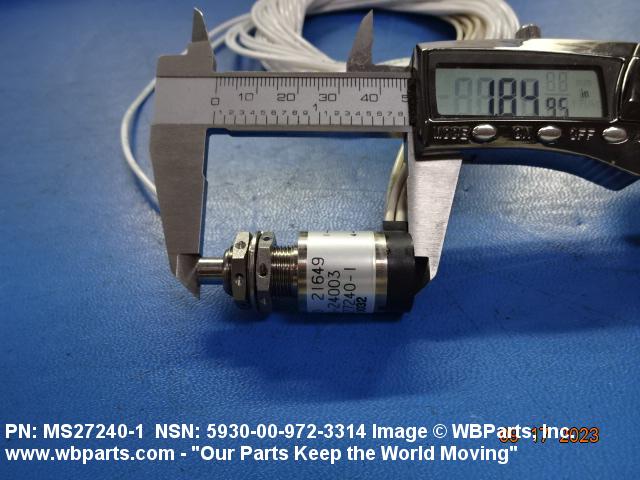

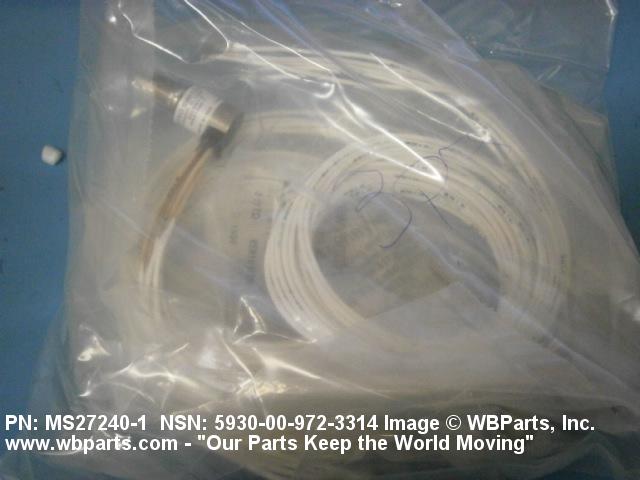

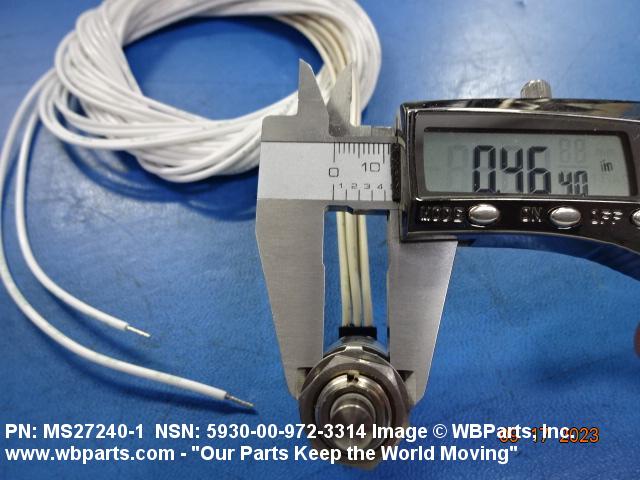

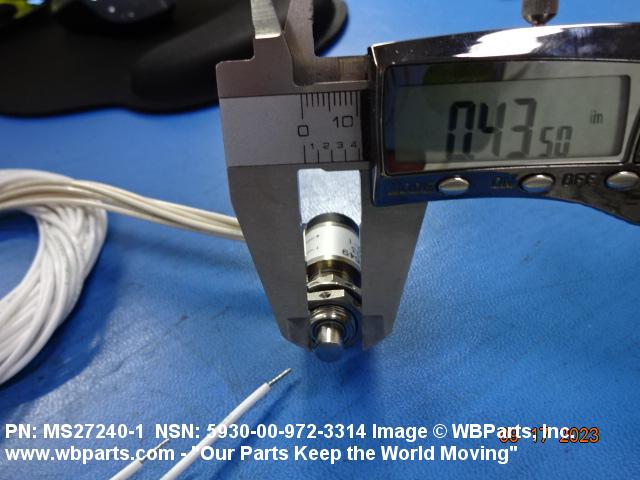

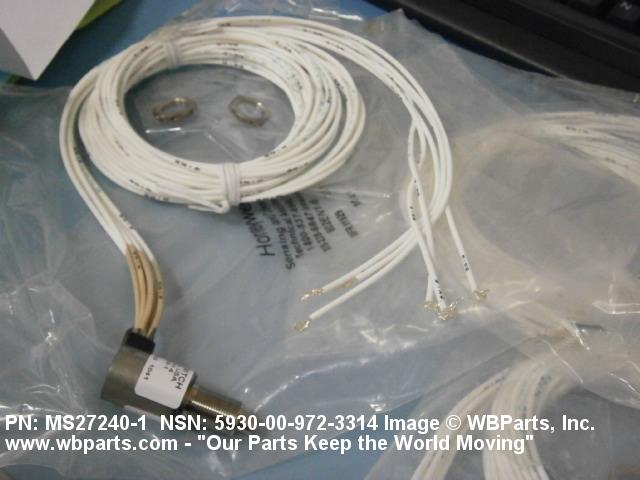

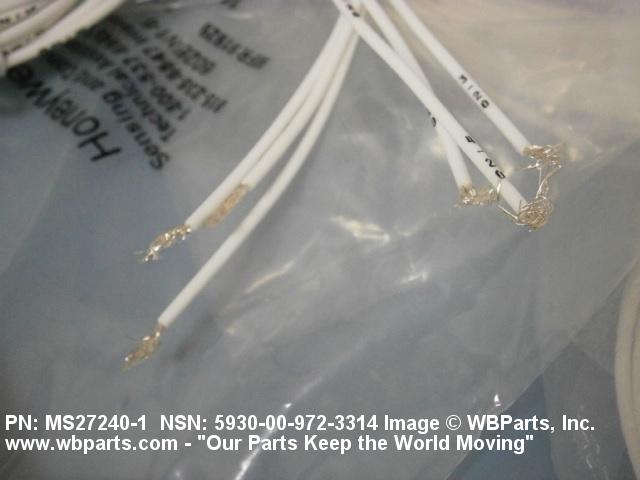

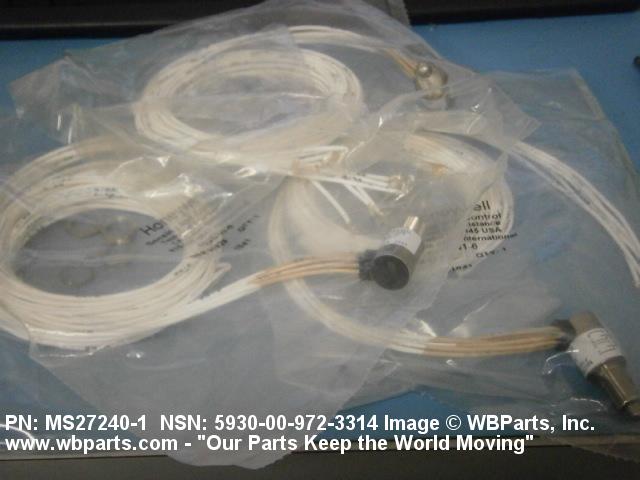

Drawings & Photos | NSN 5930-00-972-3314
Demand History | NSN 5930-00-972-3314
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-972-3314 | 2024-01-24 | 347 | DIBBS |
| MS272401 | 2023-09-13 | 3 | us |
| MS272401 | 2023-06-29 | 5 | us |
| 5930-00-972-3314 | 2023-02-14 | 316 | DIBBS |
| 5930-00-972-3314 | 2023-01-30 | 316 | DIBBS |
| 5930-00-972-3314 | 2022-09-02 | 1 | South Korea |
| 5930-00-972-3314 | 2022-07-21 | 1 | United States |
| 5930-00-972-3314 | 2022-02-22 | 175 | DIBBS |
| 5930-00-972-3314 | 2022-02-07 | 175 | DIBBS |
| 5930-00-972-3314 | 2021-06-01 | 9 | India |
| MS272401 | 2021-03-12 | 13 | France |
| 5930-00-972-3314 | 2021-02-15 | 247 | DIBBS |
| 5930-00-972-3314 | 2021-02-11 | 170 | DIBBS |
| 5930-00-972-3314 | 2018-10-25 | 340 | DIBBS |
| 5930-00-972-3314 | 2018-09-19 | 400 | DIBBS |
| 5930-00-972-3314 | 2018-09-05 | 400 | DIBBS |
| 5930-00-972-3314 | 2018-08-09 | 275 | DIBBS |
| 5930-00-972-3314 | 2018-07-26 | 76 | DIBBS |
| 5930-00-972-3314 | 2018-03-29 | 268 | DIBBS |
| 5930-00-972-3314 | 2018-02-05 | 31 | DIBBS |
| 5930-00-972-3314 | 2018-01-18 | 117 | DIBBS |
| 5930-00-972-3314 | 2016-11-01 | 220 | United States |
| 5930-00-972-3314 | 2016-09-08 | 97 | DIBBS |
| 5930-00-972-3314 | 2016-03-31 | 320 | DIBBS |
| 5930-00-972-3314 | 2015-10-05 | 103 | DIBBS |
| 5930-00-972-3314 | 2015-09-22 | 103 | DIBBS |
| 602EN16 | 2014-08-22 | 3 | TH |
| 5930-00-972-3314 | 2012-11-20 | 0 | DIBBS |
| MS27240-1 | 2012-11-05 | 2 | |
| MS272401 | 2012-09-07 | 8 | China |
| 5930-00-972-3314 | 2012-08-31 | 258 | DIBBS |
| 602EN16 | 2012-08-09 | 3 | Thailand |
| 5930-00-972-3314 | 2012-07-30 | 175 | DIBBS |
| 5930-00-972-3314 | 2012-06-29 | 83 | DIBBS |
| 602EN16 | 2012-03-26 | 3 | Thailand |
| MS272401 | 2012-03-22 | 3 | United States |
| 5930-00-972-3314 | 2012-03-15 | 159 | DIBBS |
| MS272401 | 2012-03-14 | 3 | United States |
| 5930-00-972-3314 | 2012-01-09 | 126 | DIBBS |
| 5930-00-972-3314 | 2011-08-10 | 59 | DIBBS |
| 5930-00-972-3314 | 2011-07-09 | 72 | DIBBS |
| 5930-00-972-3314 | 2011-06-07 | 130 | DIBBS |
| 5930-00-972-3314 | 2011-05-11 | 136 | DIBBS |
| 5930-00-972-3314 | 2011-02-15 | 63 | DIBBS |
| 5930-00-972-3314 | 2010-12-15 | 193 | DIBBS |
| 5930-00-972-3314 | 2010-10-12 | 96 | DIBBS |
| 602EN16 | 2010-10-04 | 2 | ZA |
| 5930-00-972-3314 | 2010-07-02 | 14 | DIBBS |
| 5930-00-972-3314 | 2010-05-20 | 211 | DIBBS |
| 5930-00-972-3314 | 2010-04-22 | 205 | DIBBS |
| 5930-00-972-3314 | 2009-11-25 | 189 | DIBBS |
| 5930-00-972-3314 | 2009-06-09 | 68 | DIBBS |
| 5930-00-972-3314 | 2009-03-25 | 217 | DIBBS |
| 5930-00-972-3314 | 2009-01-20 | 155 | DIBBS |
| MS272401 | 2008-11-18 | 111 | United States |
| 5930-00-972-3314 | 2008-11-18 | 154 | DIBBS |
| 5930-00-972-3314 | 2008-10-09 | 227 | DIBBS |
| 5930-00-972-3314 | 2008-09-19 | 255 | DIBBS |
| 5930-00-972-3314 | 2008-09-03 | 209 | DIBBS |
| 5930-00-972-3314 | 2008-08-01 | 188 | DIBBS |
| 5930-00-972-3314 | 2008-03-19 | 100 | DIBBS |
| 5930-00-972-3314 | 2007-11-19 | 235 | DIBBS |
| 5930-00-972-3314 | 2007-06-19 | 123 | DIBBS |
| 5930-00-972-3314 | 2007-06-06 | 1 | DIBBS |
| 5930-00-972-3314 | 2007-05-23 | 55 | DIBBS |
| 5930-00-972-3314 | 2007-04-13 | 44 | DIBBS |
| 5930-00-972-3314 | 2007-03-30 | 259 | DIBBS |
| 5930-00-972-3314 | 2007-02-11 | 328 | DIBBS |
| 5930-00-972-3314 | 2006-06-29 | 154 | DIBBS |
Cross Reference | NSN 5930-00-972-3314
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 602EN1-6 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| 63-210099 | 04426 | ILLINOIS TOOL WORKS INC. DIV ILLINOIS TOOL WORKS |
| 70600-22023-041 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
| 7902578-00 | 90536 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 8001-203-1 | 36334 | INDAL TECHNOLOGIES INC |
| K884131-005 | 84955 | KAMAN AEROSPACE CORPORATION DBA AIR VEHICLES & MRO DIVISION |
| MIL-PRF-8805/43 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-S-8805/43 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS27240-1 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| MS27240-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-972-3314
Related Products | NSN 5930-00-972-3314
Technical Data | NSN 5930-00-972-3314
| Characteristic | Specifications |
|---|---|

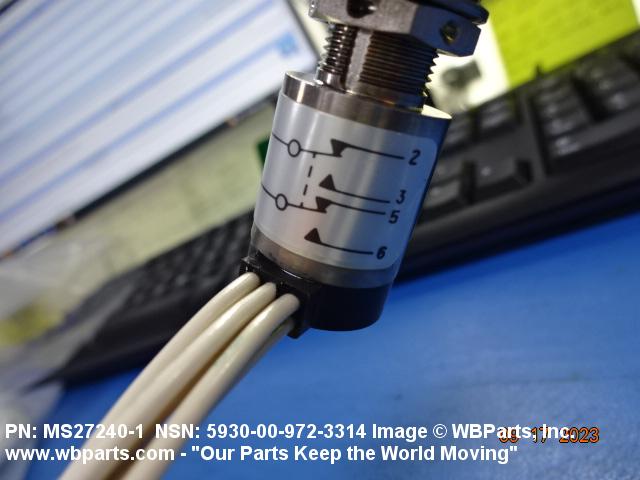

| NONPILE-UP CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 7.000 AMPERES RESISTIVE DC AND 4.000 AMPERES INDUCTIVE DC AND 4.000 AMPERES MOTOR DC |
| BODY STYLE | 2M BUSHING MOUNTED |

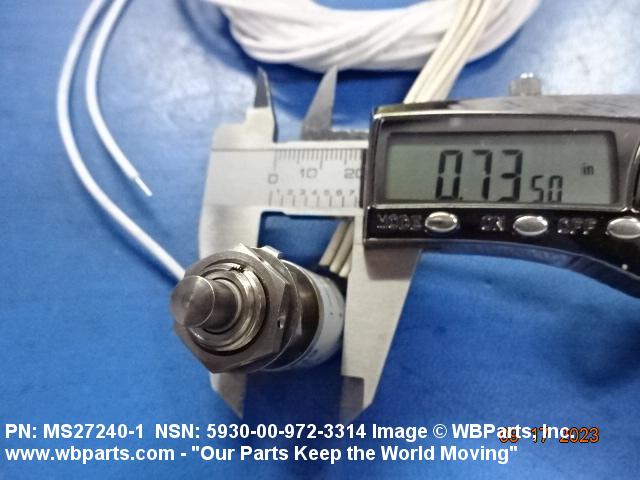

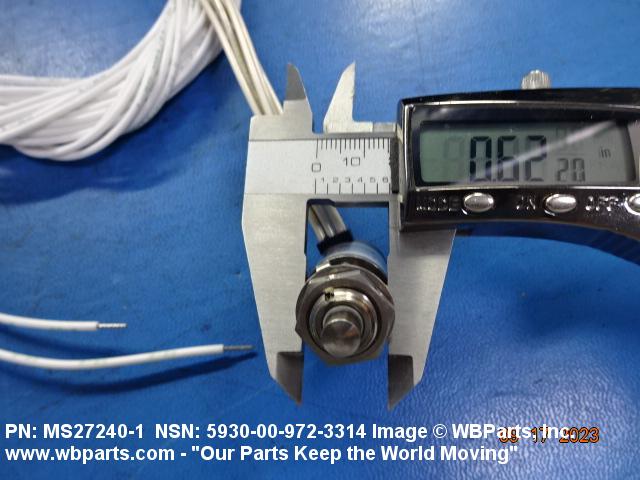

| BODY DIAMETER | 0.720 INCHES MAXIMUM |
| BUSHING LENGTH | 0.595 INCHES MINIMUM AND 0.655 INCHES MAXIMUM |
| BODY LENGTH | 1.000 INCHES MAXIMUM |
| ACTUATOR STYLE | 2 ROUND |

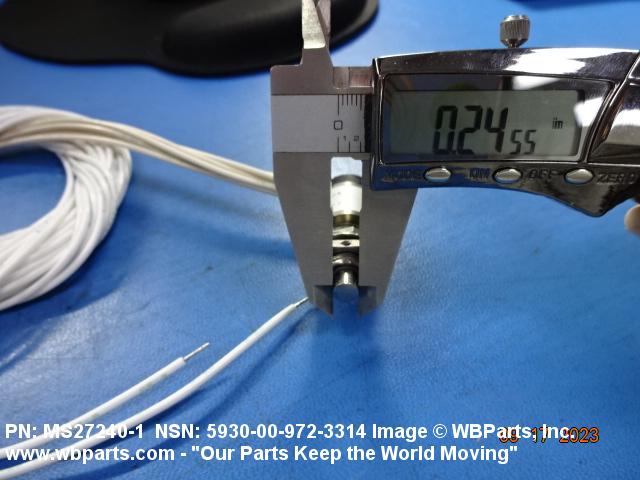

| ACTUATOR DIAMETER | 0.245 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |

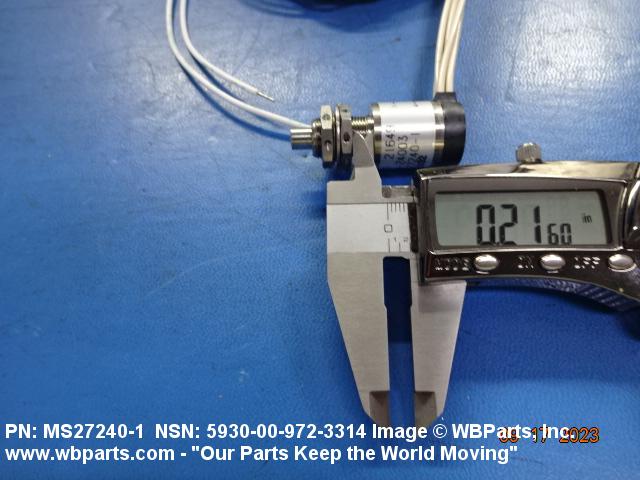

| ACTUATOR HEIGHT | 0.220 INCHES MINIMUM AND 0.280 INCHES MAXIMUM |
| ACTUATOR FREE POSITION HEIGHT | 0.220 INCHES MINIMUM AND 0.280 INCHES MAXIMUM |

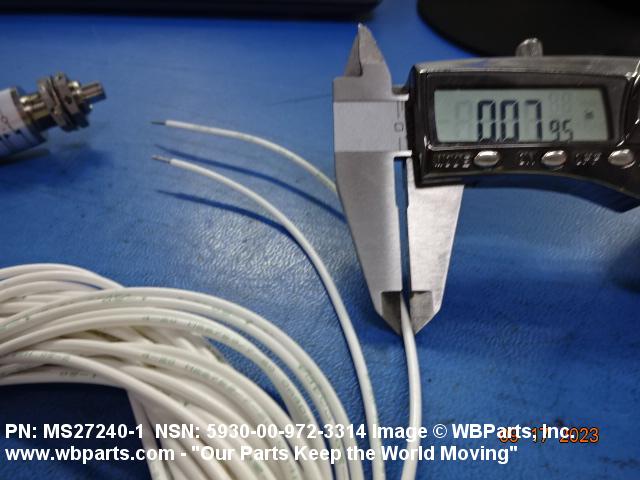

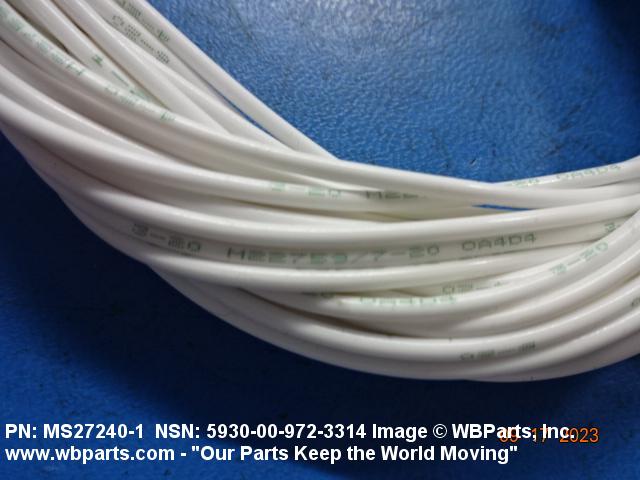

| TERMINAL TYPE AND QUANTITY | 6 WIRE LEAD |
| SWITCH ACTUATING FORCE | 96.0 OUNCES MINIMUM AND 192.0 OUNCES MAXIMUM |
| SWITCH RELEASE FORCE | 64.0 OUNCES MINIMUM |
| ACTUATOR MOVEMENT | 0.040 PRETRAVEL INCHES MAXIMUM AND 0.250 OVERTRAVEL INCHES MAXIMUM AND 0.020 DIFFERENTIAL INCHES MAXIMUM |
| INCLOSURE TYPE | FULLY INCLOSED |
| ACTUATOR ADAPTER STYLE | 4 PUSHBUTTON |
| ADAPTER BUSHING LENGTH | 0.595 INCHES MINIMUM AND 0.655 INCHES MAXIMUM |

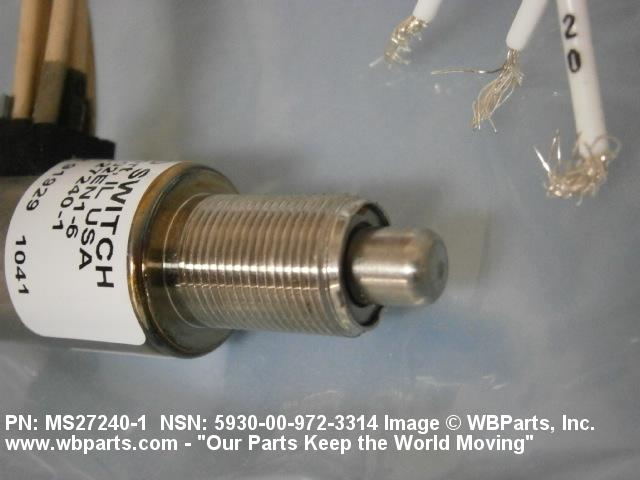

| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.469 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD PITCH DIAMETERS | 0.4752 TO 0.4787 INCHES |
| TEST DATA DOCUMENT | 81349-MIL-S-8805 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-S-8805/43 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-8805/43 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS27240-1 |
Restrictions/Controls & Freight Information | NSN 5930-00-972-3314
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-972-3314
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
