NSN 5930-00-892-9208 MS213211, MS21321-1, MIL-PRF-8805/39
Product Details | SENSITIVE SWITCH
5930-00-892-9208 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: MS213211, MS21321-1, MIL-PRF-8805/39, MILPRF880539, MIL-S-8805/39, MILS880539, 1050291, 105029-1, 402EN16, 402EN1-6, 5930-00-892-9208, 00-892-9208, 5930008929208, 008929208
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-892-9208 | 00399 ( SWITCH, SENSITIVE ) |

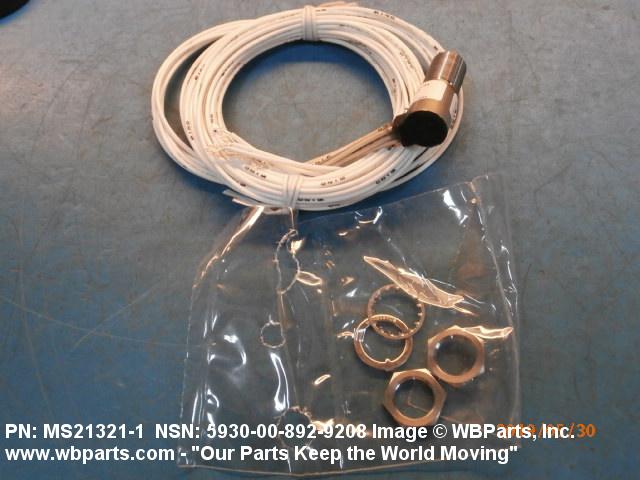

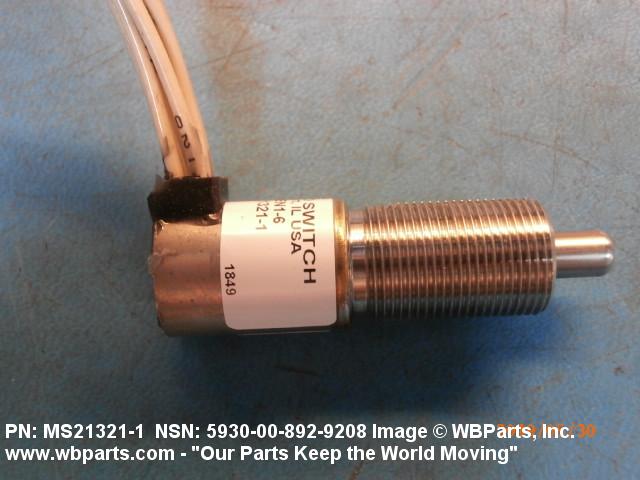

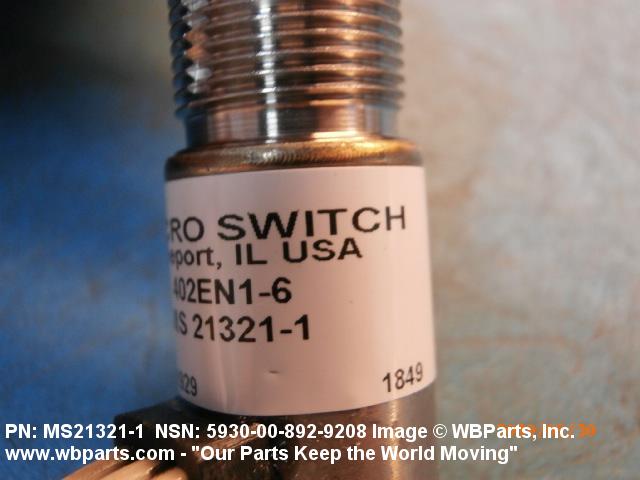

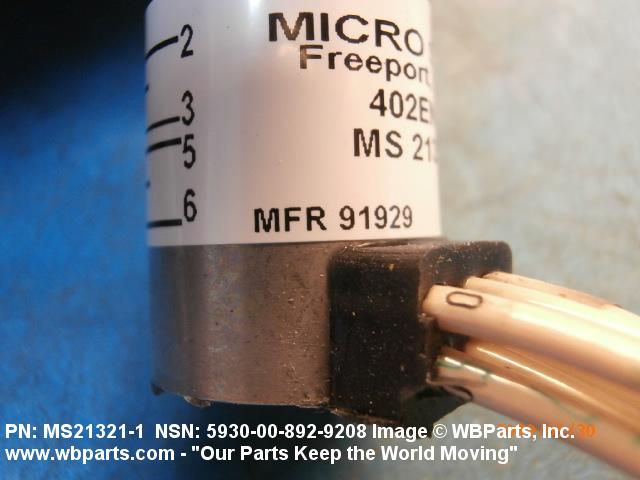

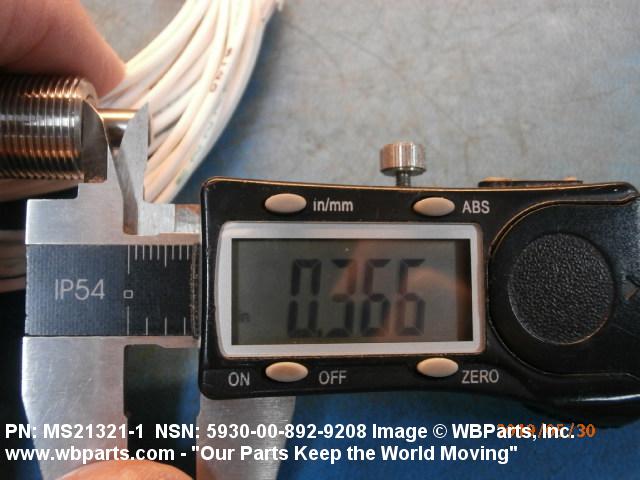

Drawings & Photos | NSN 5930-00-892-9208
Demand History | NSN 5930-00-892-9208
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-892-9208 | 2024-08-227 | 20 | TW |
| MS213211 | 2023-11-306 | 200 | US |
| 5930-00-892-9208 | 2023-10-285 | 5 | Taiwan |
| 5930-00-892-9208 | 2023-06-170 | 159 | DIBBS |
| 5930-00-892-9208 | 2023-06-159 | 127 | DIBBS |
| 5930-00-892-9208 | 2023-05-128 | 68 | DIBBS |
| 5930-00-892-9208 | 2023-04-109 | 68 | DIBBS |
| MS213211 | 2022-10-276 | 325 | Taiwan |
| 5930-00-892-9208 | 2022-09-245 | 2 | South Korea |
| 5930-00-892-9208 | 2022-04-101 | 173 | DIBBS |
| 5930-00-892-9208 | 2022-03-86 | 173 | DIBBS |
| MS213211 | 2022-03-81 | 152 | Taiwan |
| 5930-00-892-9208 | 2021-04-98 | 94 | DIBBS |
| MS213211 | 2021-03-71 | 2 | France |
| 5930-00-892-9208 | 2020-10-278 | 14 | Taiwan |
| 5930-00-892-9208 | 2020-04-110 | 52 | DIBBS |
| 5930-00-892-9208 | 2020-01-02 | 111 | DIBBS |
| 5930-00-892-9208 | 2019-05-136 | 6 | Taiwan |
| 5930-00-892-9208 | 2019-02-52 | 1 | United States |
| 5930-00-892-9208 | 2018-03-63 | 62 | DIBBS |
| 5930-00-892-9208 | 2018-01-24 | 132 | DIBBS |
| 5930-00-892-9208 | 2017-10-295 | 21 | DIBBS |
| 5930-00-892-9208 | 2017-08-243 | 37 | DIBBS |
| 5930-00-892-9208 | 2016-12-364 | 87 | DIBBS |
| 5930-00-892-9208 | 2016-12-353 | 87 | DIBBS |
| 5930-00-892-9208 | 2016-08-238 | 147 | DIBBS |
| 5930-00-892-9208 | 2016-03-82 | 140 | DIBBS |
| 5930-00-892-9208 | 2015-07-202 | 110 | DIBBS |
| 402EN16 | 2015-01-28 | 3 | United States |
| 5930-00-892-9208 | 2014-06-154 | 126 | DIBBS |
| 5930-00-892-9208 | 2014-04-100 | 313 | DIBBS |
| 5930-00-892-9208 | 2014-03-87 | 56 | DIBBS |
| 402EN1-6 | 2012-11-310 | 3 | |
| 5930-00-892-9208 | 2012-08-244 | 84 | DIBBS |
| MS213211 | 2011-04-108 | 300 | Taiwan |
| MS213211 | 2010-10-277 | 2 | ZA |
| 5930-00-892-9208 | 2010-09-270 | 146 | DIBBS |
| 5930-00-892-9208 | 2010-06-162 | 108 | DIBBS |
| MS213211 | 2010-05-145 | 210 | US |
| 5930-00-892-9208 | 2010-05-134 | 58 | DIBBS |
| 5930-00-892-9208 | 2010-05-121 | 63 | DIBBS |
| 5930-00-892-9208 | 2010-03-63 | 115 | DIBBS |
| 5930-00-892-9208 | 2009-10-301 | 69 | DIBBS |
| 5930-00-892-9208 | 2009-09-245 | 69 | DIBBS |
| 5930-00-892-9208 | 2008-10-283 | 20 | DIBBS |
| 5930-00-892-9208 | 2008-08-242 | 21 | DIBBS |
| 5930-00-892-9208 | 2008-07-189 | 59 | DIBBS |
| 5930-00-892-9208 | 2008-01-02 | 92 | DIBBS |
| 5930-00-892-9208 | 2008-01-02 | 59 | DIBBS |
| 5930-00-892-9208 | 2007-09-261 | 90 | DIBBS |
Cross Reference | NSN 5930-00-892-9208
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 105029-1 | 82340 | EDO CORPORATION DIV DEFENSE SYSTEMS |

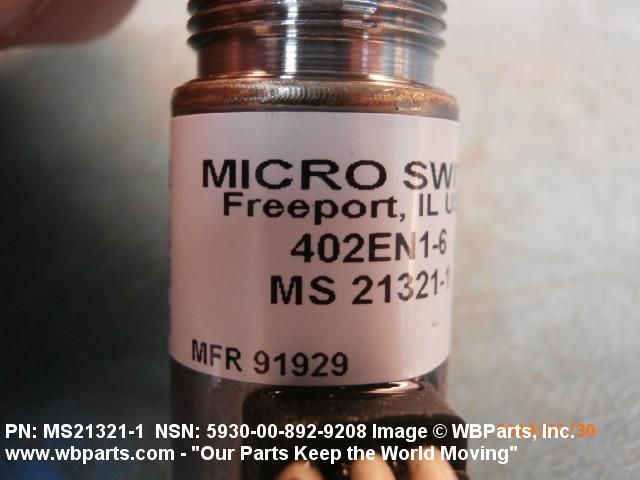

| 402EN1-6 | K6596 | HONEYWELL CONTROL SYSTEMS LTD |
| 402EN1-6 | U4042 | HONEYWELL CONTROL SYSTEMS LTD DIV AUTOMATION & CONTROL SOLUTIONS - |
| MIL-PRF-8805/39 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-S-8805/39 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS21321-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-892-9208
Related Products | NSN 5930-00-892-9208
Technical Data | NSN 5930-00-892-9208
| Characteristic | Specifications |
|---|---|

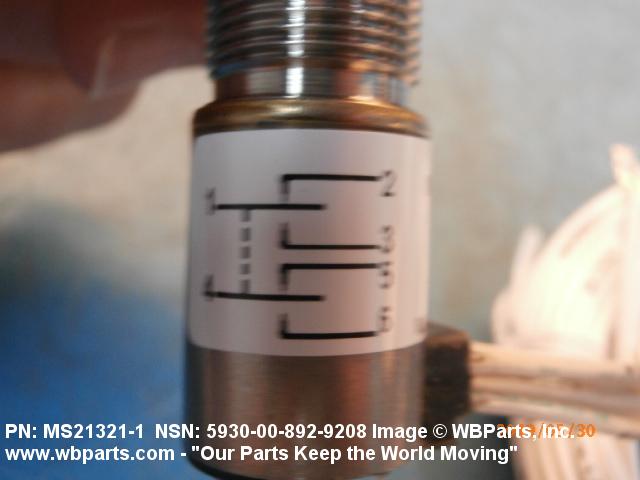

| NONPILE-UP CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 7.000 AMPERES RESISTIVE DC AND 4.000 AMPERES INDUCTIVE DC AND 4.000 AMPERES MOTOR DC |
| BODY STYLE | 2M BUSHING MOUNTED |

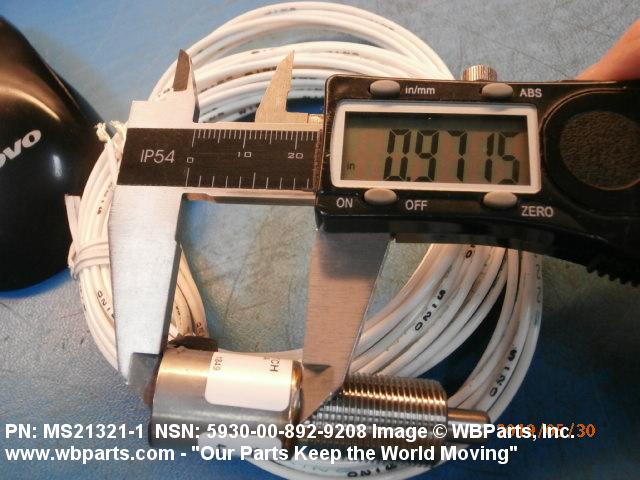

| BODY DIAMETER | 0.720 INCHES MAXIMUM |

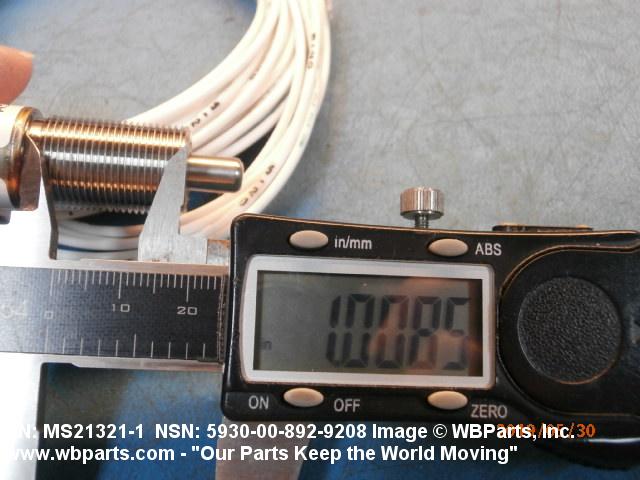

| BUSHING LENGTH | 1.000 INCHES NOMINAL |
| BODY LENGTH | 0.980 INCHES MAXIMUM |

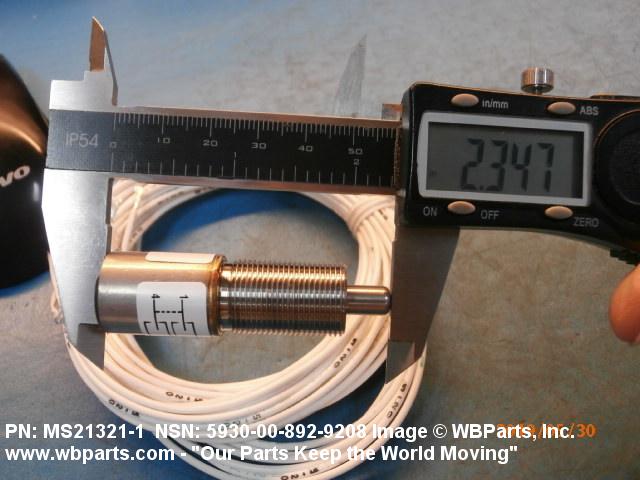

| OVERALL LENGTH | 2.355 INCHES NOMINAL |

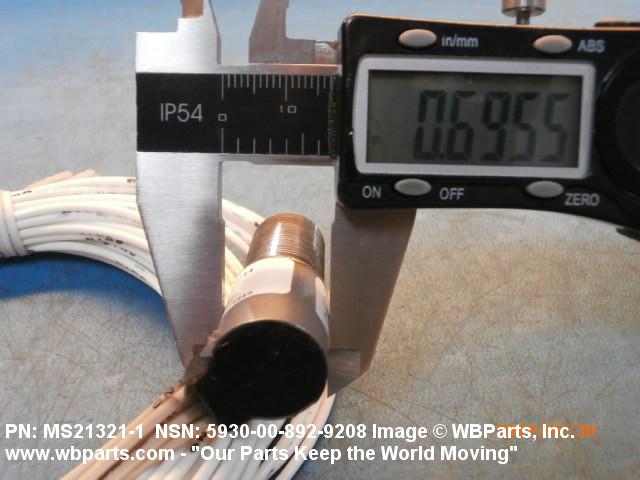

| OVERALL WIDTH | 0.720 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.720 INCHES MAXIMUM |
| ACTUATOR STYLE | 2 ROUND |

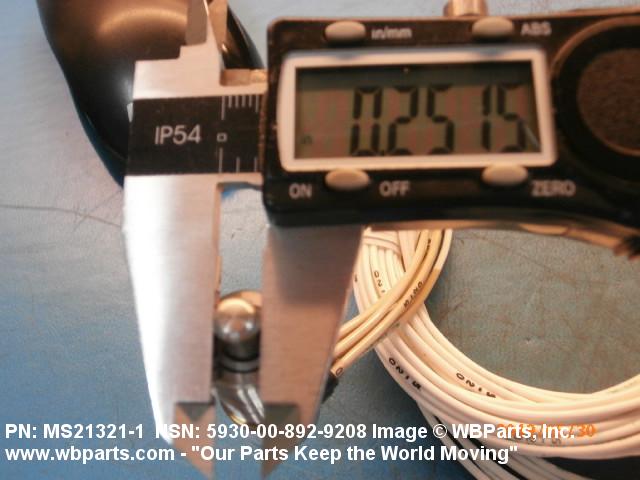

| ACTUATOR DIAMETER | 0.250 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.375 INCHES NOMINAL |

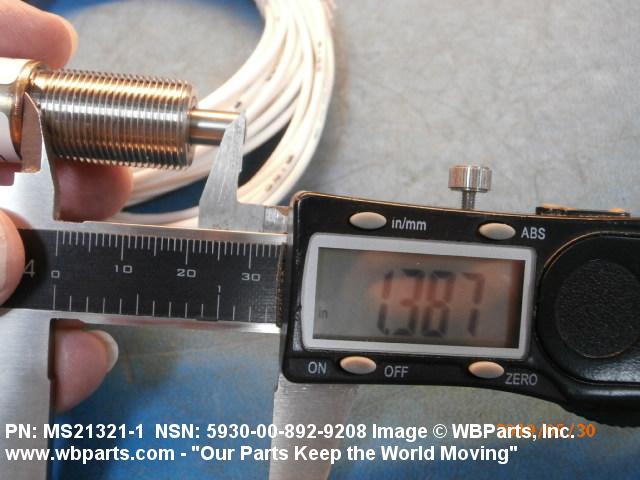

| ACTUATOR FREE POSITION HEIGHT | 1.375 INCHES NOMINAL |

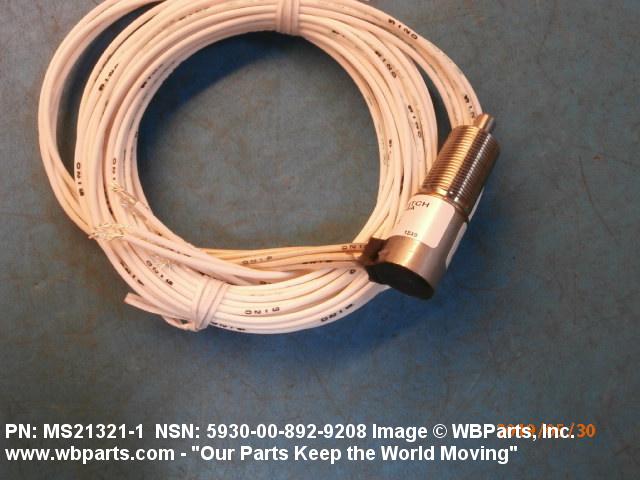

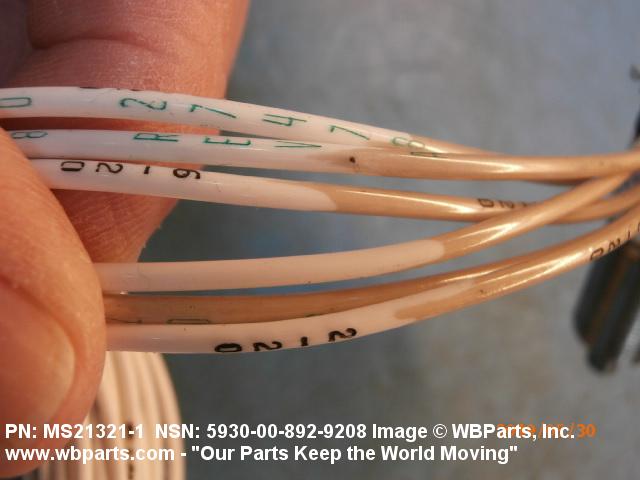

| TERMINAL TYPE AND QUANTITY | 6 WIRE LEAD |
| SWITCH ACTUATING FORCE | 144.0 OUNCES NOMINAL |
| SWITCH RELEASE FORCE | 64.0 OUNCES MINIMUM |
| ACTUATOR MOVEMENT | 0.040 PRETRAVEL INCHES MAXIMUM AND 0.250 OVERTRAVEL INCHES MINIMUM AND 0.020 DIFFERENTIAL INCHES MAXIMUM |
| INCLOSURE TYPE | FULLY INCLOSED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT |

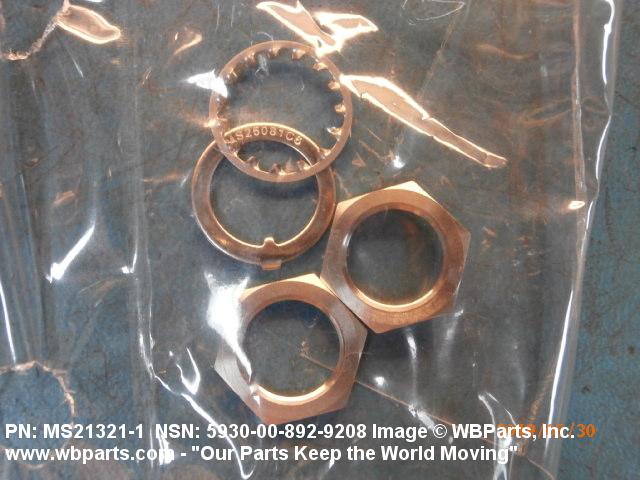

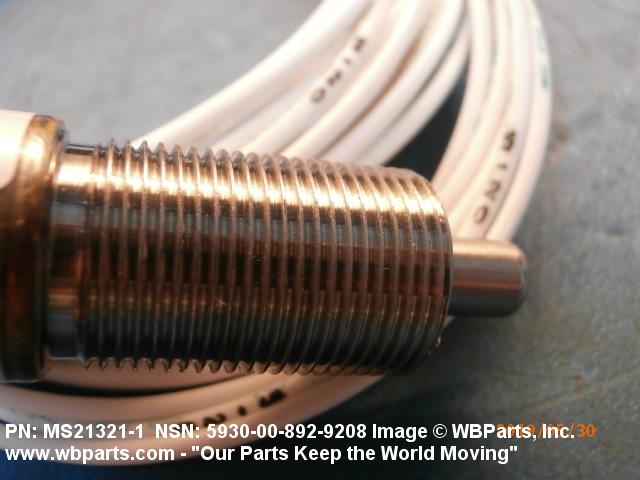

| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 0.625 INCHES |
| THREAD CLASS | 2B |
| FEATURES PROVIDED | ACTUATOR SEAL |
| TEST DATA DOCUMENT | 81349-MIL-S-8805 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-S-8805/39 GOVERNMENT SPECIFICATION |
| III CASE MATERIAL | METAL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-8805/39 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21321-1 |
Restrictions/Controls & Freight Information | NSN 5930-00-892-9208
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-892-9208
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
