NSN 5930-00-729-8720 A420103, A4-20-103, C2187871

Product Details | SENSITIVE SWITCH

5930-00-729-8720 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.

Part Alternates: A420103, A4-20-103, C2187871, C218787-1, SMB189808, SWPB14, 697255-010, 723909, 8908293, IPB5, 04760034001, 04760034-001, 18344431, 1834443-1, 190146, 1LJ11E, 1LJ1-1E, 1LJ126E, 1LJ1-26E, 1LJ12C, 1LJ1-2C, 1PB5, 1SJ12, 1SJ1-2, 1SJ126E, 1SJ1-26E, 2000110, 20-001-10, 270402, 27-0402, 2JC2935H01, 4520119001, 452-0119-001, 4921021, 492-1021, 580272, 58027-2, 5930-00-729-8720, 00-729-8720, 5930007298720, 007298720, 697255010

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1963	00-729-8720	00399 ( SWITCH, SENSITIVE )

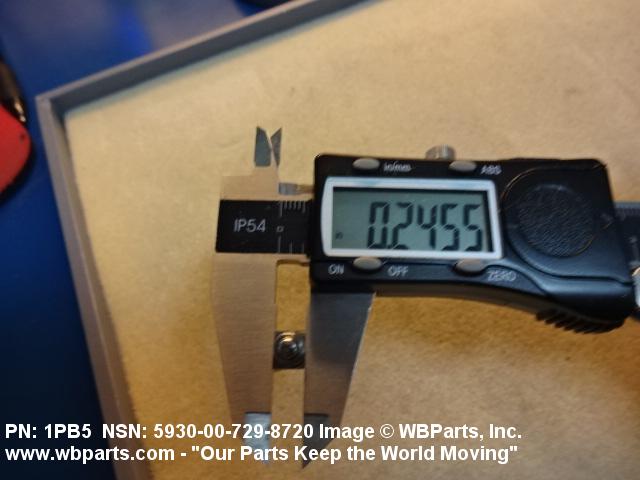

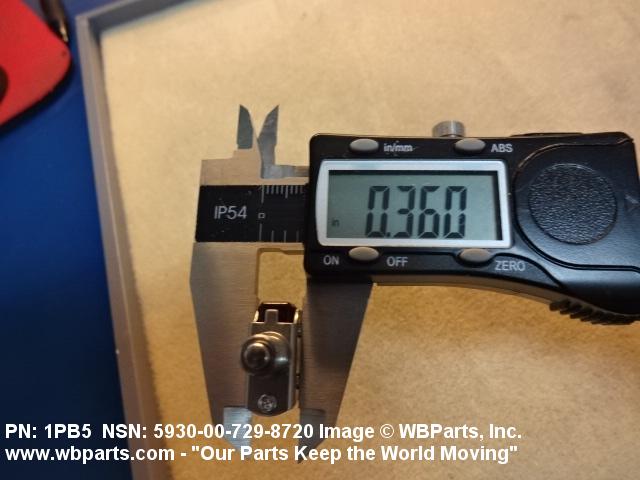

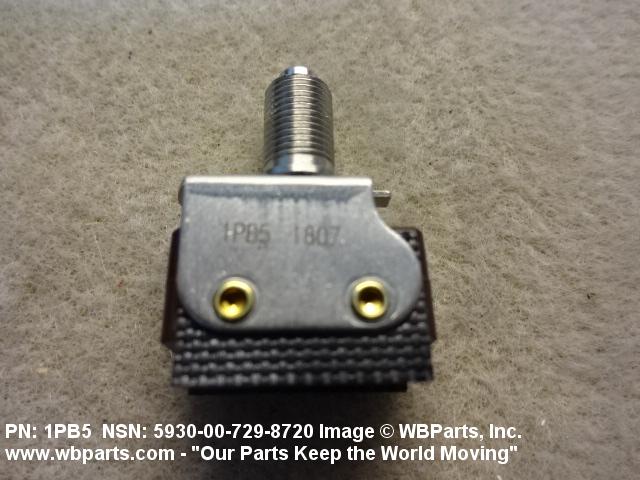

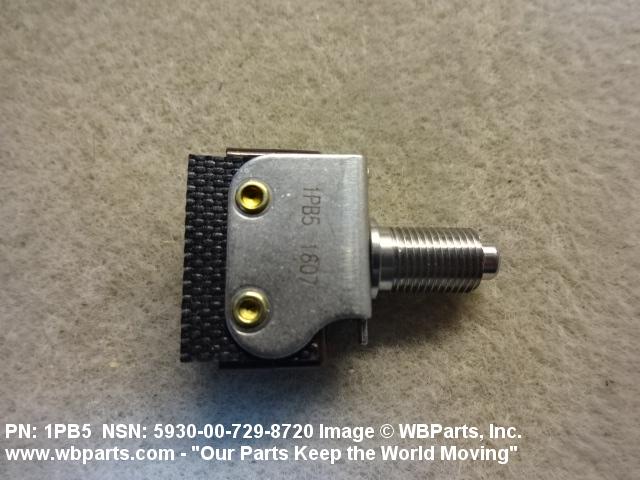

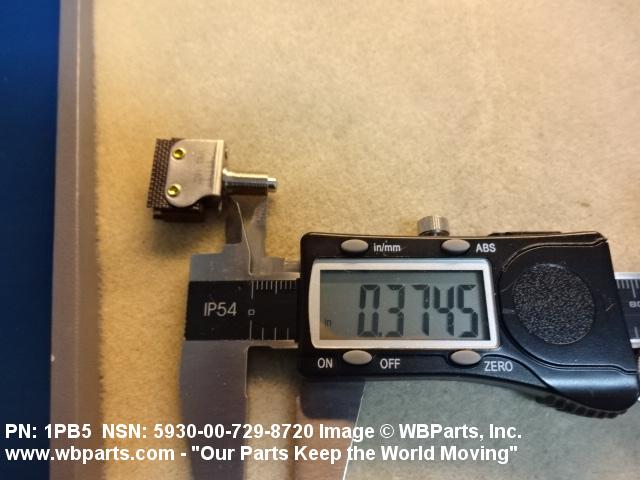

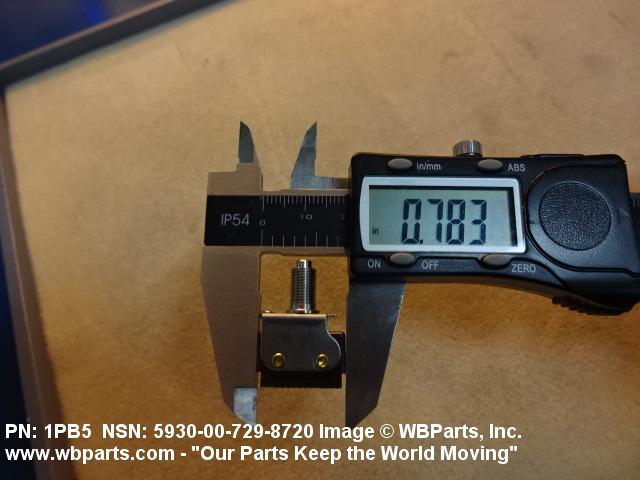

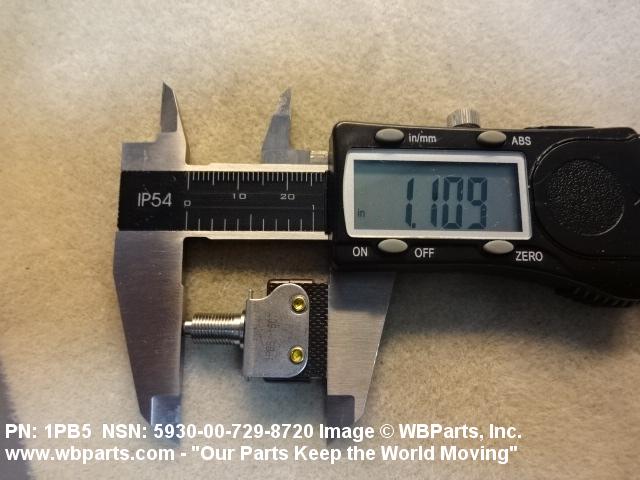

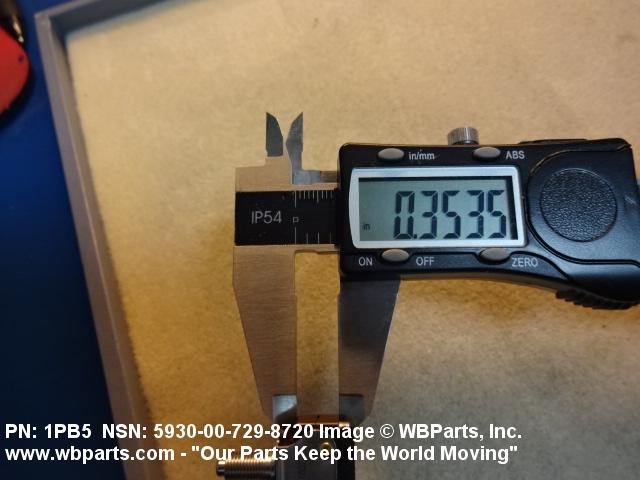

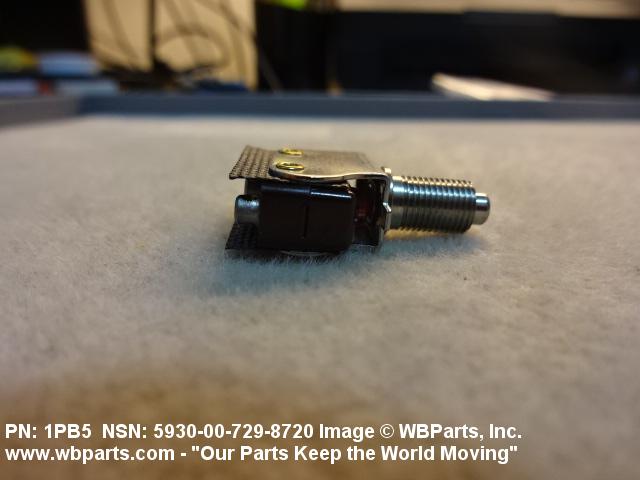

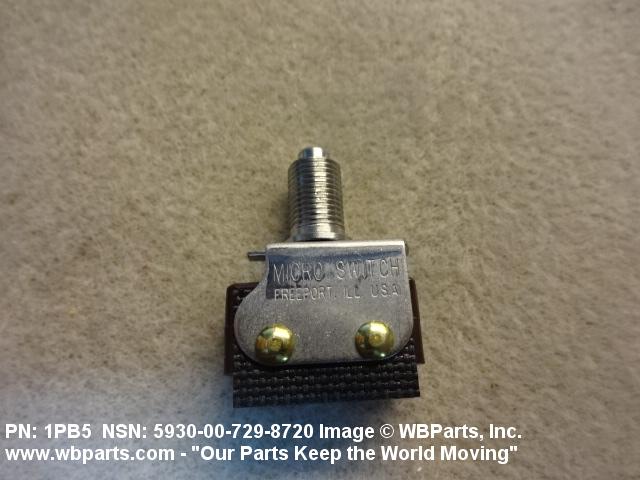

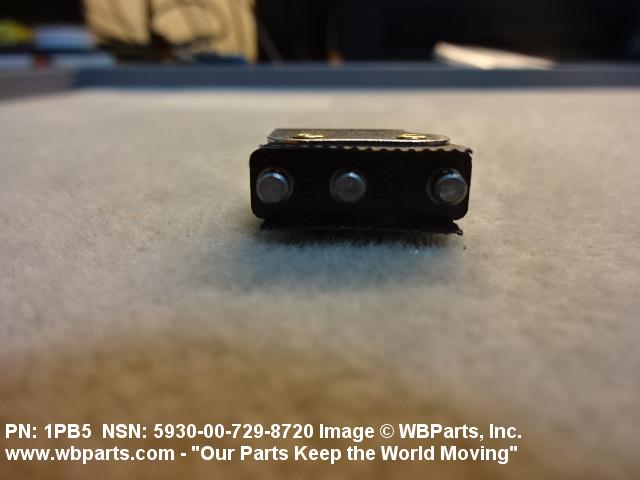

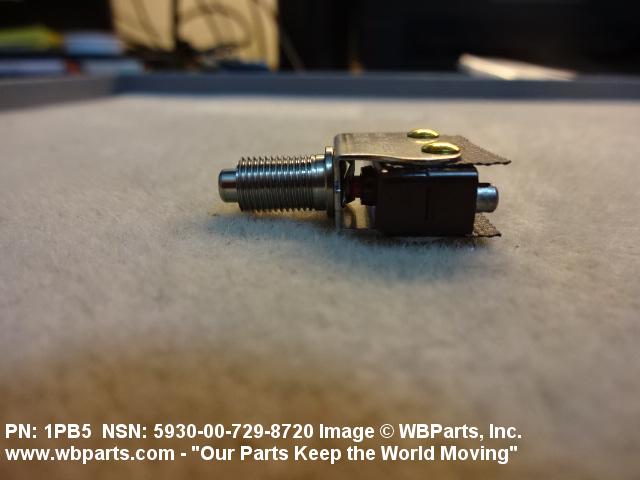

Drawings & Photos | NSN 5930-00-729-8720

Part Number	Request Date	QTY	Origin
5930-00-729-8720	2018-04-110	2	Canada
5930-00-729-8720	2018-03-65	250	DIBBS
5930-00-729-8720	2017-08-236	70	DIBBS
5930-00-729-8720	2017-03-74	65	DIBBS
5930-00-729-8720	2017-02-43	65	DIBBS
1LJ12C	2015-12-362	12	US
5930-00-729-8720	2015-05-125	81	DIBBS
5930-00-729-8720	2013-11-318	38	DIBBS
5930-00-729-8720	2013-10-283	35	DIBBS
5930-00-729-8720	2013-10-275	84	DIBBS
5930-00-729-8720	2013-10-275	11	DIBBS
1LJ12C	2011-08-222	12	US

Cross Reference | NSN 5930-00-729-8720

Part Number	Cage Code	Manufacturer
04760034+001	53178	BULL HN INFORMATION SYSTEMS INC
04760034-001	53178	BULL HN INFORMATION SYSTEMS INC
1834443-1	55972	HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS
190146	37695	RAYTHEON COMPANY DBA RAYTHEON
1LJ1-1E	1P3J4	ASSEMBLY TECHNOLOGY COMPONENTS INC DBA ATCOMPONENTS
1LJ1-1E	80207	C AND K COMPONENTS INC CLAYTON/UNIMAX DIV
1LJ1-26E	80207	C AND K COMPONENTS INC CLAYTON/UNIMAX DIV
1LJ1-2C	39015	MAXSON ELECTRONICS CORP
1PB5	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
1PB5	F3767	SEF INDUSTRIE
1PB5	R1120	SATAIR A/S
1SJ1-2	80207	C AND K COMPONENTS INC CLAYTON/UNIMAX DIV
1SJ1-26E	80207	C AND K COMPONENTS INC CLAYTON/UNIMAX DIV
20-001-10	00816	PALOMAR PRODUCTS, INC.
27-0402	K0630	TELLUMAT LTD
2JC2935H01	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
452-0119-001	94756	BOEING COMPANY, THE DBA BOEING
492-1021	98329	FORD AEROSPACE CORP
58027-2	96214	RAYTHEON COMPANY DBA RAYTHEON
697255-010	12436	BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC.
723909	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
8908293	18876	U S ARMY AVIATION AND MISSILE COMMAND
A4-20-103	81640	EATON CORPORATION DBA FLUID POWER DIV
C218787-1	06845	RAYTHEON COMPANY DBA RAYTHEON
IPB5	40932	NORTH COUNTRY BUSINESS PRODUCTS
IPB5	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
SMB189808	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS
SWPB14	04596	THERMO EBERLINE LLC DBA THERMO FISHER SCIENTIFIC DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-00-729-8720

Compare

Related Products | NSN 5930-00-729-8720

5930-00-729-8738, 5930-00-729-8739, 5930-00-729-8742, 5930-00-729-8781, 5930-00-729-8940

Technical Data | NSN 5930-00-729-8720

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS	250.0 AC AND 30.0 DC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	4.000 AMPERES RESISTIVE DC AND 3.000 AMPERES INDUCTIVE DC AND 5.000 AMPERES RESISTIVE AC
BODY STYLE	23M HOLE MOUNTED
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	0.375 INCHES NOMINAL
BODY LENGTH	0.781 INCHES NOMINAL
BODY WIDTH	0.391 INCHES MAXIMUM
BODY HEIGHT	0.359 INCHES NOMINAL
OVERALL LENGTH	0.781 INCHES NOMINAL
OVERALL WIDTH	0.391 INCHES MAXIMUM
OVERALL HEIGHT	1.125 INCHES NOMINAL
ACTUATOR STYLE	2 ROUND
ACTUATOR DIAMETER	0.092 INCHES NOMINAL
ACTUATOR FREE POSITION HEIGHT	0.330 INCHES NOMINAL
TERMINAL TYPE AND QUANTITY	3 SOLDER STUD
SWITCH ACTUATING FORCE	16.0 OUNCES NOMINAL
SWITCH RELEASE FORCE	4.0 OUNCES MINIMUM
ACTUATOR MOVEMENT	0.030 PRETRAVEL INCHES MAXIMUM AND 0.005 OVERTRAVEL INCHES MINIMUM AND 0.004 DIFFERENTIAL INCHES MAXIMUM
INCLOSURE TYPE	FULLY INCLOSED
ACTUATOR ADAPTER STYLE	4 PUSHBUTTON
ADAPTER BUSHING LENGTH	0.375 INCHES NOMINAL
MOUNTING METHOD	UNTHREADED HOLE
UNTHREADED MOUNTING HOLE DIAMETER	0.088 INCHES NOMINAL
THREAD SERIES DESIGNATOR	UNS
NOMINAL THREAD SIZE	0.250 INCHES
THREAD QUANTITY PER INCH	40
III END ITEM IDENTIFICATION	WEAPON SYSTEM-MISSILE, MINUTEMAN LGM-30

Restrictions/Controls & Freight Information | NSN 5930-00-729-8720

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	B	Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5930-00-729-8720

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	T	Other Electronics Equipment
Weapons Systems/End Item or Homogeneous Group	TN	Radiac
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
