NSN 5930-00-729-8465 BAF12RQ9RH, BAF1-2RQ9-RH, KLRRH
Product Details | SENSITIVE SWITCH
5930-00-729-8465 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: BAF12RQ9RH, BAF1-2RQ9-RH, KLRRH, KLR-RH, 10004823, 19673, 5930-00-729-8465, 00-729-8465, 5930007298465, 007298465
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-729-8465 | 00399 ( SWITCH, SENSITIVE ) |
Drawings & Photos | NSN 5930-00-729-8465
Demand History | NSN 5930-00-729-8465
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-729-8465 | 2017-02-51 | 3 | DIBBS |
| 5930-00-729-8465 | 2008-09-255 | 21 | DIBBS |
| 5930-00-729-8465 | 2006-03-69 | 25 | DIBBS |
Cross Reference | NSN 5930-00-729-8465
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10004823 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 19673 | 13841 | TIFFIN PARTS, L.L.C. DIV SUBSIDIARY OF PETTIBONE CORP. |
| 19673 | 23382 | FWD SEAGRAVE HOLDINGS, LP DIV FWD SEAGRAVE HOLDINGS, LP |
| BAF1-2RQ9-RH | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| KLR-RH | 80207 | C AND K COMPONENTS INC CLAYTON/UNIMAX DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-729-8465
Related Products | NSN 5930-00-729-8465
Technical Data | NSN 5930-00-729-8465
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 460.0 AC AND 250.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 250.000 MILLIAMPERES RESISTIVE DC AND 20.000 AMPERES RESISTIVE AC |

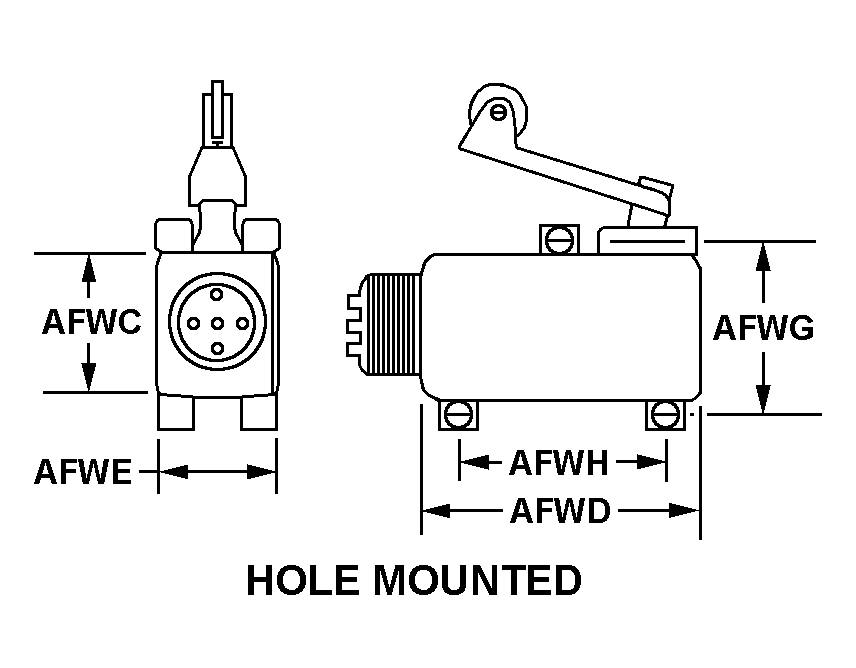

| BODY STYLE | 54M HOLE MOUNTED |
| HOUSING HEIGHT | 2.156 INCHES NOMINAL |
| HOUSING WIDTH | 1.156 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOUSING MOUNTING FACILITIES PARALLEL TO HEIGHT | 1.625 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOUSING MOUNTING FACILITIES PARALLEL TO LENGTH | 3.250 INCHES NOMINAL |
| OVERALL LENGTH | 4.000 INCHES NOMINAL |
| OVERALL WIDTH | 1.297 INCHES NOMINAL |
| OVERALL HEIGHT | 3.625 INCHES NOMINAL |
| ACTUATOR STYLE | 48 ROLLER PLUNGER |
| ACTUATOR FREE POSITION HEIGHT | 1.484 INCHES NOMINAL |
| ACTUATOR ROLLER DIAMETER | 0.656 INCHES NOMINAL |
| ACTUATOR ROLLER WIDTH | 0.187 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 3 SCREW |
| SWITCH ACTUATING FORCE | 40.0 OUNCES MAXIMUM |
| SWITCH RELEASE FORCE | 12.0 OUNCES MINIMUM |
| ACTUATOR MOVEMENT | 0.094 PRETRAVEL INCHES MAXIMUM AND 0.156 OVERTRAVEL INCHES MINIMUM AND 0.010 DIFFERENTIAL INCHES MAXIMUM |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | UNTHREADED HOLE |
| SPECIAL FEATURES | RIGHT HAND ACTUATOR |
| III CASE MATERIAL | PLASTIC |
