NSN 5930-00-729-8151 B35401B, 8159578, 00-729-8151
Product Details | SENSITIVE SWITCH
5930-00-729-8151 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: B35401B, 8159578, 5930-00-729-8151, 00-729-8151, 5930007298151, 007298151
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-729-8151 | 00399 ( SWITCH, SENSITIVE ) |
Drawings & Photos | NSN 5930-00-729-8151
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-729-8151
Related Products | NSN 5930-00-729-8151
Technical Data | NSN 5930-00-729-8151
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 30.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 5.000 AMPERES RESISTIVE DC |
| BODY STYLE | 26M HOLE MOUNTED |
| BODY LENGTH | 0.555 INCHES NOMINAL |
| BODY WIDTH | 0.250 INCHES NOMINAL |
| BODY HEIGHT | 0.500 INCHES NOMINAL |

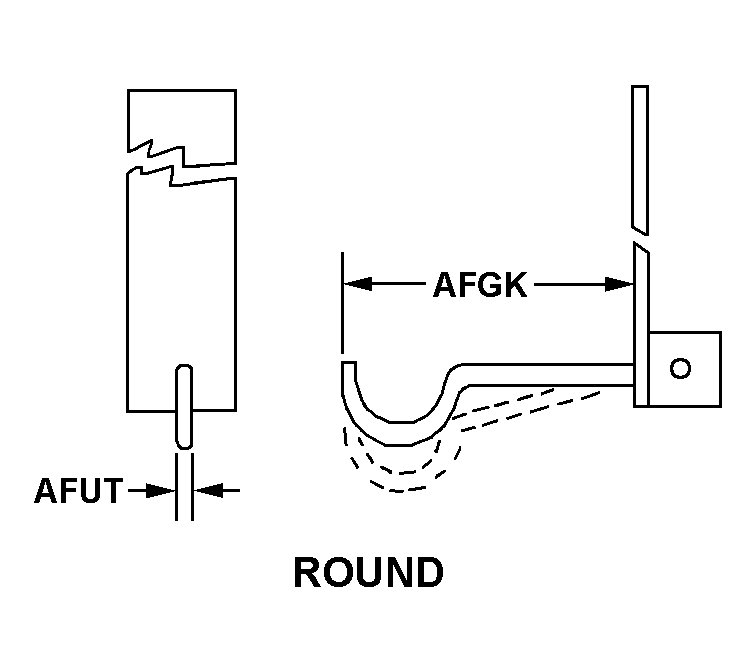

| ACTUATOR STYLE | 62 ROUND |
| ACTUATOR WIDTH | 0.010 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| SWITCH ACTUATING FORCE | 7.0 OUNCES MAXIMUM |
| SWITCH RELEASE FORCE | 1.0 OUNCES MINIMUM |
| ACTUATOR MOVEMENT | 0.120 PRETRAVEL INCHES MAXIMUM AND 0.005 OVERTRAVEL INCHES NOMINAL AND 0.025 DIFFERENTIAL INCHES MAXIMUM |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.088 INCHES MINIMUM AND 0.089 INCHES MAXIMUM |
| SPECIAL FEATURES | INCLUDES ONE 0.086-56 NC THD MTG HOLE |
| III OVERALL LENGTH | 0.938 INCHES NOMINAL |
| III OVERALL WIDTH | 0.250 INCHES NOMINAL |
| III OVERALL HEIGHT | 0.500 INCHES NOMINAL |
