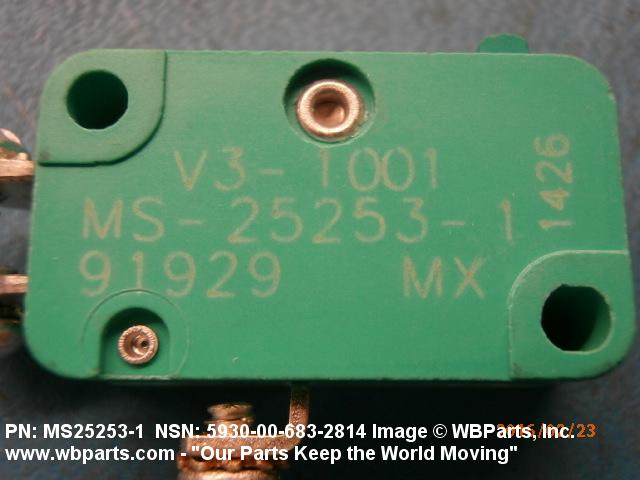

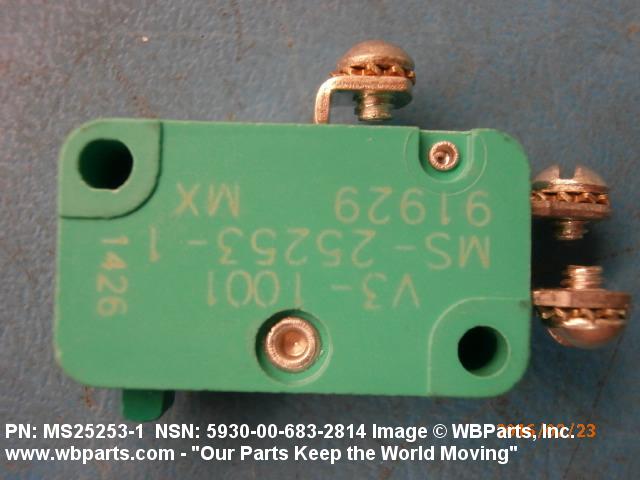

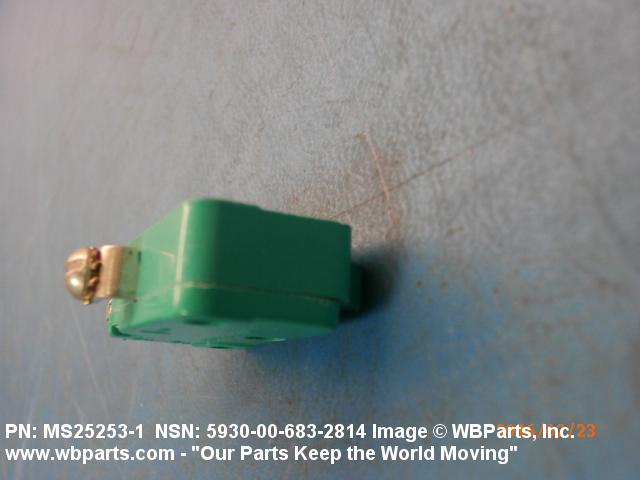

NSN 5930-00-683-2814 MS252531, MS25253-1, MS252534

Product Details | SENSITIVE SWITCH

5930-00-683-2814 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.

Part Alternates: MS252531, MS25253-1, MS252534, MS25253-4, M6137, M61-37, AN32341, AN3234-1, S611731, S61-1731, T2104 , V3-13, V3419, V3-419, VBE4/5, VBE45, VE1 MS25253-4, VE1MS252534, VE419, W5404, W5-404, W5424, W5-424, MIL-PRF-8805/27, MILPRF880527, MIL-S-8805/27, MILS880527, V31001, V3-1001, K139509 , 611731, 61-1731, 6412011, 8198273, 8675848, 10553490 , 140A031448, 1715179, 1715-179, 4-00587-001, 4166731, 416673-1, 487 804, 487804, 501555, 182-00-00-35, 20816121, 2081612-1 , 20884541, 2088454-1 , 2133594, 213359-4, 23100280, 2310-0280, 2955093P2, 295-5093P2, 30304240, 3030-4240, 3090420, 309-0420, 34302311, 34-3023-11, 3522 500 08559, 352250008559, V313, V31, V3-1, 5930-00-683-2814, 00-683-2814, 5930006832814, 182000035, 006832814, 400587001

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1961	00-683-2814	00399 ( SWITCH, SENSITIVE )

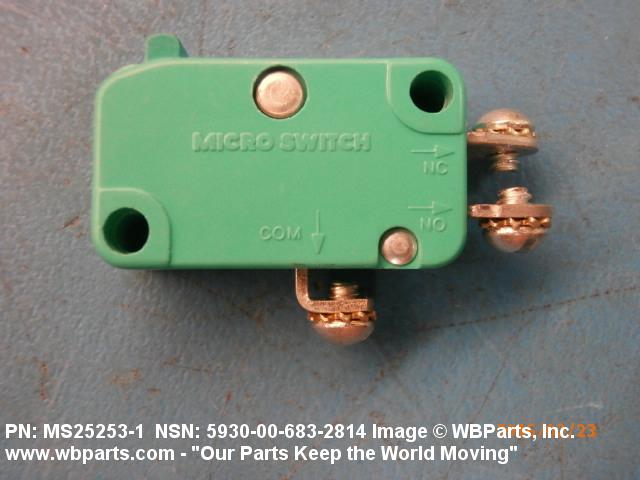

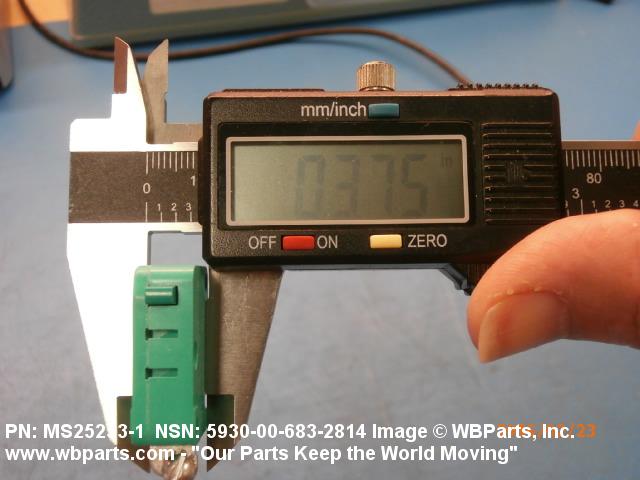

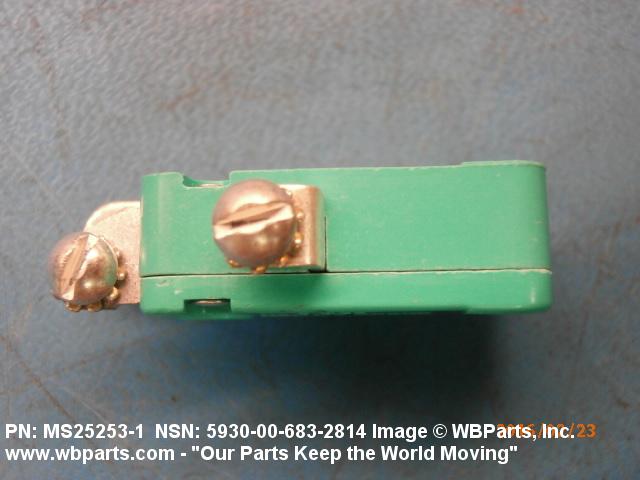

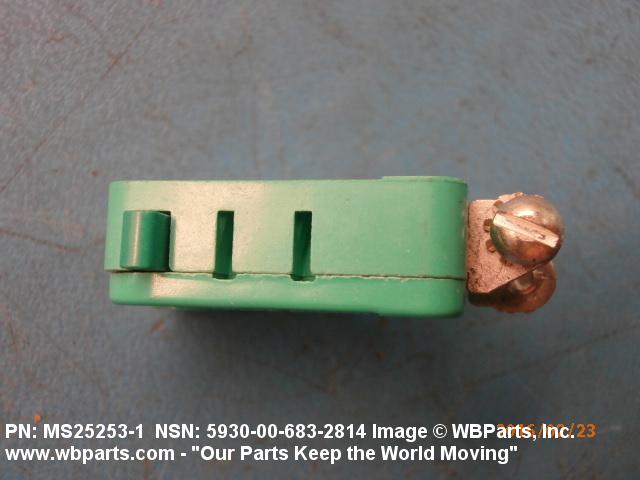

Drawings & Photos | NSN 5930-00-683-2814

Part Number	Request Date	QTY	Origin
5930-00-683-2814	2024-02-55	12	AU
5930-00-683-2814	2023-09-254	9	United States
V31001	2023-08-229	1	us
MS252534	2019-08-220	1	PK
5930-00-683-2814	2018-11-316	4	UAE
V31001	2018-05-135	2	IN
5930-00-683-2814	2018-01-30	10	Pakistan
MS252531	2017-09-261	400	PK
5930-00-683-2814	2017-08-236	2	US
MS252531	2017-03-80	2	ZA
5930-00-683-2814	2016-08-244	10	US
5930-00-683-2814	2015-06-154	10	United States
MS252531	2015-05-150	50	PK
MS252531	2015-02-41	25	PK
5930-00-683-2814	2015-01-28	120	United States
5930-00-683-2814	2014-12-338	25	Pakistan
MS252531	2014-10-302	5	IN
5930-00-683-2814	2014-10-295	1	TH
5930-00-683-2814	2014-10-295	1	TH
MS252531	2014-08-234	1	TH
MS252531	2014-08-216	66	United States
MS25253-1	2014-07-210	5	India
V3-1	2014-02-58	2	RU
MS25253-1	2013-08-231	30	Pakistan
V31	2013-02-36	156	United States
MS25253-1	2012-11-310	12
V3-1001	2012-11-310	3
MS252531	2012-08-222	1	Thailand
MS252531	2011-12-361	9	United States
611731	2011-05-143	200	us
5930-00-683-2814	2010-12-336	10	US
V3419	2009-01-22	2	us
5930-00-683-2814	2008-06-168	3800	DIBBS
5930-00-683-2814	2008-05-128	1200	DIBBS
5930-00-683-2814	2008-02-46	4600	DIBBS
5930-00-683-2814	2007-10-303	216	DIBBS
MS252531	2007-10-295	2	Canada

Cross Reference | NSN 5930-00-683-2814

Part Number	Cage Code	Manufacturer
140A031448	03956	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS
1715-179	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
182-00-00-35	03538	LOCKHEED MARTIN CORPORATION DIV MST
213359-4	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
2310-0280	94080	AIRCO WELDING PRODUCTS DIV OF BOC GROUP INC
295-5093P2	49956	RAYTHEON COMPANY DBA RAYTHEON
3030-4240	13850	TECHNIPOWER LLC DBA UNIPOWER
309-0420	44940	CUMMINS POWER GENERATION INC.
34-3023-11	36024	LIBBY POWER SYSTEMS LLC
3522 500 08559	H0203	THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS
4-00587-001	03848	ARMA DIV AMBAC INDUSTRIES INC
416673-1	96214	RAYTHEON COMPANY DBA RAYTHEON
487 804	77294	PIPER AIRCRAFT INC.
501555	94580	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
5905006832814	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
61-1731	48294	PSI-PERIPHERAL SUPPORT
6412011	001JK	EMBRAER S/A
6412011	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
8675848	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
AN3234-1	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
M61-37	54418	MILTOPE CORPORATION
MIL-PRF-8805/27	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-S-8805/27	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS25253-1	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS25253-4	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
MS25253-4	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
S61-1731	48294	PSI-PERIPHERAL SUPPORT
V3-1	75059	DION INTERNATIONAL TRUCKS, LLC DBA IDEALEASE OF SAN DIEGO
V3-1	80070	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
V3-1001	58474	SUPERIOR ELECTRIC HOLDING GROUP LLC DBA SUPERIOR ELECTRIC
V3-1001	K6596	HONEYWELL CONTROL SYSTEMS LTD
V3-1001	U4042	HONEYWELL CONTROL SYSTEMS LTD DIV AUTOMATION & CONTROL SOLUTIONS -
V3-13	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
V3-419	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
VBE4/5	H0203	THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS
VE1 MS25253-4	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
VE419	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
W5-404	13850	TECHNIPOWER LLC DBA UNIPOWER
W5-424	13850	TECHNIPOWER LLC DBA UNIPOWER

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-00-683-2814

Compare

Related Products | NSN 5930-00-683-2814

5930-00-683-2815, 5930-00-683-2817, 5930-00-683-2820, 5930-00-683-2821, 5930-00-683-2822

Technical Data | NSN 5930-00-683-2814

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS	115.0 AC AND 28.0 DC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	10.000 AMPERES RESISTIVE DC AND 10.000 AMPERES INDUCTIVE DC AND 6.000 AMPERES MOTOR DC AND 10.000 AMPERES RESISTIVE AC AND 10.000 AMPERES INDUCTIVE AC AND 3.000 AMPERES MOTOR AC

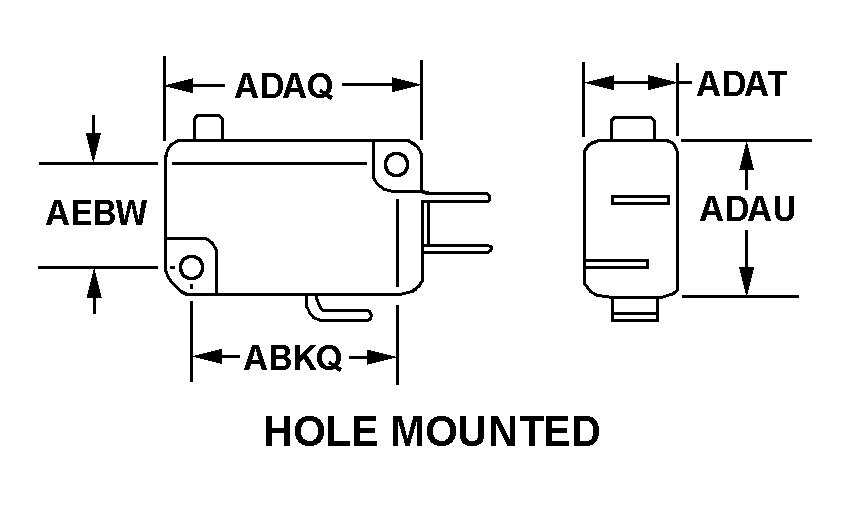

BODY STYLE	24M HOLE MOUNTED

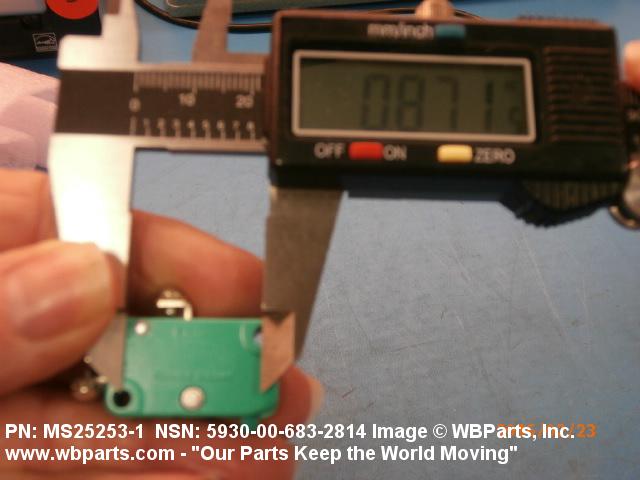

CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	0.872 INCHES MINIMUM AND 0.878 INCHES MAXIMUM

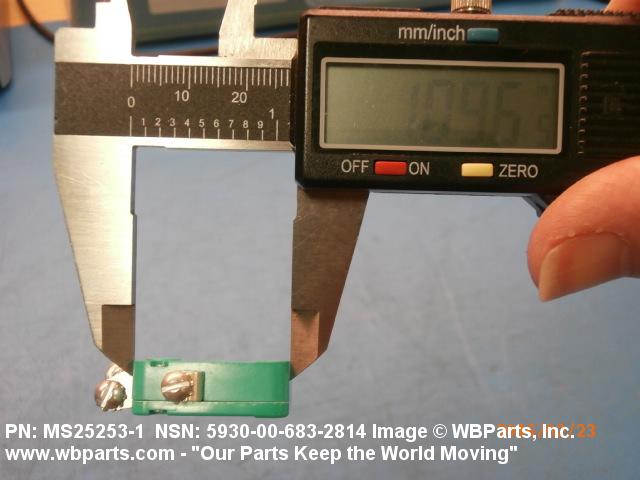

BODY LENGTH	1.094 INCHES NOMINAL
BODY WIDTH	0.415 INCHES MAXIMUM

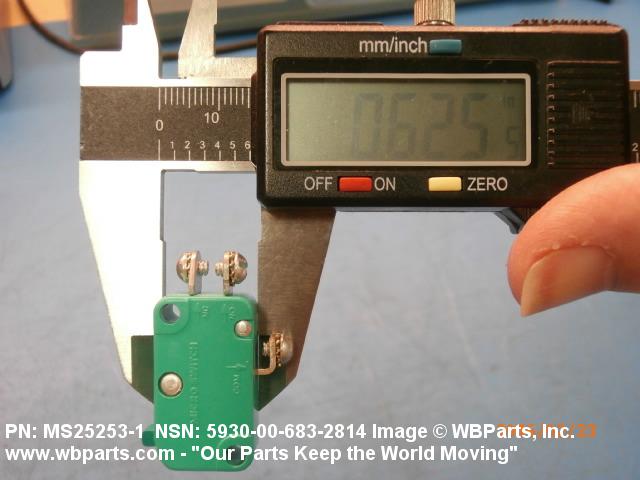

BODY HEIGHT	0.625 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT	0.403 INCHES MINIMUM AND 0.409 INCHES MAXIMUM

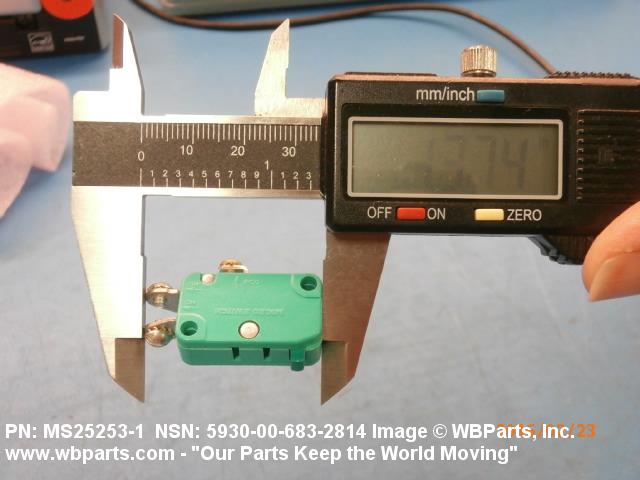

OVERALL LENGTH	1.375 INCHES NOMINAL
OVERALL WIDTH	0.415 INCHES MAXIMUM
OVERALL HEIGHT	0.875 INCHES NOMINAL

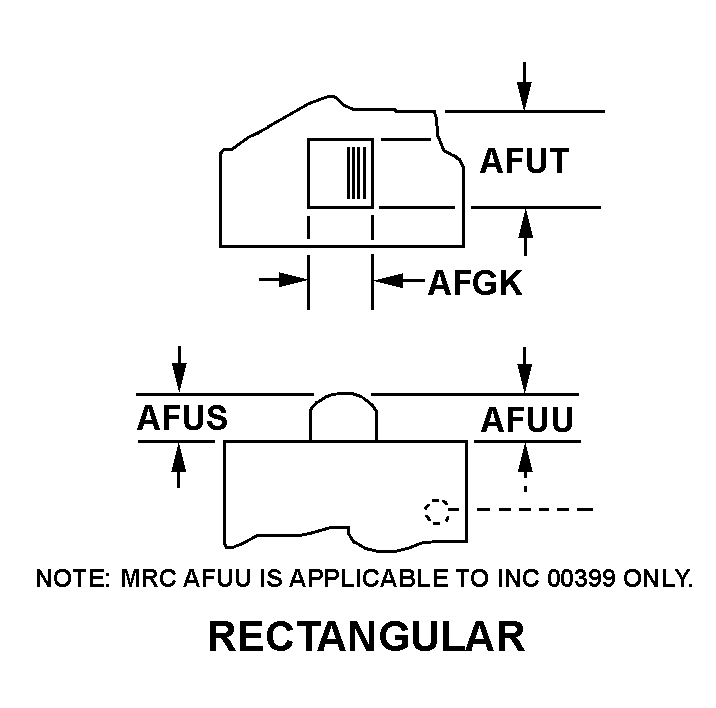

ACTUATOR STYLE	12 RECTANGULAR
ACTUATOR LENGTH	0.110 INCHES NOMINAL
ACTUATOR HEIGHT	0.020 INCHES NOMINAL

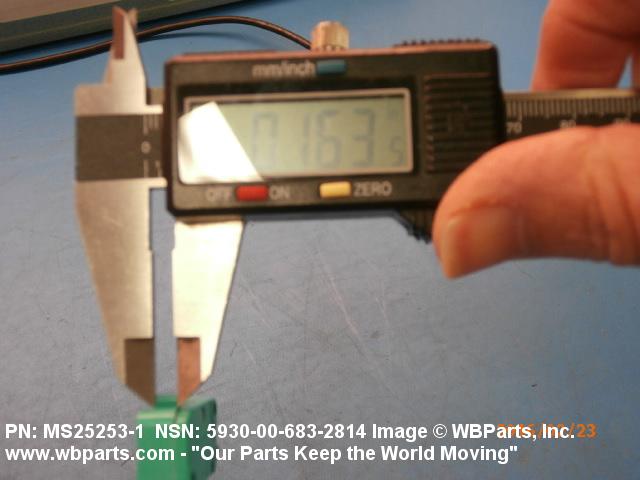

ACTUATOR WIDTH	0.160 INCHES MINIMUM AND 0.170 INCHES MAXIMUM
ACTUATOR FREE POSITION HEIGHT	0.625 INCHES MAXIMUM

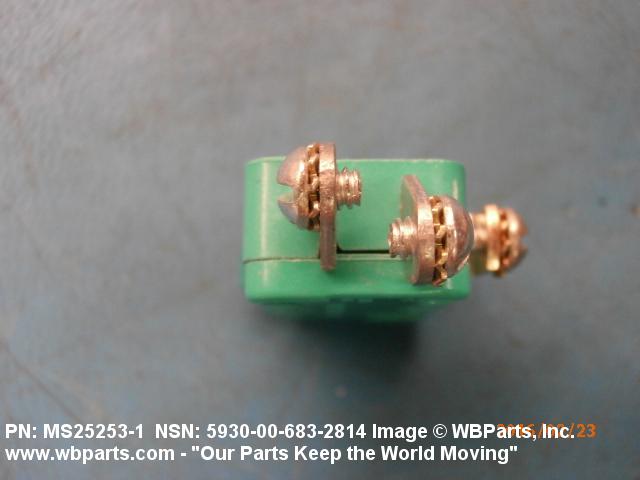

TERMINAL TYPE AND QUANTITY	3 SCREW
SWITCH ACTUATING FORCE	14.0 OUNCES MAXIMUM
SWITCH RELEASE FORCE	4.0 OUNCES NOMINAL
ACTUATOR MOVEMENT	0.046 PRETRAVEL INCHES MAXIMUM AND 0.031 OVERTRAVEL INCHES MAXIMUM AND 0.020 DIFFERENTIAL INCHES MAXIMUM
INCLOSURE TYPE	FULLY INCLOSED
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION	DUSTPROOF
MOUNTING METHOD	UNTHREADED HOLE

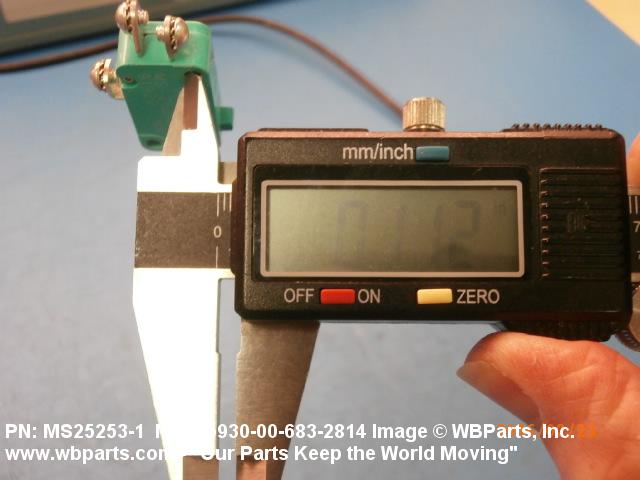

UNTHREADED MOUNTING HOLE DIAMETER	0.113 INCHES MINIMUM AND 0.116 INCHES MAXIMUM
SPECIAL FEATURES	WEPAON SYSTEM ESSENTIAL
TEST DATA DOCUMENT	81349-MILS8805 SPECIFICATION
CRITICALITY CODE JUSTIFICATION	FEAT
III CASE MATERIAL	PLASTIC
III END ITEM IDENTIFICATION	MISSILE MINUTEMAN LGM-30; FIRE CONTROL SYSTEM, MK 92 (FCS); AIRCRAFT,
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-PRF-8805/27
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS25253-1

Restrictions/Controls & Freight Information | NSN 5930-00-683-2814

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	Y	The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5930-00-683-2814

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
