NSN 5930-00-666-2150 269-1598-00, 2691598000, 269-1598-000
Product Details | ROTARY SWITCH SECTION
5930-00-666-2150 An item consisting of electrical contacts mounted on an insulated plate which together form a section of a switch or relay. It includes both rotor and stator but does not include drive or actuating mechanism.
Part Alternates: 269-1598-00, 2691598000, 269-1598-000, 55642K, LW, 5930-00-666-2150, 00-666-2150, 5930006662150, 269159800, 006662150
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-666-2150 | 15315 ( SWITCH SECTION, ROTARY ) |

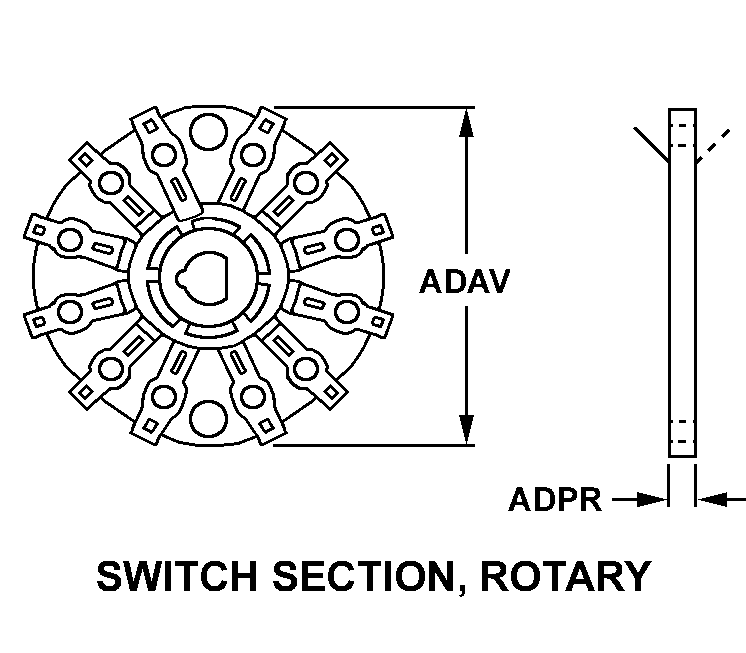

Drawings & Photos | NSN 5930-00-666-2150
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-666-2150
Related Products | NSN 5930-00-666-2150
Technical Data | NSN 5930-00-666-2150
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 23 SWITCH SECTION, ROTARY |
| OVERALL DIAMETER | 1.562 INCHES NOMINAL |
| BODY THICKNESS | 0.062 INCHES NOMINAL |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP SYMMETRICAL |
| POLE QUANTITY | 2 SINGLE SECTION FRONT |
| THROW QUANTITY | 3 SINGLE SECTION FRONT |
| CONTACT SWITCHING ACTION | MAKES BEFORE BREAKS SINGLE SECTION FRONT |
| CONTACT VOLTAGE RATING IN VOLTS | 110.0 AC AT SEA LEVEL 28.0 DC AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 1.0 AMPERES RESISTIVE LOAD AC AT SEA LEVEL 2.0 AMPERES RESISTIVE LOAD DC AT SEA LEVEL |
| TERMINAL TYPE | TAB, SOLDER LUG |
| MOUNTING METHOD | STRUT SINGLE MOUNTING FACILITY |
| III OPERATING TEMP RANGE | -25.0 TO 85.0 DEG CELSIUS |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | TERMINALS AND CONTACT SURFACES SILVER |
Restrictions/Controls & Freight Information | NSN 5930-00-666-2150
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-666-2150
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
