NSN 5930-00-658-6563 2542319902, 25423199-02, 50700407
Product Details | THERMOSTATIC SWITCH
5930-00-658-6563 A switch that is actuated by changes in ambient temperature. Excludes CIRCUIT BREAKER; CONTROL, TEMPERATURE (as modified); FUSE (as modified); PROTECTOR, THERMAL-OVERLOAD, ELECTRICAL MOTOR; RELAY, THERMAL; and THERMOSTAT, FLOW CONTROL. See also CONTROL, TEMPERATURE (as modified) and REGULATOR, TEMPERATURE (as modified).
Part Alternates: 2542319902, 25423199-02, 50700407, 5-07004-07, 6953147, 695314-7, 5930-00-658-6563, 00-658-6563, 5930006586563, 006586563
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-658-6563 | 00451 ( SWITCH, THERMOSTATIC ) |

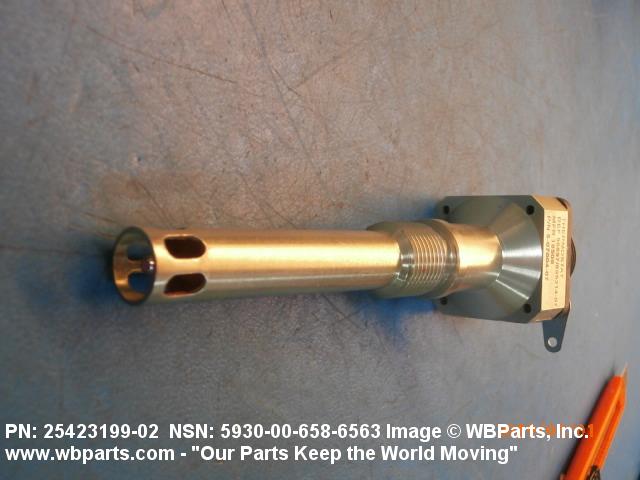

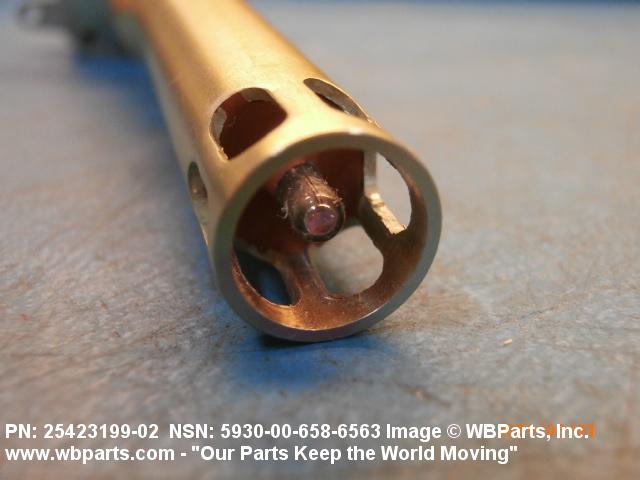

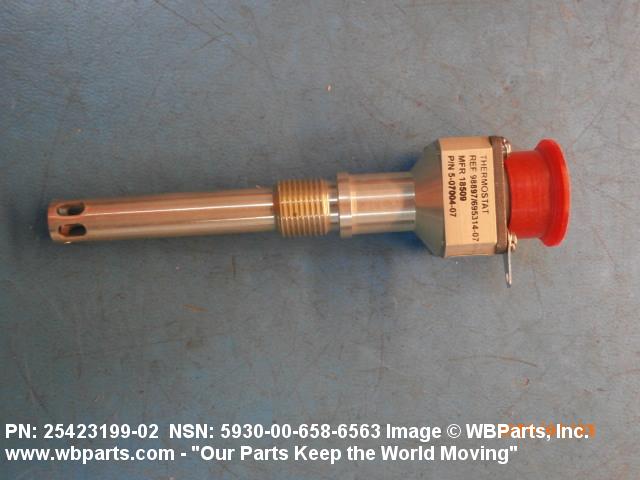

Drawings & Photos | NSN 5930-00-658-6563
Demand History | NSN 5930-00-658-6563
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-658-6563 | 2018-09-268 | 4 | United States |
| 2542319902 | 2018-09-267 | 4 | United States |
| 2542319902 | 2018-09-254 | 4 | HK |
| 5930-00-658-6563 | 2018-01-28 | 1 | Philippines |
| 5930-00-658-6563 | 2015-02-33 | 177 | DIBBS |
| 5930-00-658-6563 | 2007-12-353 | 280 | DIBBS |
| 5930-00-658-6563 | 2007-11-334 | 380 | DIBBS |
| 5930-00-658-6563 | 2007-08-219 | 350 | DIBBS |
| 5930-00-658-6563 | 2007-07-200 | 160 | DIBBS |
Cross Reference | NSN 5930-00-658-6563
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 25423199-02 | 45153 | HAMILTON SUNDSTRAND CORPORATION DBA HAMILTON SUNDSTRAND POWER SYTEMS |
| 25423199-02 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
| 5-07004-07 | 18509 | PSG CONTROLS, INC. |
| 695314-7 | 045F6 | REM PRODUCTS INC. |
| 695314-7 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-658-6563
Related Products | NSN 5930-00-658-6563
Technical Data | NSN 5930-00-658-6563
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 53 CYLINDRICAL W/FLANGE |

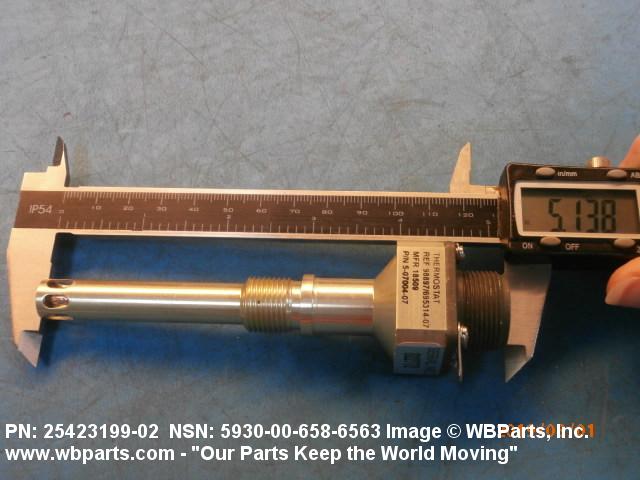

| OVERALL LENGTH | 5.234 INCHES NOMINAL |

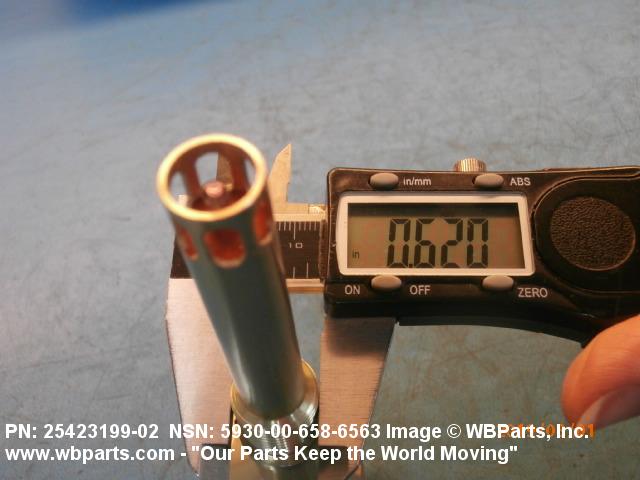

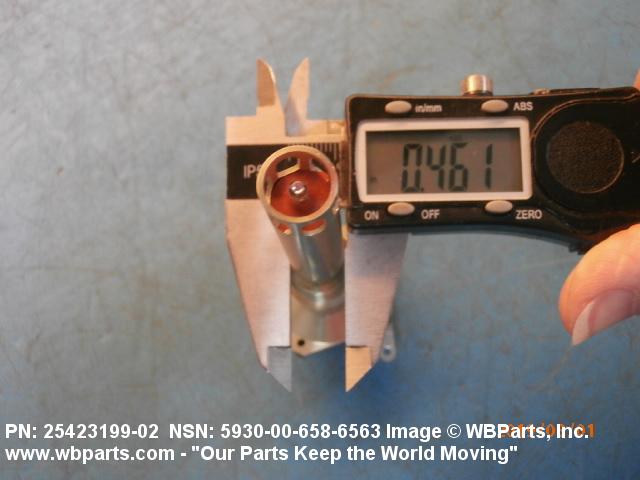

| BODY DIAMETER | 0.470 INCHES MAXIMUM |

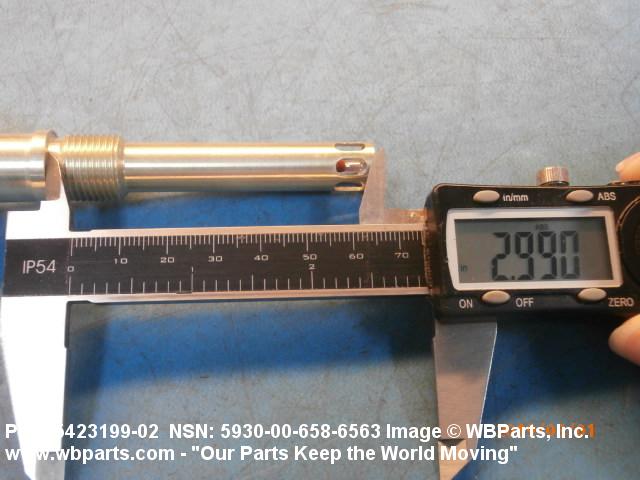

| BODY LENGTH | 3.039 INCHES MAXIMUM |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | DEACTUATION POINT NOT ADJUSTABLE AND ACTUATION POINT NOT ADJUSTABLE |
| CONTACT STIMULUS RATING | 380.00 ACTUATION POINT MINIMUM DEGREES FAHRENHEIT AND 400.00 ACTUATION POINT MAXIMUM DEGREES FAHRENHEIT |
| CONTACT VOLTAGE RATING IN VOLTS | 30.0 DC AT SEA LEVEL SINGLE VOLTAGE |
| TEMP SENSING ELEMENT TYPE | INTERNAL SENSOR |

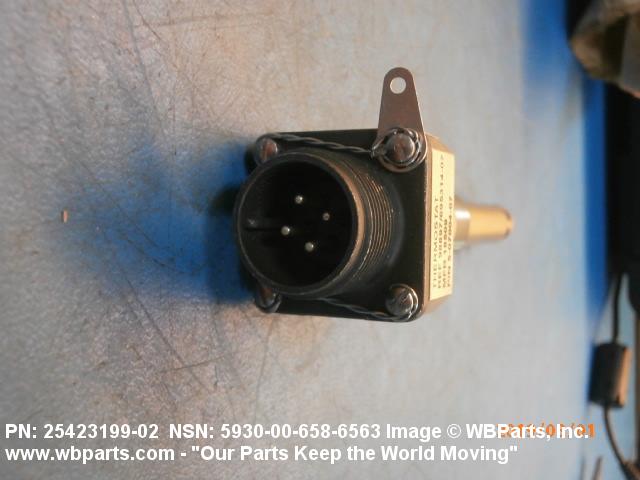

| TERMINAL TYPE | CONNECTOR, RECEPTACLE |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNF SINGLE THREADED BUSHING |
| NOMINAL THREAD SIZE | 0.625 INCHES SINGLE THREADED BUSHING |
| THREAD CLASS | 2A SINGLE THREADED BUSHING |
| THREAD QUANTITY PER INCH | 18 SINGLE THREADED BUSHING |
| III PRECIOUS MATERIAL | GOLD OR SILVER |
Restrictions/Controls & Freight Information | NSN 5930-00-658-6563
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | V | Precious metal type varies between manufacturers |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-658-6563
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
