NSN 5930-00-658-7431 A333103, A3-33-103, B27777

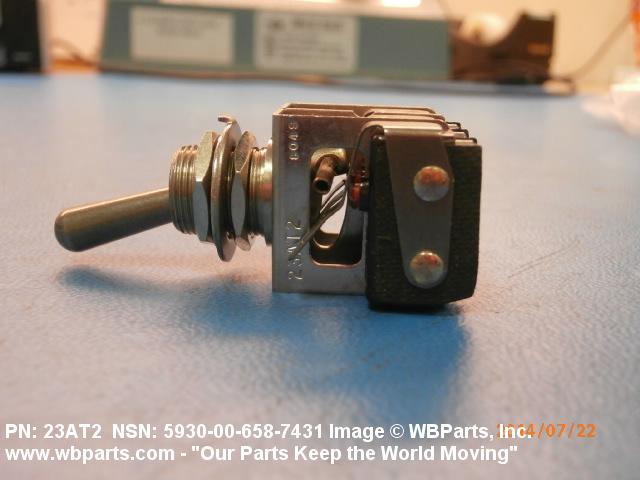

Product Details | TOGGLE SWITCH

5930-00-658-7431 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.

Part Alternates: A333103, A3-33-103, B27777, B854236, SMB394409, 99-2925-002, 03800020, 03-80-0020, 10105640, 1460750001, 146-075-0001, 2021013PC1, 23AT2, 48376400090, 48-37640-0090, 5L461200179, 5L4612-001-79, 6010773, 64A5A1121, 64A5A112-1, 721858-003, 83172499, 8317-2499, 839116, 5930-00-658-7431, 00-658-7431, 5930006587431, 992925002, 721858003, 006587431

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1963	00-658-7431	00184 ( SWITCH, TOGGLE )

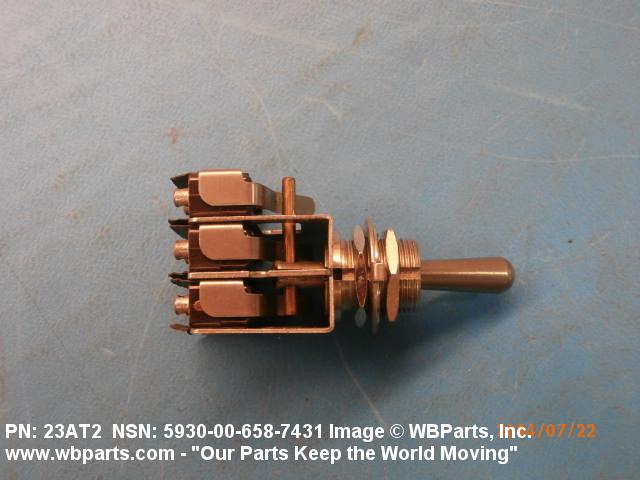

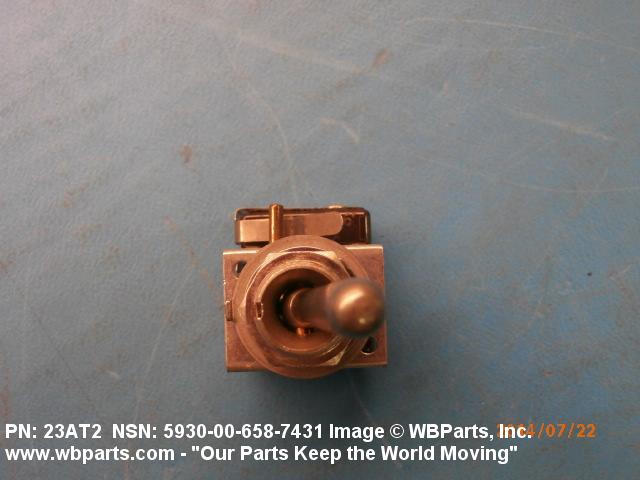

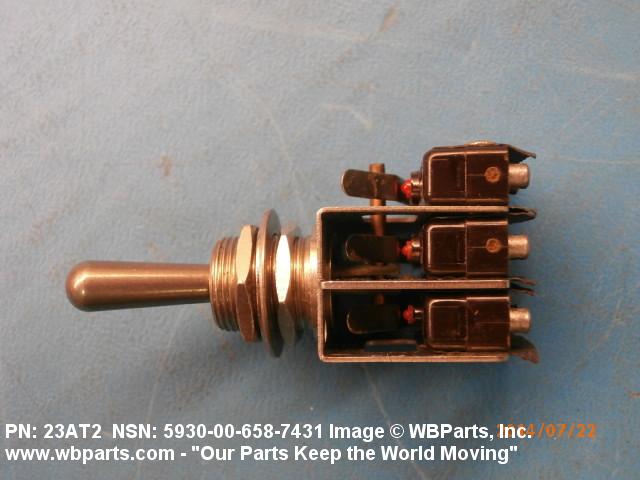

Drawings & Photos | NSN 5930-00-658-7431

Part Number	Request Date	QTY	Origin
5930-00-658-7431	2024-10-300	12	Malaysia
23AT2	2023-01-17	5	DIBBS
48-37640-0090	2023-01-17	5	DIBBS
6010773	2023-01-17	5	DIBBS
721858-003	2023-01-17	5	DIBBS
8317-2499	2023-01-17	5	DIBBS
A3-33-103	2023-01-17	5	DIBBS
B854236	2023-01-17	5	DIBBS
23AT2	2023-01-05	5	DIBBS
48-37640-0090	2023-01-05	5	DIBBS
6010773	2023-01-05	5	DIBBS
721858-003	2023-01-05	5	DIBBS
8317-2499	2023-01-05	5	DIBBS
A3-33-103	2023-01-05	5	DIBBS
B854236	2023-01-05	5	DIBBS
5930-00-658-7431	2022-08-231	14	Malaysia
5930-00-658-7431	2017-12-362	7	DIBBS
5930-00-658-7431	2017-10-288	9	DIBBS
5930-00-658-7431	2016-02-35	27	DIBBS
23AT2	2015-04-117	10	AR
5930-00-658-7431	2014-05-148	2	United States
A333103	2010-08-235	1	EC

Cross Reference | NSN 5930-00-658-7431

Part Number	Cage Code	Manufacturer
03-80-0020	96169	ELECTRIC BOAT CORPORATION
10105640	18876	U S ARMY AVIATION AND MISSILE COMMAND
146-075-0001	95542	NORTHROP GRUMMAN SYSTEMS CORPORATION
2021013PC1	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
23AT2	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
23AT2	D9444	HONEYWELL REGELSYSTEME GMBHGESCHAEFTSBEREICH SONDERTECHNIK
23AT2	F3767	SEF INDUSTRIE
48-37640-0090	89944	KOLLSMAN, INC.
5L4612-001-79	D1901	AIRBUS DEFENCE AND SPACE GMBH DIV SEPS
6010773	03640	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
6010773	0B6S1	INTERNATIONAL BUSINESS MACHINES CORP PARTS ORDER CENTER DEPT E - 54
6010773	30874	INTERNATIONAL BUSINESS MACHINES CORP
64A5A112-1	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
721858-003	05869	RAYTHEON COMPANY DBA RAYTHEON
721858-003	82577	RAYTHEON COMPANY DBA RAYTHEON
8317-2499	94271	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
839116	19203	PICATINNY ARSENAL
99-2925-002	48ZY0	MAS COMPONENTS AND COATINGS LLC DIV MAS COMPONENTS & COATINGS LLC
99-2925-002	75324	KILGORE FLARES COMPANY LLC
99-2925-002	93712	ALLIANT DEFENSE ELECTRONICS SYSTEMS INC DBA LUNDY TECHNICAL CENTER
A3-33-103	81640	EATON CORPORATION DBA FLUID POWER DIV
B27777	07860	BOGUE ELECTRIC MANUFACTURING CO
B27777	0BXF1	BOGUE SYSTEMS INC.
B27777	51128	WILLIAM S GUTTENBERG DBA WILCO ELECTRIC COMPANY
B854236	98738	HERLEY CHICAGO DBA STEWART WARNER ELECTRONICS
SMB394409	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-00-658-7431

Compare

Related Products | NSN 5930-00-658-7431

5930-00-658-7433, 5930-00-658-8250, 5930-00-658-8276, 5930-00-658-8851, 5930-00-658-9611

Technical Data | NSN 5930-00-658-7431

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	3 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS	125.0 AC AND 28.0 DC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	5.000 AMPERES RESISTIVE DC AND 3.000 AMPERES INDUCTIVE DC AND 4.000 AMPERES MOTOR DC AND 5.000 AMPERES RESISTIVE AC AND 5.000 AMPERES INDUCTIVE AC AND 3.300 AMPERES MOTOR AC
BODY STYLE	4P BUSHING MOUNT

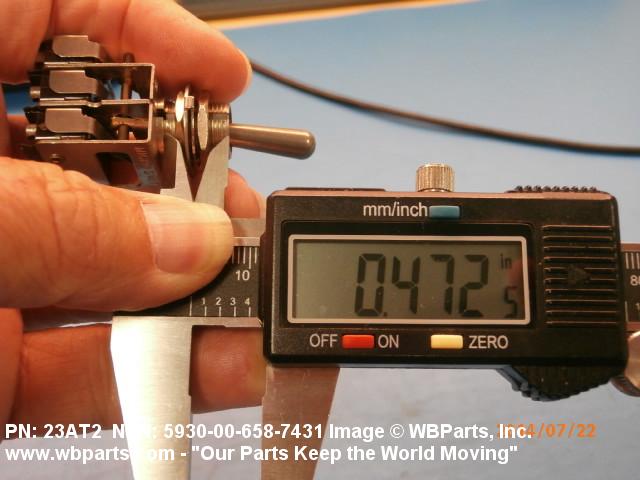

BUSHING LENGTH	0.470 INCHES NOMINAL

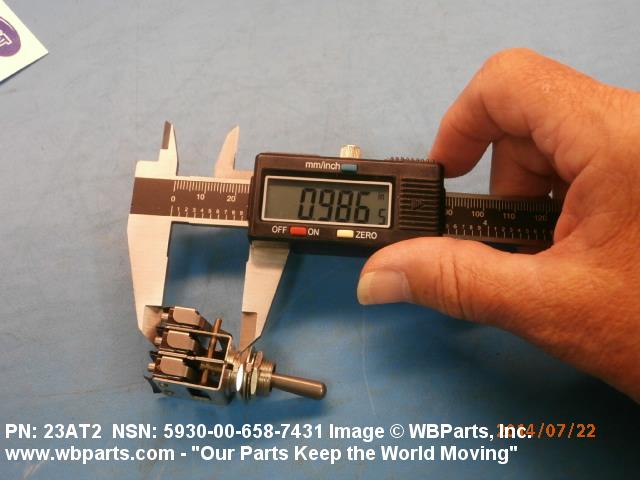

BODY LENGTH	0.984 INCHES MAXIMUM
BODY WIDTH	0.840 INCHES NOMINAL
BODY HEIGHT	0.916 INCHES MINIMUM AND 0.976 INCHES MAXIMUM
ACTUATOR STYLE	25 ROUND

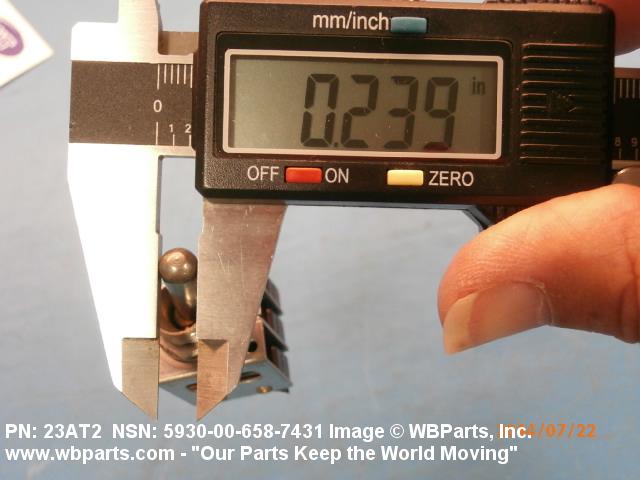

ACTUATOR DIAMETER	0.235 INCHES MINIMUM AND 0.245 INCHES MAXIMUM
ACTUATOR HEIGHT	0.690 INCHES NOMINAL
ACTUATOR POSITION-ACTION RELATIONSHIP	LEFT POSITION MAINTAINED AND RIGHT POSITION MAINTAINED

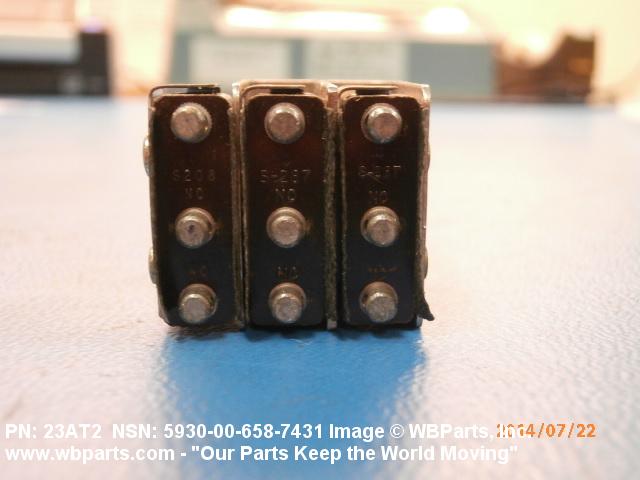

TERMINAL TYPE AND QUANTITY	9 TAB, SOLDER LUG
INCLOSURE TYPE	FULLY INCLOSED
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION	DUSTPROOF
MOUNTING METHOD	THREADED BUSHING
THREAD SERIES DESIGNATOR	UNS

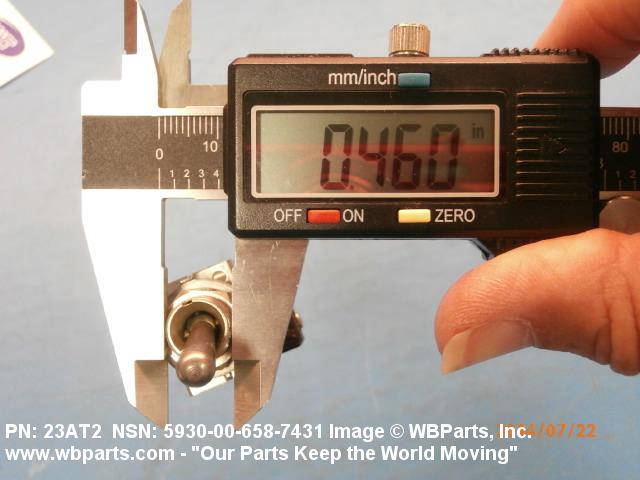

NOMINAL THREAD SIZE	0.469 INCHES
THREAD QUANTITY PER INCH	32
SPECIAL FEATURES	WEAPON SYSTEM ESSENTIAL
CRITICALITY CODE JUSTIFICATION	FEAT
III END ITEM IDENTIFICATION	SUBMARINE INTERIOR COMMUNICATION SYSTEM, IFF AIMS MK XII, TARAWA CLASS LHA, KILAUEA CLASS T-AE 26, VARIOUS SHORE ATC, AIRCRAFT, C-18A, EC-18B, AIRCRAFT, SOF ( AC-130H, MC-130H, EC-130E, HC-130), AIRCRAFT, C-2A (REPROCURED), TELETYPE, MODEL 28
MANUFACTURERS CODE	91929
DESIGN CONTROL REFERENCE	23AT2

Restrictions/Controls & Freight Information | NSN 5930-00-658-7431

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	Y	The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5930-00-658-7431

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	3	INSURANCE ITEMS. This code will identify items for which there may be occasional intermittent demands not sufficiently repetitive to warrant classification as regular stock items, but for which prudence requires that nominalquan tity be stocked for the reason that the essentiality of the item and the long lead time required to obtain such items by purchase would create an unacceptable situation if no stock were carried.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
