Product Details | SENSITIVE SWITCH
5930-00-655-3488 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: L100WTR2MCA, 5987001893217REVAPC7, 598-700-1893217REVAPC7, 9886306X3PC7, 9886-306X3PC7, 5930-00-655-3488, 00-655-3488, 5930006553488, 006553488
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-655-3488 | 00399 ( SWITCH, SENSITIVE ) |
Drawings & Photos | NSN 5930-00-655-3488
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-655-3488
Related Products | NSN 5930-00-655-3488
Technical Data | NSN 5930-00-655-3488
| Characteristic | Specifications |
|---|---|
| MAXIMUM VOLTAGE RATING IN VOLTS | 600.0 AC AND 600.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 25.000 AMPERES RESISTIVE DC AND 25.000 AMPERES RESISTIVE AC |
| BODY STYLE | 80M HOLE MOUNTED |
| HOUSING HEIGHT | 2.031 INCHES NOMINAL |
| HOUSING LENGTH | 4.938 INCHES NOMINAL |
| HOUSING BUSHING LENGTH | 2.312 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOUSING MOUNTING FACILITIES PARALLEL TO LENGTH | 4.219 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOUSING MOUNTING FACILITIES PARALLEL TO WIDTH | 1.812 INCHES NOMINAL |
| SWITCH ACTUATOR QUANTITY | 1 |

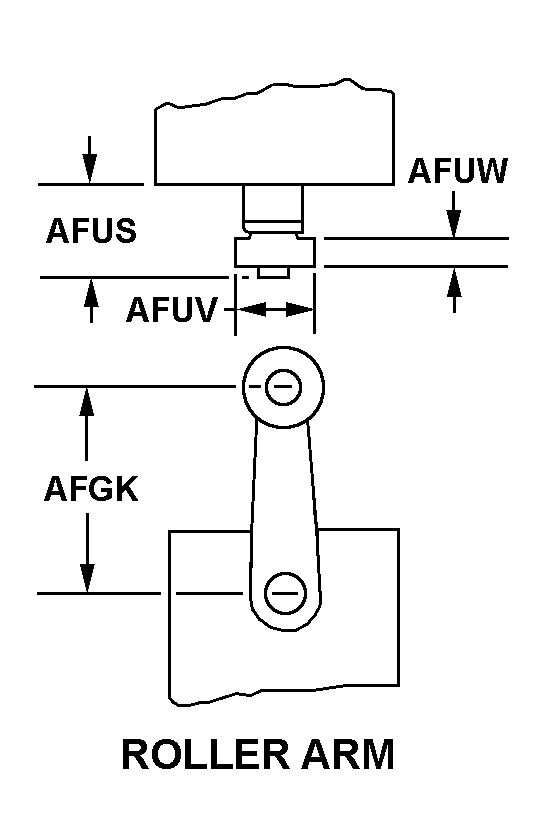

| ACTUATOR STYLE | 51 ROLLER ARM |
| ACTUATOR LENGTH | 1.500 INCHES NOMINAL |
| ACTUATOR HEIGHT | 1.000 INCHES NOMINAL |
| ACTUATOR ROLLER DIAMETER | 0.750 INCHES NOMINAL |
| ACTUATOR ROLLER WIDTH | 0.250 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 6 SCREW |
| SWITCH ACTUATING FORCE | 125.0 INCH-OUNCES MAXIMUM |
| SWITCH RELEASE FORCE | 8.0 INCH-OUNCES MINIMUM |
| ACTUATOR MOVEMENT | 11.0 PRETRAVEL DEGREES NOMINAL AND 70.0 OVERTRAVEL DEGREES NOMINAL AND 12.0 DIFFERENTIAL DEGREES MINIMUM |
| INCLOSURE TYPE | FULLY INCLOSED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WATERTIGHT |
| FEATURES PROVIDED | ACTUATOR SEAL |
| SPECIAL FEATURES | SPRING RETURN OF SWITCH LEVER |
