NSN 5930-00-591-8917 DT2R4A7, 1657501B, 16575-01B
Product Details | SENSITIVE SWITCH
5930-00-591-8917 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: DT2R4A7, 1657501B, 16575-01B, 5930-00-591-8917, 00-591-8917, 5930005918917, 005918917
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-591-8917 | 00399 ( SWITCH, SENSITIVE ) |

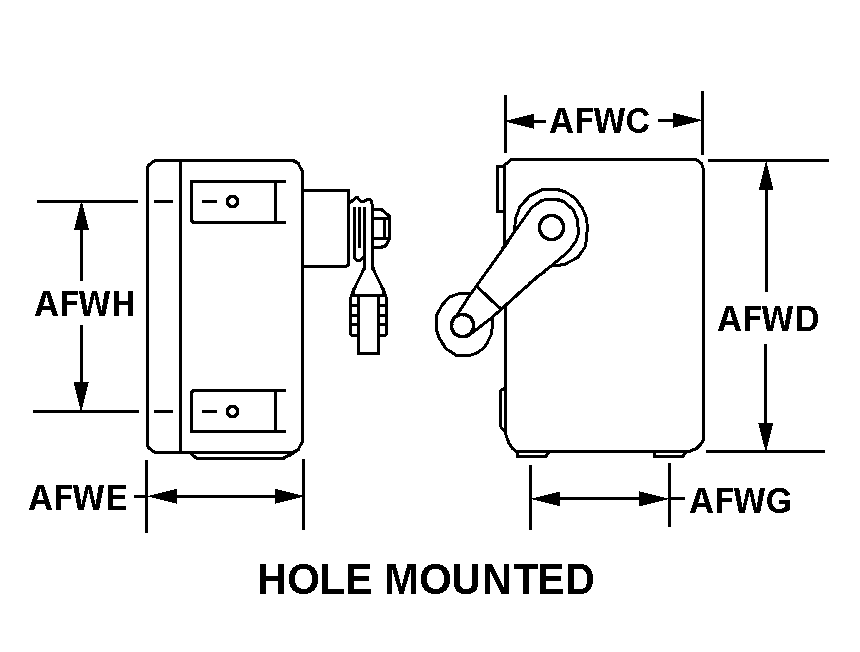

Drawings & Photos | NSN 5930-00-591-8917
Demand History | NSN 5930-00-591-8917
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| DT2R4A7 | 2024-10-302 | 25 | DIBBS |
| DT2R4A7 | 2024-10-290 | 25 | DIBBS |
| DT2R4A7 | 2024-06-169 | 25 | DIBBS |
| DT2R4A7 | 2024-06-158 | 25 | DIBBS |
| DT2R4A7 | 2024-03-70 | 30 | DIBBS |
| DT2R4A7 | 2022-12-347 | 1 | DIBBS |
| 5930-00-591-8917 | 2016-11-308 | 29 | DIBBS |
| 5930-00-591-8917 | 2016-08-230 | 28 | DIBBS |
| 5930-00-591-8917 | 2016-03-91 | 22 | DIBBS |
| 5930-00-591-8917 | 2013-01-31 | 18 | DIBBS |
| 5930-00-591-8917 | 2012-08-243 | 4 | DIBBS |
| 5930-00-591-8917 | 2012-06-172 | 4 | DIBBS |
| 5930-00-591-8917 | 2012-03-79 | 3 | DIBBS |
| 5930-00-591-8917 | 2009-05-121 | 12 | DIBBS |
| 5930-00-591-8917 | 2008-06-161 | 4 | DIBBS |
| 5930-00-591-8917 | 2007-03-90 | 7 | DIBBS |
| 5930-00-591-8917 | 2007-03-69 | 2 | DIBBS |
