NSN 5930-00-548-1821 ST5M1422006, ST5M1422-006, ST5M1422006A
Product Details | SENSITIVE SWITCH
5930-00-548-1821 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: ST5M1422006, ST5M1422-006, ST5M1422006A, ST5M1422-006A, 3AT782, 3AT78-2, 3AT782A, 3AT78-2A, 5930-00-548-1821, 00-548-1821, 5930005481821, 005481821
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 OCT 1974 | 00-548-1821 | 00399 ( SWITCH, SENSITIVE ) |
Drawings & Photos | NSN 5930-00-548-1821
Demand History | NSN 5930-00-548-1821
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-548-1821 | 2016-12-342 | 9 | DIBBS |
| 5930-00-548-1821 | 2016-10-278 | 16 | DIBBS |
| 5930-00-548-1821 | 2016-07-194 | 8 | DIBBS |
| 5930-00-548-1821 | 2016-05-134 | 7 | DIBBS |
| 5930-00-548-1821 | 2016-05-123 | 7 | DIBBS |
| 5930-00-548-1821 | 2013-10-290 | 9 | DIBBS |
| 5930-00-548-1821 | 2013-10-275 | 9 | DIBBS |
| 5930-00-548-1821 | 2013-08-220 | 10 | DIBBS |
| 5930-00-548-1821 | 2013-02-51 | 5 | DIBBS |
| 5930-00-548-1821 | 2013-02-51 | 10 | DIBBS |
| 5930-00-548-1821 | 2012-07-207 | 6 | DIBBS |
| 5930-00-548-1821 | 2012-04-111 | 7 | DIBBS |
| 5930-00-548-1821 | 2011-01-06 | 9 | DIBBS |
| 5930-00-548-1821 | 2010-08-224 | 3 | DIBBS |
| 5930-00-548-1821 | 2010-04-112 | 6 | DIBBS |
| 5930-00-548-1821 | 2007-11-310 | 12 | DIBBS |
| 5930-00-548-1821 | 2007-07-204 | 7 | DIBBS |
| 5930-00-548-1821 | 2007-07-188 | 7 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-548-1821
Related Products | NSN 5930-00-548-1821
Technical Data | NSN 5930-00-548-1821
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 2.000 AMPERES RESISTIVE DC AND 1.000 AMPERES INDUCTIVE DC AND 1.000 AMPERES LAMP DC |
| BODY STYLE | 20M HOLE MOUNTED |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.000 INCHES NOMINAL |
| BODY LENGTH | 1.380 INCHES NOMINAL |
| BODY WIDTH | 0.390 INCHES NOMINAL |
| BODY HEIGHT | 0.805 INCHES NOMINAL |

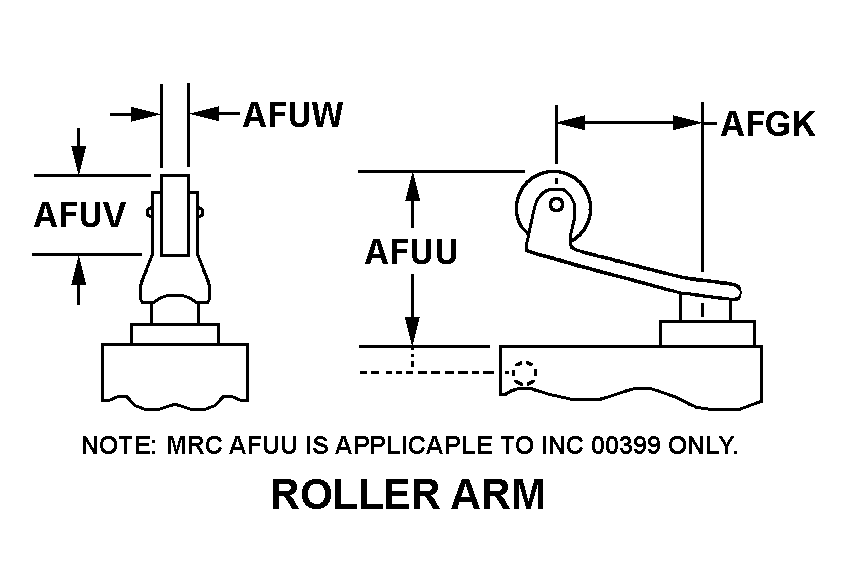

| ACTUATOR STYLE | 45 ROLLER ARM |
| ACTUATOR LENGTH | 0.370 INCHES NOMINAL |
| ACTUATOR FREE POSITION HEIGHT | 0.687 INCHES NOMINAL |
| ACTUATOR ROLLER DIAMETER | 0.211 INCHES NOMINAL |
| ACTUATOR ROLLER WIDTH | 0.156 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 3 WIRE LEAD |
| SWITCH ACTUATING FORCE | 48.0 OUNCES MAXIMUM |
| SWITCH RELEASE FORCE | 12.0 OUNCES MINIMUM |
| ACTUATOR MOVEMENT | 0.040 PRETRAVEL INCHES MAXIMUM AND 0.075 OVERTRAVEL INCHES MINIMUM AND 0.030 DIFFERENTIAL INCHES MAXIMUM |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.142 INCHES NOMINAL |
| FEATURES PROVIDED | ACTUATOR SEAL |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III CASE MATERIAL | METAL |
| III OVERALL LENGTH | 1.380 INCHES NOMINAL |
| III OVERALL WIDTH | 0.390 INCHES NOMINAL |
| III OVERALL HEIGHT | 1.237 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | AIRCRAFT,EAGLE F-15 |
Restrictions/Controls & Freight Information | NSN 5930-00-548-1821
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-548-1821
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
