NSN 5930-00-519-8144 MS161061, MS16106-1, M6128
Product Details | SENSITIVE SWITCH
5930-00-519-8144 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: MS161061, MS16106-1, M6128, M61-28, M8805/56-001, M8805/56MS16106-1, M880556001, M8805561, M8805-56-1, M880556MS161061, A4587002, A458-7002, N630001001, N630-001-001, S00306F, SAC476, SMB438742, B1047395, B19858, C210F213, C2-10F2-13, G1665471, G166547-1, MIL-PRF-8805/56, MILPRF880556, MIL-S-8805/56, MILS880556, PL9002334518, PL900-23345-18, PL9002334748, PL900-23347-48, PL900239962, PL900-23996-2, 7905113-00, 849511, 870SS0001, 885821, 355-137-004, 365703, 3873536, 3873-53--6 , 400531, 4181011, 418101-1, 4520383001, 452-0383-001, 45A0091, 4630015612, 525307, 5521037, 58X302P003, 613312, 630-001-001, 7126001101, 71260011-01, 134754-000, 137619211P, 1376-19-211P, 2281038P2, 228-1038P2, 24029408, 240-29408, 2989887, 2AC19, 2AC42, 2AC59, 2AC59S161061, 2AC59S16106-1, 2AC88, 2ACG, 0309253, 04760045001, 04760045-001, 11040071-1, 12251, 122-5-1, 128C159H04, 129662, 33-504756-1, 3378384001, 337-8384-001, 34060001002475ALT1LINE171, 340-6000-1002475ALT1LINE171 , 3406508937369PC6M0DIFIED, 340-6508-937369PC6M0DIFIED , 352250041859, 5930-00-519-8144, 00-519-8144, 5930005198144, 005198144, 630001001, 790511300, 355137004, 134754000, 110400711, 335047561
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-519-8144 | 00399 ( SWITCH, SENSITIVE ) |

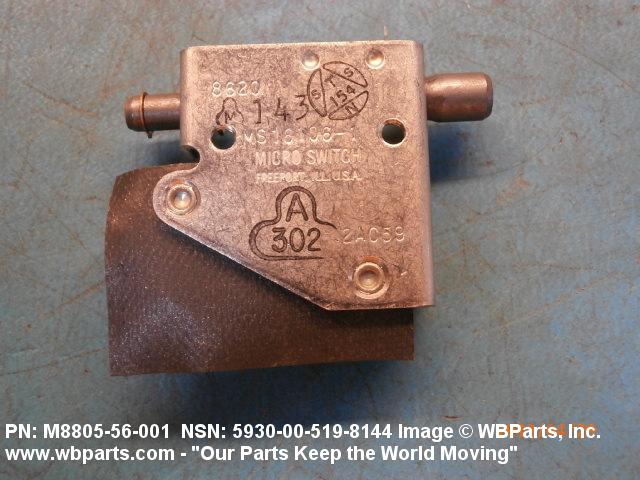

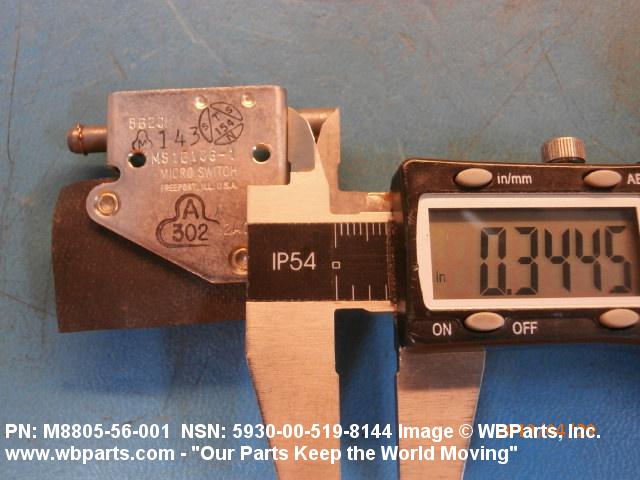

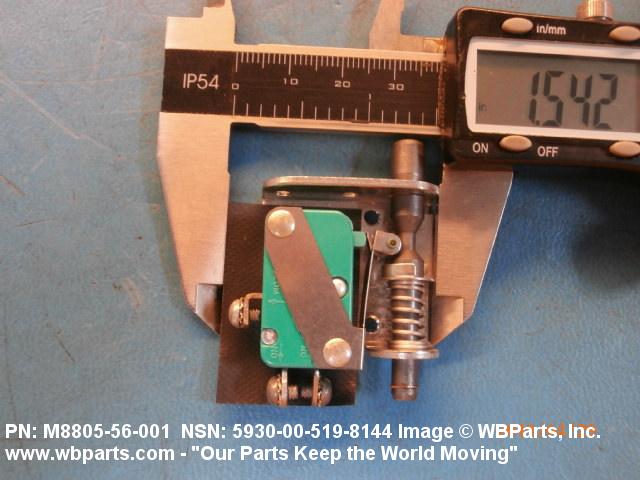

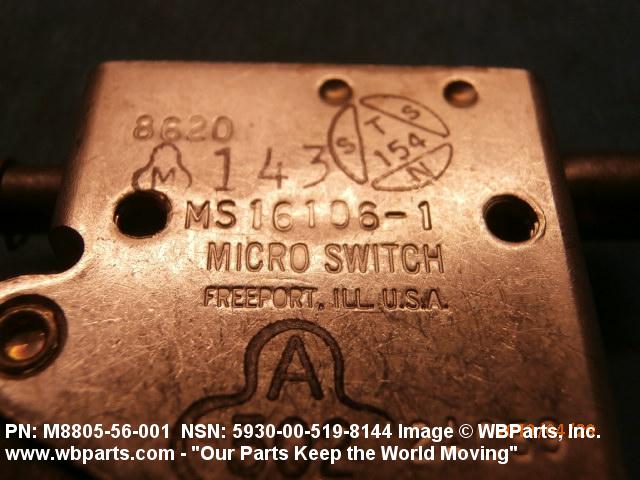

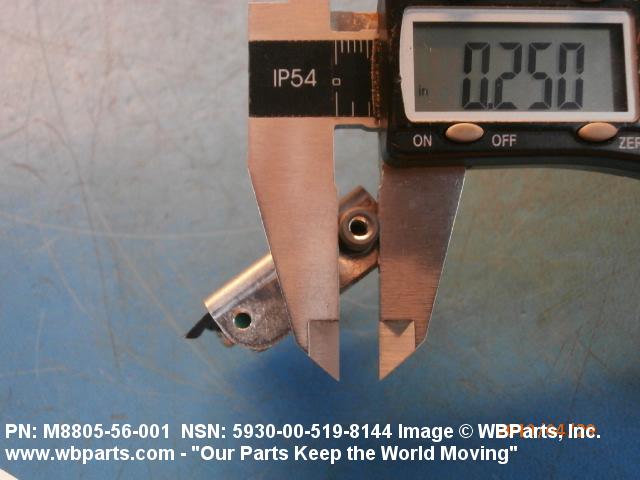

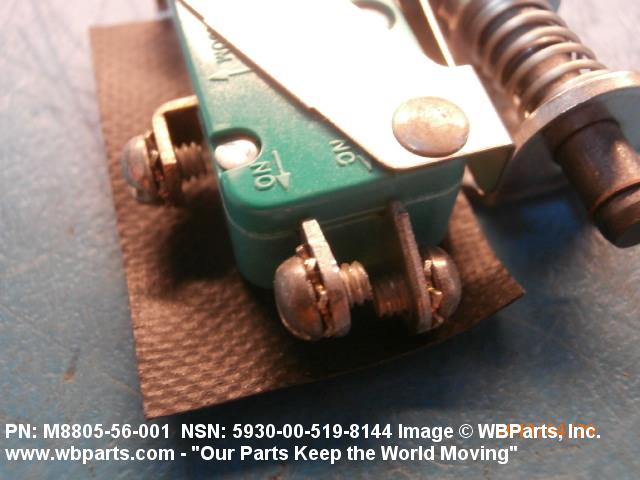

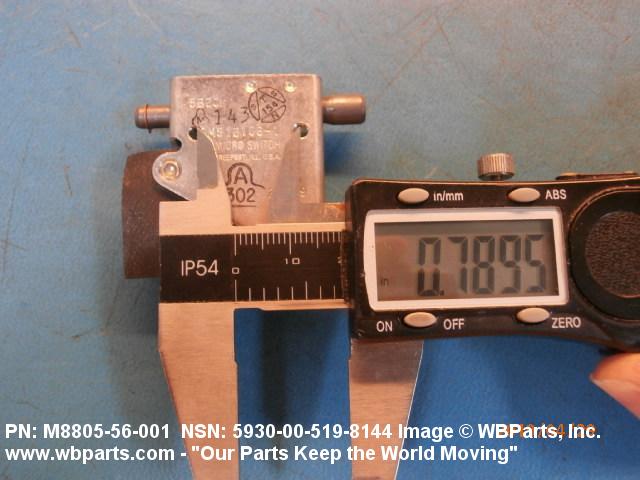

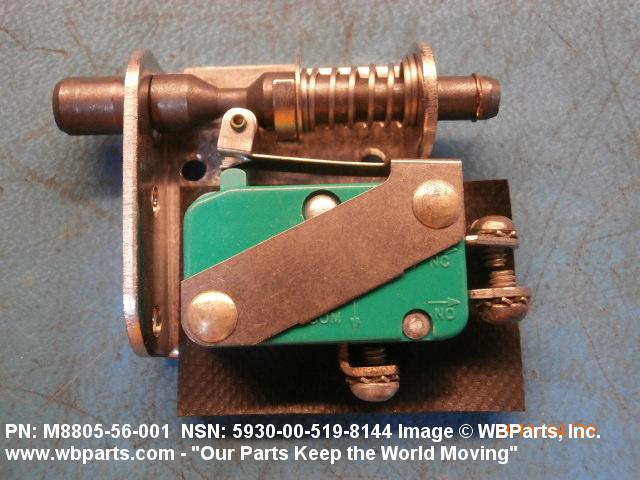

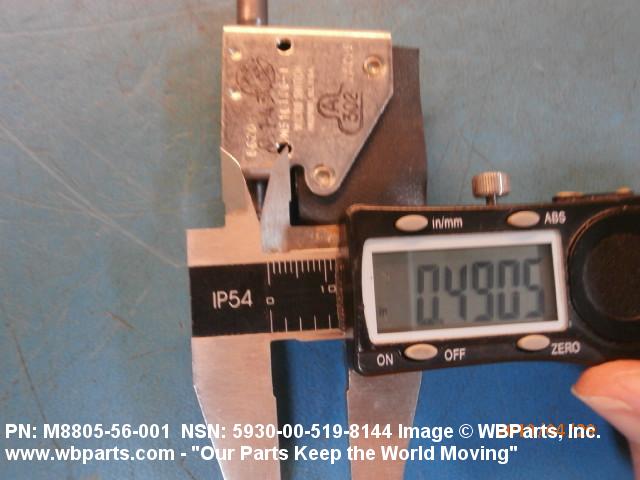

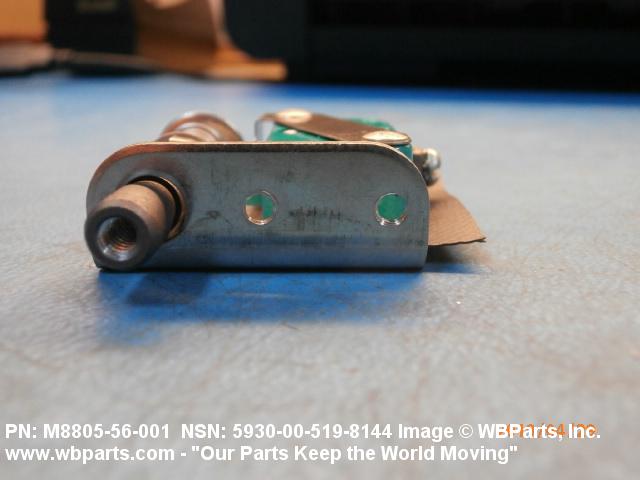

Drawings & Photos | NSN 5930-00-519-8144
Demand History | NSN 5930-00-519-8144
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-519-8144 | 2024-08-239 | 242 | DIBBS |
| 5930-00-519-8144 | 2024-08-228 | 242 | DIBBS |
| 5930-00-519-8144 | 2024-06-165 | 4 | Saudi Arabia |
| 5930-00-519-8144 | 2024-05-127 | 221 | DIBBS |
| 5930-00-519-8144 | 2024-04-116 | 221 | DIBBS |
| 5930-00-519-8144 | 2023-11-325 | 2 | DIBBS |
| 5930-00-519-8144 | 2023-09-271 | 65 | DIBBS |
| 5930-00-519-8144 | 2023-09-260 | 65 | DIBBS |
| 5930-00-519-8144 | 2023-06-181 | 86 | DIBBS |
| 5930-00-519-8144 | 2023-06-170 | 86 | DIBBS |
| 5930-00-519-8144 | 2023-03-81 | 267 | DIBBS |
| 5930-00-519-8144 | 2023-03-66 | 267 | DIBBS |
| MS161061 | 2022-04-94 | 1 | United States |
| MS161061 | 2022-04-91 | 1 | United States |
| 5930-00-519-8144 | 2022-03-73 | 359 | DIBBS |
| 5930-00-519-8144 | 2021-04-95 | 472 | DIBBS |
| 5930-00-519-8144 | 2021-03-80 | 472 | DIBBS |
| M880556001 | 2020-05-143 | 1 | United States |
| 5930-00-519-8144 | 2020-03-89 | 410 | DIBBS |
| 5930-00-519-8144 | 2020-01-28 | 126 | DIBBS |
| MS161061 | 2019-09-254 | 1 | US |
| MS161061 | 2019-09-254 | 1 | US |
| MS161061 | 2019-06-176 | 3 | Taiwan |
| M880556001 | 2019-04-108 | 10 | United States |
| M880556001 | 2019-02-42 | 6 | United States |
| MS161061 | 2018-09-254 | 10 | United States |
| 5930-00-519-8144 | 2018-06-155 | 477 | DIBBS |
| MS161061 | 2018-03-67 | 2 | United States |
| 5930-00-519-8144 | 2017-08-240 | 20 | Germany |
| 5930-00-519-8144 | 2017-08-228 | 20 | Germany |
| MS161061 | 2017-07-205 | 4 | Singapore |
| M880556001 | 2016-11-320 | 3 | United States |
| MS161061 | 2016-11-320 | 3 | United States |
| MS16106-1 | 2016-06-173 | 17 | |
| 5930-00-519-8144 | 2016-01-20 | 400 | DIBBS |
| 5930-00-519-8144 | 2016-01-05 | 400 | DIBBS |
| 5930-00-519-8144 | 2015-12-362 | 288 | DIBBS |
| 5930-00-519-8144 | 2015-12-351 | 288 | DIBBS |
| 5930-00-519-8144 | 2015-11-326 | 157 | DIBBS |
| 5930-00-519-8144 | 2015-10-287 | 182 | DIBBS |
| 5930-00-519-8144 | 2015-09-272 | 182 | DIBBS |
| MS161061 | 2011-11-313 | 1 | US |
| M880556001 | 2011-11-307 | 4 | United States |
| 5930-00-519-8144 | 2011-09-244 | 1195 | DIBBS |
| 5930-00-519-8144 | 2010-06-165 | 900 | DIBBS |
| M880556001 | 2010-01-08 | 1 | US |
| 5930-00-519-8144 | 2009-11-310 | 550 | DIBBS |
| 5930-00-519-8144 | 2009-07-202 | 575 | DIBBS |
| 5930-00-519-8144 | 2007-10-275 | 100 | DIBBS |
| 5930-00-519-8144 | 2007-10-275 | 31 | DIBBS |
Cross Reference | NSN 5930-00-519-8144
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0309253 | 28687 | NAVY, UNITED STATES DEPARTMENT OF THE SPAWAR DBA SPACE AND NAVAL |
| 04760045-001 | 53178 | BULL HN INFORMATION SYSTEMS INC |
| 11040071-1 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 122-5-1 | 88818 | KEARFOTT CORPORATION DBA KEARFOTT |
| 128C159H04 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| 129662 | 96795 | GOULD INSTRUMENT SYSTEMS INC |
| 134754-000 | 81413 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
| 1376-19-211P | A0199 | OTO MELARA SPA |
| 228-1038P2 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 228-1038P2 | 52315 | L-3 COMMUNICATIONS KLEIN ASSOCIATES, INC. |
| 240-29408 | 94990 | MOTOROLA INC. DBA INTEGRATED INFORMATION SYSTEMS |
| 2989887 | 03640 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 2AC19 | 06845 | RAYTHEON COMPANY DBA RAYTHEON |
| 2AC42 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 2AC59 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| 2AC59S16106-1 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 2AC88 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 2ACG | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 33-504756-1 | 04655 | GENERAL DYNAMICS C4 SYSTEMS, INC. |
| 337-8384-001 | 97871 | RAYTHEON COMPANY DBA RAYTHEON |
| 352250041859 | H0203 | THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS |
| 355-137-004 | 07421 | INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS |
| 365703 | 00752 | EDO CORPORATION DIV EDO CORPORATION AP&T |
| 400531 | 23667 | SMITHS DETECTION, INC. DIV EDGEWOOD |
| 418101-1 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 452-0383-001 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 45A0091 | 52025 | SIEMENS ENERGY & AUTOMATION, INC. DIV SIEMENS ENERGY & AUTOMATION DBA |
| 4630015612 | D8385 | THALES ELECTRONIC SYSTEMS GMBH DBA VERTEIDIGUNGSSYSTEME SEL GMBH |
| 525307 | 22525 | INSTRUMENTS AND FLIGHT RESEARCH INC. |
| 5521037 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 5930005198144 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 613312 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| 630-001-001 | A1997 | ELETTRONICA SPA |
| 71260011-01 | 99932 | MOOG INC. DBA MOOG COMPONENTS GROUP |
| 7905113-00 | 90536 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 849511 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 870SS0001 | A0199 | OTO MELARA SPA |
| 885821 | 36497 | BURGESS SWITCH CO LTD |
| A458-7002 | 55631 | SCOMILL INC |
| B1047395 | 28527 | EXELIS INC. DBA ELECTRONIC SYSTEMS, INTEGRATED |
| B19858 | 91161 | ELECTRO IMPULSE LABORATORY INC. DBA ELECTRO IMPULSE |
| C2-10F2-13 | 81640 | EATON CORPORATION DBA FLUID POWER DIV |
| G166547-1 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| M61-28 | 54418 | MILTOPE CORPORATION |
| M8805-56-1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M8805/56-001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M8805/56MS16106-1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-8805/56 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-S-8805/56 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS16106-1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS16106-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| N126108 | 52088 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| N630-001-001 | A1997 | ELETTRONICA SPA |
| N630-001-001 | C3141 | ELETTRONICA GMBH |
| PL900-23345-18 | 04801 | POWER PARAGON INC DBA POWER SYSTEMS GROUP |
| PL900-23347-48 | 04801 | POWER PARAGON INC DBA POWER SYSTEMS GROUP |
| PL900-23996-2 | 04801 | POWER PARAGON INC DBA POWER SYSTEMS GROUP |
| S00306F | 34764 | SCIENTIFIC RADIO SYSTEMS INC |
| SAC476 | 05477 | NEW SD INC SEATON-WILSON DIV |
| SMB438742 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-519-8144
Related Products | NSN 5930-00-519-8144
Technical Data | NSN 5930-00-519-8144
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 125.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 500.000 MILLIAMPERES RESISTIVE DC AND 100.000 MILLIAMPERES INDUCTIVE DC AND 10.000 AMPERES RESISTIVE AC AND 10.000 AMPERES INDUCTIVE AC |
| BODY STYLE | 25M HOLE MOUNTED |
| BODY LENGTH | 1.660 INCHES MAXIMUM |
| BODY WIDTH | 0.520 INCHES NOMINAL |
| BODY HEIGHT | 1.300 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.500 INCHES NOMINAL |
| OVERALL LENGTH | 2.035 INCHES MAXIMUM |
| OVERALL WIDTH | 0.520 INCHES NOMINAL |
| OVERALL HEIGHT | 1.640 INCHES NOMINAL |
| ACTUATOR STYLE | 4 ROUND |
| ACTUATOR DIAMETER | 0.250 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.375 INCHES MAXIMUM |
| ACTUATOR FREE POSITION HEIGHT | 0.375 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 3 TAB W/SCREW |
| SWITCH ACTUATING FORCE | 144.0 OUNCES NOMINAL |
| SWITCH RELEASE FORCE | 4.0 OUNCES MINIMUM |
| ACTUATOR MOVEMENT | 0.172 PRETRAVEL INCHES NOMINAL |
| INCLOSURE TYPE | UNINCLOSED |
| MOUNTING METHOD | THREADED HOLE |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 32 |
| TEST DATA DOCUMENT | 81349-MIL-S-8805 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-S-8805/56 GOVERNMENT SPECIFICATION |
| III END ITEM IDENTIFICATION | MISSMINUTEMAN LEG-30 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-8805/56 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS16106-1 |
Restrictions/Controls & Freight Information | NSN 5930-00-519-8144
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-519-8144
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
