NSN 5930-00-397-7735 2AC77, 7334775, 00-397-7735
Product Details | SENSITIVE SWITCH
5930-00-397-7735 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: 2AC77, 7334775, 5930-00-397-7735, 00-397-7735, 5930003977735, 003977735
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 APR 1974 | 00-397-7735 | 00399 ( SWITCH, SENSITIVE ) |
Drawings & Photos | NSN 5930-00-397-7735
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-397-7735
Technical Data | NSN 5930-00-397-7735
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 250.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 250.000 MILLIAMPERES RESISTIVE DC AND 100.000 MILLIAMPERES INDUCTIVE DC AND 10.000 AMPERES RESISTIVE AC AND 10.000 AMPERES INDUCTIVE AC |

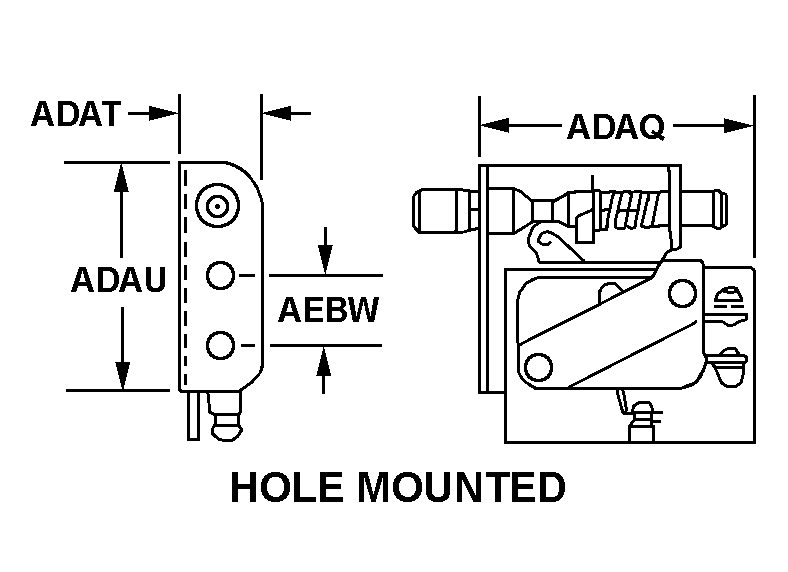

| BODY STYLE | 25M HOLE MOUNTED |
| BODY LENGTH | 1.660 INCHES MAXIMUM |
| BODY WIDTH | 0.490 INCHES MINIMUM AND 0.550 INCHES MAXIMUM |
| BODY HEIGHT | 0.270 INCHES MINIMUM AND 1.550 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.500 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 3 SCREW |
| ACTUATOR MOVEMENT | 0.375 OVERTRAVEL INCHES MAXIMUM AND 0.125 DIFFERENTIAL INCHES NOMINAL |
| INCLOSURE TYPE | UNINCLOSED |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| MANUFACTURERS CODE | 97151 |
| MFR SOURCE CONTROLLING REFERENCE | 7334775 |
Restrictions/Controls & Freight Information | NSN 5930-00-397-7735
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
