NSN 5930-00-137-7415 10AT130210, 10AT13-02-10, 00-137-7415
Product Details | SENSITIVE SWITCH
5930-00-137-7415 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: 10AT130210, 10AT13-02-10, 5930-00-137-7415, 00-137-7415, 5930001377415, 001377415
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 JUL 1971 | 00-137-7415 | 00399 ( SWITCH, SENSITIVE ) |
Drawings & Photos | NSN 5930-00-137-7415
Cross Reference | NSN 5930-00-137-7415
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10AT13-02-10 | 82647 | SENSATA TECHNOLOGIES, INC DIV SENSATA ATTLEBORO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-137-7415
Related Products | NSN 5930-00-137-7415
Technical Data | NSN 5930-00-137-7415
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 7.000 AMPERES RESISTIVE DC AND 3.000 AMPERES INDUCTIVE DC AND 2.000 AMPERES LAMP DC AND 5.000 AMPERES RESISTIVE AC AND 3.000 AMPERES INDUCTIVE AC AND 2.000 AMPERES LAMP AC |

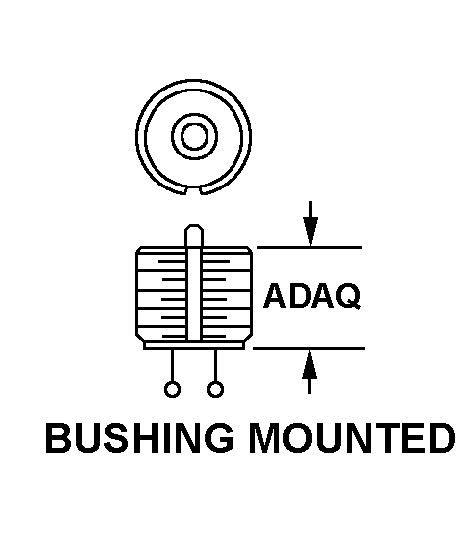

| BODY STYLE | 1M BUSHING MOUNTED |
| BODY LENGTH | 1.617 INCHES NOMINAL |
| ACTUATOR STYLE | 48 ROLLER PLUNGER |
| ACTUATOR FREE POSITION HEIGHT | 0.135 INCHES MINIMUM AND 0.197 INCHES MAXIMUM |
| ACTUATOR ROLLER DIAMETER | 0.307 INCHES MINIMUM AND 0.317 INCHES MAXIMUM |
| ACTUATOR ROLLER WIDTH | 0.125 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 3 WIRE LEAD |
| SWITCH ACTUATING FORCE | 30.0 OUNCES MAXIMUM |
| SWITCH RELEASE FORCE | 4.0 OUNCES MINIMUM |
| ACTUATOR MOVEMENT | 0.010 PRETRAVEL INCHES MAXIMUM AND 0.125 OVERTRAVEL INCHES MINIMUM AND 0.010 DIFFERENTIAL INCHES MAXIMUM |
| INCLOSURE TYPE | HERMETICALLY SEALED |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 0.438 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| SPECIAL FEATURES | 72.000 IN. LG WIRE LEADS |
Restrictions/Controls & Freight Information | NSN 5930-00-137-7415
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-137-7415
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
