NSN 5930-00-137-7347 46301GA, 00-137-7347, 001377347
Product Details | ROTARY SWITCH
5930-00-137-7347 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: 46301GA, 5930-00-137-7347, 00-137-7347, 5930001377347, 001377347
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 JUL 1971 | 00-137-7347 | 02134 ( SWITCH, ROTARY ) |
Drawings & Photos | NSN 5930-00-137-7347
Cross Reference | NSN 5930-00-137-7347
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 46301GA | 82121 | ELECTRO SWITCH CORP. DBA ELECTROSWITCH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-137-7347
Related Products | NSN 5930-00-137-7347
Technical Data | NSN 5930-00-137-7347
| Characteristic | Specifications |
|---|---|

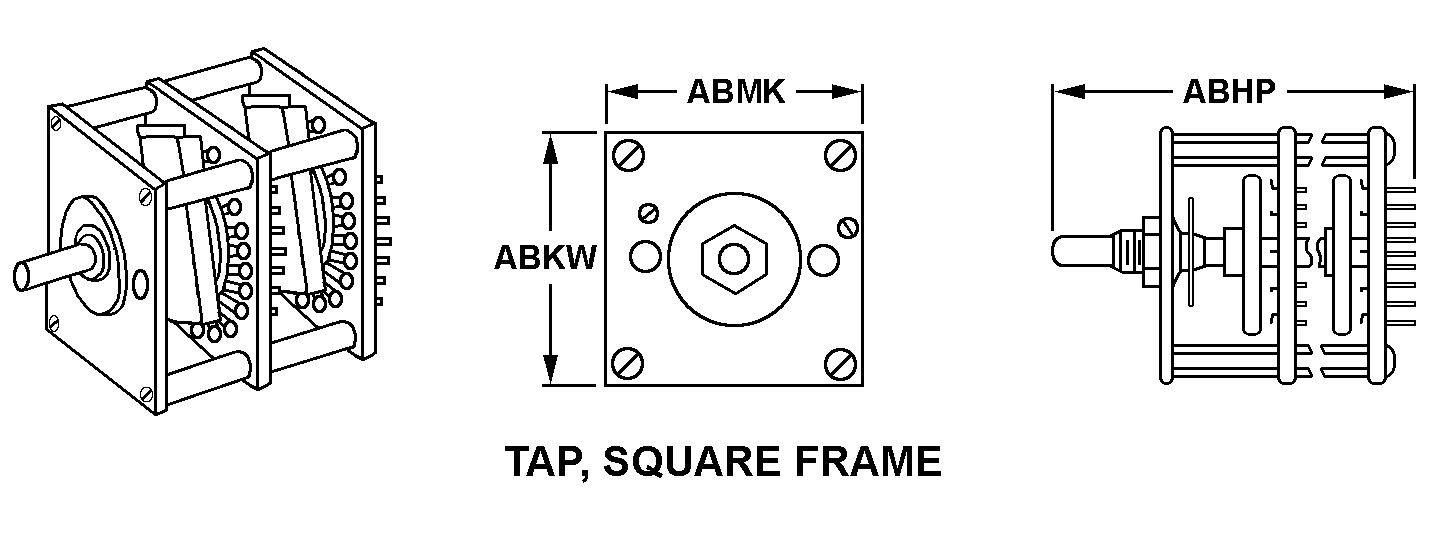

| STYLE DESIGNATOR | 11 TAP, SQUARE FRAME |
| OVERALL LENGTH | 4.938 INCHES NOMINAL |
| OVERALL HEIGHT | 2.812 INCHES NOMINAL |
| OVERALL WIDTH | 2.812 INCHES NOMINAL |
| INDIVIDUAL SECTION QUANTITY | 1 |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP SYMMETRICAL |
| POLE QUANTITY | 1 SINGLE SECTION PERIPHERY |
| THROW QUANTITY | 11 SINGLE SECTION PERIPHERY |
| CONTACT SWITCHING ACTION | BREAKS BEFORE MAKES SINGLE SECTION PERIPHERY |
| CONTACT VOLTAGE RATING IN VOLTS | 125.0 AC AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 7.5 AMPERES RESISTIVE LOAD AC AT SEA LEVEL |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 12 SINGLE ACTUATOR |
| SWITCH ACTUATOR POSITIONING INCREMENT | 30.0 DEGREES SINGLE ACTUATOR |
| SWITCH ACTUATOR STOP DEVICE TYPE | ADJUSTABLE STOP SINGLE ACTUATOR |
| TERMINAL TYPE | SCREW |
| MOUNTING METHOD | BRACKET AND THREADED HOLE SINGLE MOUNTING FACILITY |
| THREAD SERIES DESIGNATOR | UNC SINGLE MOUNTING FACILITY |
| NOMINAL THREAD SIZE | 0.190 INCHES SINGLE MOUNTING FACILITY |
| THREAD CLASS | 2B SINGLE MOUNTING FACILITY |
| THREAD QUANTITY PER INCH | 24 SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | FOUR POSITION RECTANGULAR SINGLE MOUNTING FACILITY |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 2.297 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 2.297 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| FEATURES PROVIDED | ACTUATOR KNOB |
| SPECIAL FEATURES | WATERPROOF COLLAR |
