NSN 5930-00-134-5719 H111057, H11-1057, DMS 80058B
Product Details | SENSITIVE SWITCH
5930-00-134-5719 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: H111057, H11-1057, DMS 80058B, DMS80058B, 285578, 5930-00-134-5719, 00-134-5719, 5930001345719, 001345719
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 SEP 1969 | 00-134-5719 | 00399 ( SWITCH, SENSITIVE ) |

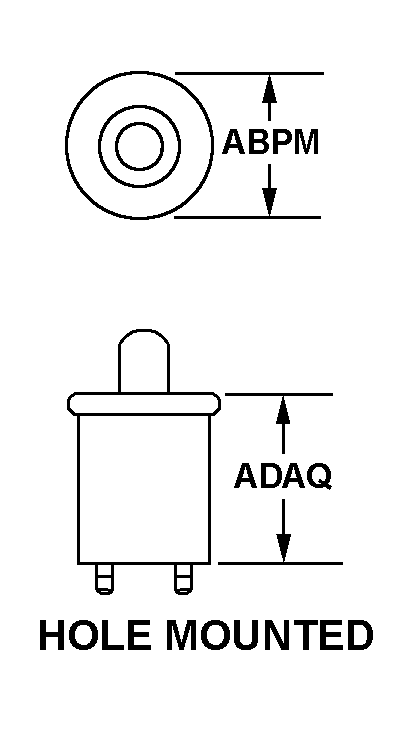

Drawings & Photos | NSN 5930-00-134-5719
Demand History | NSN 5930-00-134-5719
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-134-5719 | 2014-03-72 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-134-5719
Related Products | NSN 5930-00-134-5719
Technical Data | NSN 5930-00-134-5719
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 2.500 AMPERES INDUCTIVE DC |
| BODY STYLE | 7M HOLE MOUNTED |
| BODY DIAMETER | 0.735 INCHES MINIMUM AND 0.765 INCHES MAXIMUM |
| BODY LENGTH | 0.812 INCHES NOMINAL |
| OVERALL LENGTH | 8.892 INCHES NOMINAL |
| OVERALL WIDTH | 0.735 INCHES MINIMUM AND 0.765 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.735 INCHES MINIMUM AND 0.765 INCHES MAXIMUM |
| ACTUATOR STYLE | 1 ROUND |
| ACTUATOR DIAMETER | 0.250 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.200 INCHES NOMINAL |
| ACTUATOR FREE POSITION HEIGHT | 0.830 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| SWITCH ACTUATING FORCE | 96.0 OUNCES MAXIMUM |
| SWITCH RELEASE FORCE | 64.0 OUNCES MAXIMUM |
| ACTUATOR MOVEMENT | 0.040 PRETRAVEL INCHES MAXIMUM AND 0.125 OVERTRAVEL INCHES MINIMUM AND 0.009 DIFFERENTIAL INCHES MAXIMUM |
| INCLOSURE TYPE | HERMETICALLY SEALED |
| FEATURES PROVIDED | ACTUATOR SEAL |
