NSN 5930-00-134-0342 H121001, H12-1001, 66C3857A2
Product Details | SENSITIVE SWITCH
5930-00-134-0342 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: H121001, H12-1001, 66C3857A2, 69C375292, 69C37529-2, 5930-00-134-0342, 00-134-0342, 5930001340342, 001340342
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 21 OCT 1968 | 00-134-0342 | 00399 ( SWITCH, SENSITIVE ) |
Drawings & Photos | NSN 5930-00-134-0342
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-134-0342
Technical Data | NSN 5930-00-134-0342
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 2 TWO CIRCUIT, DOUBLE BREAK/DOUBLE MAKE, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 15.000 AMPERES RESISTIVE DC AND 10.000 AMPERES INDUCTIVE DC AND 5.000 AMPERES LAMP DC AND 10.000 AMPERES RESISTIVE AC AND 10.000 AMPERES INDUCTIVE AC AND 6.000 AMPERES LAMP AC |

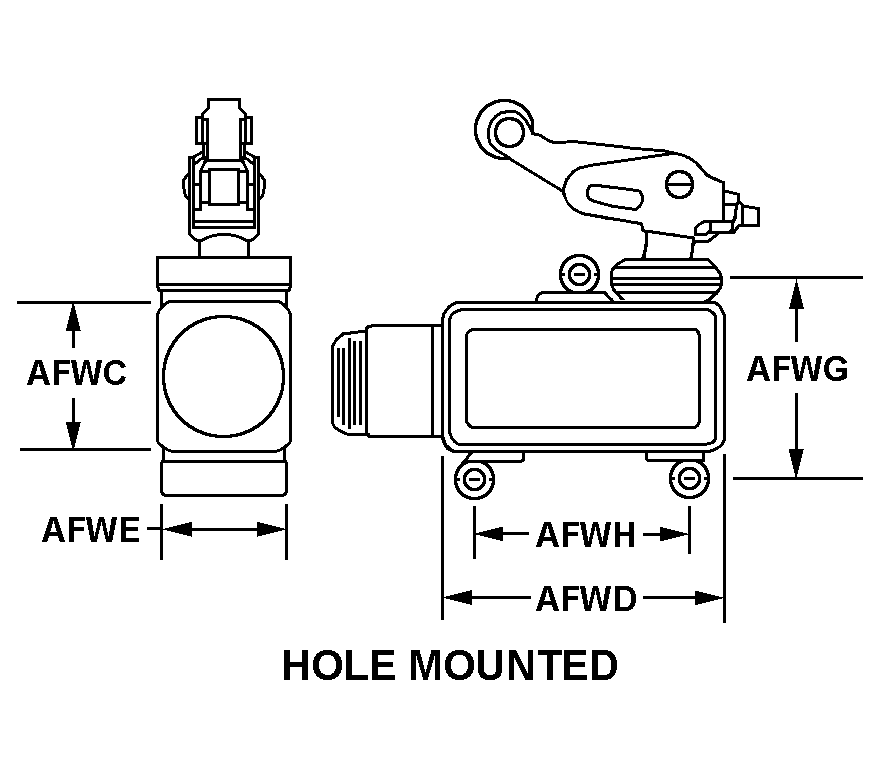

| BODY STYLE | 55M HOLE MOUNTED |
| HOUSING HEIGHT | 1.250 INCHES NOMINAL |
| HOUSING LENGTH | 2.562 INCHES NOMINAL |
| HOUSING WIDTH | 1.218 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOUSING MOUNTING FACILITIES PARALLEL TO HEIGHT | 1.563 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOUSING MOUNTING FACILITIES PARALLEL TO LENGTH | 1.875 INCHES NOMINAL |

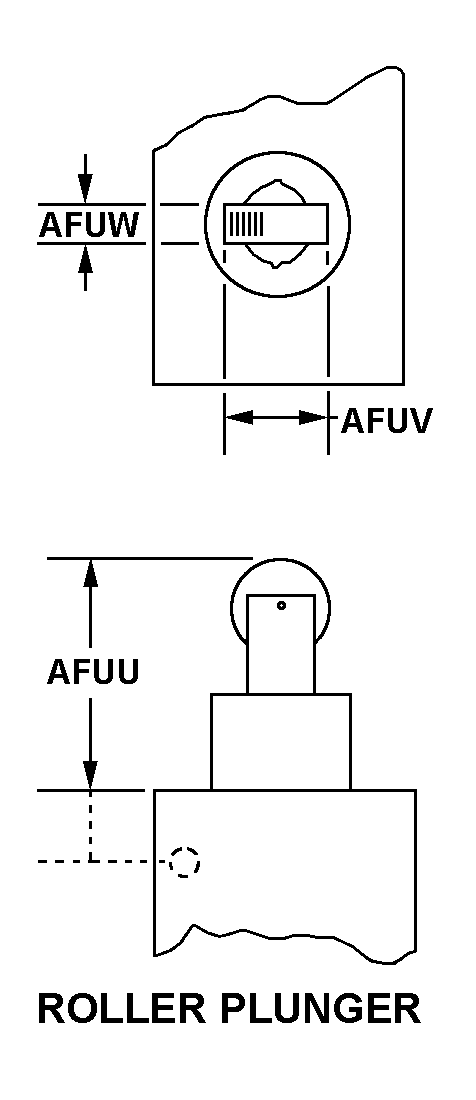

| ACTUATOR STYLE | 49 ROLLER PLUNGER |
| ACTUATOR LENGTH | 0.734 INCHES NOMINAL |
| ACTUATOR ROLLER WIDTH | 0.500 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 8 WIRE LEAD |
| SWITCH ACTUATING FORCE | 144.0 OUNCES NOMINAL |
| ACTUATOR MOVEMENT | 4.0 PRETRAVEL DEGREES NOMINAL AND 8.0 OVERTRAVEL DEGREES MINIMUM AND 1.0 DIFFERENTIAL DEGREES NOMINAL |
| INCLOSURE TYPE | HERMETICALLY SEALED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DUSTPROOF |
| SPECIAL FEATURES | WIRE LEADS ARE 24 IN. LG |
| III OVERALL LENGTH | 3.188 INCHES NOMINAL |
| III OVERALL WIDTH | 1.218 INCHES NOMINAL |
| MANUFACTURERS CODE | 97151 |
| MFR SOURCE CONTROLLING REFERENCE | 69C37529-2 |
