NSN 5930-00-133-9629 ST80A, ST-80A , D20013

Product Details | PULL SWITCH

5930-00-133-9629 A switch which is actuated by a device, such as a pull rod or a chain which requires pulling for each action. Excludes LIGHT-SWITCH ASSEMBLY and SWITCH, SENSITIVE.

Part Alternates: ST80A, ST-80A , D20013 , MILS13625, MIL-S-13625 , 1085, 11640178 , 5930PL0898067, 5930-00-133-9629, 00-133-9629, 2910001339629, 5930001339629, 001339629

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	14 AUG 1968	00-133-9629	00405 ( SWITCH, PULL )

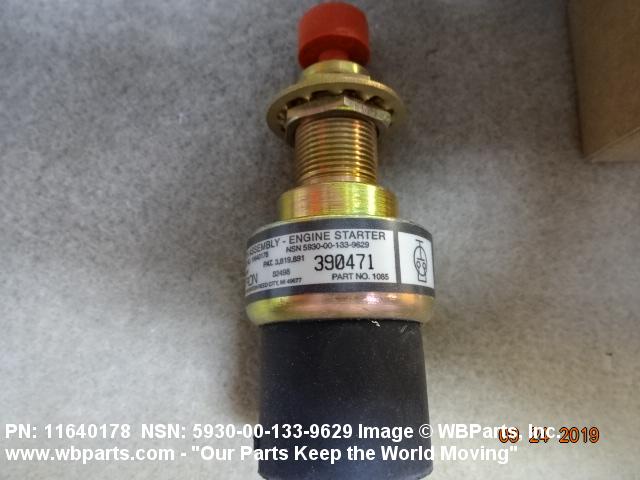

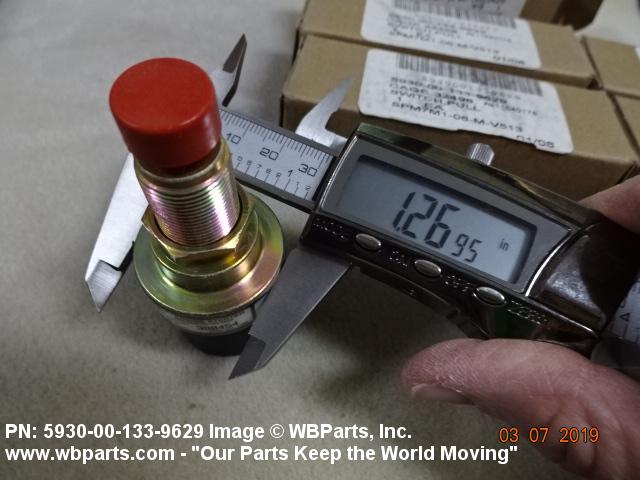

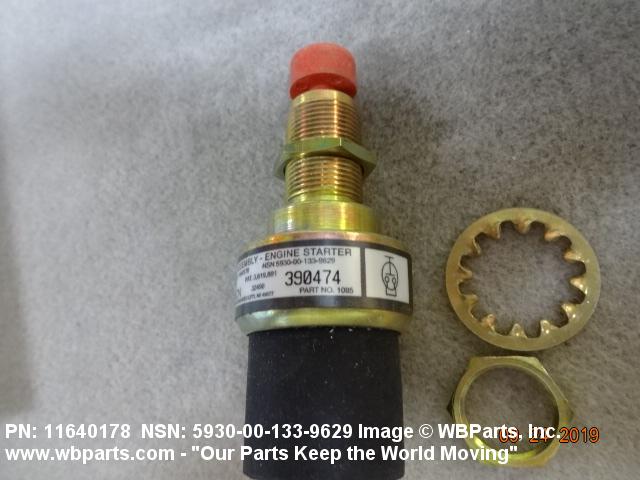

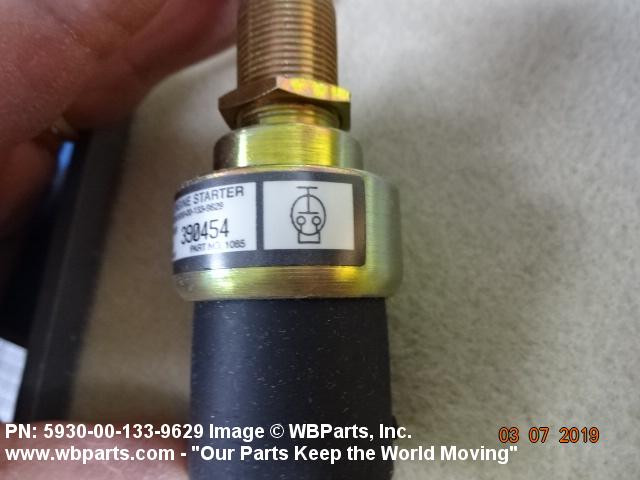

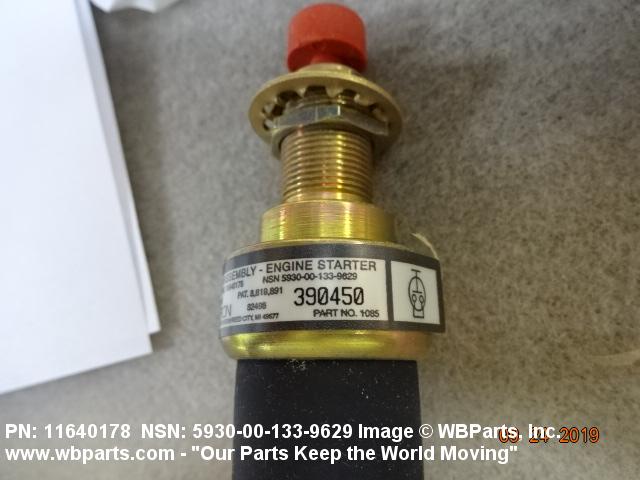

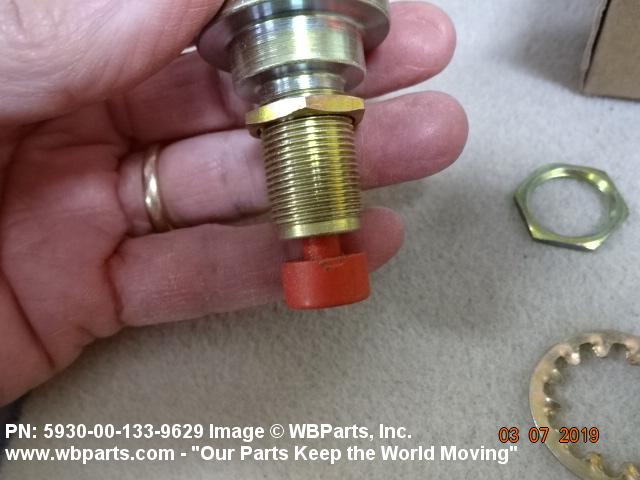

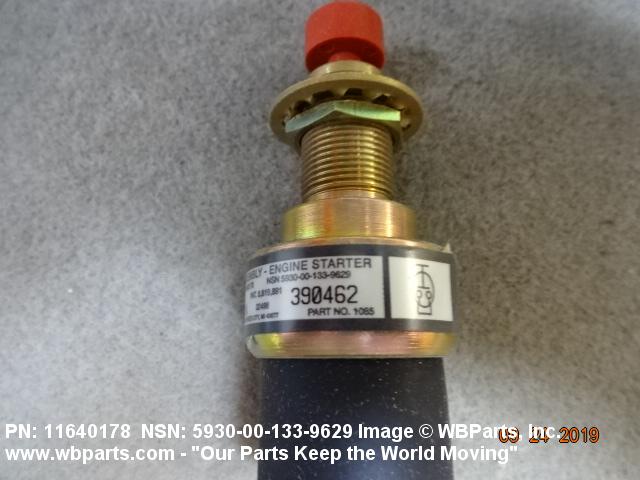

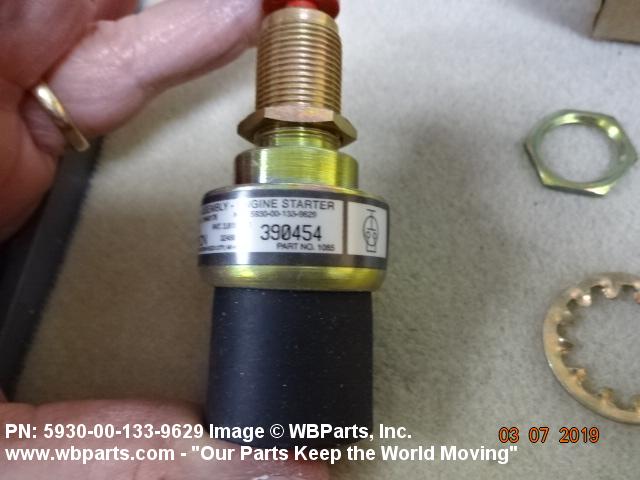

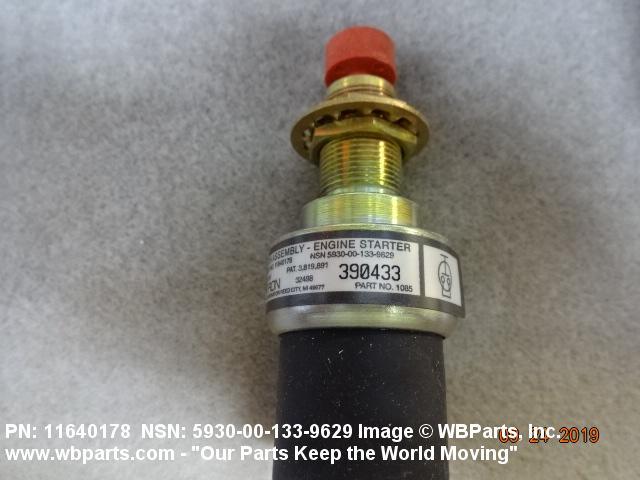

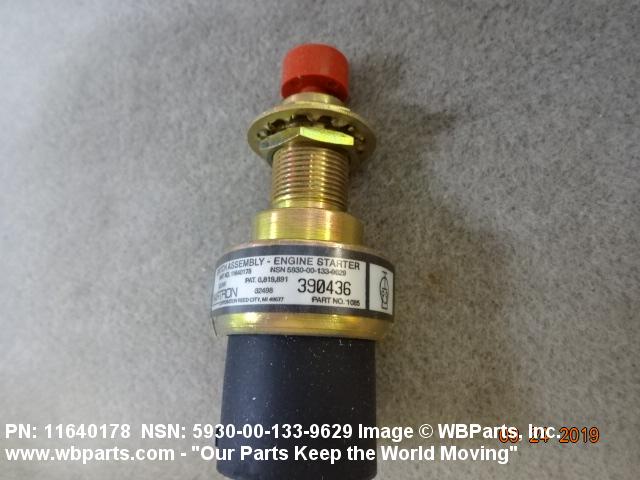

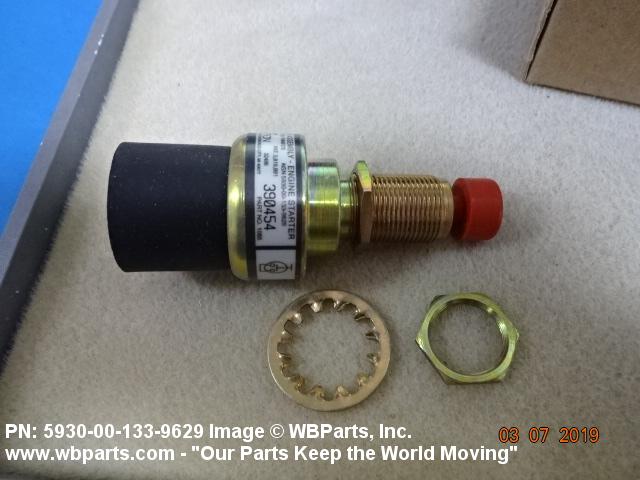

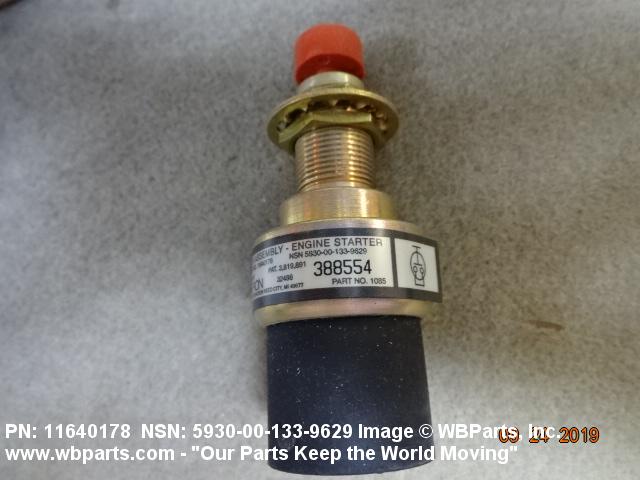

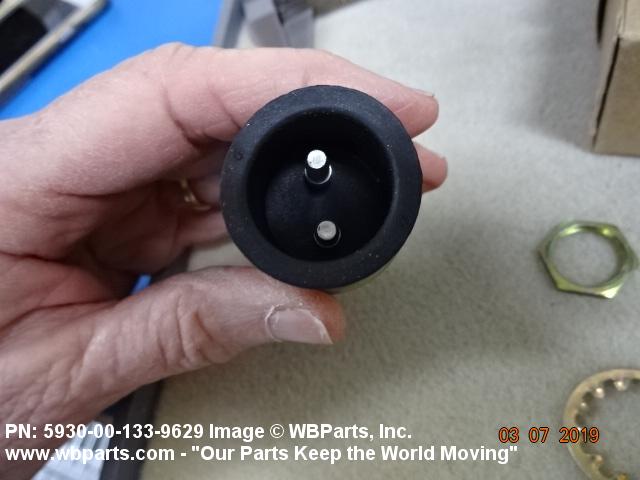

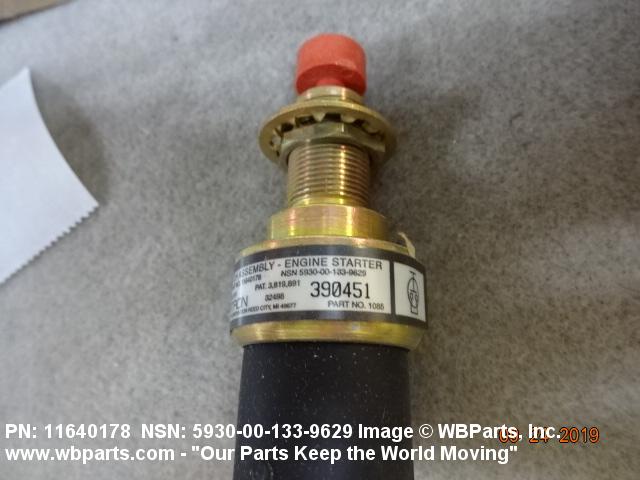

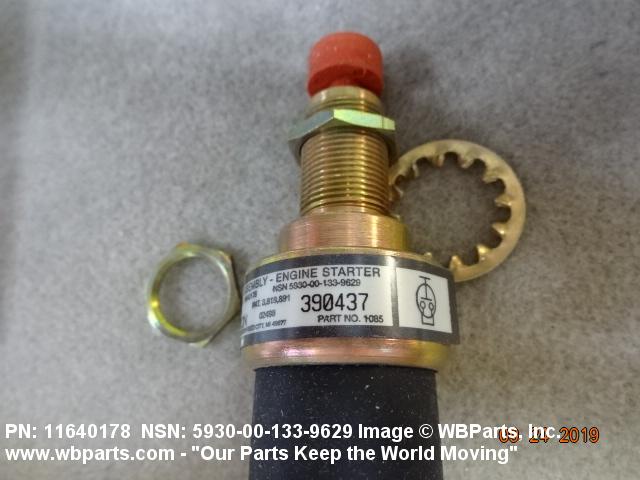

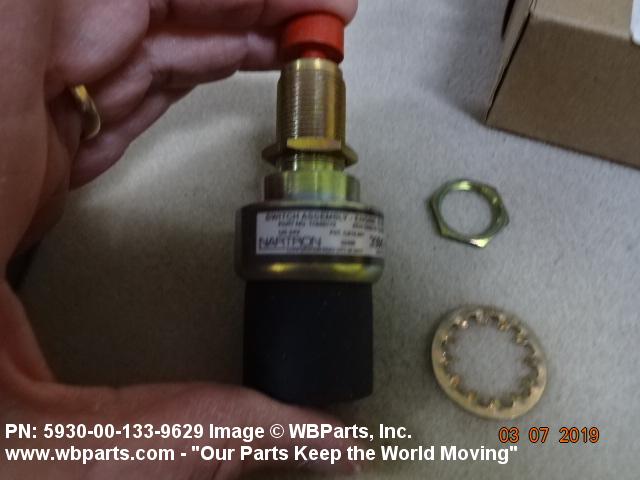

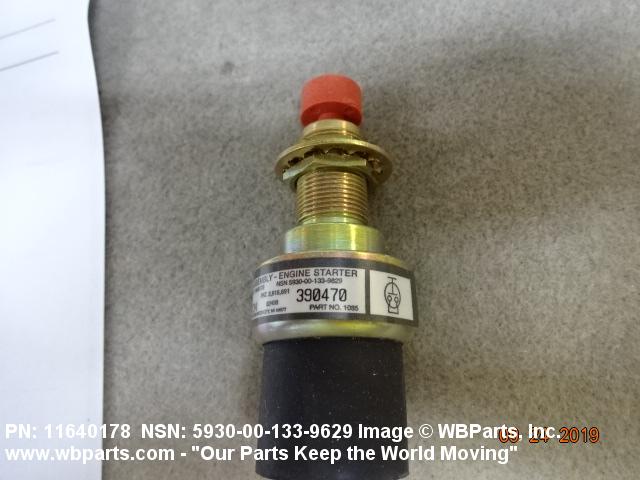

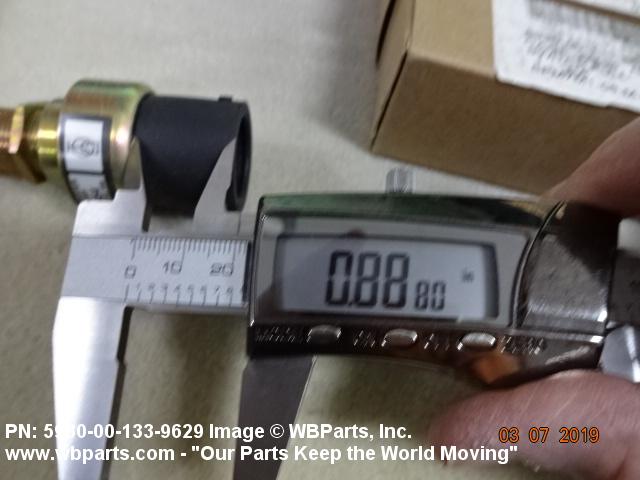

Drawings & Photos | NSN 5930-00-133-9629

Part Number	Request Date	QTY	Origin
5930-00-133-9629	2024-04-100	2	United States
5930-00-133-9629	2023-11-320	518	DIBBS
5930-00-133-9629	2023-11-317	20	CY
5930-00-133-9629	2023-11-316	69	DIBBS
5930-00-133-9629	2023-10-289	617	DIBBS
5930-00-133-9629	2023-09-262	2	Taiwan
5930-00-133-9629	2023-09-249	15	US
5930-00-133-9629	2023-06-152	760	DIBBS
5930-00-133-9629	2023-04-92	23	Thailand
5930-00-133-9629	2023-03-65	722	DIBBS
5930-00-133-9629	2022-11-332	247	DIBBS
5930-00-133-9629	2022-09-265	475	DIBBS
5930-00-133-9629	2022-02-56	342	DIBBS
5930-00-133-9629	2022-02-45	342	DIBBS
5930-00-133-9629	2022-02-33	123	DIBBS
5930-00-133-9629	2022-01-13	123	DIBBS
5930-00-133-9629	2021-08-224	219	DIBBS
5930-00-133-9629	2020-10-303	206	DIBBS
11640178	2020-01-14	30	United States
11640178	2020-01-14	30	United States
5930-00-133-9629	2019-09-262	10	United States
5930-00-133-9629	2019-05-140	1200	US
5930-00-133-9629	2019-05-140	1200	US
5930-00-133-9629	2019-05-140	1200	US
5930-00-133-9629	2019-05-134	500	US
5930-00-133-9629	2019-01-10	6	Thailand
5930001339629	2018-11-306	2	Thailand
11640178	2018-10-292	2	Thailand
5930-00-133-9629	2018-10-292	2	MANUAL
5930-00-133-9629	2017-07-208	552	DIBBS
5930-00-133-9629	2015-08-216	50	DIBBS
5930-00-133-9629	2015-07-186	50	DIBBS
5930-00-133-9629	2015-03-63	1	US
5930-00-133-9629	2014-11-321	1	US
5930-00-133-9629	2011-05-126	101	Turkey
5930-00-133-9629	2011-03-87	100	Turkey
5930-00-133-9629	2011-03-68	231	MANUAL
11640178	2007-11-309	50	Turkey
5930-00-133-9629	2007-10-295	50	Turkey
5930-00-133-9629	2007-10-291	5150	DIBBS
5930-00-133-9629	2007-07-207	2566	DIBBS
5930-00-133-9629	2007-07-201	791	DIBBS
5930-00-133-9629	2007-06-175	96	DIBBS
5930-00-133-9629	2007-05-127	445	DIBBS

Cross Reference | NSN 5930-00-133-9629

Part Number	Cage Code	Manufacturer
1085	32498	UUSI, LLC DBA NARTRON
11640178	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
11640178	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
2910001339629	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5930PL0898067	9009H	INSPEKTORAT WSPARCIA SIL ZBROJNYCH
D20013	81640	EATON CORPORATION DBA FLUID POWER DIV
MIL-S-13625	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
ST-80A	00099	MILLI-SWITCH MANUFACTURING CO INC DBA MILLI-SWITCH

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-00-133-9629

Compare

Related Products | NSN 5930-00-133-9629

5930-00-133-9686, 5930-00-134-0313, 5930-00-134-0322, 5930-00-134-0341, 5930-00-134-0342

Technical Data | NSN 5930-00-133-9629

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS	28.0 DC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	60.000 AMPERES INDUCTIVE DC
BODY STYLE	5K BUSHING MOUNTED
BODY DIAMETER	1.310 INCHES NOMINAL
BUSHING LENGTH	1.000 INCHES NOMINAL
BODY LENGTH	1.750 INCHES NOMINAL
ACTUATOR STYLE	4 ROUND
ACTUATOR DIAMETER	0.560 INCHES NOMINAL
ACTUATOR HEIGHT	0.410 INCHES NOMINAL
ACTUATOR COLOR	RED SINGLE ACTUATOR
TERMINAL TYPE AND QUANTITY	2 TURRET
INCLOSURE TYPE	FULLY INCLOSED
MOUNTING METHOD	THREADED BUSHING
THREAD SERIES DESIGNATOR	UNEF
NOMINAL THREAD SIZE	0.625 INCHES
THREAD CLASS	2A
THREAD QUANTITY PER INCH	24
III END ITEM IDENTIFICATION	WEAPONS SYSTEM-VEHICLE, RECOVERY M-88 SERIES
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-S-13625

Restrictions/Controls & Freight Information | NSN 5930-00-133-9629

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	AZ	U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5930-00-133-9629

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	J	Tanks
Weapons Systems/End Item or Homogeneous Group	JT	Recovery Vehicle, M51/M74/M88
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
