NSN 5930-00-126-3132 E13.00M, E1300M, E13-00M
Product Details | SENSITIVE SWITCH
5930-00-126-3132 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: E13.00M, E1300M, E13-00M, 6040318000, 604-0318-000, 5930-00-126-3132, 00-126-3132, 5930001263132, 001263132
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 NOV 1968 | 00-126-3132 | 00399 ( SWITCH, SENSITIVE ) |
Drawings & Photos | NSN 5930-00-126-3132
Demand History | NSN 5930-00-126-3132
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 604-0318-000 | 2024-05-144 | 686 | DIBBS |
| 5930-00-126-3132 | 2017-11-318 | 281 | DIBBS |
| 5930-00-126-3132 | 2017-11-306 | 281 | DIBBS |
| 5930-00-126-3132 | 2012-06-182 | 227 | DIBBS |
Cross Reference | NSN 5930-00-126-3132
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-126-3132
Related Products | NSN 5930-00-126-3132
Technical Data | NSN 5930-00-126-3132
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 15.000 AMPERES RESISTIVE AC |

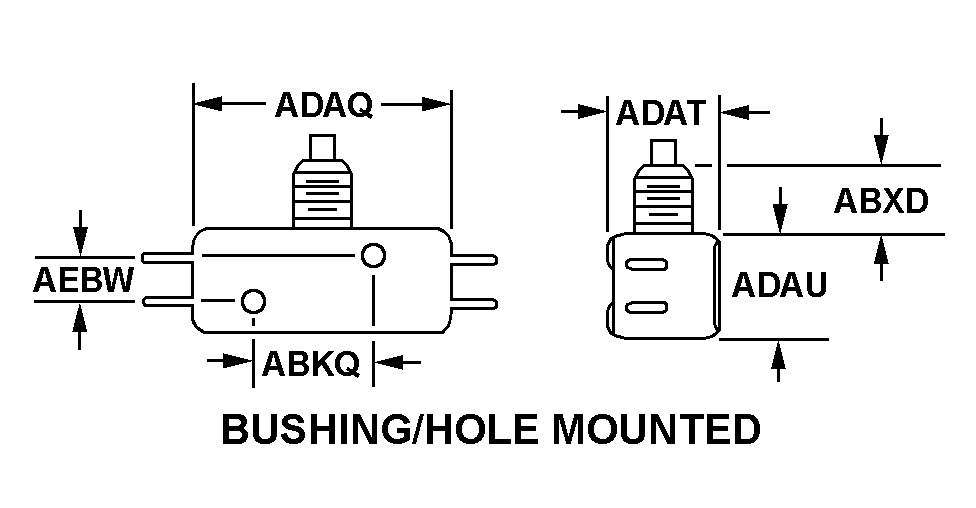

| BODY STYLE | 16M BUSHING/HOLE MOUNTED |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.993 INCHES MINIMUM AND 1.007 INCHES MAXIMUM |
| BUSHING LENGTH | 0.406 INCHES NOMINAL |
| BODY LENGTH | 1.812 INCHES NOMINAL |
| BODY WIDTH | 0.641 INCHES NOMINAL |
| BODY HEIGHT | 0.641 INCHES NOMINAL |
| OVERALL LENGTH | 2.724 INCHES NOMINAL |
| OVERALL WIDTH | 0.641 INCHES NOMINAL |
| OVERALL HEIGHT | 1.047 INCHES NOMINAL |
| ACTUATOR STYLE | 1 ROUND |
| ACTUATOR HEIGHT | 0.406 INCHES NOMINAL |
| ACTUATOR FREE POSITION HEIGHT | 0.125 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| SWITCH ACTUATING FORCE | 20.0 OUNCES MAXIMUM |
| ACTUATOR MOVEMENT | 0.050 PRETRAVEL INCHES MAXIMUM AND 0.218 OVERTRAVEL INCHES MINIMUM AND 0.015 DIFFERENTIAL INCHES MAXIMUM |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | THREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.145 INCHES NOMINAL |
| MANUFACTURERS CODE | 01963 |
| DESIGN CONTROL REFERENCE | E13-00M |
