NSN 5925-01-605-1745 2268007, 22-68007, 01-605-1745
Product Details | CIRCUIT BREAKER
5925-01-605-1745 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.
Part Alternates: 2268007, 22-68007, 5925-01-605-1745, 01-605-1745, 5925016051745, 016051745
Electrical and Electronic Equipment Components | Circuit Breakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 APR 2012 | 01-605-1745 | 00136 ( CIRCUIT BREAKER ) |

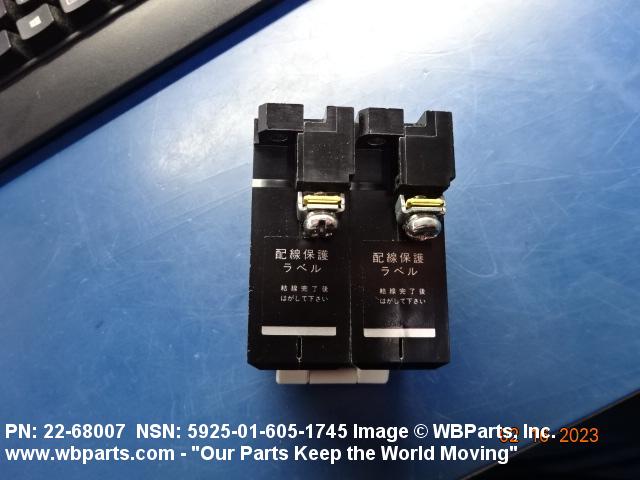

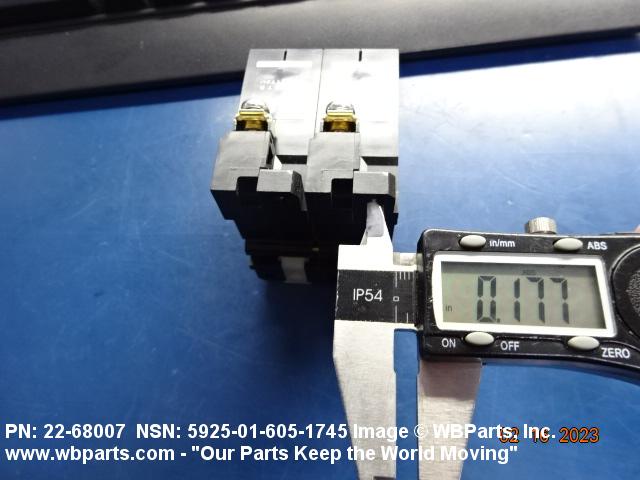

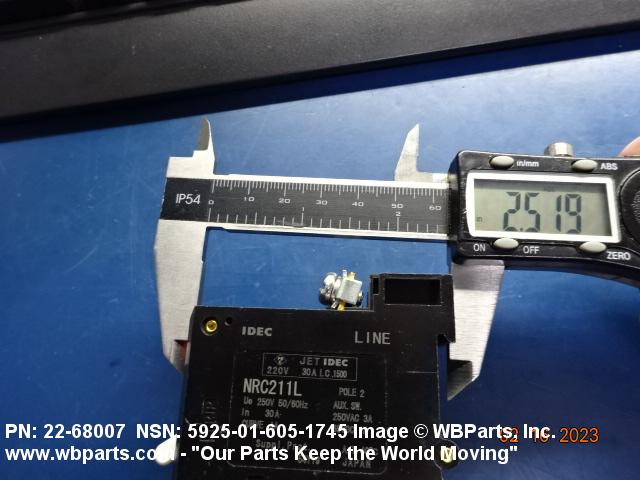

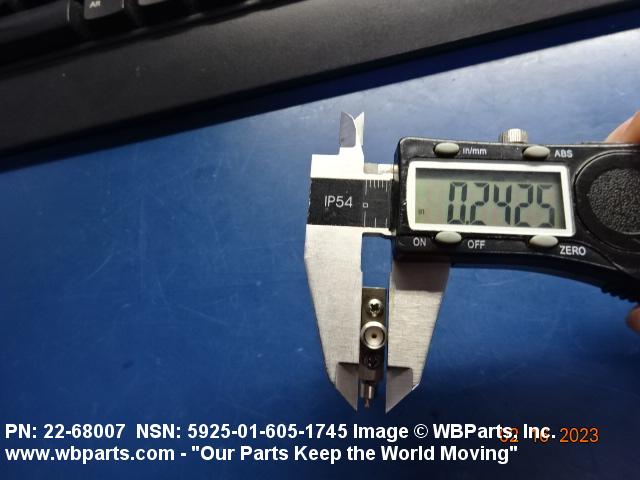

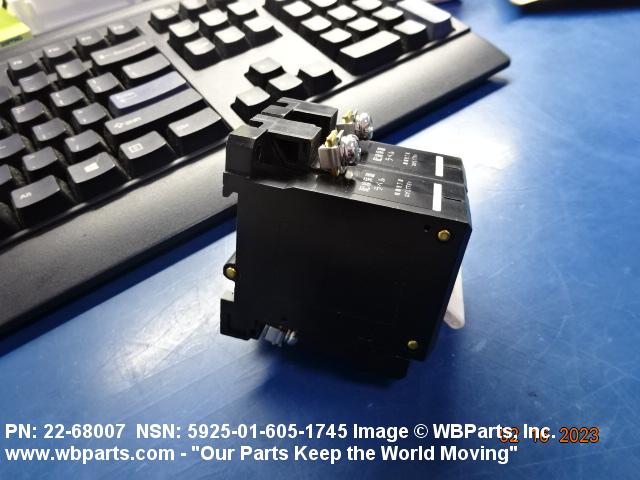

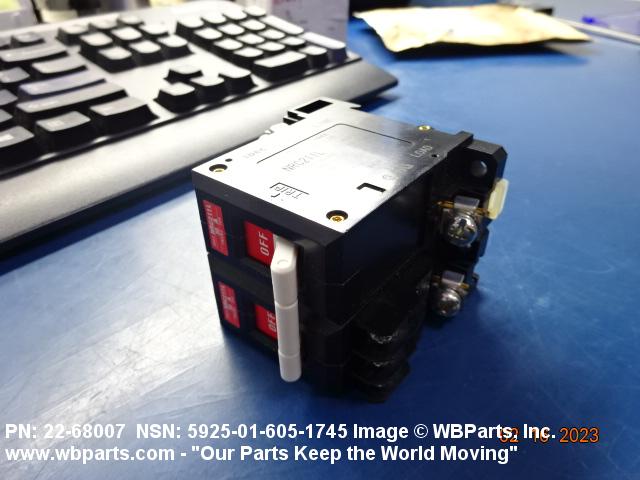

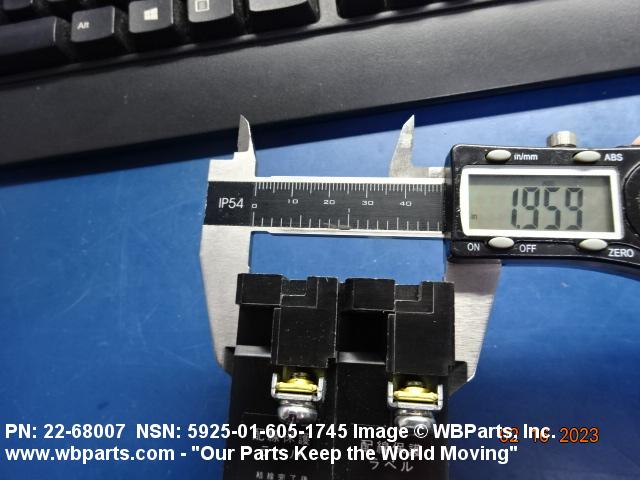

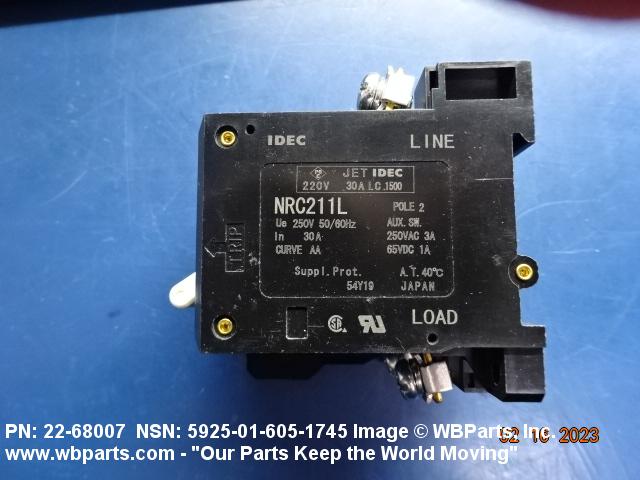

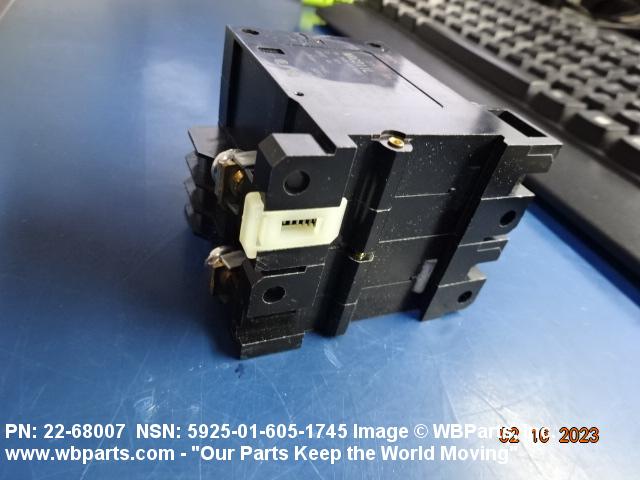

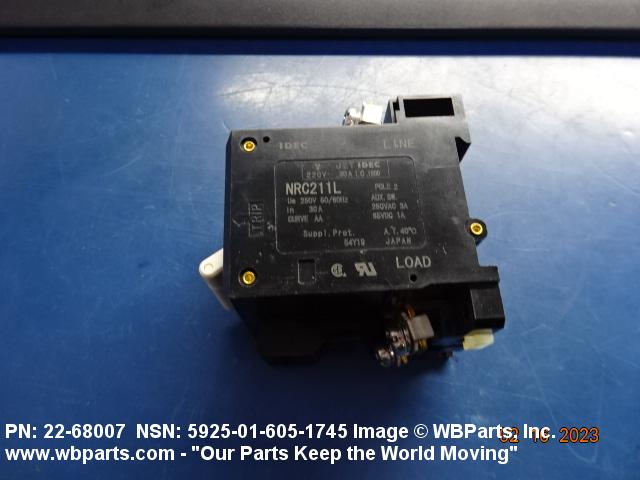

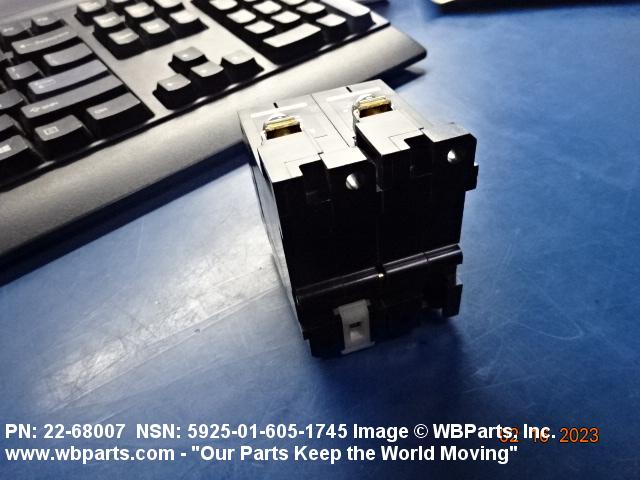

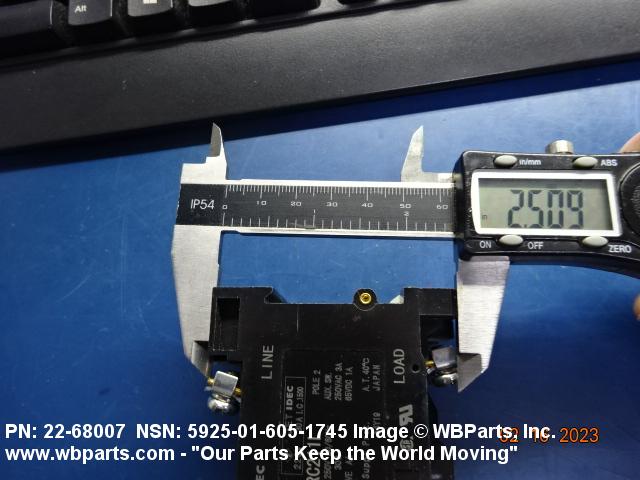

Drawings & Photos | NSN 5925-01-605-1745
Demand History | NSN 5925-01-605-1745
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5925-01-605-1745 | 2023-02-45 | 1 | us |
| 5925-01-605-1745 | 2014-09-263 | 1 | US |
| 5925-01-605-1745 | 2014-07-212 | 16 | DIBBS |
| 5925-01-605-1745 | 2013-10-304 | 2 | DIBBS |
| 2268007 | 2013-06-179 | 2 | VE |
| 5925-01-605-1745 | 2013-06-170 | 2 | DIBBS |
Cross Reference | NSN 5925-01-605-1745
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 22-68007 | 8L945 | NORTHERN LIGHTS, INC. DBA NORTHERN LIGHTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5925-01-605-1745
Technical Data | NSN 5925-01-605-1745
| Characteristic | Specifications |
|---|---|
| SWITCH VOLTAGE RATING AND TYPE IN VOLTS | 240.0 AC |
| END ITEM IDENTIFICATION | GENSET, DIESEL, P/N M673L3 |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | CIRCUIT PROTECTOR (GENERATOR) |
| SWITCH CURRENT RATING AND TYPE IN AMPS | 30.0 AC |
Restrictions/Controls & Freight Information | NSN 5925-01-605-1745
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5925-01-605-1745
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
