Product Details | CIRCUIT BREAKER

5925-01-602-9307 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.

Part Alternates: 1167654, 116-7654, 5925-01-602-9307, 01-602-9307, 5925016029307, 016029307

Electrical and Electronic Equipment Components | Circuit Breakers

Supply Group (FSG) NSN Assign. NIIN
59 14 FEB 2012 01-602-9307

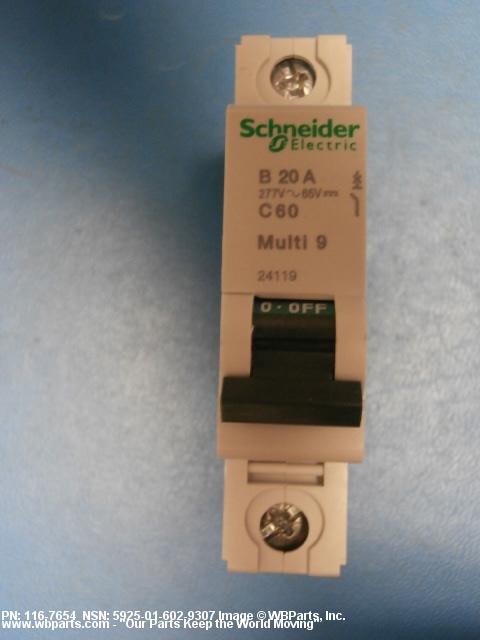

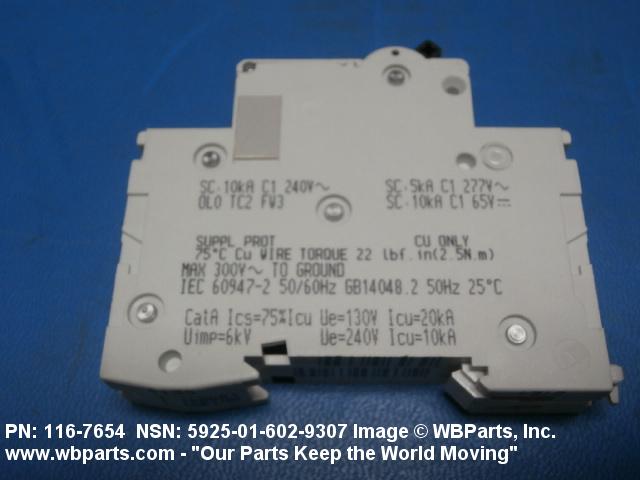

Drawings & Photos | NSN 5925-01-602-9307


Demand History | NSN 5925-01-602-9307

Part Number Request Date QTY Origin
5925-01-602-9307 2015-11-321 1 United States
5925-01-602-9307 2015-11-321 1 United States

Cross Reference | NSN 5925-01-602-9307

Part Number Cage Code Manufacturer
116-7654 11083 CATERPILLAR INC. DBA CATERPILLAR

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5925-01-602-9307

Technical Data | NSN 5925-01-602-9307

Characteristic Specifications
MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE 20.0 AMPERES AC SINGLE LOCATION
END ITEM IDENTIFICATION 6110-01-563-2738 PANEL,CONTROL,ELECTRICAL-ELECTRONIC P/N 245-0030

Restrictions/Controls & Freight Information | NSN 5925-01-602-9307

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information

Management | NSN 5925-01-602-9307

Category Code Description
Inventory Account CodesA Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required.
Inventory Account Codes0 Item not controlled by serial number.
Special Material Content Codes9 Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of SupplyZNCCommanding Officer
USCG Surface Force Logistics Center
Code 028, Mil Stop 25
2401 Hawkins Point Road
Baltimore, MD 21226-5000
AgencyGPU.S. Coast Guard
Service OrganizationCU.S. Coast Guard
ReparabilityC
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
