NSN 5925-01-494-0085 12422680, 12423216, 184040F031
Product Details | CIRCUIT BREAKER
5925-01-494-0085 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.
Part Alternates: 12422680, 12423216, 184040F031, 184040F-03-1, 184040P03, 184040-P03 , 5925-01-494-0085, 01-494-0085, 5925014940085, 014940085
Electrical and Electronic Equipment Components | Circuit Breakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 29 JAN 2002 | 01-494-0085 | 00136 ( CIRCUIT BREAKER ) |

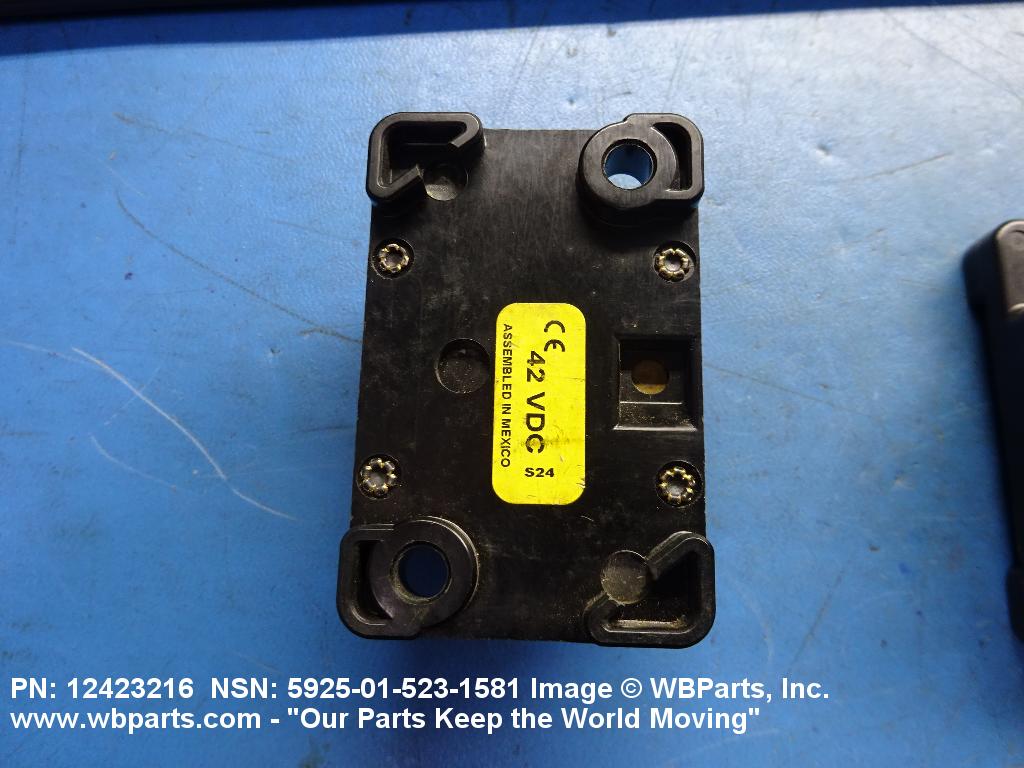

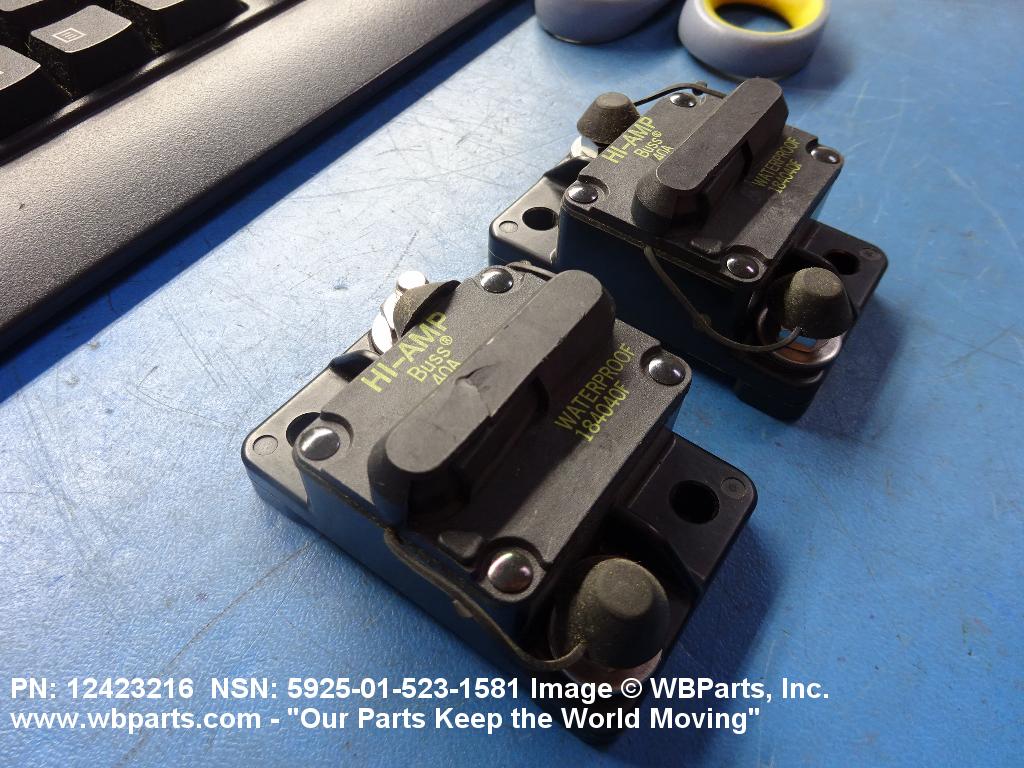

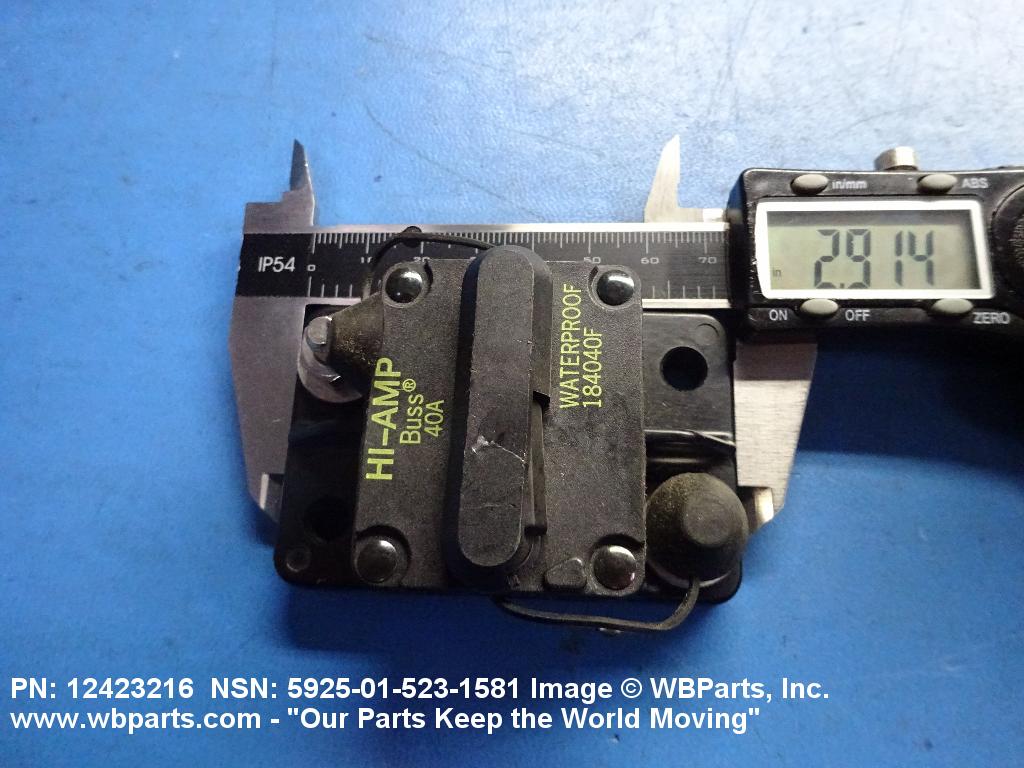

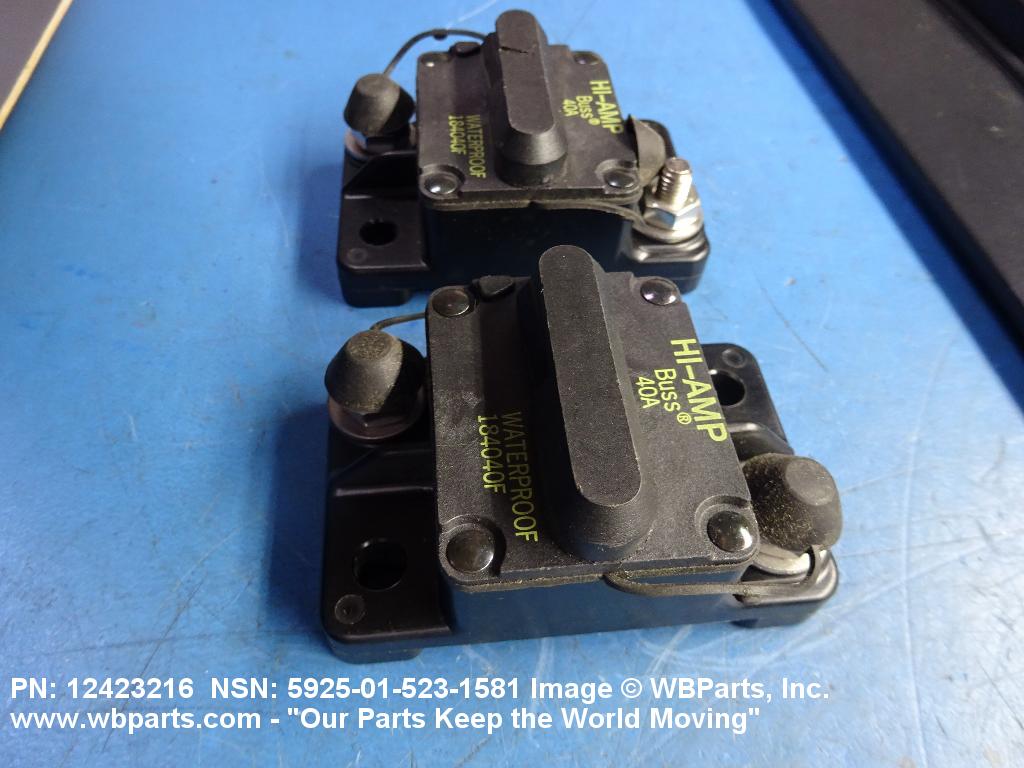

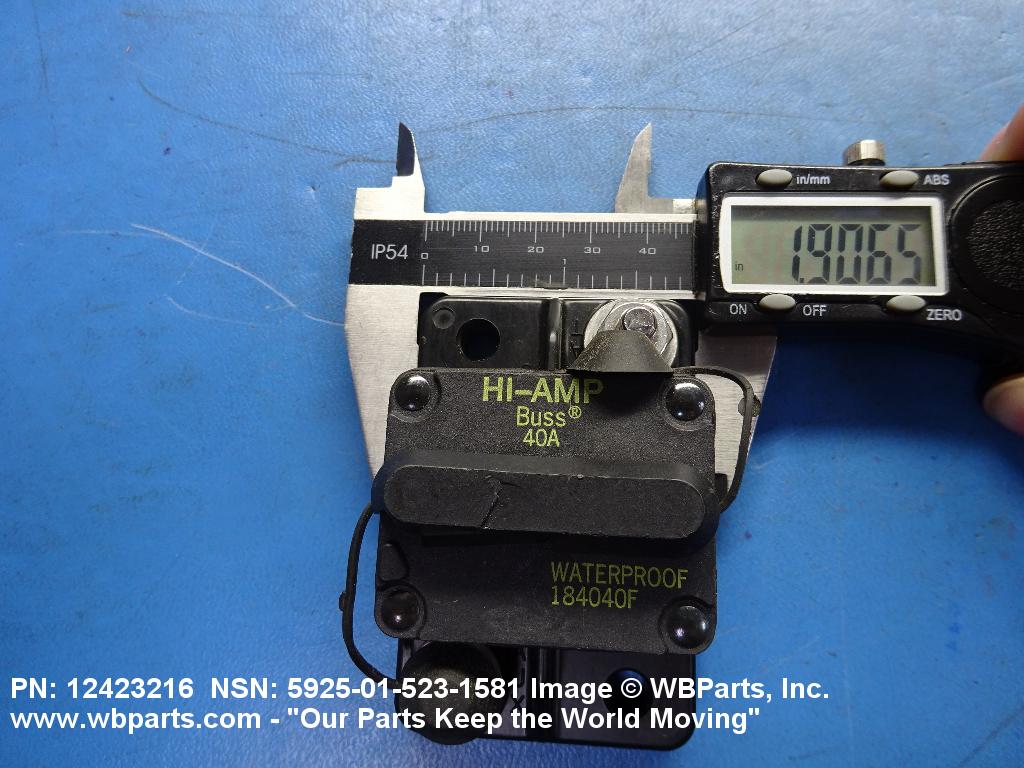

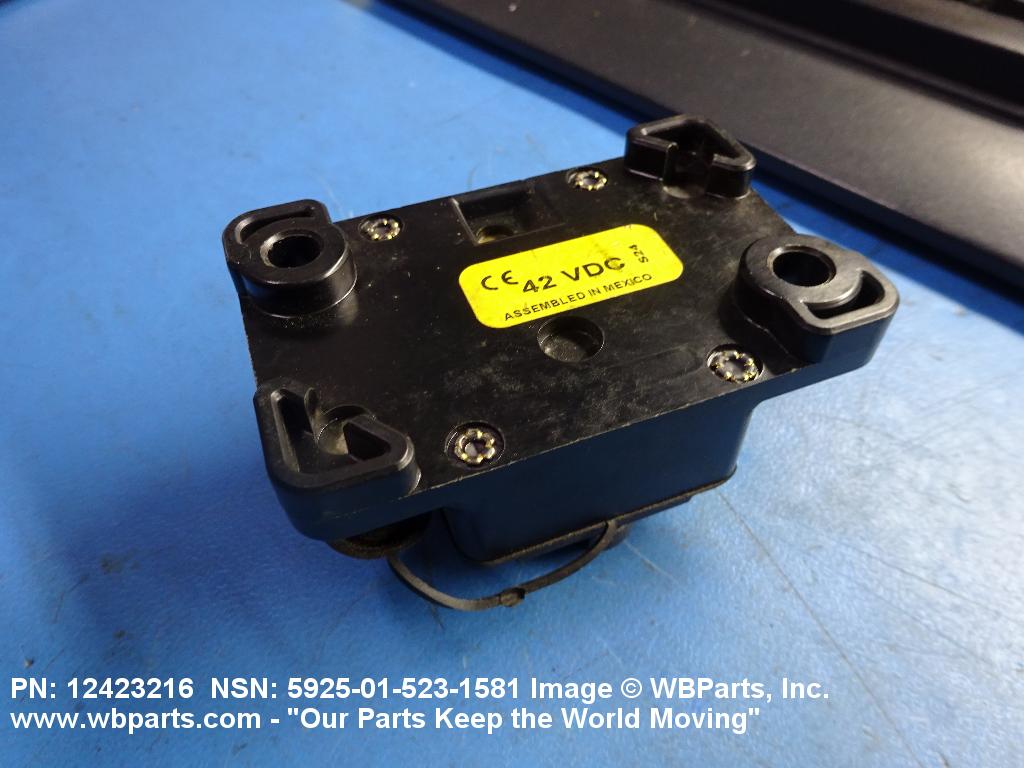

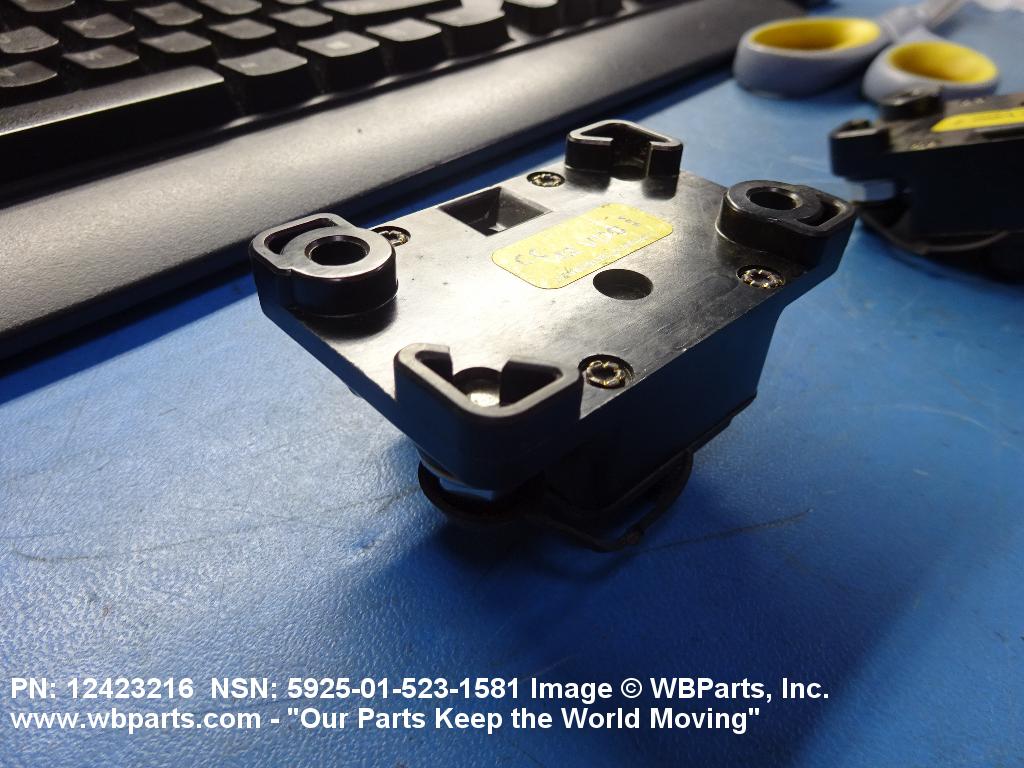

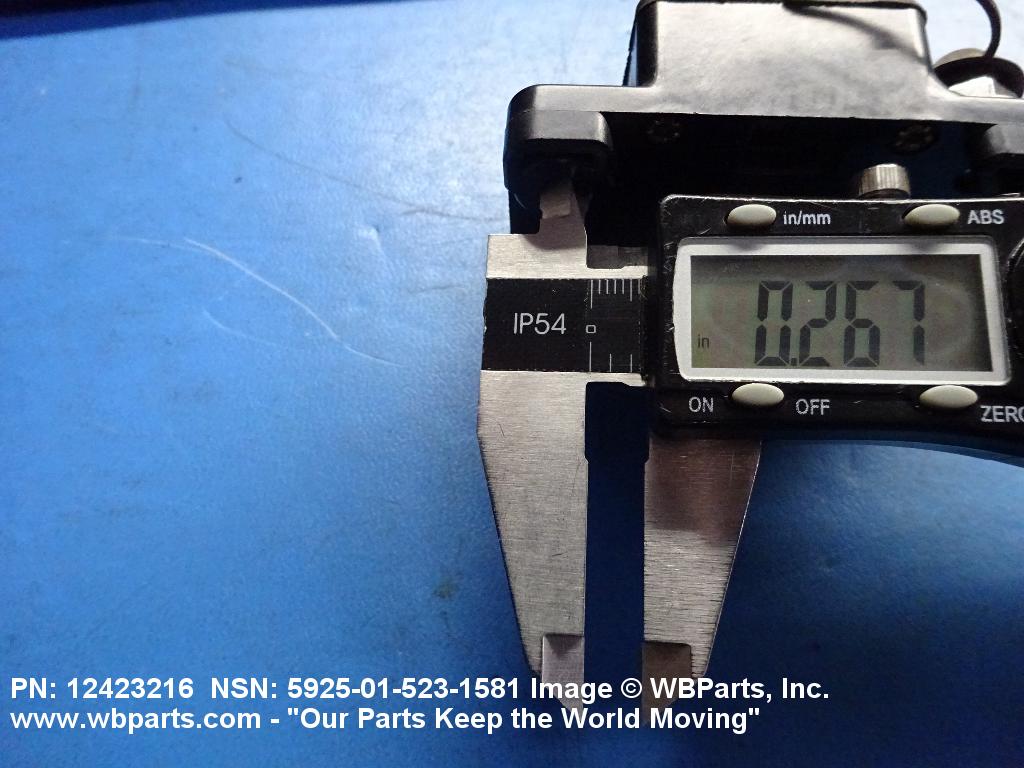

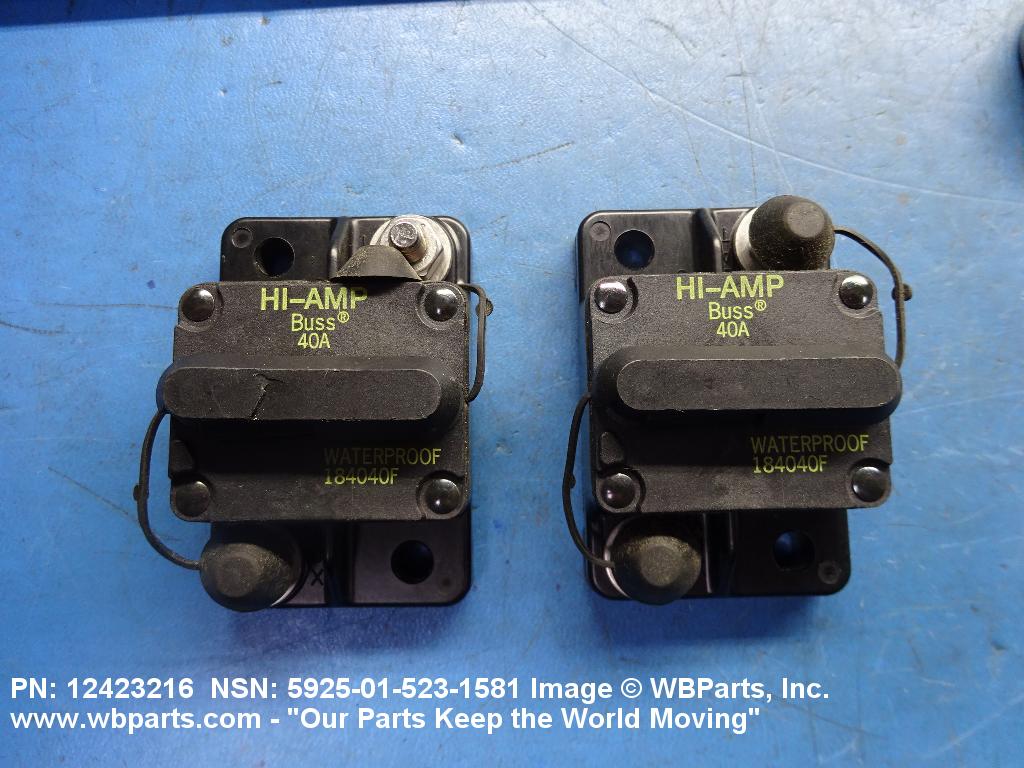

Drawings & Photos | NSN 5925-01-494-0085
Demand History | NSN 5925-01-494-0085
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 12422680 | 2024-10-282 | 220 | DIBBS |
| 12423216 | 2024-10-282 | 220 | DIBBS |
| 184040F-03 | 2024-10-282 | 220 | DIBBS |
| 12422680 | 2024-09-261 | 220 | DIBBS |
| 12423216 | 2024-09-261 | 220 | DIBBS |
| 184040F-03 | 2024-09-261 | 220 | DIBBS |
| 12422680 | 2024-07-186 | 122 | DIBBS |
| 12423216 | 2024-07-186 | 122 | DIBBS |
| 184040F-03 | 2024-07-186 | 122 | DIBBS |
| 5925-01-494-0085 | 2018-08-220 | 1 | DIBBS-RFPs |
| 5925-01-494-0085 | 2018-04-116 | 444 | DIBBS |
| 5925-01-494-0085 | 2018-02-37 | 254 | DIBBS |
| 5925-01-494-0085 | 2017-08-215 | 521 | DIBBS |
| 5925-01-494-0085 | 2017-04-106 | 142 | DIBBS |
| 5925-01-494-0085 | 2017-02-37 | 741 | DIBBS |
| 5925-01-494-0085 | 2016-12-339 | 1073 | DIBBS |
| 12423216 | 2016-04-110 | 100 | US |
| 5925-01-494-0085 | 2016-03-68 | 275 | DIBBS |
| 5925-01-494-0085 | 2015-10-277 | 216 | DIBBS |
| 5925-01-494-0085 | 2015-09-246 | 161 | DIBBS |
| 5925-01-494-0085 | 2015-07-211 | 26 | DIBBS |
| 5925-01-494-0085 | 2015-06-176 | 26 | DIBBS |
| 5925-01-494-0085 | 2015-06-159 | 26 | DIBBS |
| 5925-01-494-0085 | 2014-12-349 | 86 | DIBBS |
| 5925-01-494-0085 | 2014-12-338 | 86 | DIBBS |
| 5925-01-494-0085 | 2006-05-147 | 79 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5925-01-494-0085
Technical Data | NSN 5925-01-494-0085
| Characteristic | Specifications |
|---|---|

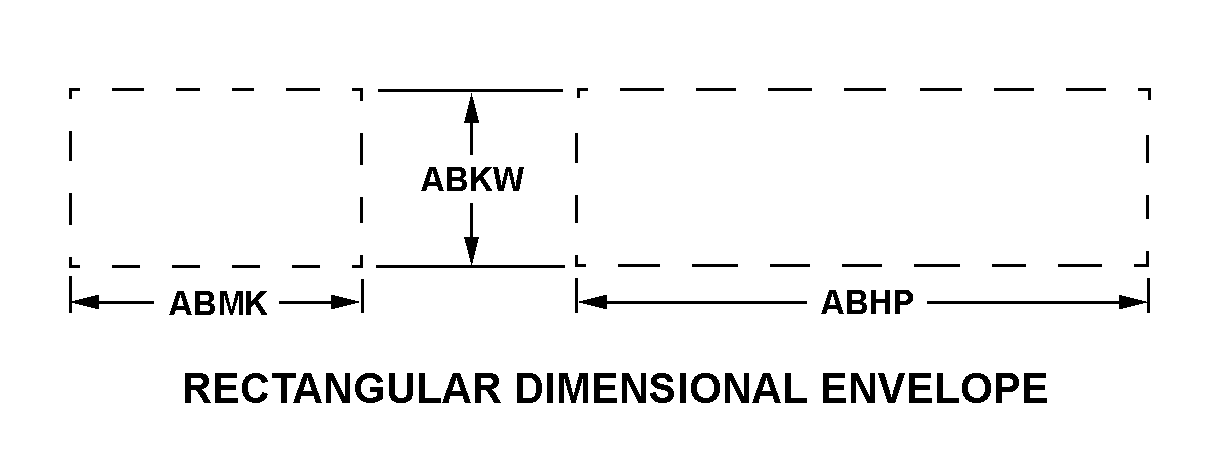

| BODY STYLE | 1D RECTANGULAR DIMENSIONAL ENVELOPE |
| OVERALL LENGTH | 73.410 INCHES NOMINAL |
| OVERALL HEIGHT | 36.580 INCHES NOMINAL |
| OVERALL WIDTH | 48.260 INCHES NOMINAL |
| CASE MATERIAL | PLASTIC |
| III END ITEM IDENTIFICATION | 2320013539098 MEDIUM TACTICAL VEHICLES MODEL M1080 |
Restrictions/Controls & Freight Information | NSN 5925-01-494-0085
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5925-01-494-0085
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
