NSN 5925-01-275-6831 PP16-2-2.00A-21624-1, PP162200A216241, 01-275-6831
Product Details | CIRCUIT BREAKER
5925-01-275-6831 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.
Part Alternates: PP16-2-2.00A-21624-1, PP162200A216241, 5925-01-275-6831, 01-275-6831, 5925012756831, 012756831
Electrical and Electronic Equipment Components | Circuit Breakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 MAR 1988 | 01-275-6831 | 00136 ( CIRCUIT BREAKER ) |
Drawings & Photos | NSN 5925-01-275-6831
Cross Reference | NSN 5925-01-275-6831
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PP16-2-2.00A-21624-1 | 81541 | SENSATA TECHNOLOGIES MARYLAND, INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5925-01-275-6831
Technical Data | NSN 5925-01-275-6831
| Characteristic | Specifications |
|---|---|
| OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS | 250.0 AC SINGLE LOCATION |
| FREQUENCY IN HERTZ | 50.0 OR 60.0 SINGLE LOCATION |
| RESET METHOD | MANUAL |

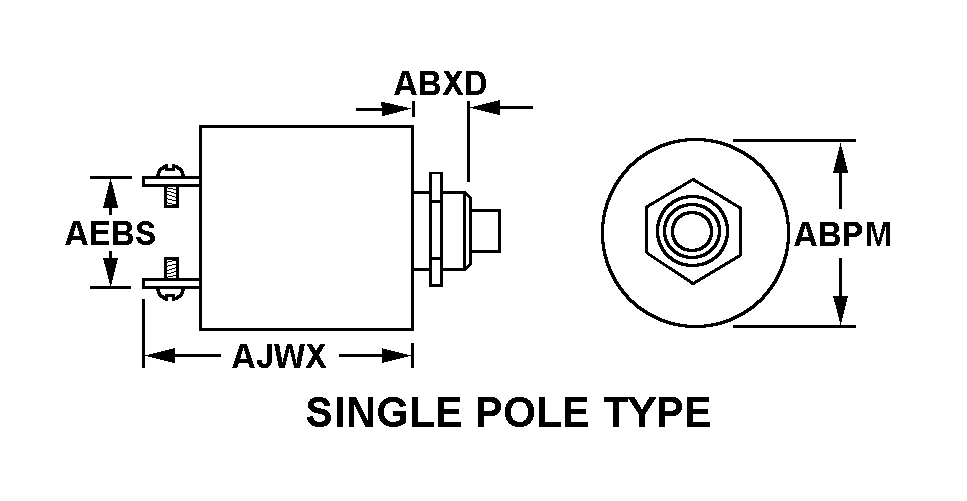

| BODY STYLE | 3A SINGLE POLE TYPE |
| BUSHING LENGTH | 0.400 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO DIAMETER | 1.125 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.715 INCHES NOMINAL |
| CASE MATERIAL | PLASTIC |
| MOUNTING FACILITY TYPE AND QUANTITY | 5 TERMINAL |
| MANUAL ACTUATOR TYPE AND QUANTITY | 1 PUSH-PULL |
| ACTUATOR FUNCTION | TRIP-RESET |
| TERMINAL TYPE AND QUANTITY | 5 PIN |
Restrictions/Controls & Freight Information | NSN 5925-01-275-6831
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
