NSN 5925-01-274-1293 MS141541, MS14154-1, SAEAS58091

Product Details | CIRCUIT BREAKER

5925-01-274-1293 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.

Part Alternates: MS141541, MS14154-1, SAEAS58091, SAE-AS58091, MILC5809, MIL-C-5809, 920576, 5925-01-274-1293, 01-274-1293, 5925012741293, 012741293

Electrical and Electronic Equipment Components | Circuit Breakers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	05 MAR 1988	01-274-1293	00136 ( CIRCUIT BREAKER )

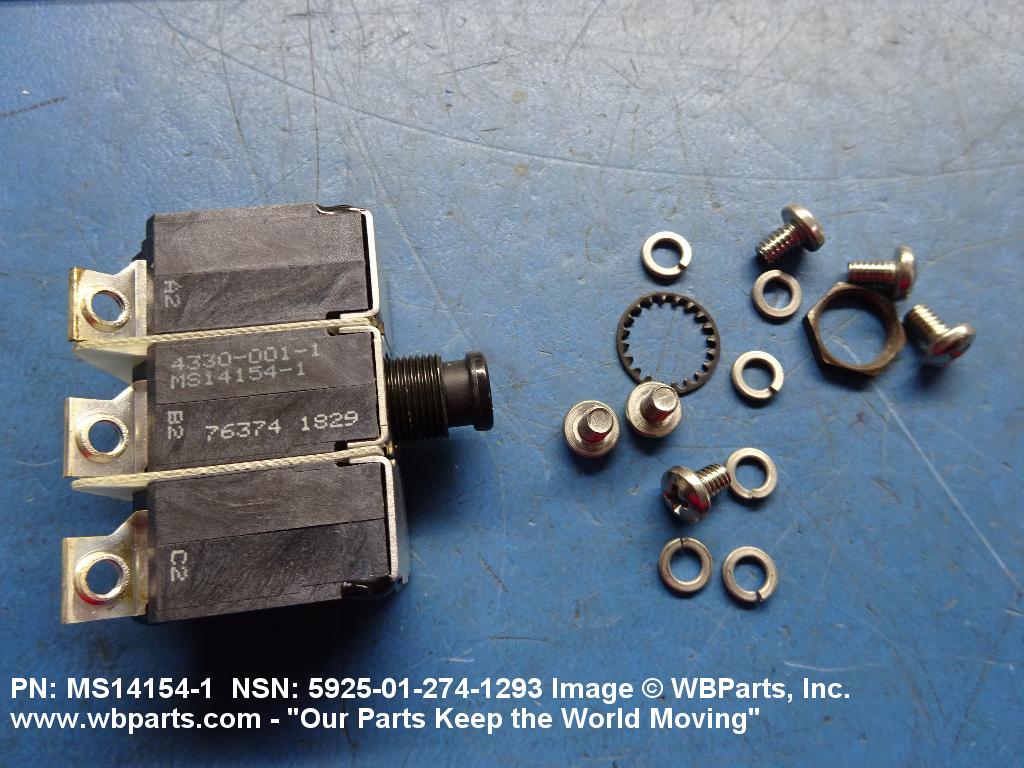

Drawings & Photos | NSN 5925-01-274-1293

Part Number	Request Date	QTY	Origin
MS141541	2024-03-88	2	United States
5925-01-274-1293	2023-05-137	42	DIBBS
5925-01-274-1293	2023-05-124	42	DIBBS
5925-01-274-1293	2022-08-237	44	DIBBS
MS141541	2022-07-194	1	United States
5925-01-274-1293	2018-06-169	82	DIBBS
5925-01-274-1293	2018-06-157	82	DIBBS
5925-01-274-1293	2013-12-359	2	SG
MIL-C-5809	2011-06-155	1	Saudi Arabia
5925-01-274-1293	2007-11-313	355	DIBBS
5925-01-274-1293	2007-10-278	54	DIBBS
5925-01-274-1293	2007-08-242	73	DIBBS
5925-01-274-1293	2007-08-214	40	DIBBS
5925-01-274-1293	2007-07-192	55	DIBBS
5925-01-274-1293	2007-05-129	90	DIBBS
5925-01-274-1293	2006-05-146	11	DIBBS

Cross Reference | NSN 5925-01-274-1293

Part Number	Cage Code	Manufacturer
920576	34228	L-3 COMMUNICATIONS CORPORATION DBA L-3 KEO
MIL-C-5809	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS14154-1	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS14154-1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
SAE-AS58091	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5925-01-274-1293

Compare

Related Products | NSN 5925-01-274-1293

5925-01-274-1294, 5925-01-274-2051, 5925-01-274-2052, 5925-01-274-2263, 5925-01-274-4069

Technical Data | NSN 5925-01-274-1293

Characteristic	Specifications
POLE QUANTITY	3
MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE	1.0 AMPERES AC ALL LOCATIONS
OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS	200.0 AC ALL LOCATIONS
FREQUENCY IN HERTZ	400.0 ALL LOCATIONS
MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS	2000.0 AC ALL LOCATIONS
CIRCUIT PROTECTION TYPE	OVERCURRENT ALL LOCATIONS
TRIP RELEASE METHOD	THERMAL ALL LOCATIONS
INTERNAL TRIP RELEASE CONFIGURATION	SERIES TRIP ALL LOCATIONS
TRIP RELEASE AMBIENT TEMP RATING	25.0 DEG CELSIUS NOMINAL ALL LOCATIONS
TRIP RELEASE CHARACTERISTIC	TIME DELAY ALL LOCATIONS
TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT	4.000 MINIMUM AT 200 PCT AND 20.000 MAXIMUM AT 200 PCT ALL LOCATIONS
ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT	145.0 ALL LOCATIONS
RESET METHOD	MANUAL
MAIN CONTACT TRIPPING MECHANISM TYPE	TRIP FREE
BODY STYLE	5B MULTIPOLE-SINGLE ACTUATOR TYPE
BUSHING LENGTH	0.219 INCHES MINIMUM AND 0.281 INCHES MAXIMUM
BODY LENGTH	0.781 INCHES MAXIMUM
BODY WIDTH	1.840 INCHES MAXIMUM
BODY HEIGHT	1.381 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH	0.469 INCHES MINIMUM AND 0.531 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO WIDTH	0.593 INCHES MINIMUM AND 0.655 INCHES MAXIMUM
CASE MATERIAL	PLASTIC
MOUNTING FACILITY TYPE AND QUANTITY	1 THREADED BUSHING W/PANEL SEAL
THREAD SERIES DESIGNATOR	UN
NOMINAL THREAD SIZE	0.438 INCHES
THREAD QUANTITY PER INCH	32
MANUAL ACTUATOR TYPE AND QUANTITY	1 PUSH-PULL
ACTUATOR FUNCTION	TRIP-RESET
ACTUATOR POSITION DESIGNATION	AT POLE TWO
TERMINAL TYPE AND QUANTITY	6 TAB W/SCREW
INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED	SHOCK RESISTANT AND VIBRATION RESISTANT
TEST DATA DOCUMENT	81349-MIL-C-5809 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS14154 GOVERNMENT SPECIFICATION
III ARC QUENCHING METHOD	MAGNETIC BLOWOUT
III STORAGE TYPE	GENERAL PURPOSE WAREHOUSE
III FRAGILITY FACTOR	MODERATELY RUGGED
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-C-5809
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS14154-1

Restrictions/Controls & Freight Information | NSN 5925-01-274-1293

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	658	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5925-01-274-1293

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
