NSN 5925-01-244-1756 ALB-1/15A, ALB115A, ALB115AMP

Product Details | CIRCUIT BREAKER

5925-01-244-1756 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.

Part Alternates: ALB-1/15A, ALB115A, ALB115AMP, ALB-1-15AMP, MILC17588, MIL-C-17588, MILC17588ALB115A, MIL-C-17588-ALB1-15A, 454D507G03 , 85840943, 8584094-3, 5925-01-244-1756, 01-244-1756, 5925012441756, 012441756

Electrical and Electronic Equipment Components | Circuit Breakers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	07 NOV 1986	01-244-1756	00136 ( CIRCUIT BREAKER )

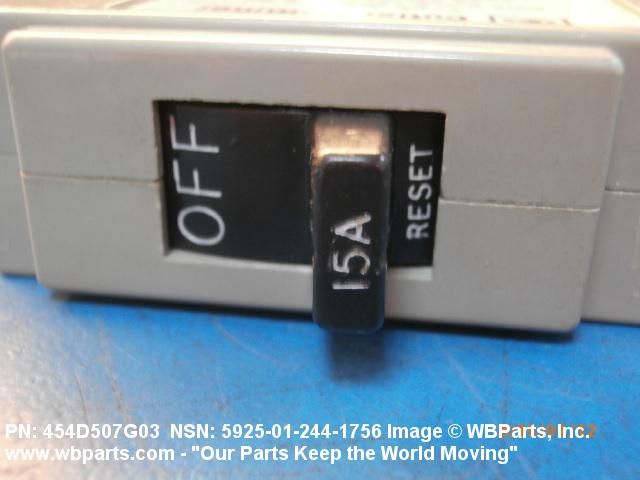

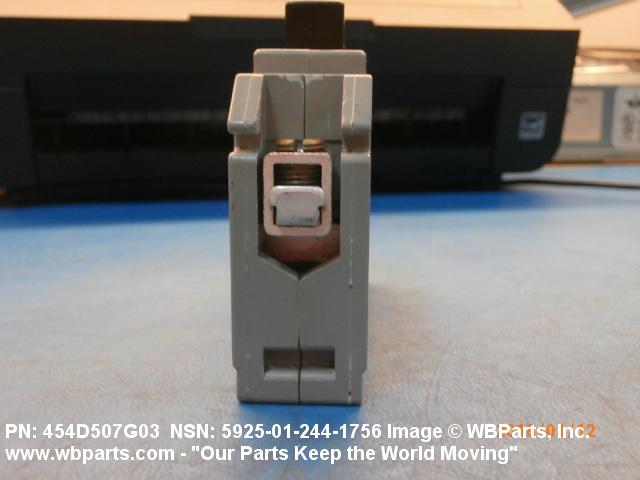

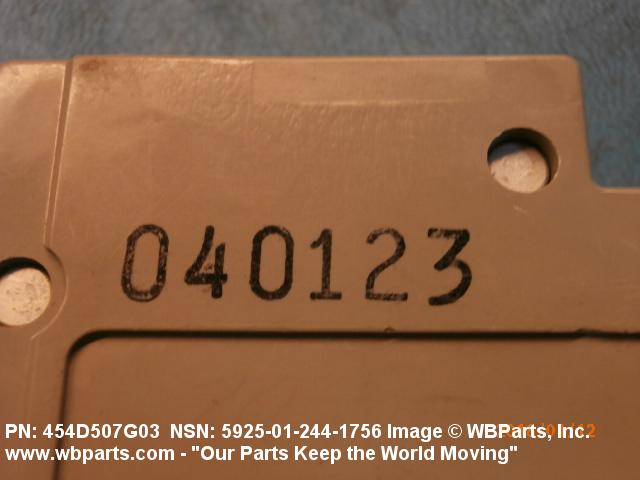

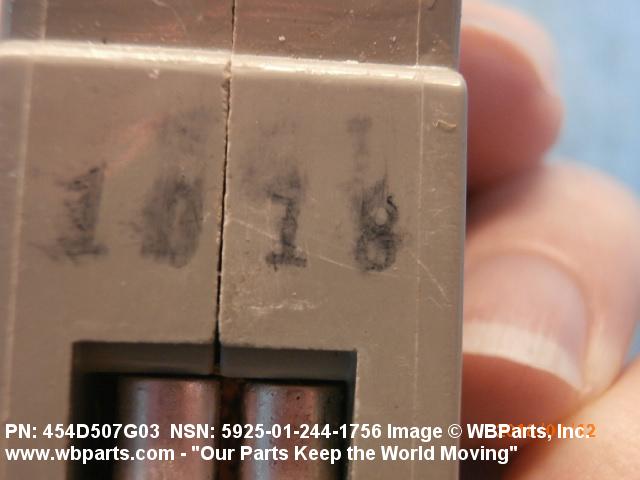

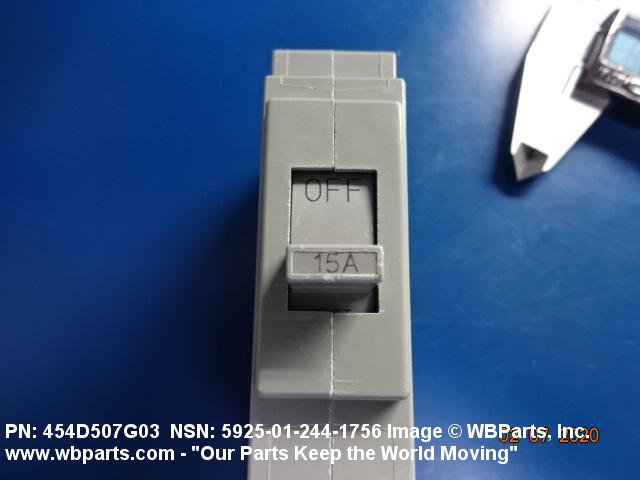

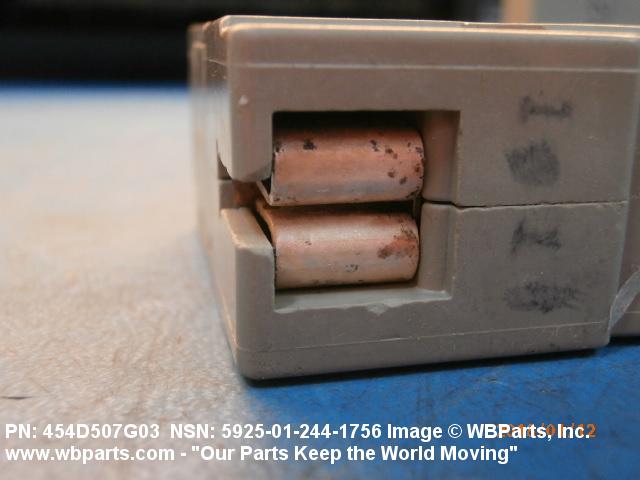

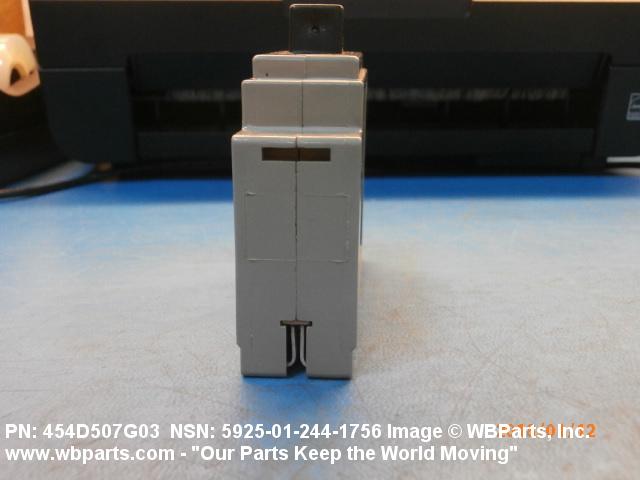

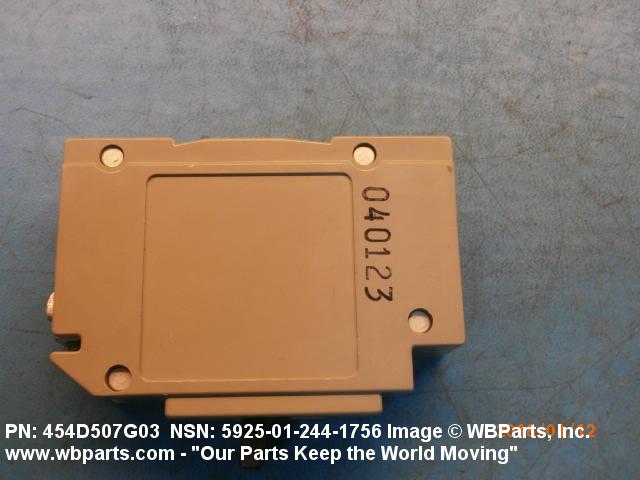

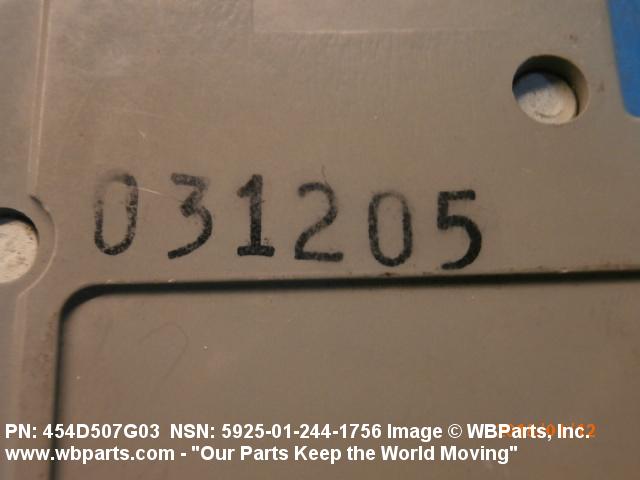

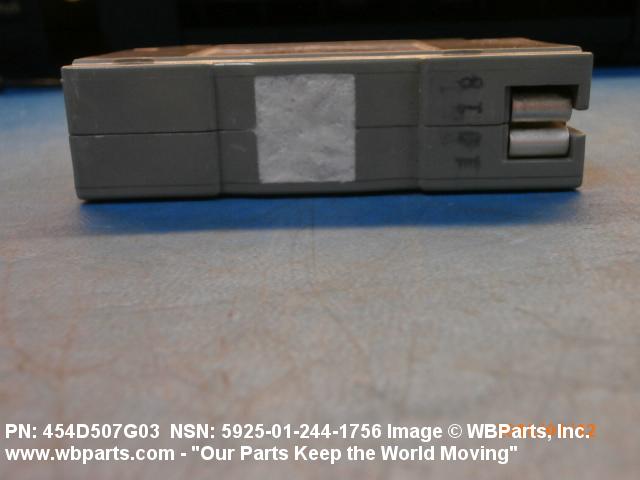

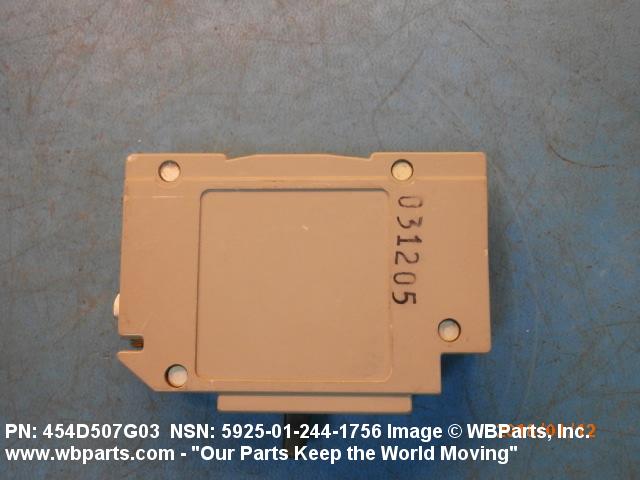

Drawings & Photos | NSN 5925-01-244-1756

Part Number	Request Date	QTY	Origin
454D507G03	2024-07-206	2	us
5925-01-244-1756	2024-04-92	3	GU
5925-01-244-1756	2024-03-71	1	US
5925-01-244-1756	2023-12-352	219	DIBBS
5925-01-244-1756	2023-12-340	3	United States
5925-01-244-1756	2023-12-337	219	DIBBS
5925-01-244-1756	2023-09-255	230	DIBBS
5925-01-244-1756	2023-08-240	230	DIBBS
5925-01-244-1756	2023-07-187	2	US
5925-01-244-1756	2021-01-21	1	United States
5925-01-244-1756	2020-11-321	2	United States
MILC17588	2020-10-281	2	United States
MILC17588	2020-10-281	4	United States
MILC17588	2020-10-281	8	United States
MILC17588	2020-10-281	12	United States
MILC17588	2020-10-281	14	United States
5925-01-244-1756	2020-08-218	1	United States
5925-01-244-1756	2020-01-28	4	United States
5925-01-244-1756	2020-01-28	4	United States
5925-01-244-1756	2019-10-298	8	United States
5925-01-244-1756	2019-05-143	4	US
5925-01-244-1756	2018-07-191	6	US
5925-01-244-1756	2018-01-10	8	us
5925-01-244-1756	2017-12-356	1	DIBBS-RFPs
5925-01-244-1756	2017-08-236	3	US
5925-01-244-1756	2017-04-93	1	US
5925-01-244-1756	2015-12-350	238	DIBBS
5925-01-244-1756	2015-11-324	1	DIBBS-RFPs
5925-01-244-1756	2015-10-298	95	DIBBS
5925-01-244-1756	2015-04-92	200	DIBBS
5925-01-244-1756	2015-02-44	150	DIBBS
5925-01-244-1756	2014-11-323	1	US
5925-01-244-1756	2014-01-02	350	DIBBS
ALB115AMP	2013-03-80	350	US
5925-01-244-1756	2013-03-73	350	DIBBS
5925-01-244-1756	2013-03-60	350	DIBBS
MILC17588	2011-04-108	2	US
ALB115A	2011-02-55	80	US
454D507G03	2011-01-27	2	US
454D507G03	2011-01-20	2	us
454D507G03	2011-01-07	2	US
5925-01-244-1756	2010-12-354	36	US
5925-01-244-1756	2010-12-335	133	DIBBS
5925-01-244-1756	2010-01-07	50	DIBBS
5925-01-244-1756	2009-12-362	25	DIBBS
5925-01-244-1756	2007-06-166	430	DIBBS

Cross Reference | NSN 5925-01-244-1756

Part Number	Cage Code	Manufacturer
8584094-3	49671	LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS
ALB-1-15AMP	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
ALB-1/15A	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-17588	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-17588-ALB1-15A	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5925-01-244-1756

Compare

Related Products | NSN 5925-01-244-1756

5925-01-244-2012, 5925-01-244-2877, 5925-01-244-3318, 5925-01-244-3319, 5925-01-244-3320

Technical Data | NSN 5925-01-244-1756

Characteristic	Specifications
POLE QUANTITY	1
MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE	15.0 AMPERES AC AND 15.0 AMPERES DC SINGLE LOCATION
OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS	120.0 AC AND 125.0 DC SINGLE LOCATION
FREQUENCY IN HERTZ	60.0 SINGLE LOCATION
MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS	5000.0 AC AND 2500.0 DC SINGLE LOCATION
CIRCUIT PROTECTION TYPE	OVERCURRENT SINGLE LOCATION
TRIP RELEASE METHOD	THERMAL-MAGNETIC SINGLE LOCATION
TRIP RELEASE AMBIENT TEMP RATING	50.0 DEG CELSIUS NOMINAL SINGLE LOCATION
TRIP RELEASE CHARACTERISTIC	TIME DELAY SINGLE LOCATION
TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT	10.000 MINIMUM AT 200 PCT AND 100.000 MAXIMUM AT 200 PCT SINGLE LOCATION
ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT	138.0 SINGLE LOCATION
RESET METHOD	MANUAL
MAIN CONTACT TRIPPING MECHANISM TYPE	TRIP FREE
BODY STYLE	10A SINGLE POLE TYPE

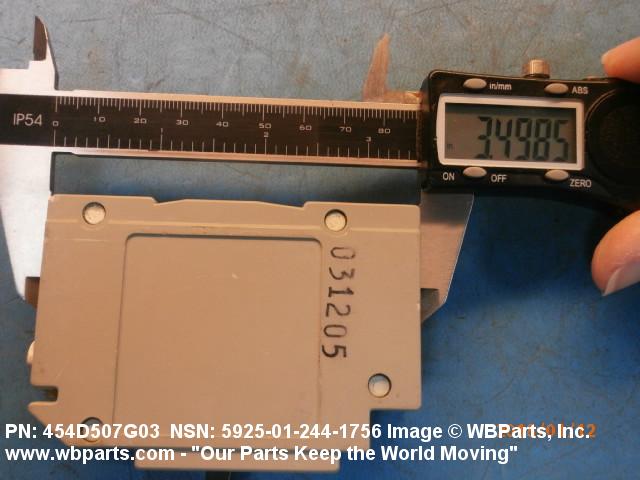

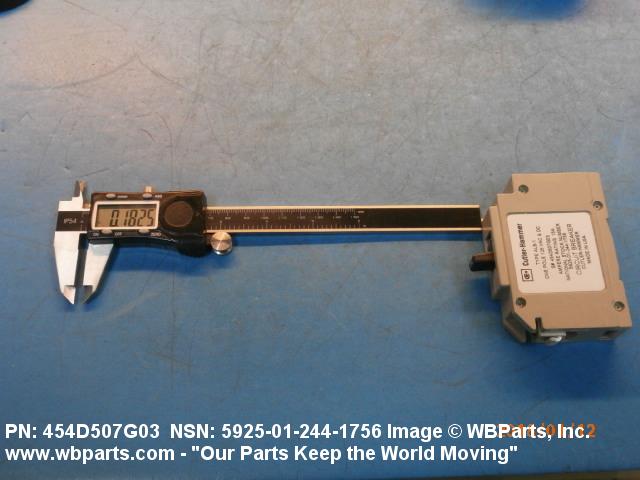

BODY LENGTH	3.500 INCHES NOMINAL

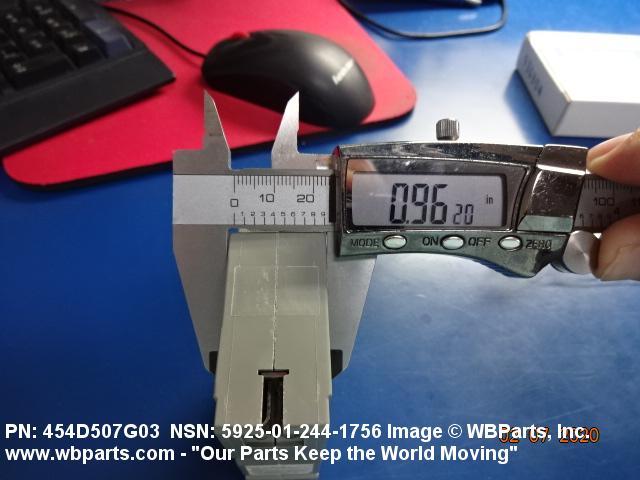

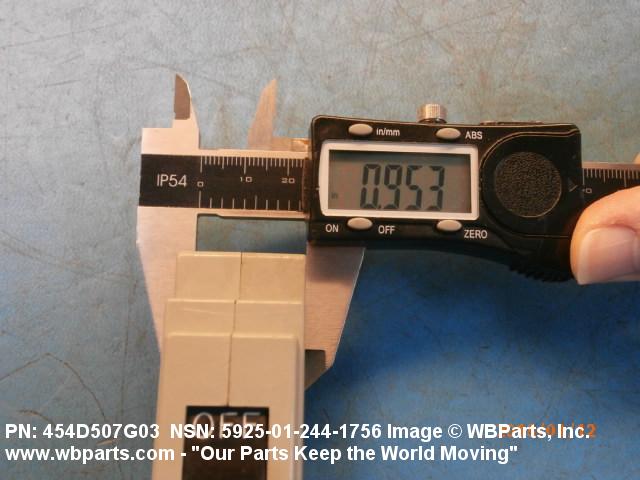

BODY WIDTH	0.969 INCHES NOMINAL

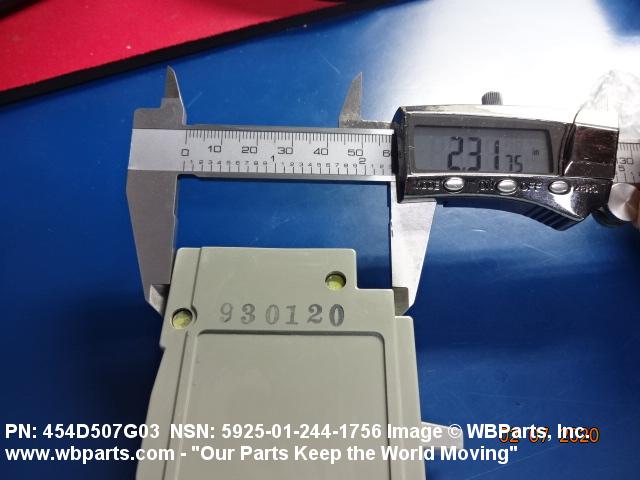

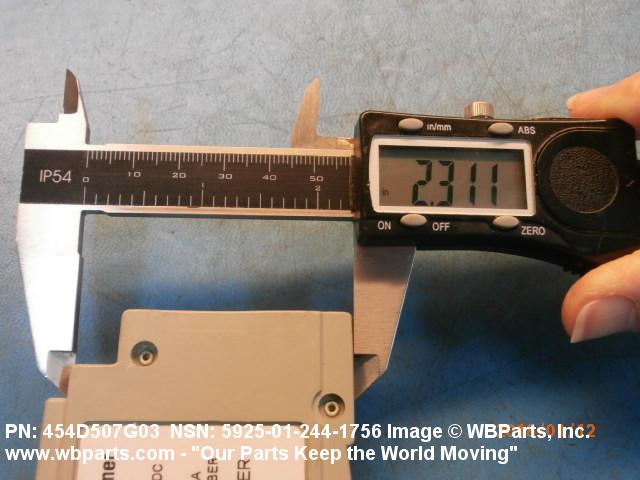

BODY HEIGHT	2.313 INCHES NOMINAL
BOSS HEIGHT	0.188 INCHES NOMINAL
CASE MATERIAL	PLASTIC
MOUNTING FACILITY TYPE AND QUANTITY	1 CLIP AND 1 TERMINAL

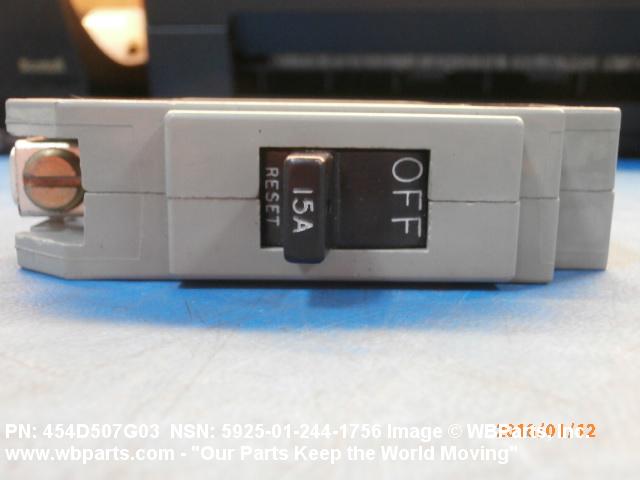

MANUAL ACTUATOR TYPE AND QUANTITY	1 TOGGLE
ACTUATOR FUNCTION	TRIP-RESET
ACTUATOR POSITION DESIGNATION	AT POLE ONE

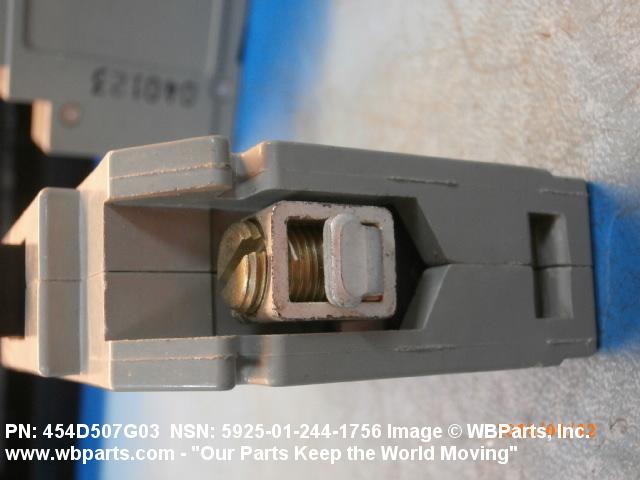

TERMINAL TYPE AND QUANTITY	1 COMPRESSION AND 1 QUICK DISCONNECT, FEMALE
INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED	SHOCK RESISTANT
TEST DATA DOCUMENT	81349-MIL-C-17588 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-C-17588 GOVERNMENT SPECIFICATION
III STORAGE TYPE	GENERAL PURPOSE WAREHOUSE
III PRECIOUS MATERIAL	SILVER
III PRECIOUS MATERIAL AND LOCATION	CONTACT SURFACES SILVER
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	ALB-1/15A
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-C-17588

Restrictions/Controls & Freight Information | NSN 5925-01-244-1756

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	S	Item contains silver
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	658	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5925-01-244-1756

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
