NSN 5925-01-085-1215 MS1415405, MS14154-05, MS141545

Product Details | CIRCUIT BREAKER

5925-01-085-1215 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.

Part Alternates: MS1415405, MS14154-05, MS141545, MS14154-5, AS14154, AS58091, LS101595P, LS10159-5P, MILC5809, MIL-C-5809, 433000100500, 4330-001-00500, 43300015, 4330-001-5, 920579, 5925-01-085-1215, 01-085-1215, 5925010851215, 010851215

Electrical and Electronic Equipment Components | Circuit Breakers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	31 OCT 1979	01-085-1215	00136 ( CIRCUIT BREAKER )

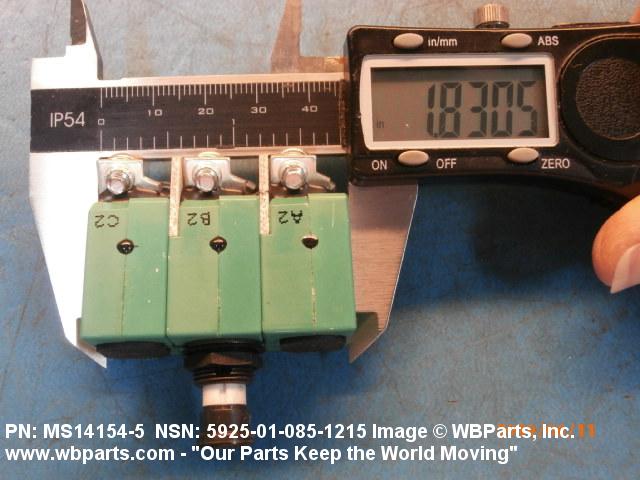

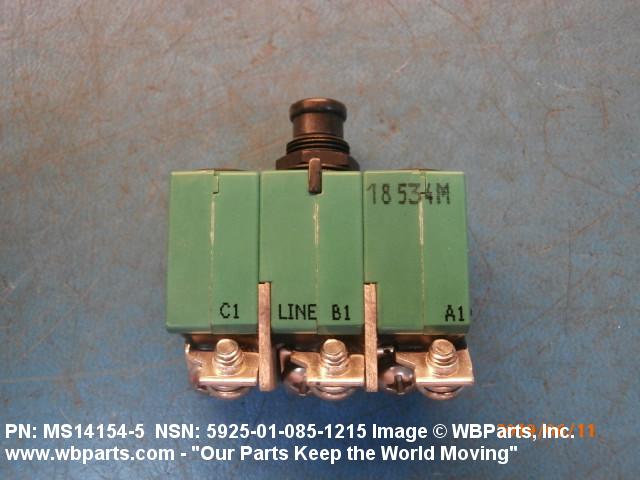

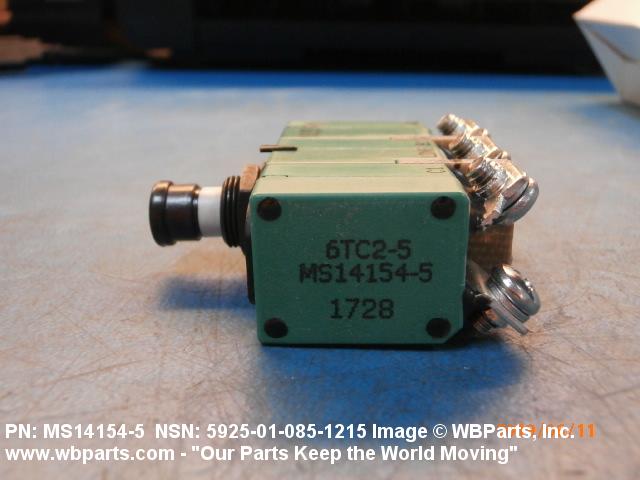

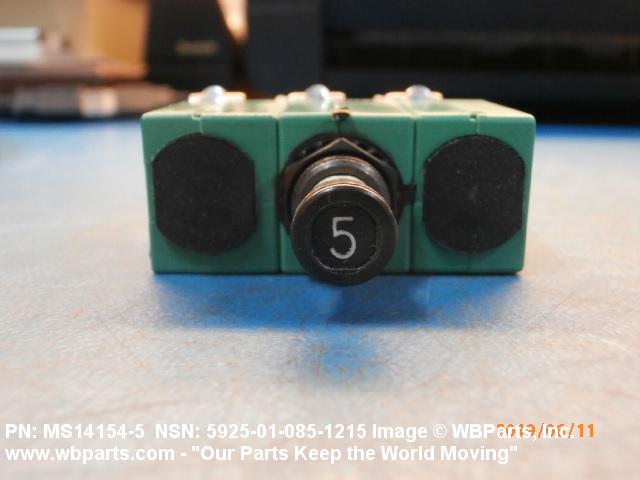

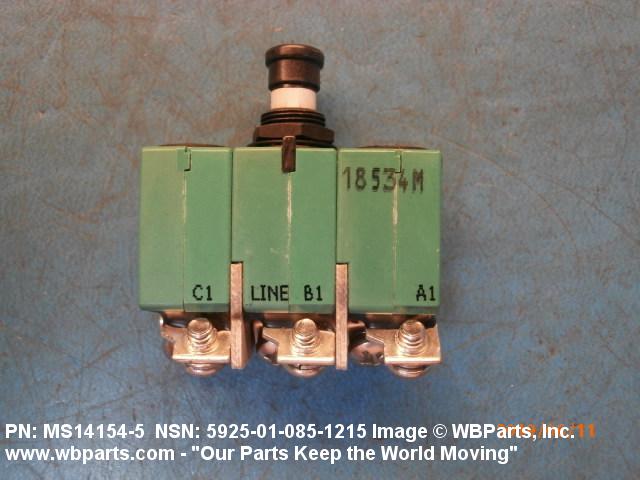

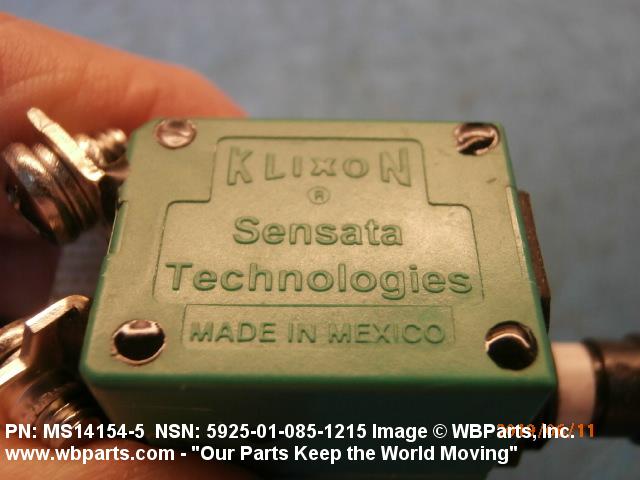

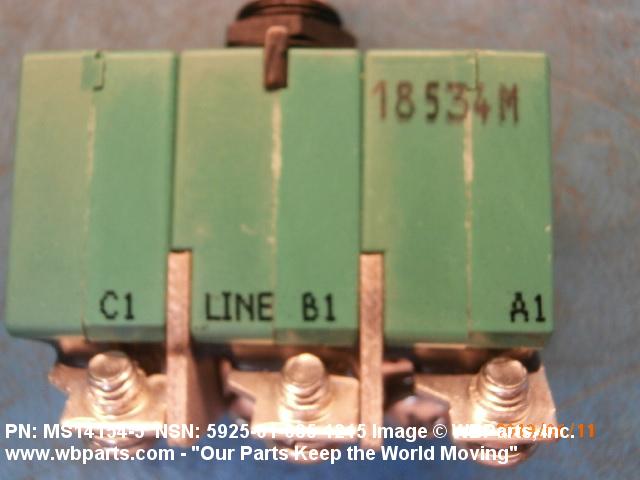

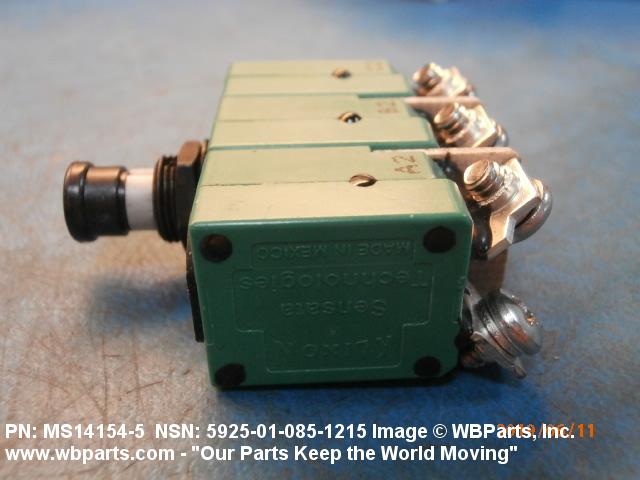

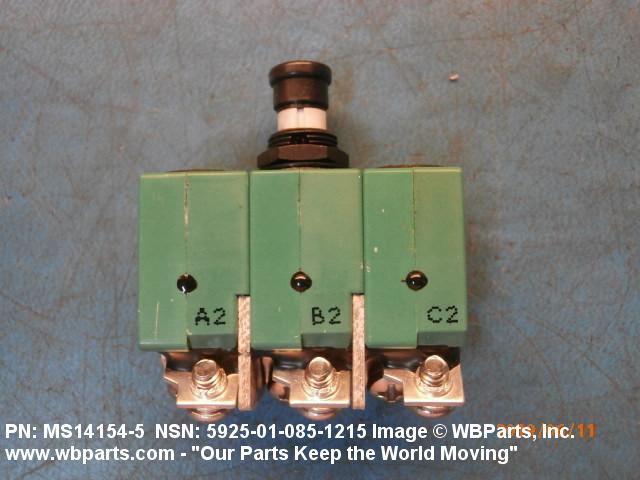

Drawings & Photos | NSN 5925-01-085-1215

Part Number	Request Date	QTY	Origin
5925-01-085-1215	2024-01-02	27	DIBBS
5925-01-085-1215	2023-12-355	27	DIBBS
5925-01-085-1215	2023-12-345	54	DIBBS
5925-01-085-1215	2023-11-334	54	DIBBS
5925-01-085-1215	2023-10-283	185	DIBBS
5925-01-085-1215	2023-09-271	185	DIBBS
5925-01-085-1215	2023-04-107	51	DIBBS
5925-01-085-1215	2023-04-96	51	DIBBS
5925-01-085-1215	2022-02-47	169	DIBBS
5925-01-085-1215	2022-02-41	95	DIBBS
5925-01-085-1215	2021-11-318	50	DIBBS
5925-01-085-1215	2021-03-70	112	DIBBS
5925-01-085-1215	2020-10-282	169	DIBBS
5925-01-085-1215	2020-09-247	39	DIBBS
5925-01-085-1215	2020-07-203	70	DIBBS
5925-01-085-1215	2020-05-149	117	DIBBS
5925-01-085-1215	2020-05-122	159	US
5925-01-085-1215	2020-04-117	159	DIBBS
MS141545	2019-08-225	2	United States
MS141545	2019-07-206	2	United States
MS141545	2019-07-198	2	United States
5925-01-085-1215	2019-05-141	100	DIBBS
MS141545	2019-04-99	2	United States
AS58091	2018-05-121	5	United States
5925-01-085-1215	2016-09-273	500	DIBBS
5925-01-085-1215	2016-09-260	1	DIBBS-RFPs
5925-01-085-1215	2016-07-213	88	DIBBS
5925-01-085-1215	2016-05-137	100	DIBBS
5925-01-085-1215	2016-03-91	193	DIBBS
5925-01-085-1215	2016-03-66	169	DIBBS
5925-01-085-1215	2015-10-302	310	DIBBS
5925-01-085-1215	2015-09-260	15	DIBBS
5925-01-085-1215	2015-09-252	188	DIBBS
5925-01-085-1215	2015-08-239	188	DIBBS
5925-01-085-1215	2014-07-206	290	DIBBS
5925-01-085-1215	2014-06-172	171	DIBBS
5925-01-085-1215	2014-02-58	64	DIBBS
5925-01-085-1215	2014-01-28	144	DIBBS
MS141545	2012-08-229	3	US
MS141545	2012-01-10	26	US
5925-01-085-1215	2011-06-171	10	US
MIL-C-5809	2011-06-155	1	Saudi Arabia
MS141545	2010-05-130	80	Italy
43300015	2008-04-116	2	US
5925-01-085-1215	2007-10-276	700	DIBBS
5925-01-085-1215	2007-07-198	889	DIBBS
MS141545	2007-06-164	14	United States
5925-01-085-1215	2006-12-335	12	IT

Cross Reference | NSN 5925-01-085-1215

Part Number	Cage Code	Manufacturer
4330-001-00500	76374	EATON CORPORATION DBA FLUID POWER DIV USE CAGE CODE
4330-001-5	76374	EATON CORPORATION DBA FLUID POWER DIV USE CAGE CODE
920579	34228	L-3 COMMUNICATIONS CORPORATION DBA L-3 KEO
AS14154	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS58091	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
LS10159-5P	98897	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
MIL-C-5809	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS14154-05	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS14154-5	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS14154-5	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5925-01-085-1215

Compare

Related Products | NSN 5925-01-085-1215

5925-01-085-1216, 5925-01-085-1737, 5925-01-085-1738, 5925-01-085-4355, 5925-01-085-5525

Technical Data | NSN 5925-01-085-1215

Characteristic	Specifications
POLE QUANTITY	3
MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE	5.0 AMPERES AC ALL LOCATIONS
OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS	200.0 AC ALL LOCATIONS
FREQUENCY IN HERTZ	400.0 ALL LOCATIONS
MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS	5000.0 AC ALL LOCATIONS
CIRCUIT PROTECTION TYPE	OVERCURRENT ALL LOCATIONS
TRIP RELEASE METHOD	THERMAL ALL LOCATIONS
INTERNAL TRIP RELEASE CONFIGURATION	SERIES TRIP ALL LOCATIONS
TRIP RELEASE AMBIENT TEMP RATING	25.0 DEG CELSIUS NOMINAL ALL LOCATIONS
TRIP RELEASE CHARACTERISTIC	TIME DELAY ALL LOCATIONS
TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT	4.000 MINIMUM AT 200 PCT AND 20.000 MAXIMUM AT 200 PCT ALL LOCATIONS
ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT	135.0 ALL LOCATIONS
RESET METHOD	MANUAL
MAIN CONTACT TRIPPING MECHANISM TYPE	TRIP FREE

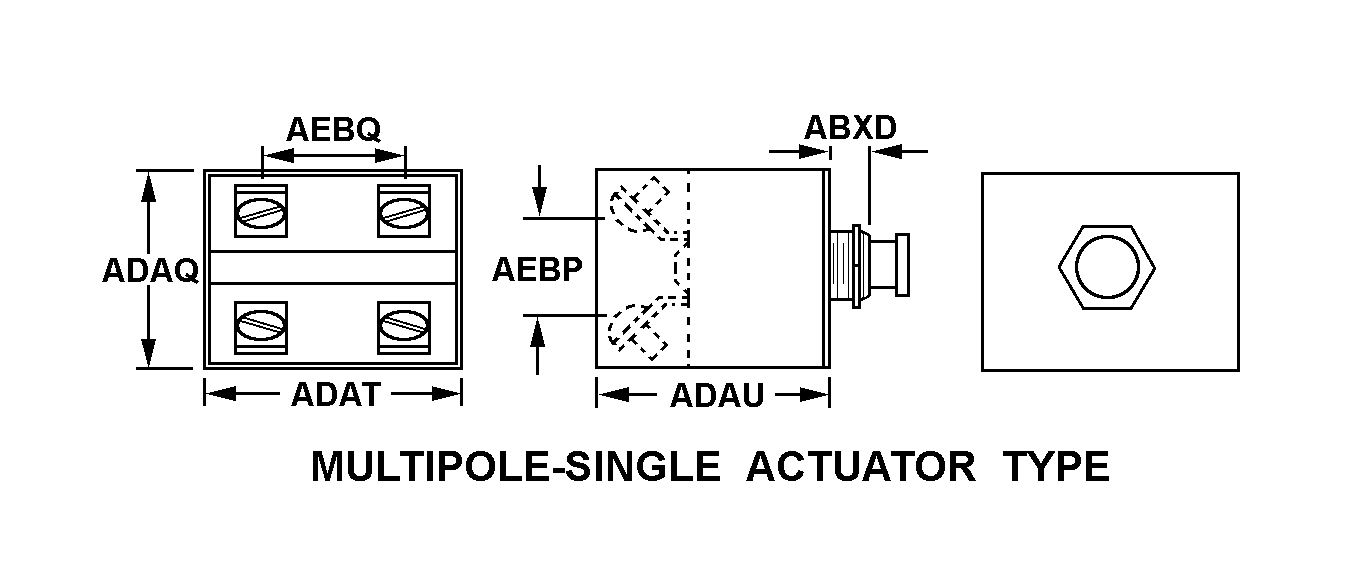

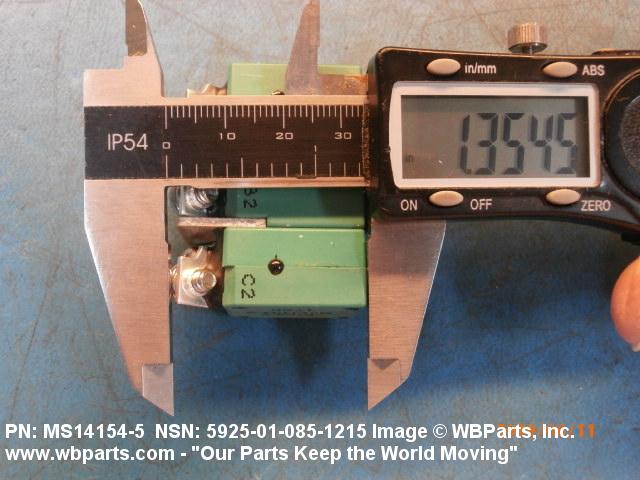

BODY STYLE	5B MULTIPOLE-SINGLE ACTUATOR TYPE

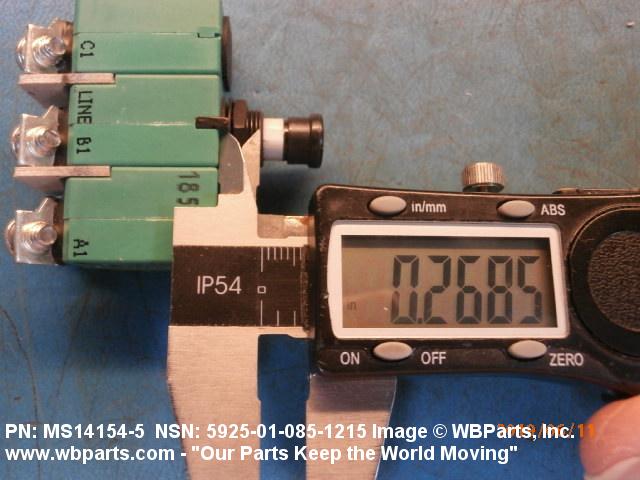

BUSHING LENGTH	0.219 INCHES MINIMUM AND 0.281 INCHES MAXIMUM

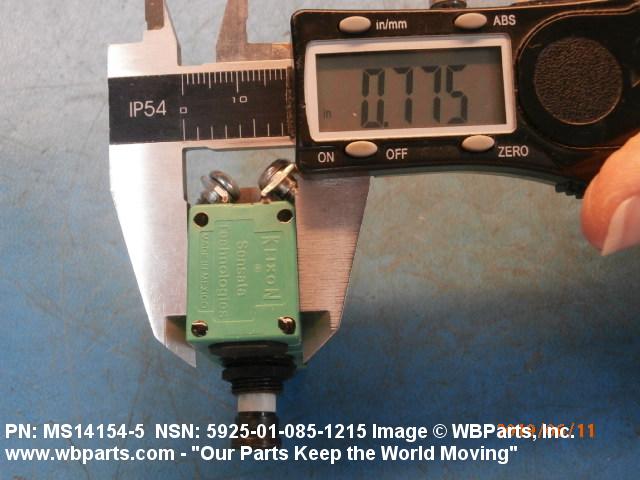

BODY LENGTH	0.781 INCHES MAXIMUM
BODY WIDTH	1.840 INCHES MAXIMUM
BODY HEIGHT	1.381 INCHES MAXIMUM

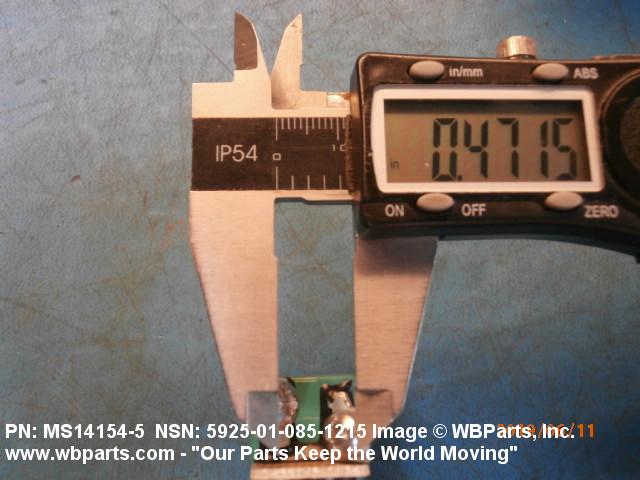

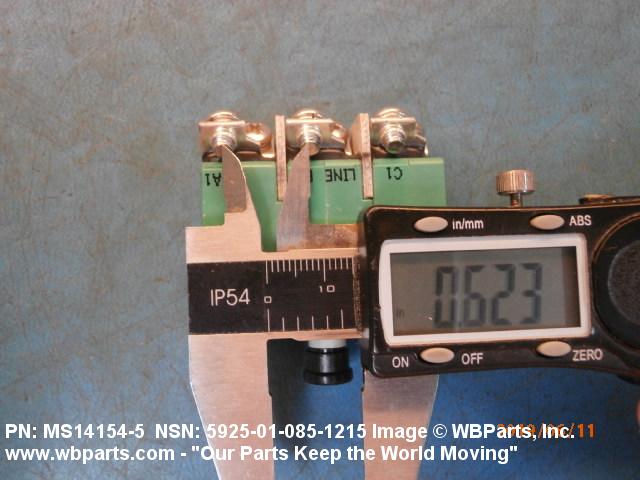

CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH	0.469 INCHES MINIMUM AND 0.531 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO WIDTH	0.593 INCHES MINIMUM AND 0.655 INCHES MAXIMUM
CASE MATERIAL	PLASTIC

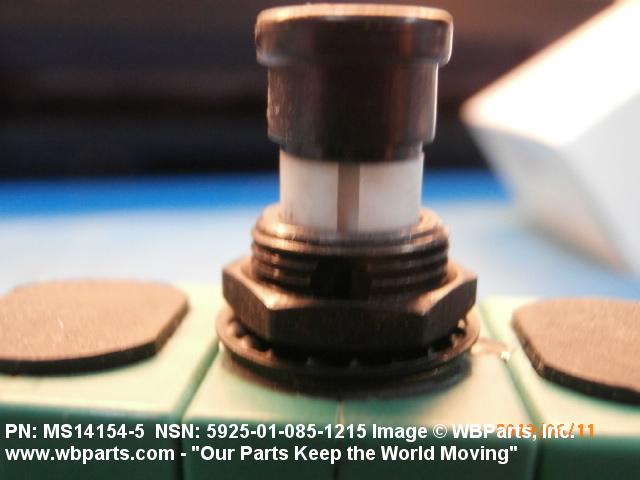

MOUNTING FACILITY TYPE AND QUANTITY	1 THREADED BUSHING
THREAD SERIES DESIGNATOR	UNS

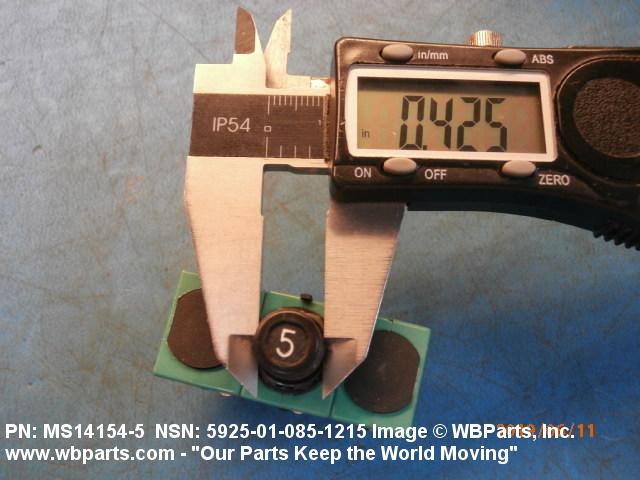

NOMINAL THREAD SIZE	0.469 INCHES
THREAD QUANTITY PER INCH	32
MANUAL ACTUATOR TYPE AND QUANTITY	1 PUSH-PULL
ACTUATOR FUNCTION	TRIP-RESET
ACTUATOR POSITION DESIGNATION	AT POLE TWO

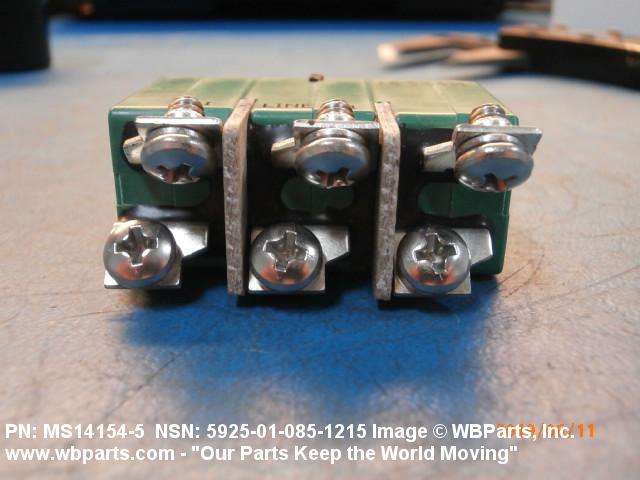

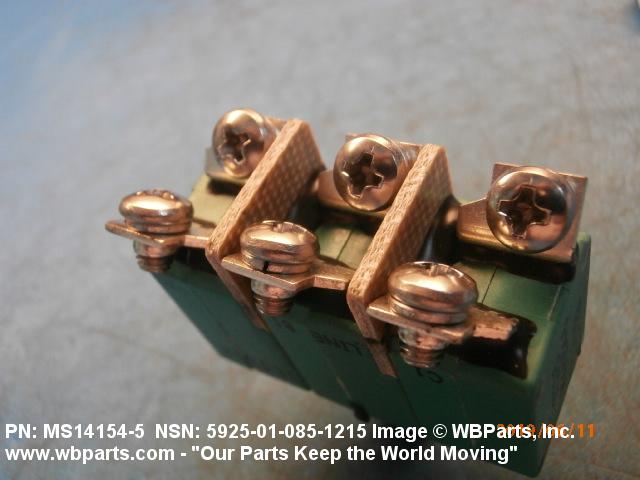

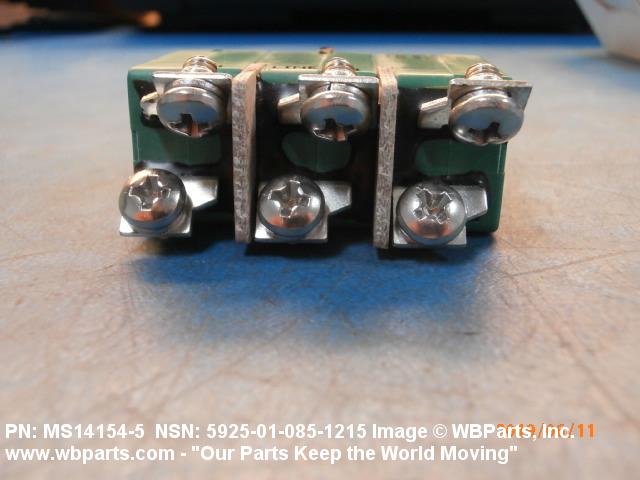

TERMINAL TYPE AND QUANTITY	6 SCREW
INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED	FUNGUS PROOF AND SHOCKPROOF AND VIBRATIONPROOF
TEST DATA DOCUMENT	81349-MIL-C-5809 SPECIFICATION

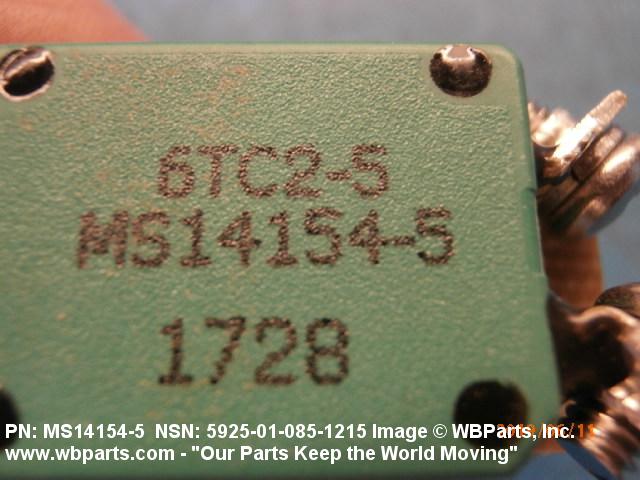

SPECIFICATION/STANDARD DATA	96906-MS14154-5 GOVERNMENT STANDARD
III ARC QUENCHING METHOD	MAGNETIC BLOWOUT
III STORAGE TYPE	GENERAL PURPOSE WAREHOUSE
III FRAGILITY FACTOR	MODERATELY RUGGED
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-C-5809
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD	MS14154-5
