NSN 5925-01-028-6504 M39019/03-225, M39019/3-32, M39019/3-38

Product Details | CIRCUIT BREAKER

5925-01-028-6504 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.

Part Alternates: M39019/03-225, M39019/3-32, M39019/3-38, M39019/3-40, M3901903225, M390193225, M39019-3-225, M39019332, M39019338, M39019340, AP12152302, AP-12-1-5-2-302, AP12162302, AP12-1-6-2-302, APMIL12172302, AP-MIL-12-1-7-2-302, ASC1265362, C10172035, C1017-2-03-5, HM2Z03225, HM2-Z-03-225, MIL-C-39019/3, MILC390193, MIL-PRF-39019/3, MILPRF390193, 788C417H14, 2604045310, 260-4045-310, 351-602-038, 499-037-084, 5925-01-028-6504, 01-028-6504, 5925010286504, 499037084, 010286504, 351602038

Electrical and Electronic Equipment Components | Circuit Breakers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	08 OCT 1976	01-028-6504	00136 ( CIRCUIT BREAKER )

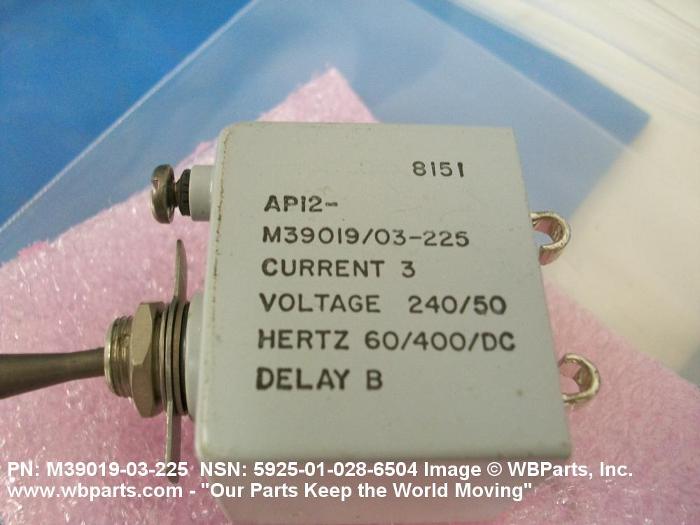

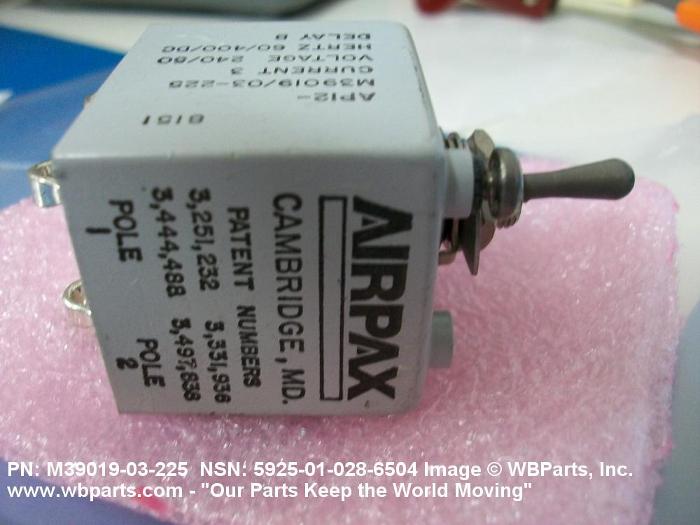

Drawings & Photos | NSN 5925-01-028-6504

Part Number	Request Date	QTY	Origin
5925-01-028-6504	2023-08-214	6	DIBBS
5925-01-028-6504	2023-06-152	34	DIBBS
5925-01-028-6504	2022-05-139	14	DIBBS
MILC390193	2012-10-292	1	United States
MILPRF390193	2012-09-262	1	United States
5925-01-028-6504	2011-08-230	2	United States
5925-01-028-6504	2011-08-230	4	United States
M3901903225	2011-07-210	4	United States
5925-01-028-6504	2007-05-145	19	DIBBS

Cross Reference | NSN 5925-01-028-6504

Part Number	Cage Code	Manufacturer
260-4045-310	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
351-602-038	07421	INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS
499-037-084	07421	INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS
788C417H14	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
AP-12-1-5-2-302	81541	SENSATA TECHNOLOGIES MARYLAND, INC
AP-MIL-12-1-7-2-302	81541	SENSATA TECHNOLOGIES MARYLAND, INC
AP12-1-6-2-302	81541	SENSATA TECHNOLOGIES MARYLAND, INC
ASC1265362	Z4779	ASC PTY LTD
C1017-2-03-5	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
HM2-Z-03-225	74193	EATON CORP HEINEMANN PRODUCTS
M39019-3-225	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39019/03-225	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39019/3-32	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39019/3-38	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39019/3-40	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-39019/3	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-PRF-39019/3	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5925-01-028-6504

Compare

Related Products | NSN 5925-01-028-6504

5925-01-028-9336, 5925-01-029-1591, 5925-01-029-3309, 5925-01-029-3311, 5925-01-029-3312

Technical Data | NSN 5925-01-028-6504

Characteristic	Specifications
POLE QUANTITY	2
MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE	3.0 AMPERES AC AND 3.0 AMPERES DC ALL LOCATIONS
OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS	240.0 AC AND 50.0 DC ALL LOCATIONS
FREQUENCY IN HERTZ	400.0 ALL LOCATIONS
MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS	300.0 AC AND 500.0 DC ALL LOCATIONS
CIRCUIT PROTECTION TYPE	OVERCURRENT ALL LOCATIONS
TRIP RELEASE METHOD	MAGNETIC ALL LOCATIONS
INTERNAL TRIP RELEASE CONFIGURATION	SERIES TRIP ALL LOCATIONS
TRIP RELEASE CHARACTERISTIC	TIME DELAY ALL LOCATIONS
TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT	0.500 MINIMUM AT 200 PCT AND 9.000 MAXIMUM AT 200 PCT ALL LOCATIONS
ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT	115.0 ALL LOCATIONS
RESET METHOD	MANUAL
MAIN CONTACT TRIPPING MECHANISM TYPE	TRIP FREE
BODY STYLE	1B MULTIPOLE-SINGLE ACTUATOR TYPE
BUSHING LENGTH	0.380 INCHES MAXIMUM
BODY LENGTH	1.562 INCHES MAXIMUM
BODY WIDTH	1.281 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH	0.906 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO WIDTH	0.625 INCHES NOMINAL
MOUNTING SURFACE TO TERMINAL END DISTANCE	1.828 INCHES MAXIMUM
CASE MATERIAL	METAL
MOUNTING FACILITY TYPE AND QUANTITY	1 THREADED BUSHING W/PANEL SEAL
THREAD SERIES DESIGNATOR	UNEF
NOMINAL THREAD SIZE	0.375 INCHES
THREAD QUANTITY PER INCH	32
THREAD PITCH DIAMETERS	0.3503 TO 0.3537 INCHES

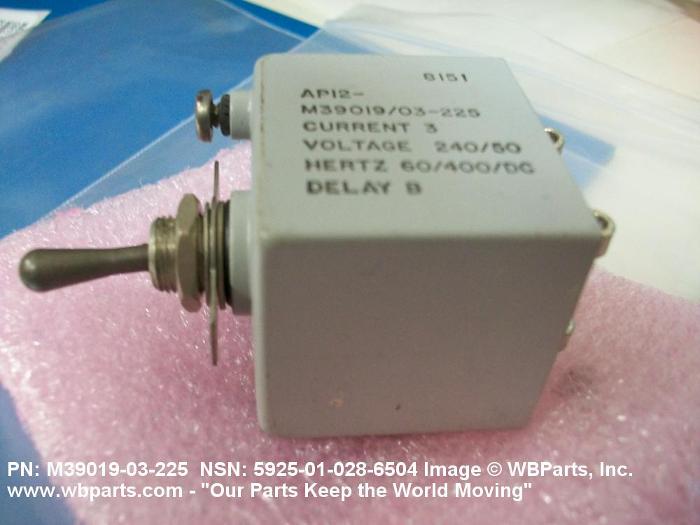

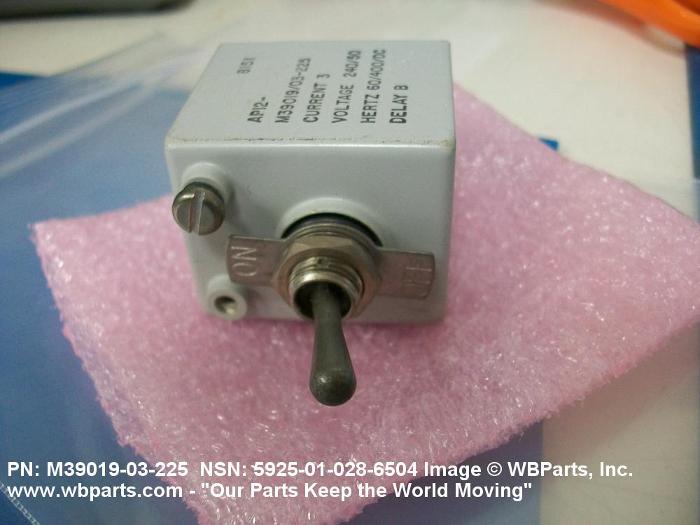

MANUAL ACTUATOR TYPE AND QUANTITY	1 TOGGLE
ACTUATOR FUNCTION	TRIP-RESET
ACTUATOR POSITION DESIGNATION	BETWEEN POLE ONE AND TWO

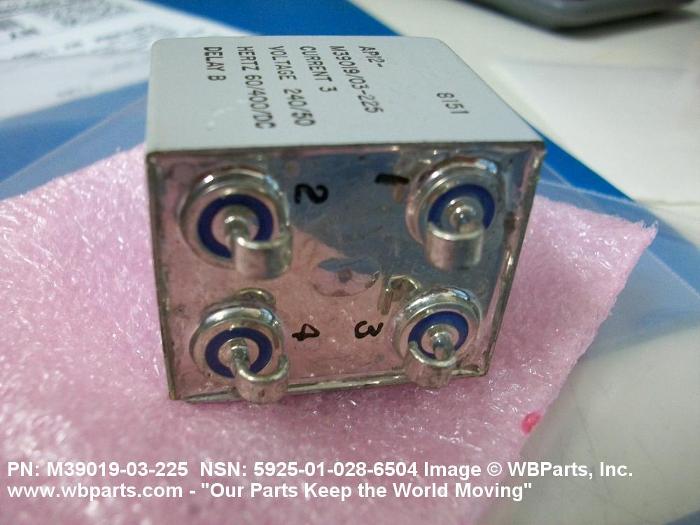

TERMINAL TYPE AND QUANTITY	4 WIRE HOOK
INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED	FUNGUS RESISTANT AND HERMETICALLY SEALED
TEST DATA DOCUMENT	81349-MIL-PRF-39019 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-PRF-39019/3 GOVERNMENT SPECIFICATION
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-PRF-39019/3
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M39019/03-225

Restrictions/Controls & Freight Information | NSN 5925-01-028-6504

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	658	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5925-01-028-6504

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
