NSN 5925-01-017-3011 454D507G04, 01-017-3011, 010173011
Product Details | CIRCUIT BREAKER
5925-01-017-3011 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.
Part Alternates: 454D507G04, 5925-01-017-3011, 01-017-3011, 5925010173011, 010173011
Electrical and Electronic Equipment Components | Circuit Breakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 06 MAR 1976 | 01-017-3011 | 00136 ( CIRCUIT BREAKER ) |

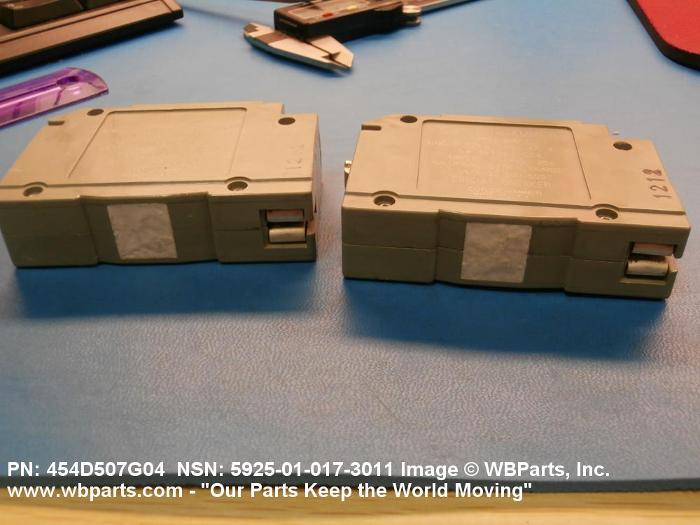

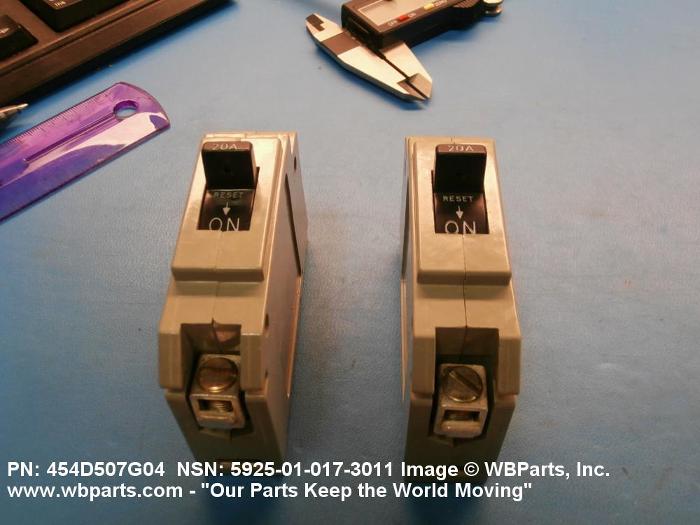

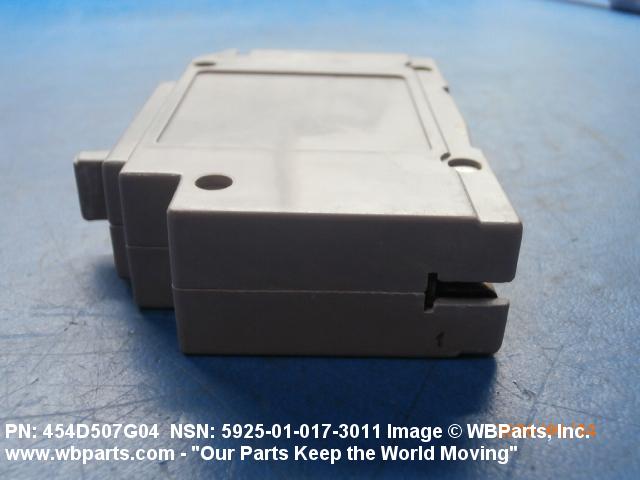

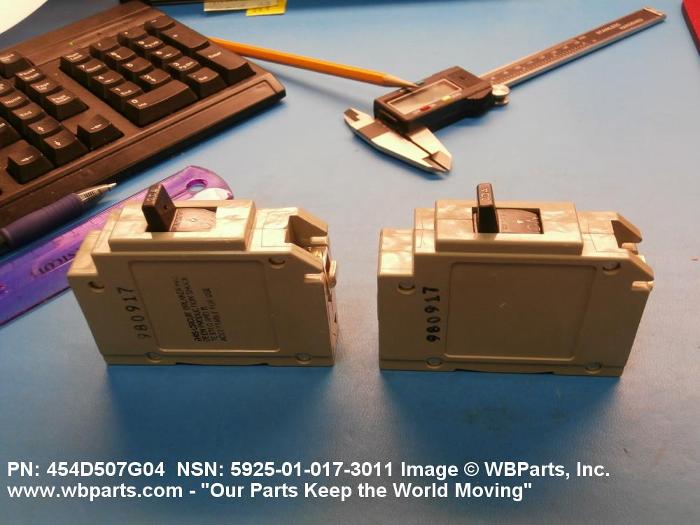

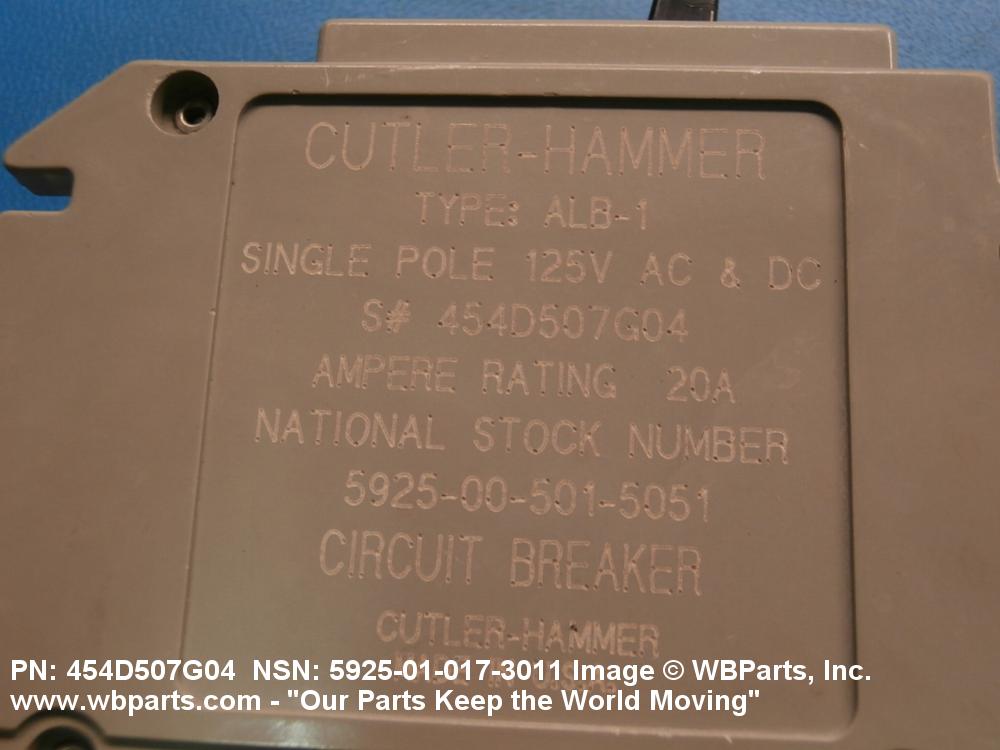

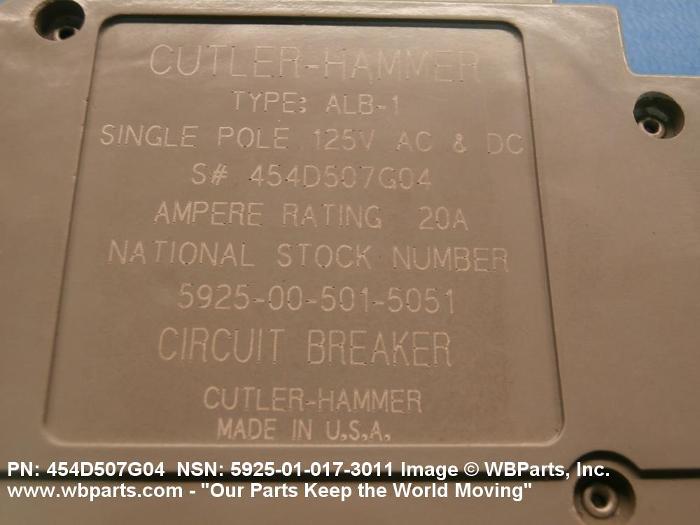

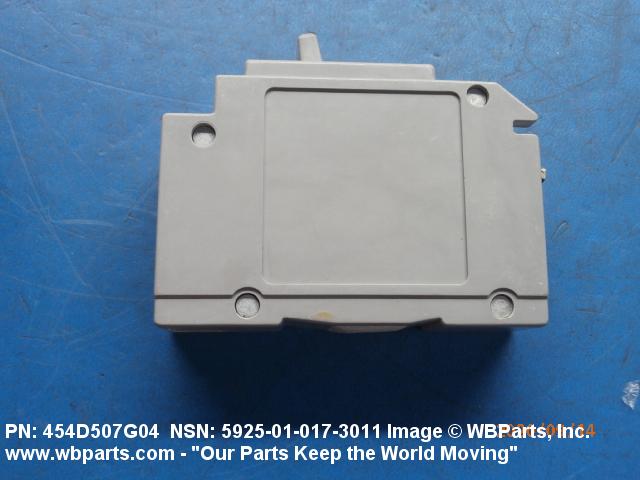

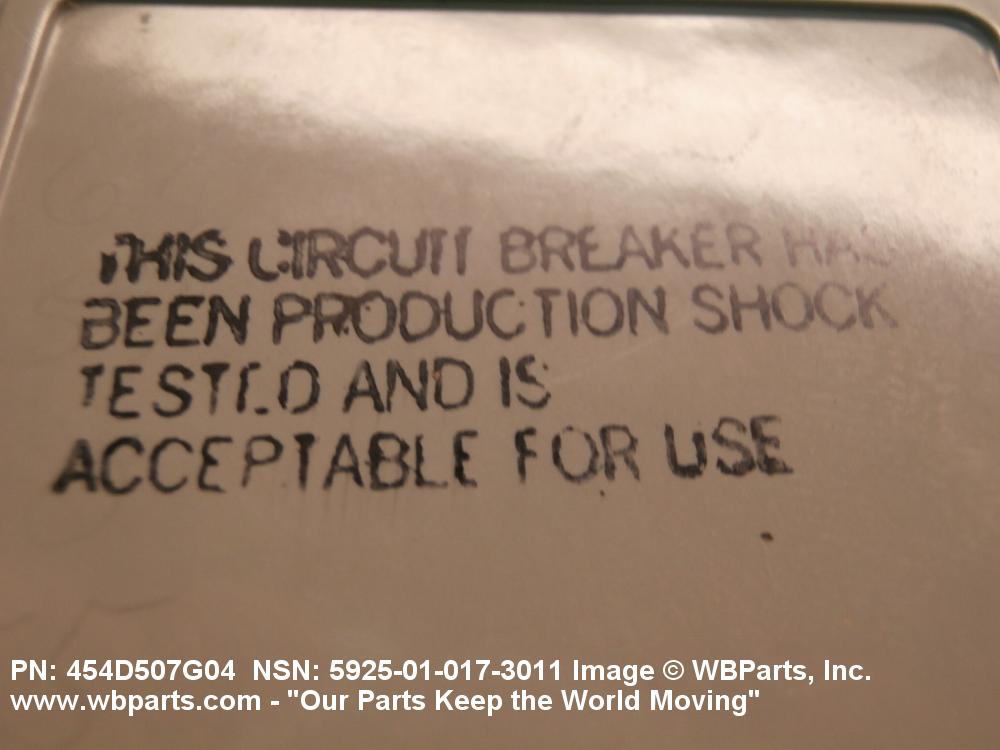

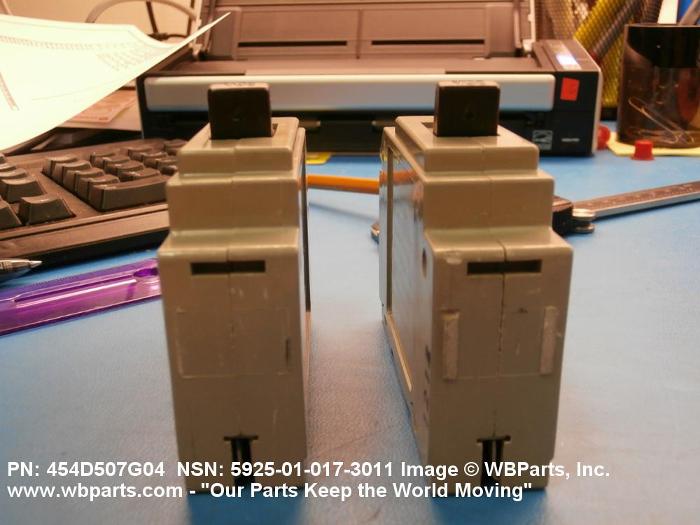

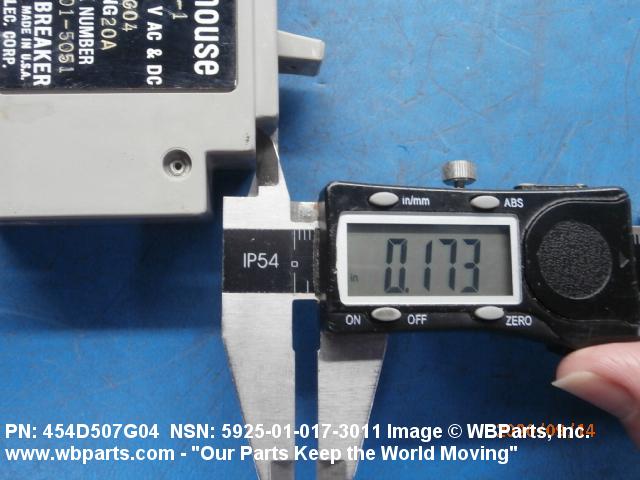

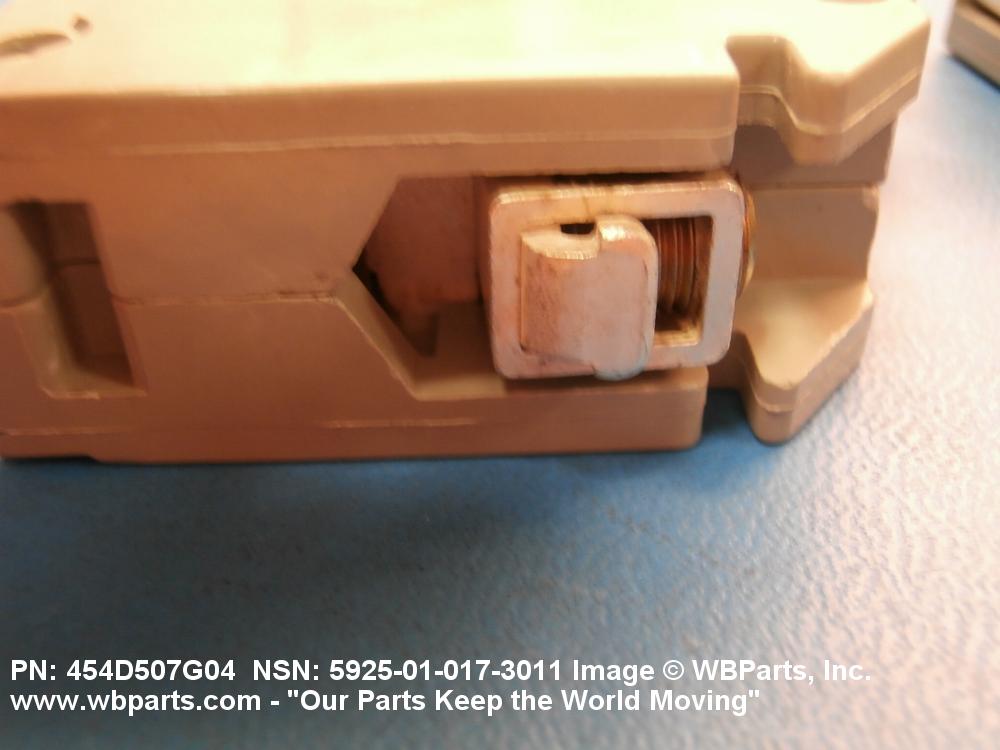

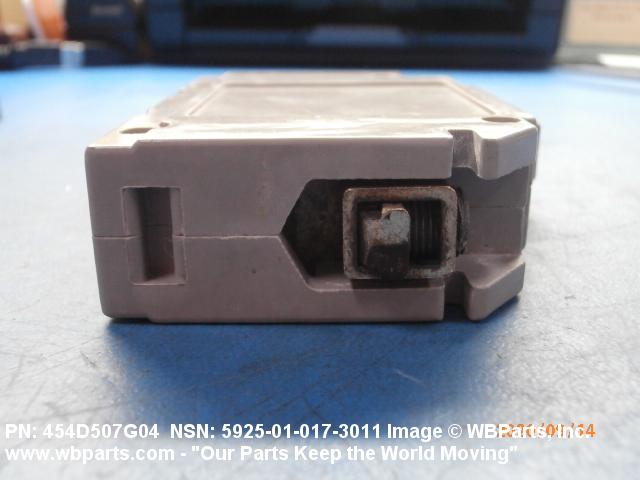

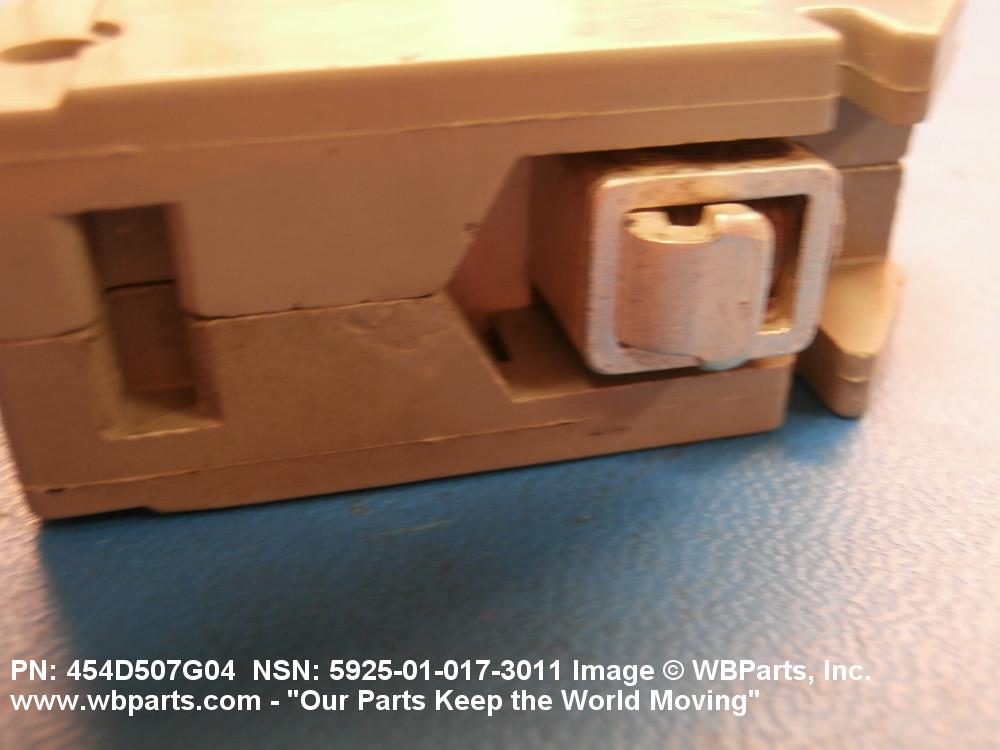

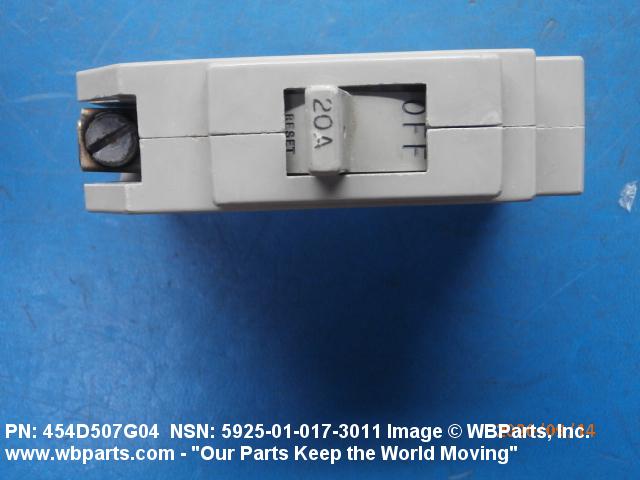

Drawings & Photos | NSN 5925-01-017-3011
Demand History | NSN 5925-01-017-3011
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 454D507G04 | 2020-06-177 | 14 | United States |
| 454D507G04 | 2020-06-177 | 102 | United States |
| 5925-01-017-3011 | 2020-04-115 | 10 | United States |
Cross Reference | NSN 5925-01-017-3011
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 454D507G04 | 89946 | EATON CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5925-01-017-3011
Technical Data | NSN 5925-01-017-3011
| Characteristic | Specifications |
|---|---|
| POLE QUANTITY | 1 |
| MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE | 20.0 AMPERES AC AND 20.0 AMPERES DC SINGLE LOCATION |
| OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS | 125.0 AC AND 125.0 DC SINGLE LOCATION |
| FREQUENCY IN HERTZ | 60.0 SINGLE LOCATION |
| MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS | 1000.0 AC AND 2000.0 DC SINGLE LOCATION |
| CIRCUIT PROTECTION TYPE | OVERCURRENT SINGLE LOCATION |
| TRIP RELEASE METHOD | THERMAL-MAGNETIC SINGLE LOCATION |
| TRIP RELEASE AMBIENT TEMP RATING | 40.0 DEG CELSIUS NOMINAL SINGLE LOCATION |
| TRIP RELEASE CHARACTERISTIC | INSTANTANEOUS AND TIME DELAY SINGLE LOCATION |
| TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT | 11.000 MINIMUM AT 200 PCT AND 90.000 MAXIMUM AT 200 PCT SINGLE LOCATION |
| ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT | 125.0 SINGLE LOCATION |
| RESET METHOD | MANUAL |
| MAIN CONTACT TRIPPING MECHANISM TYPE | TRIP FREE |
| BODY STYLE | 10A SINGLE POLE TYPE |

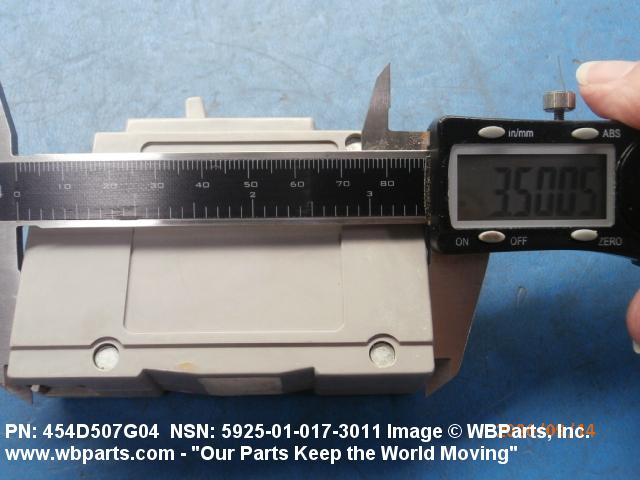

| BODY LENGTH | 3.500 INCHES NOMINAL |
| BODY WIDTH | 0.969 INCHES NOMINAL |

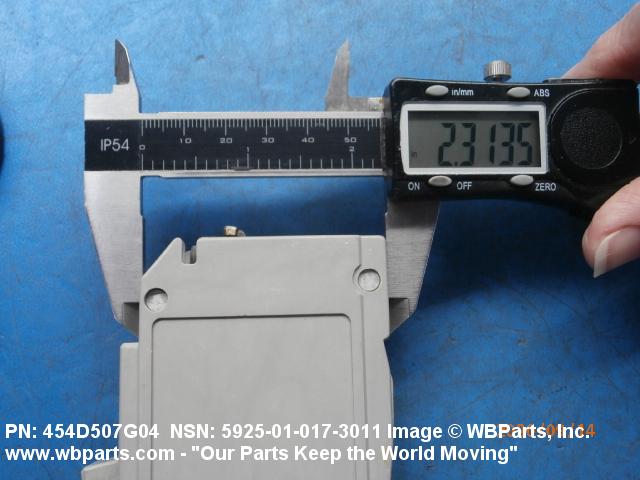

| BODY HEIGHT | 2.312 INCHES NOMINAL |
