NSN 5925-00-936-3909 CY06C272J , TY08272F, TY08-272F
Product Details | CIRCUIT BREAKER
5925-00-936-3909 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.
Part Alternates: CY06C272J , TY08272F, TY08-272F , TY08272J, TY08-272J , 4410005AMP, 44-100-0-5AMP, 48322, 4-832-2, 577R559H73, 86023410, 860234-10 , 5925-00-936-3909, 00-936-3909, 5925009363909, 009363909
Electrical and Electronic Equipment Components | Circuit Breakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 03 MAR 1967 | 00-936-3909 | 00136 ( CIRCUIT BREAKER ) |

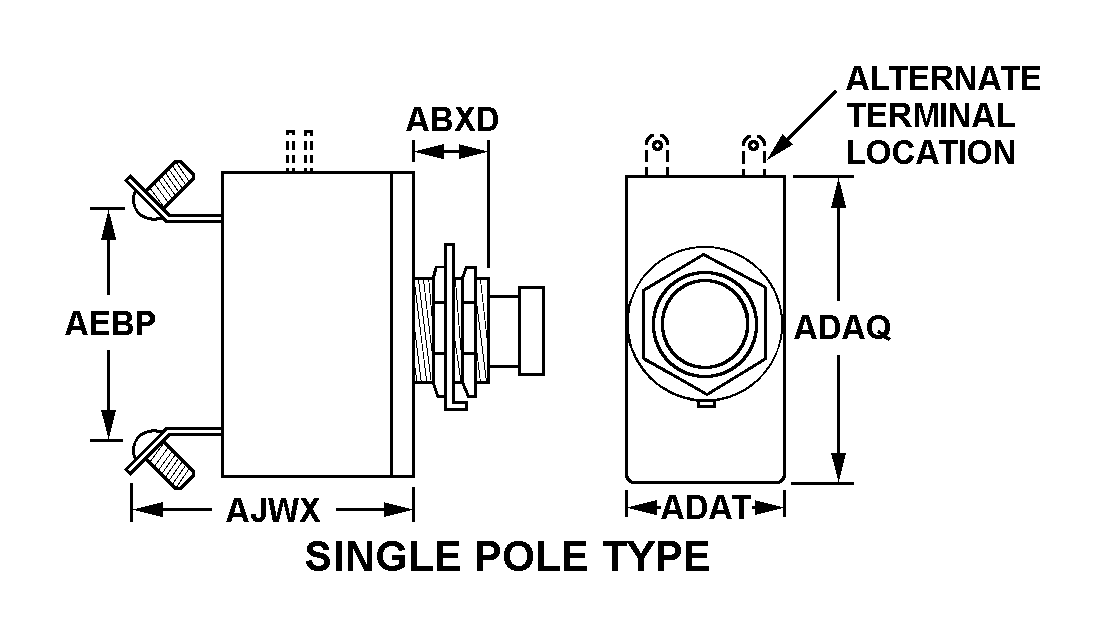

Drawings & Photos | NSN 5925-00-936-3909
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5925-00-936-3909
Technical Data | NSN 5925-00-936-3909
| Characteristic | Specifications |
|---|---|
| POLE QUANTITY | 1 |
| MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE | 5.0 AMPERES AC AND 5.0 AMPERES DC SINGLE LOCATION |
| OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS | 250.0 AC AND 24.0 DC SINGLE LOCATION |
| FREQUENCY IN HERTZ | 400.0 SINGLE LOCATION |
| MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS | 30.0 AC AND 30.0 DC SINGLE LOCATION |
| CIRCUIT PROTECTION TYPE | OVERCURRENT SINGLE LOCATION |
| TRIP RELEASE METHOD | THERMAL SINGLE LOCATION |
| INTERNAL TRIP RELEASE CONFIGURATION | SERIES TRIP SINGLE LOCATION |
| TRIP RELEASE AMBIENT TEMP RATING | 77.0 DEG FAHRENHEIT NOMINAL SINGLE LOCATION |
| TRIP RELEASE CHARACTERISTIC | TIME DELAY SINGLE LOCATION |
| TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT | 10.000 MINIMUM AT 200 PCT AND 40.000 MAXIMUM AT 200 PCT SINGLE LOCATION |
| ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT | 138.0 SINGLE LOCATION |
| RESET METHOD | MANUAL |
| MAIN CONTACT TRIPPING MECHANISM TYPE | TRIP FREE |
| BODY STYLE | 1A SINGLE POLE TYPE |
| BUSHING LENGTH | 0.395 INCHES NOMINAL |
| BODY LENGTH | 0.750 INCHES NOMINAL |
| BODY WIDTH | 0.434 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH | 0.500 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.670 INCHES NOMINAL |
| CASE MATERIAL | PLASTIC |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 0.438 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| MANUAL ACTUATOR TYPE AND QUANTITY | 1 PUSH BUTTON |
| ACTUATOR FUNCTION | RESET |
| ACTUATOR POSITION DESIGNATION | AT POLE ONE |
| TERMINAL TYPE AND QUANTITY | 2 QUICK DISCONNECT, MALE |
| INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED | SHOCKPROOF |
| III ARC QUENCHING METHOD | AIR |
| III STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
