NSN 5925-00-929-7717 MS265745, MS26574-5, AS26574

Product Details | CIRCUIT BREAKER

5925-00-929-7717 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.

Part Alternates: MS265745, MS26574-5, AS26574, AS58091, D727425, D7274-2-5, GC885FD5, MILC5809, MIL-C-5809, 11040390-3, 235986 , 36001403, 3600140-3, 42000015, 4200-001-5 , 727425, 7274-2-5, 7274255, 7274-25-5, 7274265, 7274-26-5, 727725, 7277-2-5, 7S235986, 972.55.18.517, 9725518517, 5925-00-929-7717, 00-929-7717, 5925009297717, 110403903, 009297717

Electrical and Electronic Equipment Components | Circuit Breakers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	12 SEP 1966	00-929-7717	00136 ( CIRCUIT BREAKER )

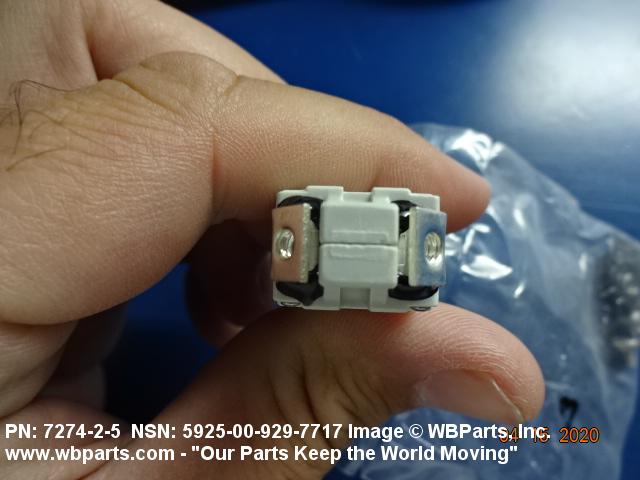

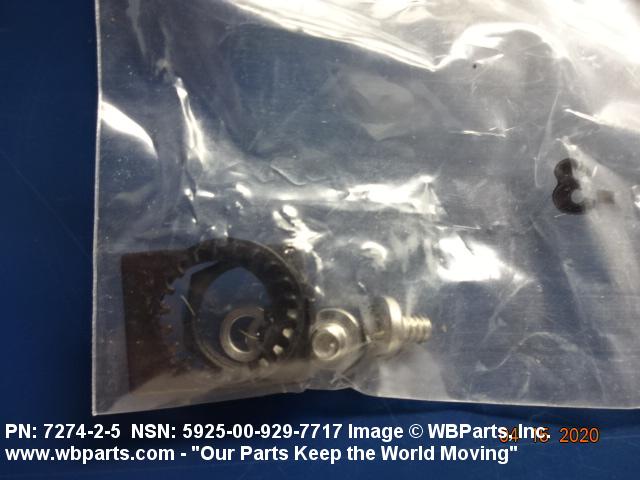

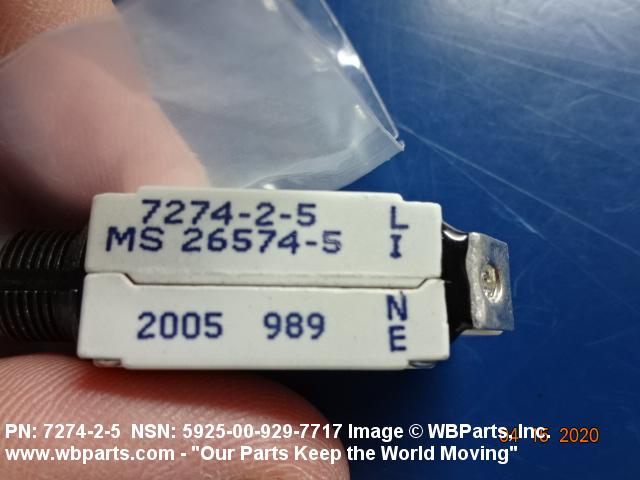

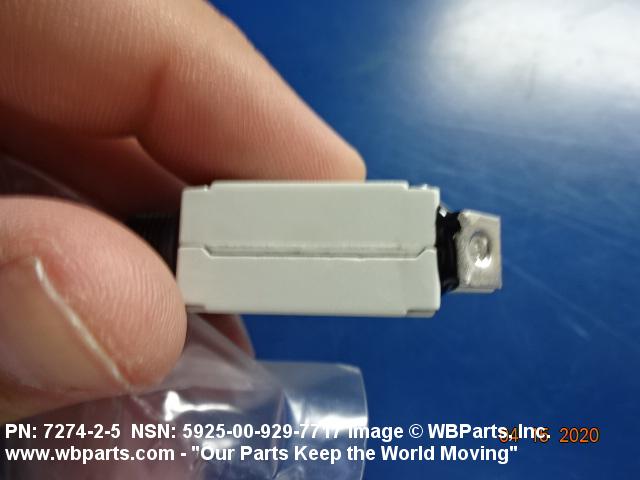

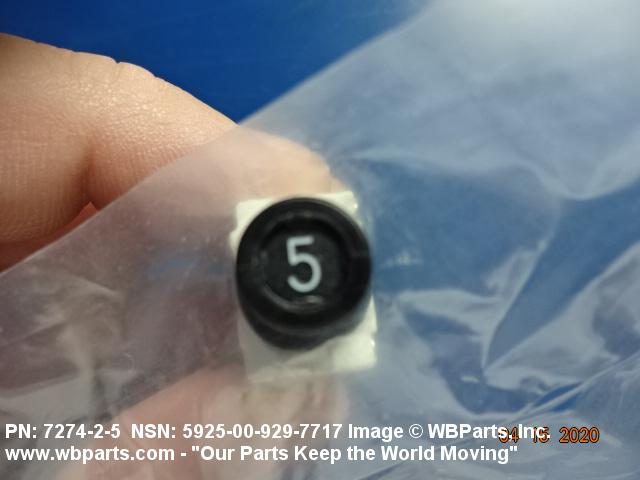

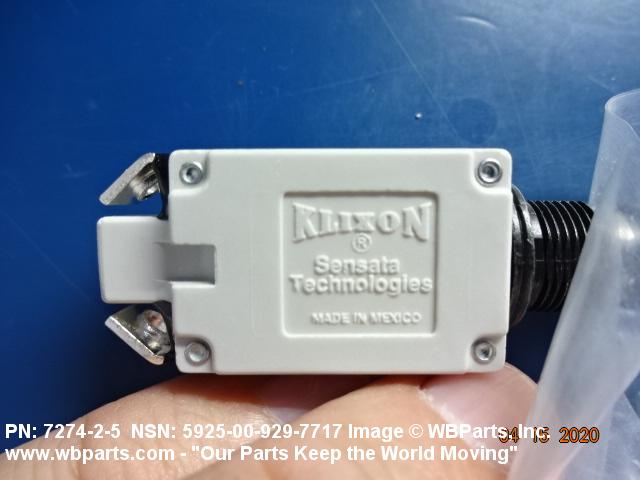

Drawings & Photos | NSN 5925-00-929-7717

Part Number	Request Date	QTY	Origin
5925-00-929-7717	2024-06-173	16	KR
MS265745	2020-10-303	5	UK
727725	2019-04-91	1	US
5925-00-929-7717	2019-03-80	1	AU
AS58091	2018-05-121	5	United States
MS265745	2018-01-31	1	US
MS26574-5	2016-07-211	2	MX
5925-00-929-7717	2016-07-206	371	DIBBS
5925-00-929-7717	2016-04-111	596	DIBBS
5925-00-929-7717	2015-11-321	40	Malaysia
5925-00-929-7717	2015-11-311	40	Malaysia
5925-00-929-7717	2015-11-307	40	Malaysia
MS26574-5	2015-04-91	160	Greece
5925-00-929-7717	2013-12-352	10	MANUAL
7274-2-5	2013-12-352	10	US
MS26574-5	2013-01-04	2	Indonesia
5925-00-929-7717	2012-11-332	0	DIBBS
5925-00-929-7717	2012-08-226	617	DIBBS
5925-00-929-7717	2012-08-215	718	DIBBS
5925-00-929-7717	2012-07-202	287	DIBBS
5925-00-929-7717	2012-06-163	406	DIBBS
5925-00-929-7717	2012-06-159	460	DIBBS
5925-00-929-7717	2012-05-125	323	DIBBS
MIL-C-5809	2011-06-155	1	Saudi Arabia
MS265745	2011-04-119	0	United States
9725518517	2010-12-350	10	CN

Cross Reference | NSN 5925-00-929-7717

Part Number	Cage Code	Manufacturer
11040390-3	18876	U S ARMY AVIATION AND MISSILE COMMAND
235986	H0212	KONINKLIJKE FABRIEK INVENTUM B.V.
3600140-3	07421	INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS
4200-001-5	76374	EATON CORPORATION DBA FLUID POWER DIV USE CAGE CODE
4200-001-5	81640	EATON CORPORATION DBA FLUID POWER DIV
7274-2-5	82647	SENSATA TECHNOLOGIES, INC DIV SENSATA ATTLEBORO
7274-25-5	82647	SENSATA TECHNOLOGIES, INC DIV SENSATA ATTLEBORO
7274-26-5	82647	SENSATA TECHNOLOGIES, INC DIV SENSATA ATTLEBORO
7277-2-5	82647	SENSATA TECHNOLOGIES, INC DIV SENSATA ATTLEBORO
7277-2-5	FA9C1	APEX AIRCRAFT
7S235986	H0212	KONINKLIJKE FABRIEK INVENTUM B.V.
972.55.18.517	S4080	PILATUS AIRCRAFT LTD
AS26574	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS58091	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
D7274-2-5	82647	SENSATA TECHNOLOGIES, INC DIV SENSATA ATTLEBORO
GC885FD5	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
MIL-C-5809	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS26574-5	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS26574-5	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5925-00-929-7717

Compare

Related Products | NSN 5925-00-929-7717

5925-00-929-7718, 5925-00-929-7719, 5925-00-929-7720, 5925-00-929-7725, 5925-00-929-7727

Technical Data | NSN 5925-00-929-7717

Characteristic	Specifications
POLE QUANTITY	1
MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE	5.0 AMPERES AC AND 5.0 AMPERES DC SINGLE LOCATION
OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS	200.0 AC AND 28.0 DC SINGLE LOCATION
FREQUENCY IN HERTZ	400.0 SINGLE LOCATION
MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS	800.0 AC AND 800.0 DC SINGLE LOCATION
CIRCUIT PROTECTION TYPE	OVERCURRENT SINGLE LOCATION
TRIP RELEASE METHOD	THERMAL SINGLE LOCATION
INTERNAL TRIP RELEASE CONFIGURATION	SERIES TRIP SINGLE LOCATION
TRIP RELEASE AMBIENT TEMP RATING	25.0 DEG CELSIUS NOMINAL SINGLE LOCATION
TRIP RELEASE CHARACTERISTIC	TIME DELAY SINGLE LOCATION
TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT	2.000 MINIMUM AT 200 PCT AND 20.000 MAXIMUM AT 200 PCT SINGLE LOCATION
ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT	145.0 SINGLE LOCATION
RESET METHOD	MANUAL
MAIN CONTACT TRIPPING MECHANISM TYPE	TRIP FREE
BODY STYLE	1A SINGLE POLE TYPE
BUSHING LENGTH	0.359 INCHES NOMINAL
BODY LENGTH	0.780 INCHES MAXIMUM
BODY WIDTH	0.580 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH	0.593 INCHES NOMINAL
MOUNTING SURFACE TO TERMINAL END DISTANCE	1.420 INCHES MAXIMUM
CASE MATERIAL	METAL
MOUNTING FACILITY TYPE AND QUANTITY	1 THREADED BUSHING W/PANEL SEAL
THREAD SERIES DESIGNATOR	UN
NOMINAL THREAD SIZE	0.438 INCHES
THREAD QUANTITY PER INCH	32
MANUAL ACTUATOR TYPE AND QUANTITY	1 PUSH-PULL
ACTUATOR FUNCTION	TRIP-RESET
ACTUATOR POSITION DESIGNATION	AT POLE ONE
TERMINAL TYPE AND QUANTITY	2 TAB W/SCREW
INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED	EXPLOSION RESISTANT AND MOISTURE RESISTANT
TEST DATA DOCUMENT	81349-MIL-C-5809 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS26574 GOVERNMENT STANDARD
III STORAGE TYPE	GENERAL PURPOSE WAREHOUSE
III FRAGILITY FACTOR	MODERATELY RUGGED
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-C-5809
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS26574-5

Restrictions/Controls & Freight Information | NSN 5925-00-929-7717

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	658	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5925-00-929-7717

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	T	Other Electronics Equipment
Weapons Systems/End Item or Homogeneous Group	TL	Guardrail/Common Sensors
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
