NSN 5925-00-728-9610 TFJ236225, TFJ236225WL, 475208

Product Details | CIRCUIT BREAKER

5925-00-728-9610 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.

Part Alternates: TFJ236225, TFJ236225WL, 475208, 5925-00-728-9610, 00-728-9610, 5925007289610, 007289610

Electrical and Electronic Equipment Components | Circuit Breakers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1961	00-728-9610	00136 ( CIRCUIT BREAKER )

Drawings & Photos | NSN 5925-00-728-9610

Part Number	Request Date	QTY	Origin
TFJ236225	2024-07-200	11	DIBBS
TFJ236225	2024-07-193	4	DIBBS
TFJ236225	2024-07-186	5	DIBBS
TFJ236225	2024-06-156	2	DIBBS
TFJ236225	2024-05-144	1	DIBBS
TFJ236225	2024-05-141	2	DIBBS
TFJ236225	2024-05-133	1	DIBBS
TFJ236225	2024-02-53	1	DIBBS
TFJ236225	2024-02-42	1	DIBBS
TFJ236225	2023-12-339	2	DIBBS
TFJ236225	2022-10-304	1	DIBBS
TFJ236225WL	2022-09-249	2	Taiwan
TFJ236225	2022-06-174	2	DIBBS
5925-00-728-9610	2022-06-166	2	TW
TFJ236225	2022-06-163	2	DIBBS
TFJ236225	2022-01-03	2	DIBBS
TFJ236225	2021-12-355	2	DIBBS
5925-00-728-9610	2020-10-295	2	United States
TFJ236225	2019-10-289	1	DIBBS
5925-00-728-9610	2016-07-209	1	DIBBS
5925-00-728-9610	2015-09-273	1	DIBBS
5925-00-728-9610	2015-03-61	2	DIBBS
5925-00-728-9610	2014-02-54	1	DIBBS
5925-00-728-9610	2013-04-115	1	DIBBS
5925-00-728-9610	2012-06-166	100	DIBBS
5925-00-728-9610	2012-01-22	2	DIBBS
TFJ236225WL	2010-11-327	147	CA
5925-00-728-9610	2010-11-322	147	DIBBS
5925-00-728-9610	2010-10-288	146	DIBBS
5925-00-728-9610	2010-05-132	146	DIBBS
5925-00-728-9610	2010-04-106	150	DIBBS
5925-00-728-9610	2009-12-356	101	DIBBS
5925-00-728-9610	2008-12-345	7	DIBBS
5925-00-728-9610	2008-08-224	7	DIBBS
5925-00-728-9610	2008-02-36	3	DIBBS
5925-00-728-9610	2007-11-317	8	DIBBS

Cross Reference | NSN 5925-00-728-9610

Part Number	Cage Code	Manufacturer
475208	51818	PORTA POWER PAK INC
TFJ236225	60969	GENERAL ELECTRIC CO ELECTRICAL DISTRIBUTION AND CONTROL
TFJ236225WL	03497	GENERAL ELECTRIC CO OUTDOOR BREAKER BUSINESS SECTION
TFJ236225WL	03538	LOCKHEED MARTIN CORPORATION DIV MST

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5925-00-728-9610

Compare

Related Products | NSN 5925-00-728-9610

5925-00-728-9612, 5925-00-728-9613, 5925-00-728-9614, 5925-00-728-9615, 5925-00-729-0221

Technical Data | NSN 5925-00-728-9610

Characteristic	Specifications
POLE QUANTITY	3
MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE	225.0 AMPERES AC ALL LOCATIONS
OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS	600.0 AC ALL LOCATIONS
FREQUENCY IN HERTZ	60.0 ALL LOCATIONS
MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS	22000.0 AC ALL LOCATIONS
CIRCUIT PROTECTION TYPE	OVERCURRENT ALL LOCATIONS
TRIP RELEASE METHOD	THERMAL-MAGNETIC ALL LOCATIONS
TRIP RELEASE AMBIENT TEMP RATING	50.0 DEG CELSIUS NOMINAL ALL LOCATIONS
TRIP RELEASE CHARACTERISTIC	TIME DELAY ALL LOCATIONS
TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT	9.000 MAXIMUM AT 100 PCT ALL LOCATIONS
ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT	125.0 ALL LOCATIONS
RESET METHOD	MANUAL
MAIN CONTACT TRIPPING MECHANISM TYPE	TRIP FREE

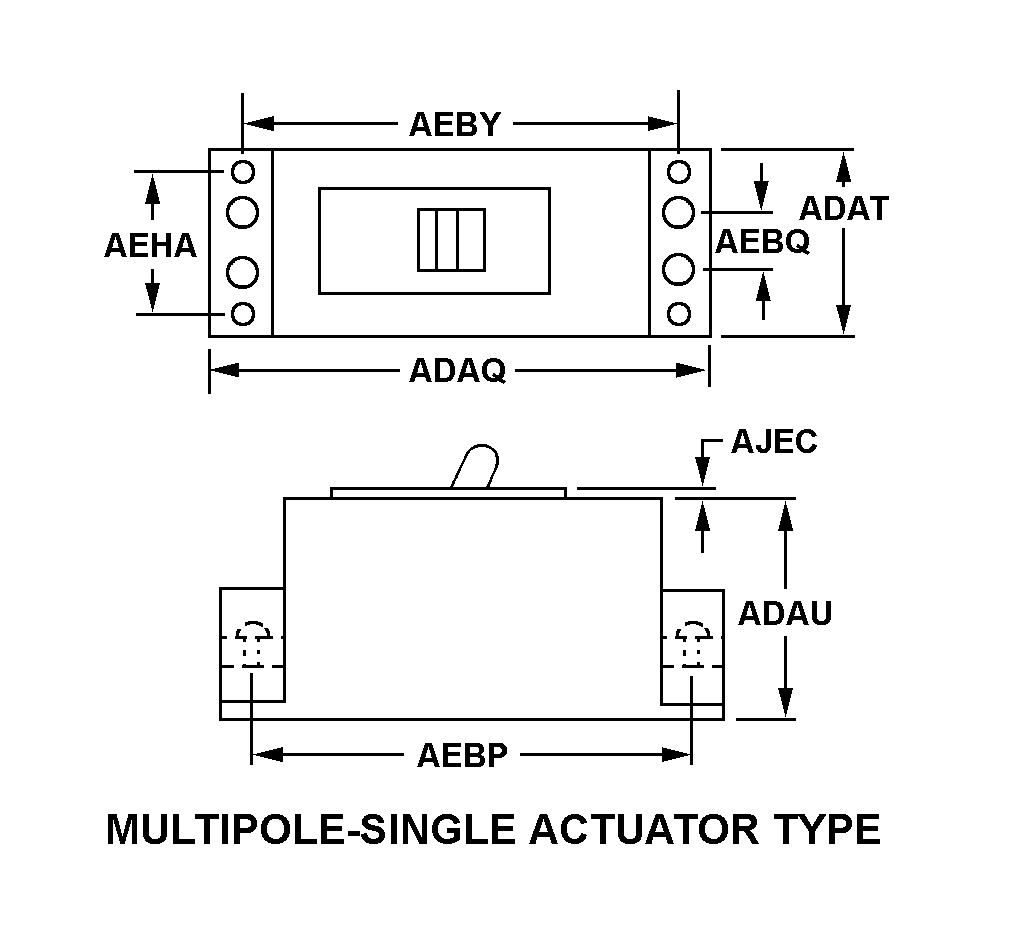

BODY STYLE	9B MULTIPOLE-SINGLE ACTUATOR TYPE
BODY LENGTH	10.125 INCHES NOMINAL
BODY WIDTH	4.125 INCHES NOMINAL
BODY HEIGHT	3.188 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH	9.375 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO WIDTH	1.375 INCHES NOMINAL
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH	7.750 INCHES NOMINAL
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH	1.375 INCHES NOMINAL
BOSS HEIGHT	0.150 INCHES NOMINAL
CASE MATERIAL	PLASTIC
MOUNTING FACILITY TYPE AND QUANTITY	4 UNTHREADED HOLE
UNTHREADED MOUNTING HOLE DIAMETER	0.190 INCHES NOMINAL
MANUAL ACTUATOR TYPE AND QUANTITY	1 TOGGLE
ACTUATOR FUNCTION	TRIP-RESET
ACTUATOR POSITION DESIGNATION	AT POLE TWO
TERMINAL TYPE AND QUANTITY	6 COMPRESSION
INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED	FUNGUS RESISTANT
III STORAGE TYPE	GENERAL PURPOSE WAREHOUSE

Restrictions/Controls & Freight Information | NSN 5925-00-728-9610

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	658	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5925-00-728-9610

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	3	INSURANCE ITEMS. This code will identify items for which there may be occasional intermittent demands not sufficiently repetitive to warrant classification as regular stock items, but for which prudence requires that nominalquan tity be stocked for the reason that the essentiality of the item and the long lead time required to obtain such items by purchase would create an unacceptable situation if no stock were carried.
Specific Group/Generic Code	4	Communications Systems Agency and Satellite Communications
Weapons Systems/End Item or Homogeneous Group	4A	AN/FSC-78/GSC-39
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
