NSN 5925-00-628-7780 ETN6736, 00-628-7780, 006287780
Product Details | CIRCUIT BREAKER TRIPPER
5925-00-628-7780 An electromechanical device which releases the holding mechanism and permits the contacts of a circuit breaker to open. It is a replacement part of a circuit breaker. Does not include relays. See also THERMAL RELEASE, CIRCUIT BREAKER.
Part Alternates: ETN6736, 5925-00-628-7780, 00-628-7780, 5925006287780, 006287780
Electrical and Electronic Equipment Components | Circuit Breakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-628-7780 | 04558 ( TRIPPER, CIRCUIT BREAKER ) |

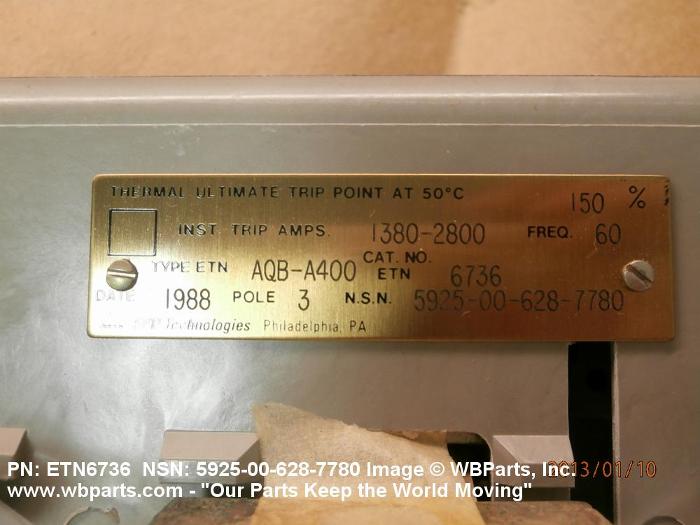

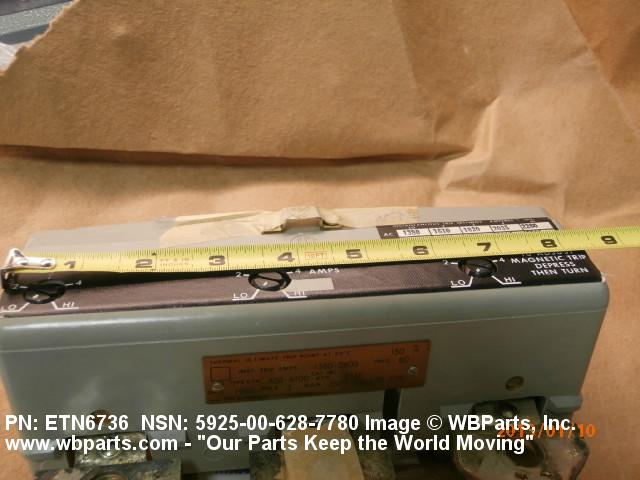

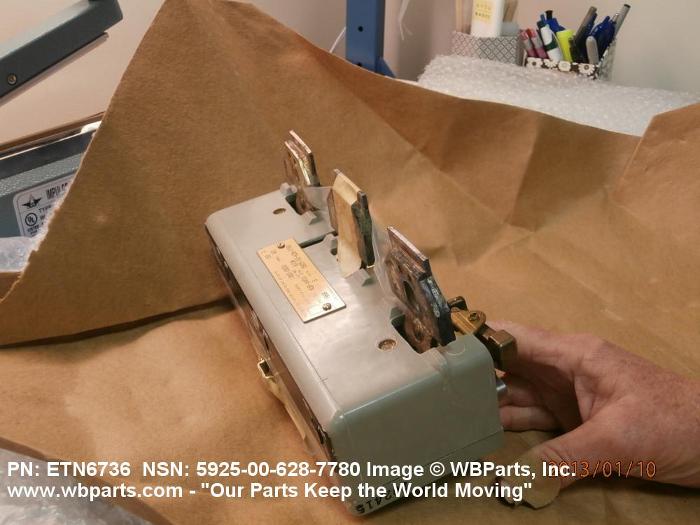

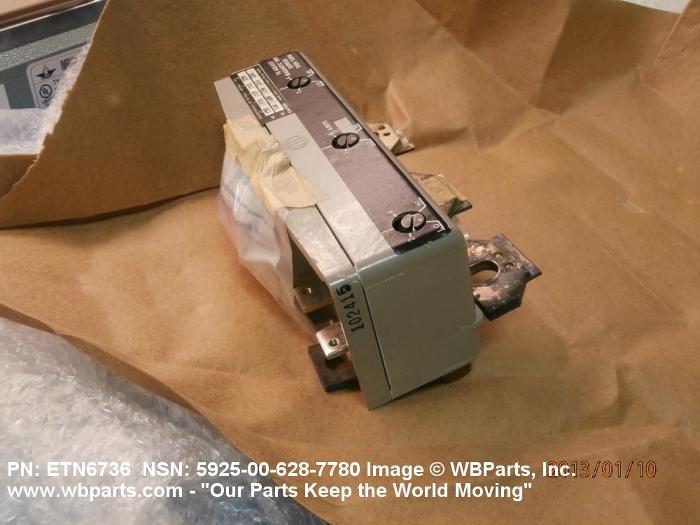

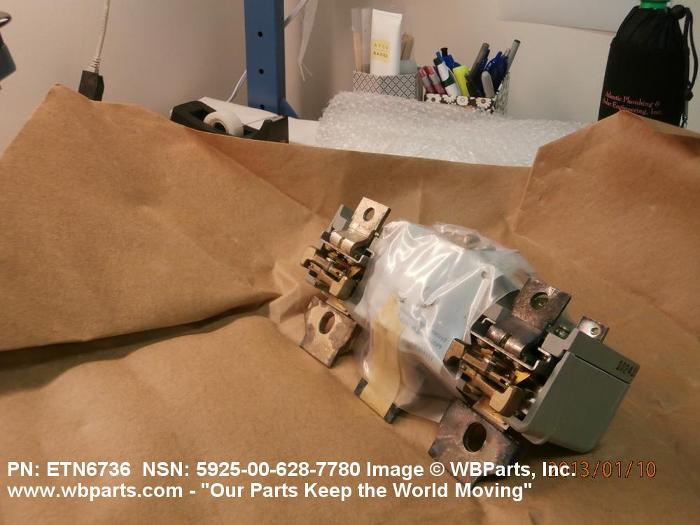

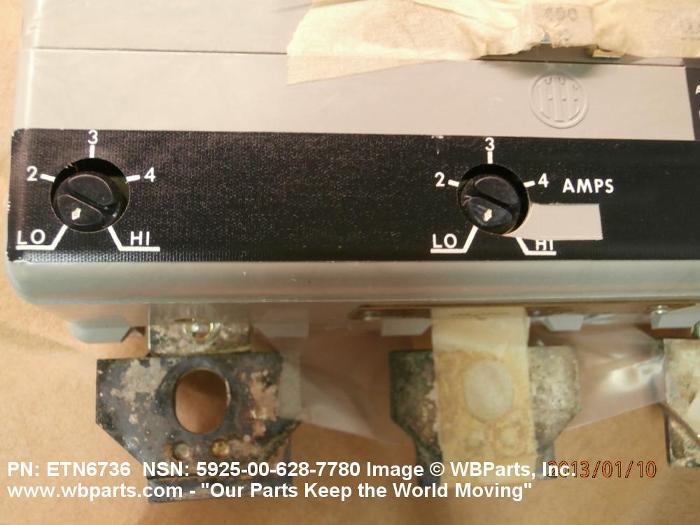

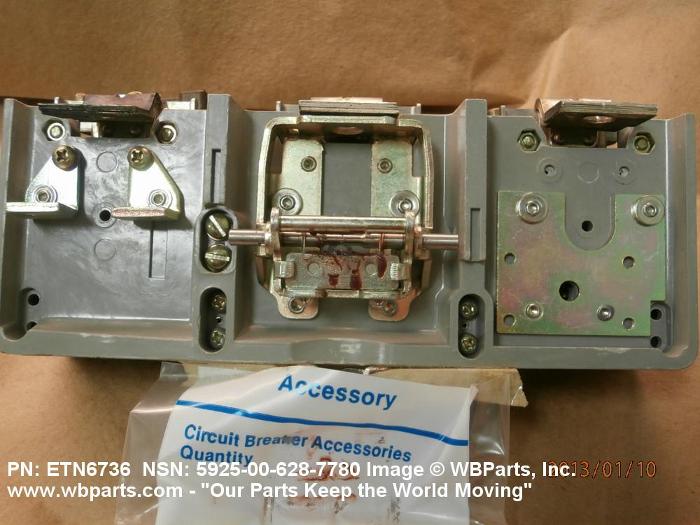

Drawings & Photos | NSN 5925-00-628-7780
Demand History | NSN 5925-00-628-7780
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5925-00-628-7780 | 2012-12-363 | 1 | Taiwan |
Cross Reference | NSN 5925-00-628-7780
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ETN6736 | 30086 | SPD ELECTRICAL SYSTEMS, INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5925-00-628-7780
Related Products | NSN 5925-00-628-7780
Technical Data | NSN 5925-00-628-7780
| Characteristic | Specifications |
|---|---|
| POLE QUANTITY | 3 |
| MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE | 400.0 AMPERES AC AND 400.0 AMPERES DC ALL LOCATIONS |
| OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS | 500.0 AC AND 250.0 DC ALL LOCATIONS |
| FREQUENCY IN HERTZ | 60.0 ALL LOCATIONS |
| CIRCUIT PROTECTION TYPE | OVERCURRENT ALL LOCATIONS |
| TRIP RELEASE METHOD | THERMAL-MAGNETIC ALL LOCATIONS |
| TRIP RELEASE AMBIENT TEMP RATING | 50.0 DEG CELSIUS NOMINAL ALL LOCATIONS |
| TRIP RELEASE CHARACTERISTIC | INSTANTANEOUS AND TIME DELAY ALL LOCATIONS |
| TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT | 25.000 NOMINAL AT 600 PCT ALL LOCATIONS |
| ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT | 105.0 ALL LOCATIONS |
| BODY STYLE | 1D RECTANGULAR DIMENSIONAL ENVELOPE |

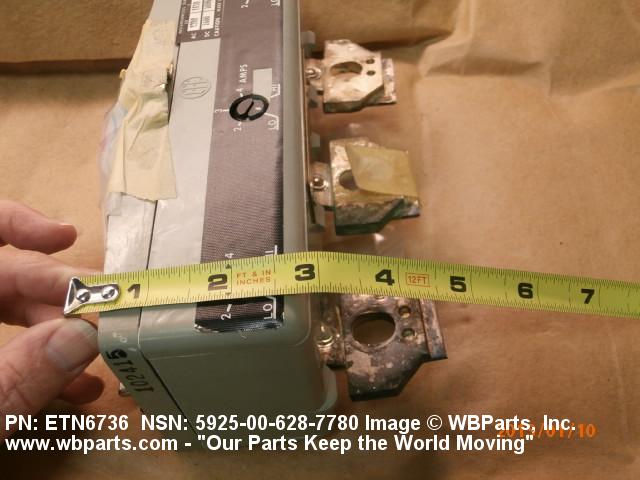

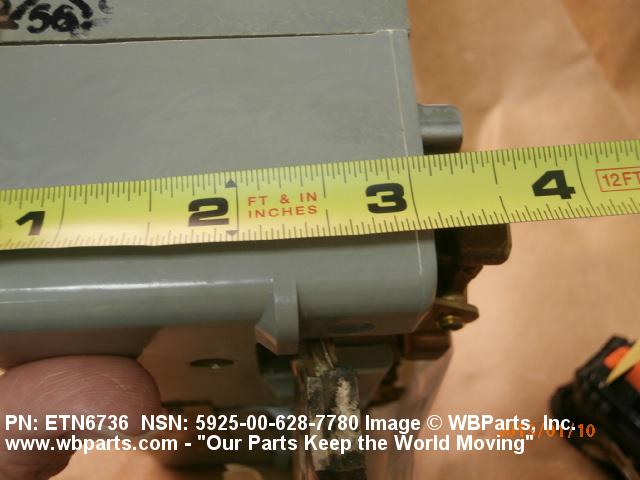

| OVERALL LENGTH | 8.438 INCHES NOMINAL |
| OVERALL HEIGHT | 3.875 INCHES NOMINAL |
| OVERALL WIDTH | 4.500 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 6 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.406 INCHES MINIMUM AND 0.531 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 6 SCREW |
| FEATURES PROVIDED | ADJUSTABLE TRIP RELEASE |

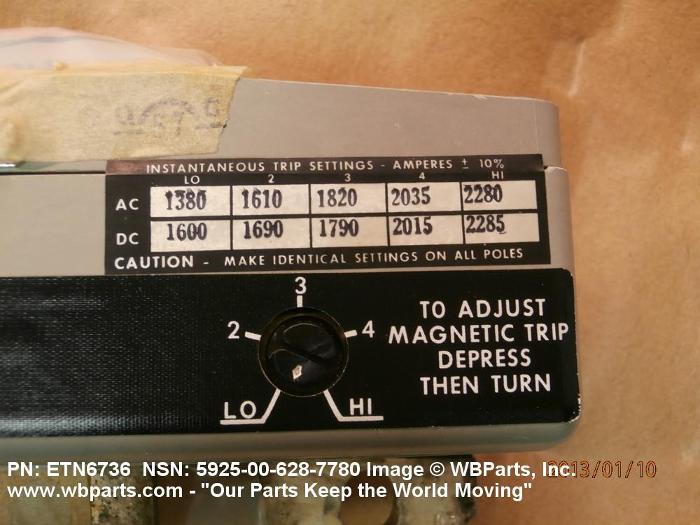

| ADJUSTABLE TRIP SETTING CURRENT RANGE PER POLE IN AMPS | 1380.0 TO 2280.0 AC AND 1600.0 TO 2285.0 DC ALL LOCATIONS |
| MANUFACTURERS CODE | 30086 |
| DESIGN CONTROL REFERENCE | ETN6736 |
Restrictions/Controls & Freight Information | NSN 5925-00-628-7780
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5925-00-628-7780
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
