Product Details | CIRCUIT BREAKER TRIPPER

5925-00-727-7637 An electromechanical device which releases the holding mechanism and permits the contacts of a circuit breaker to open. It is a replacement part of a circuit breaker. Does not include relays. See also THERMAL RELEASE, CIRCUIT BREAKER.

Part Alternates: 373D831G01, 5925-00-727-7637, 00-727-7637, 5925007277637, 007277637

Electrical and Electronic Equipment Components | Circuit Breakers

Supply Group (FSG) NSN Assign. NIIN
59 16 FEB 1968 00-727-7637

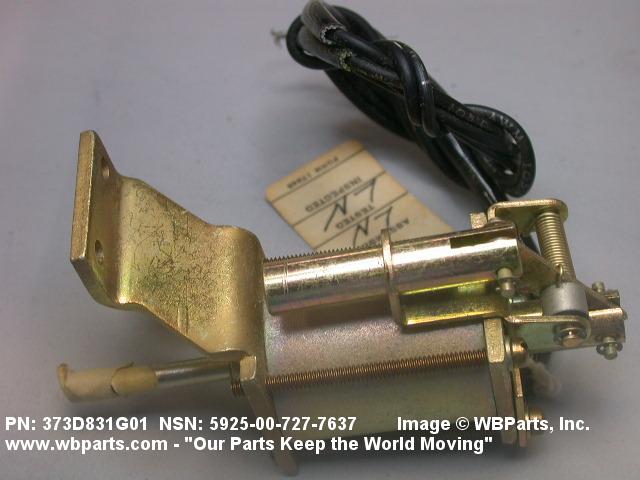

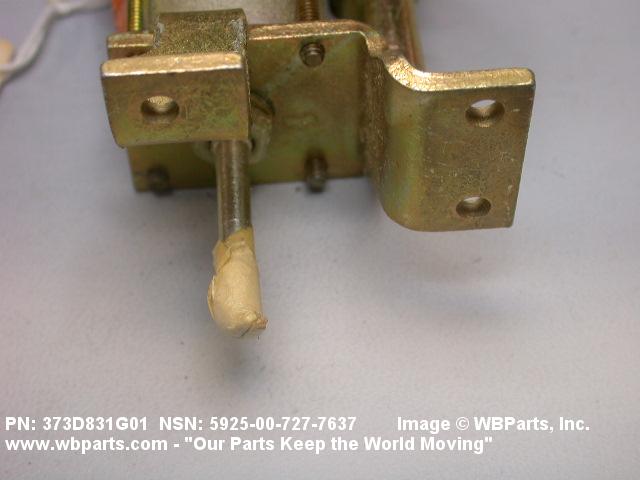

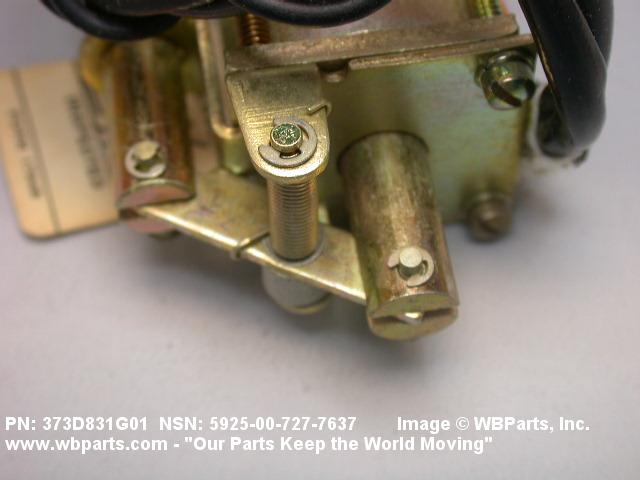

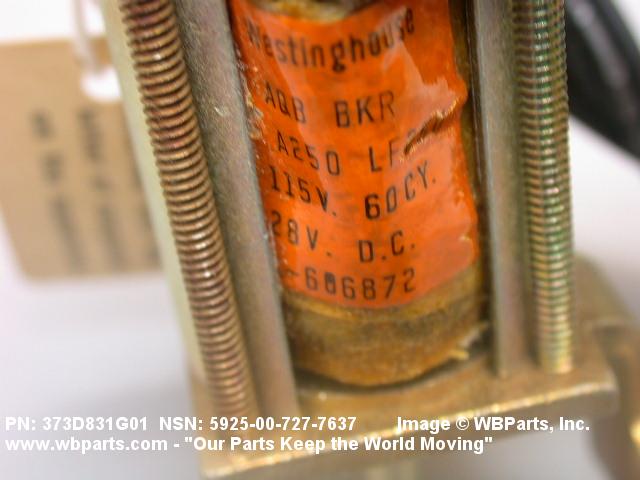

Drawings & Photos | NSN 5925-00-727-7637


Demand History | NSN 5925-00-727-7637

Part Number Request Date QTY Origin
5925-00-727-7637 2017-09-271 1 Taiwan
373D831G01 2017-07-207 1 Taiwan
5925-00-727-7637 2017-07-207 1 MANUAL
5925-00-727-7637 2013-05-123 2 Taiwan
373D831G01 2008-02-39 1 us
5925-00-727-7637 2007-06-171 1 Spain
5925-00-727-7637 2007-03-72 2 DIBBS
373D831G01 2006-11-325 1 us

Cross Reference | NSN 5925-00-727-7637

Part Number Cage Code Manufacturer
373D831G01 11660 WESTINGHOUSE ELECTRIC CORP CONTROL BUSINESS UNIT
373D831G01 89946 EATON CORPORATION

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5925-00-727-7637

Technical Data | NSN 5925-00-727-7637

Characteristic Specifications
MANUAL ACTUATOR TYPE AND QUANTITY 1 TOGGLE
ACTUATOR FUNCTION TRIP-RESET
III STORAGE TYPE GENERAL PURPOSE WAREHOUSE

Restrictions/Controls & Freight Information | NSN 5925-00-727-7637

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 061300 CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating P 77.5
Water commodity Code 658 unknown
Originating Activity Code HD Naval Inventory Control Point
Mechanicsburg, PA 17055-0788
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5925-00-727-7637

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
